SUPPLIED ACCESSORIES

Please check and identify the supplied accessories.

Use numbers indicated in parentheses when asking for

replacement parts. (As of January 2008)

1 x AC mains lead

For the United Kingdom

(K2CT3CA00004)

For Continental Europe

(K2CQ2CA00007)

For Australia and N.Z.

(K2CJ2DA00008)

For Southeast Asia

(K2CQ2CA00006)

1 x Remote control

For the United Kingdom,

Continental Europe,

Australia and N.Z.

(N2QAYB000252)

For Southeast Asia

(N2QAYB000253)

The player plays DVD-Video marked with labels containing the

region number or "ALL".

Region

The United Kingdom and Continental Europe

Southeast Asia

Australia and N.Z.

For the United Kingdom and Continental Europe

Example:

ALL

Before connecting, operating or adjusting this product, please

read the instructions completely.

Please keep this manual for future reference.

Unless otherwise indicated, illustrations in these operating

instructions are for the United Kingdom and Continental Europe.

Operations in these instructions are described mainly with the remote

control, but you can perform the operations on the main unit if the

controls are the same.

Your unit may not look exactly the same as illustrated.

Note:

"EB" on the packaging indicates the United Kingdom.

EB GCS GN

2 x Remote control batteries

1 x FM indoor antenna

(RSA0007-L1)

1 x AM loop antenna

(N1DAAAA00001)

1 x Antenna plug adaptor

For the United Kingdom

(K1YZ02000013)

1 x Video cable

For Southeast Asia,

Australia and N.Z.

(K2KA2BA00001)

Number

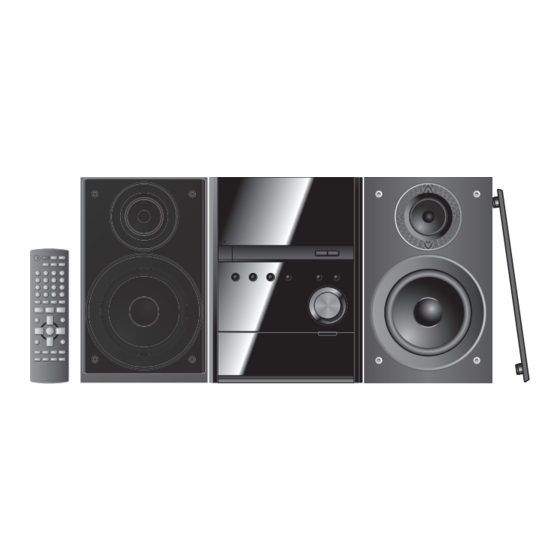

Operating Instructions

DVD Stereo System

Model No.

GETTING STARTED

Caution for AC Mains Lead ........................ 4

Safety precautions ..................................... 4

Placement of speakers ............................... 5

Preparing the remote control .................... 5

DEMO function ............................................ 5

QUICK START GUIDE

Simple setup ............................................... 6

Performing QUICK SETUP ......................... 8

Handling of the disc tray and disc ............ 8

Disc information ......................................... 9

Overview of controls ................................ 10

DISC OPERATIONS

Discs - Basic play ................................... 12

Discs - Advanced play ........................... 13

Discs - Playing data discs using

navigation menus ................................. 15

Discs - Using on-screen menus ............ 16

Discs - Changing the player settings ... 19

OTHER OPERATIONS

Using the FM/AM radio ............................. 23

For Southeast Asia

Enjoying karaoke

Using sound effects ................................. 25

Using the timers ....................................... 25

Using other equipment ............................ 26

REFERENCE

Troubleshooting guide ............................. 30

Glossary .................................................... 34

Speciﬁ cations ........................................... 35

Maintenance ............................... Back cover

SC-PM86D

............ 24

RQTV0265-4B

Table of Contents

Need help?

Do you have a question about the SC-PM86D and is the answer not in the manual?

Questions and answers

Summary of Contents for Panasonic SC-PM86D

Page 1: Table Of Contents
Operating Instructions DVD Stereo System SC-PM86D Model No. SUPPLIED ACCESSORIES SUPPLIED ACCESSORIES Table of contents Please check and identify the supplied accessories. Use numbers indicated in parentheses when asking for replacement parts. (As of January 2008) GETTING STARTED 1 x AC mains lead 2 x Remote control batteries Caution for AC Mains Lead ......
Page 2 • Visit our website for product information • E-mail: customer.care@panasonic.co.uk System SC-PM86D Direct Sales at Panasonic UK SA-PM86D Main unit • Order accessory and consumable items for your product with ease and conﬁ dence by phoning our Customer Care Centre...
Page 3 NORSK SUOMI...
Page 4: Caution For Ac Mains Lead
Caution for AC Mains Lead For United Kingdom, “EB” area code model only. Figure A Figure B Figure A Figure B Safety precautions Foreign matter Placement Do not let metal objects fall inside the unit. This can cause electric Set the unit up on an even surface away from direct sunlight, shock or malfunction.
Page 5: Placement Of Speakers
Placement of speakers Speakers are designed identically so that no left or right channel If irregular coloring occurs on your television. orientation is necessary. The front speakers are designed to be used close to a television, but the picture may be affected with some televisions and setup combinations.
Page 6: Simple Setup
Simple setup Making the connections Making the connections Connect the AC mains lead only after all other connections have been made. Connect the AC mains lead only after all other connections have been made. Conserving power The main unit consumes a small amount of power, even when it is in standby mode (approx. 0.7 W). To save power when the unit is not to be used for a long time, unplug it from the household mains socket.
Page 7 • Select “VIDEO”, “S-VIDEO” or “RGB 1” from “VIDEO OUT Note: – SCART” (\ page 20, “VIDEO” tab). • It is recommended that you use Panasonic’s HDMI cable. • Set “VIDEO PRIORITY” to “OFF” (\ page 21, “HDMI” tab). [Recommended part number: RP-CDHG15 (1.5 m), RP-CDHG30 (3.0 m), RP-CDHG50 (5.0 m), etc.]...
Page 8: Performing Quick Setup
Performing QUICK SETUP The QUICK SETUP screen assists you to make necessary settings. Turn on the television and select the appropriate video input on the television. Switch on the main Select “DVD/CD”. Shows the QUICK Follow the Finish the QUICK Press to exit.
Page 9: Disc Information
Closing the session will also work. MPEG4 data recorded with the Panasonic SD multi cameras or DVD video recorders [conforming to SD VIDEO speciﬁ cations (ASF standard)/MPEG4 (Simple Proﬁ le) video system/G.726 audio system].
Page 10: Overview Of Controls
Overview of controls Main unit Main unit ➊ Refer to the numbers in parentheses for page reference. Buttons labelled such as , function in exactly the same way as the controls on the remote control. AC supply indicator [AC IN] This indicator lights when the unit is connected to the AC mains supply.
Page 11 Remote control Remote control ➊ Buttons labelled such as , function in exactly the same way as the controls on the main unit. Television operations (28) ➊ Show the display on the main unit (13) Select disc’s title numbers and etc., Start up and play a disc automatically, Enter numbers (13) Control both the stereo system and the...
Page 12: Discs - Basic Play
Discs — Basic play FL DISPLAY Numeric buttons 4, ¢, 1, ¡, 4, 3, SKIP SLOW/SEARCH 3, DVD/CD TOP MENU, DIRECT NAVIGATOR 5, ∞, 2, 3, OK RETURN MENU, PLAY LIST CANCEL Open the tray. Close the tray. Start play. The unit turns on.
Page 13: Discs - Advanced Play
Skip Frame by frame (during pause) —— Forward direction only. ]: Group skip. ]: Content skip. This feature does not work during program and random play (\ page 14). Enter numbers On-screen item select (while stopped) Select Conﬁ rm Example: to select 12: [ 10] with Playback control (PBC) Press [ ] and then press the numeric...
Page 14 Discs — Advanced play (continued) Random play Program and Random play Program and Random play Press [5, ∞] and then [OK] to select a title. Press [ -PLAY MODE] while stopped or in “RESUME” mode. Example: Example: VD V RANDOM Program Random S E L E C T T I T L E...
Page 15: Discs - Playing Data Discs Using Navigation Menus
Discs — Playing data discs using navigation menus Playing data discs Playing data discs Playing RAM and DVD-R/-RW (DVD-VR) discs Playing RAM and DVD-R/-RW (DVD-VR) discs Select “DATA” in “OTHERS” tab (\ page 21) to play WMA, MP3, JPEG, MPEG4 or DivX content. •...
Page 16: Discs - Using On-Screen Menus
Discs — Using on-screen menus Select the item. Make the settings. Conﬁ rm Select Select Conﬁ rm Select Display the functions Press to exit. screen. Items shown differ depending on the type of disc as well as the recording format. Functions menu Functions menu To start from a speciﬁ...
Page 17 • On +R/+RW, a subtitle number may be shown for subtitles that are not displayed. • “ON” or “OFF” appears only with discs that contain subtitle on/off information (Subtitle on/off information cannot be recorded using Panasonic DVD Recorders). (with multiple angles) To select a video angle Example:...
Page 18 Discs — Using on-screen menus (continued) Functions menu (continued) Functions menu (continued) When you select “AUTO” the constructing method of the DivX contents is automatically distinguished and output. If the picture is distorted, select “INTERLACE” or “PROGRESSIVE” depending on which constructing method was used when the contents were recorded to disc.
Page 19: Discs - Changing The Player Settings
Conﬁ rming HDMI information Conﬁ rming HDMI information Example: HDMI — INFORMATION Connection status CONNECTED STATE CONNECTED Shows the output signal type AUDIO STREAM Shows the number of audio channels MAX CHANNEL VIDEO FORMAT 720p (\ page 18, “VIDEO FORMAT”) (\ page 18, “COLOUR SPACE”) COLOUR SPACE YCbCr 4:4:4...
Page 20 Discs — Changing the player settings (continued) • The settings remain intact even if you switch the unit to standby. • Boxed items are the factory settings in the following table. QUICK SETUP enables successive settings of the items in the shaded area. MAIN menu MAIN menu ■...
Page 21 MAIN menu (continued) MAIN menu (continued) ■ “AUDIO” tab • UP TO 48kHz • UP TO 96kHz PCM OUTPUT (\ page 28, Digital Output) • BITSTREAM Select to suit the type of equipment you connected to the HDMI AV OUT DOLBY DIGITAL •...
Page 22 • You can play MPEG4 data [conforming to SD VIDEO speciﬁ cations (ASF standard)/MPEG4 (Simple Proﬁ le) video system/G.726 audio system] recorded with Panasonic SD multi cameras or DVD video recorders with this unit. • The recording date may differ from that of the actual date.
Page 23: Using The Fm/Am Radio
Using the FM/AM radio Automatic presetting Manual tuning Manual tuning Press and hold [OK]. Release the button when “FM AUTO” or “AM AUTO” is displayed. Press [ EXT-IN, FM/AM] (or [FM/AM] ) to select “FM” or “AM”. The tuner tunes to the lowest frequency and starts to preset all the stations it can receive into the channels in ascending order.
Page 24: Enjoying Karaoke
Enjoying karaoke For Southeast Asia and other sources Enjoying karaoke with karaoke DVD and VCD Enjoying karaoke with karaoke DVD and VCD R : Left channel sound is heard from the left speaker and right channel sound is heard from the right speaker —...
Page 25: Using Sound Effects
Using sound effects Using the timers Note: • The following sound effects may not be available or have no effect Setting the clock Setting the clock depending on the type of source. • You may experience a reduction in sound quality when these sound This is a 24-hour clock.
Page 26: Using Other Equipment
Press [5] or [∞] followed by pressing [OK] to select your Other Panasonic audio or video equipment may start functioning desired item for playback. when you operate the unit using the supplied remote control. You can operate this unit in another mode by setting the remote For other operating functions, they are similar as those described on control operating mode to “REMOTE 2”.
Page 27 3, 4 Connecting to a portable audio equipment Connecting to a portable audio equipment Connecting the Universal Dock for iPod Connecting the Universal Dock for iPod This feature enables you to enjoy music from a portable audio You can charge and play your iPod by connecting a Universal Dock equipment.
Page 28 Digital Output VIERA Link “HDAVI Control ” is a convenient function that offers linked operations of this unit, and a Panasonic television (VIERA) under “HDAVI Control ”. You can use this function by connecting the equipment with the HDMI cable.
Page 29 • When the television is turned on, the stereo system does not turn “HDAVI Control 3” is the newest standard (current as of December, on automatically. (Power on link is not available.) 2007) for Panasonic’s HDAVI Control compatible equipment. This standard is compatible with Panasonic’s conventional HDAVI Note: equipment.
Page 30: Troubleshooting Guide
Troubleshooting guide Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, consult your dealer for instructions. ■ Power Page No power.
Page 31 ■ Sound abnormal or improper Page Sound is distorted. • Noise may occur when playing WMA. — • When using the HDMI output, audio may not be output from other terminals. — Effects do not work. • Some audio effects do not work or have less effect with some discs. —...
Page 32 Troubleshooting guide (continued) ■ Unit displays Page When the unit is in standby • Turn off the demo function. mode, the display lights up and • If you set the clock, demo function will be turned off automatically. — changes continuously. •...
Page 33 Memory reset (Initialization) To reset memory When the following situations occur, refer to the instructions below 1 Disconnect the AC mains lead. (Wait at least 3 minutes to reset the memory: before proceeding to step 2) • There is no response when buttons are pressed. 2 While pressing and holding down [ /I] on the main unit, •...
Page 34: Glossary
Glossary Decoder I/P/B A decoder restores the coded audio signals on DVDs to normal. This MPEG 2, the video compression standard adopted for use with DVD- is called decoding. Video, codes frames using these 3 picture types. Intra coded picture This picture has the best quality and is the best to use when adjusting the picture.
Page 35: Speciﬁ Cations
Stereo, 3.5 mm jack narrow pictures may not be displayed. Output level (CD, 1kHz, -20dB) 32 Ω MPEG4 data recorded with Panasonic SD multi cameras or DVD For Southeast Asia video recorders Mic jack Conforming to SD VIDEO speciﬁ cations (ASF standard)/MPEG4 Sensitivity 0.7 mV, 600 Ω...
Page 36: Maintenance
MP3. Matsushita Electric Industrial Co., Ltd. Web Site: http://panasonic.net Pursuant to at the directive 2004/108/EC, article 9 (2) Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, F.R. Germany RQTV0265-4B L0108KE4048...

This manual is also suitable for:
