LG 26LC4D Series Owner's Manual

LG 26LC4D Series Owner's Manual

26lc4d/26lc7d/32lc4d/32lc7d/37lc4d/37lc7d/42lc4d/42lc7d/42pc5d/50pc5d/50pb3d series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Trade Mark of the DVB Digital Video
Broadcasting Project (1991 to 1996)
I I D D N N u u m m b b e e r r ( ( s s ) ) : : 4359: 26LC4D
4354: 42PC5D
4360: 32LC4D
4355: 50PC5D
4361: 37LC4D
4356: 42PC5D1
4362: 42LC4D
4357: 50PC5D1
4364: 26LC7D
4363: 32LC7D
4365: 37LC7D
4366: 42LC7D
4358: 50PB3D

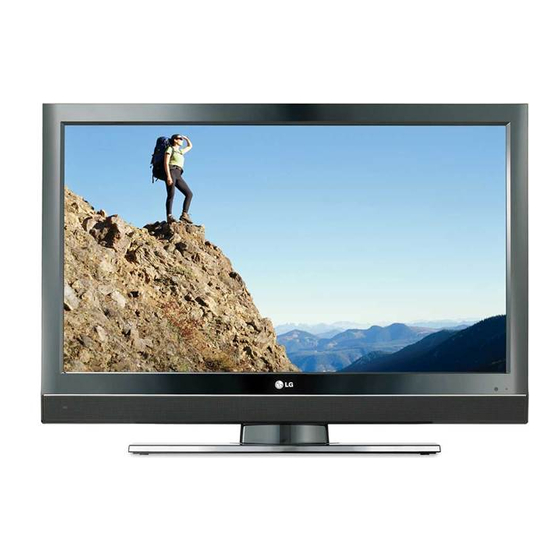

LCD TV
OWNER'S MANUAL
LCD TV MODELS
2 2 6 6 L L C C 4 4 D D * * 2 2 6 6 L L C C 7 7 D D * *
3 3 2 2 L L C C 4 4 D D * * 3 3 2 2 L L C C 7 7 D D * *
3 3 7 7 L L C C 4 4 D D * * 3 3 7 7 L L C C 7 7 D D * *
4 4 2 2 L L C C 4 4 D D * * 4 4 2 2 L L C C 7 7 D D * *
Please read this manual carefully before operating
your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote
this information to your dealer when you require
service.
PLASMA TV
PLASMA TV MODELS
4 4 2 2 P P C C 5 5 D D * *
5 5 0 0 P P C C 5 5 D D * *
5 5 0 0 P P B B 3 3 D D * *

Advertisement

Table of Contents
loading

Related Manuals for LG 26LC4D Series

Summary of Contents for LG 26LC4D Series

  • Page 1 LCD TV PLASMA TV OWNER’S MANUAL LCD TV MODELS PLASMA TV MODELS 2 2 6 6 L L C C 4 4 D D * * 2 2 6 6 L L C C 7 7 D D * * 4 4 2 2 P P C C 5 5 D D * * 3 3 2 2 L L C C 4 4 D D * * 3 3 2 2 L L C C 7 7 D D * * 5 5 0 0 P P C C 5 5 D D * *...

  • Page 3: Accessories

    ACCESSORIES Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the dealer where you purchased the product. Owner's Manual Owner’s Manual Power Cord Polishing Cloth (except 26/32LC4D * ) Polish the screen with the cloth. Slightly wipe stained spot on the exterior only with the cleansing cloths for the prod- uct exterior if there is stain or fingerprint...

  • Page 4: Table Of Contents

    CONTENTS ACCESSORIES Fine Tuning (In Analogue Mode) ....45 ..........Assigning a Station Name (In Analogue Mode) .
  • Page 5 SOUND & LANGUAGE CONTROL DIGITAL TELETEXT Auto Volume Leveler ......68 Teletext within Digital Service ....86 Preset Sound Settings - Sound Mode .

  • Page 6: Preparation

    PREPARATION FRONT PANEL CONTROLS This is a simplified representation of the front panel. Here shown may be somewhat different from your TV. Plasma TV Models: 42/50PC5D * Remote Control Sensor Power/Standby Indicator INPUT MENU • illuminates red in standby mode. •...
  • Page 7 LCD TV Models PROGRAMME Buttons VOLUME Buttons OK Button MENU Button MENU INPUT Button INPUT POWER Button Power/Standby Indicator • illuminates red in standby mode. Remote Control Sensor • illuminates green when the set is switched on.

  • Page 8: Back Panel Information

    PREPARATION BACK PANEL INFORMATION AV IN 3 This is a simplified representation of the back panel. Here shown may be somewhat different from your TV. Plasma TV Models AV IN 3 AV IN 3 S-Video Input Connect S-Video out from an AV IN 3 S-VIDEO device.
  • Page 9 LCD TV Models S-VIDEO S-Video Input S-VIDEO Connect S-Video out from an S- VIDEO device. S-VIDEO Audio/Video Input S-VIDEO Connect audio/video output from an external device to these jacks. AV IN 3 AV 3 AV IN 3 AV IN 3 AV 1 AV 2 PCMCIA...

  • Page 10: Stand Installation

    PREPARATION STAND INSTALLATION (Only 26, 32, 37 inch LCD TV Models) Carefully place the product screen side down on a cushioned surface that will protect product and screen from damage. Assemble the product stand with the product as shown. Install the 4 bolts securely, in the back of the product in the holes provided.

  • Page 11: Attaching The Tv To A Wall

    ATTACHING THE TV TO A WALL Set it up close to the wall so the product doesn’t fall over when it is pushed backwards. The instructions shown below is a safer way to set up the product, which is to fix it on the wall so the product doesn’t fall over when it is pulled in the forward direction.

  • Page 12: Back Cover For Wire Arrangement

    PREPARATION BACK COVER FOR WIRE ARRANGEMENT Plasma TV models Hold the C C A A B B L L E E M M A A N N A A G G E E M M E E N N T T with hands and push it as shown. CABLE MANAGEMENT Connect the cables as necessary.

  • Page 13: How To Remove The Cable Management

    LCD TV models Connect the cables as necessary. To connect an additional equipment, see the E E x x t t e e r r n n a a l l e e q q u u i i p p m m e e n n t t C C o o n n n n e e c c t t i i o o n n s s section. Install the C C A A B B L L E E M M A A N N A A G G E E M M E E N N T T as shown.

  • Page 14: Desktop Pedestal Installation

    PREPARATION The set can be installed in various ways such as on a wall, or on a desktop etc. The set is designed to be mounted horizontally. GROUNDING Ensure that you connect the earth ground wire to prevent Power Supply possible electric shock.

  • Page 15: Antenna Connection

    To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment. ANTENNA CONNECTION For optimum picture quality, adjust antenna direction. An antenna cable and converter are not supplied. AV IN 3 S-VIDEO PCMCIA EJECT CARD SLOT HDMI/DVI IN 1...

  • Page 16: External Equipment Setup

    EXTERNAL EQUIPMENT SETUP To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment. This part of EXTERNAL EQUIPMENT SETUP mainly use pictures for the LCD TV models. HD RECEIVER SETUP This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box.However,if you do receive Digital signals from a digital set-top box or other digital external device,refer to the figure as shown below.

  • Page 17: When Connecting With A Hdmi To Dvi Cable

    ANTENNA AUDIO VIDEO RS-232C IN When connecting with a HDMI cable PCMCIA EJECT CARD SLOT RGB IN HDMI/DVI IN 1 HDMI IN 2 AV 1 RGB(PC) Connect the digital set-top box to H H D D M M I I / / D D V V I I I I N N 1 1 or COMPONENT I H H D D M M I I I I N N 2 2 jack on the set.

  • Page 18: Dvd Setup

    EXTERNAL EQUIPMENT SETUP DVD SETUP When connecting with a component cable Connect the video outputs ( Y, P ) of the DVD to the C C O O M M P P O O N N E E N N T T I I N N V V I I D D E E O O jacks on the set. Connect the audio outputs of the DVD to the C C O O M M P P O O N N E E N N T T I I N N A A U U D D I I O O jacks on the set.

  • Page 19: When Connecting With An S-Video Cable

    ANTENNA VIDEO AUDIO RS-232C IN When connecting with a Euro Scart PCMCIA EJECT CARD SLOT RGB IN HDMI/DVI IN 1 HDMI IN 2 AV 1 AV 2 Connect the Euro scart socket of the DVD to the A A V V 1 1 AUDIO IN (RGB/DVI) Euro scart socket on the set.

  • Page 20: Insertion Of Ci Module

    AV 1 AV 2 EXTERNAL EQUIPMENT SETUP AUDIO AV IN 3 When connecting HDMI cable Connect the HDMI output of the DVD to the H H D D M M I I / / D D V V I I I I N N 1 1 or H H D D M M I I I I N N 2 2 jack on the set.

  • Page 21: Vcr Setup

    VCR SETUP To avoid picture noise (interference), leave an adequate distance between the VCR and TV. Typically a frozen still picture from a VCR. If the 4:3 picture format is used; the fixed images on the sides of PCMCIA EJECT the screen may remain visible on the screen.
  • Page 22 EXTERNAL EQUIPMENT SETUP When connecting with a Euro Scart PCMCIA EJECT CARD SLOT RGB IN HDMI/DVI IN 1 HDMI IN 2 AV 1 AV 2 B(PC) AUDIO IN Connect the Euro scart socket of the VCR to the A A V V 1 1 (RGB/DVI) Euro scart socket on the set.

  • Page 23: Digital Audio Out Setup

    AV 1 AV 2 HDMI IN 2 When connecting with an S-Video cable S-VIDEO ANT IN VIDEO VIDEO AUDIO Connect the S-VIDEO output of the VCR to the S S - - V V I I D D E E O O input on the set. The picture quality is improved;...

  • Page 24: Other A/V Source Setup

    EXTERNAL EQUIPMENT SETUP OTHER A/V SOURCE SETUP Camcorder Video Game Set VIDEO S-VIDEO AV IN 3 Connect the A A U U D D I I O O /V V I I D D E E O O jacks between TV and external equipment. Match the jack colors. ( Video = yellow, Audio Left = white, and Audio Right = red ) Select AV3 input source with using the I I N N P P U U T T button on the remote control.

  • Page 25: Pc Setup

    PC SETUP This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings. When connecting with a D-sub 15 pin cable PCMCIA EJECT PCMCIA EJECT CARD SLOT CARD SLOT RGB IN AV 1 AV 2 HDMI/DVI IN 1 HDMI IN 2 HDMI/DVI IN 1...
  • Page 26 NOTE To enjoy vivid picture and sound, connect a PC to Connect the audio cable from the PC to the Audio the set. input on the set. (Audio cables are not included Avoid keeping a fixed image on the set’s screen for with the set).
  • Page 27 Supported Display Resolution RGB[PC] / HDMI[PC] mode HDMI[DTV] mode Horizontal Vertical Horizontal Vertical Resolution Resolution Frequency(KHz) Frequency(Hz) Frequency(KHz) Frequency(Hz) 720x400 31.468 70.08 31.469 59.94 640x480 31.469 59.94 31.469 60.00 640x480 37 .684 75.00 31.47 59.94 720x480 37 .879 60.31 31.50 60.00 800x600 46.875...

  • Page 28: Screen Setup For Pc Mode

    EXTERNAL EQUIPMENT SETUP Screen Setup for PC mode BACK INFO i MENU Auto Configure (RGB [PC] mode only) EXIT GUIDE Automatically adjusts picture position and minimizes image shaking.After adjustment, if the image is still not correct, your set is functioning properly but needs further adjust- ment.
  • Page 29 BACK INFO i MENU Adjustment for screen Phase, Clock, Position EXIT GUIDE If the picture isn’t clear after auto adjustment and espe- cially if characters are still trembling, adjust the picture phase manually. To correct the screen size, adjust C C l l o o c c k k . This function works in the following mode : RGB[PC].
  • Page 30 EXTERNAL EQUIPMENT SETUP Selecting Wide XGA mode BACK INFO i MENU EXIT GUIDE To see a normal picture, match the resolution of RGB mode and selection of XGA mode. This function works in the following mode: RGB[PC] mode SETUP Auto Config. PICTURE Manual Config.

  • Page 31: Reset To Original Factory Settings

    Initializing BACK INFO i MENU (Reset to original factory settings) EXIT GUIDE This function operates in current mode. To initialize the adjusted value It’s not available to use ISM Method and Low power in L L C C D D T T V V models. SETUP Language PICTURE...

  • Page 32: Watching Tv /Programme Control

    WATCHING TV /PROGRAMME CONTROL REMOTE CONTROL KEY FUNCTIONS When using the remote control, aim it at the remote control sensor on the TV. POWER Switches the set on from standby or off to standby. INPUT MODE POWER Selects digital or analogue mode. D/A INPUT Switches the set on from standby.

  • Page 33: Installing Batteries

    MODE Selects the remote operating modes. INPUT MODE POWER See a list of AV devices connected to TV. TV/RADIO When you toggle this button, the Simplink menu appears INPUT BRIGHT at the screen. ( p.50) TELETEXT These buttons are used for teletext. SIMPLINK TEXT RATIO...

  • Page 34: Turning On The Tv

    WATCHING TV /PROGRAMME CONTROL TURNING ON THE TV - If your TV will be turned on, you will be able to use its features. INPUT MODE POWER TV/RADIO First, connect power cord correctly. INPUT BRIGHT At this moment, the TV switches to standby mode. SIMPLINK TEXT RATIO...

  • Page 35: Programme Selection

    PROGRAMME SELECTION Press the P P R R + + or - - or NUMBER buttons to select a pro- INPUT MODE gramme number. POWER TV/RADIO INPUT BRIGHT SIMPLINK TEXT RATIO I/II BACK INFO i VOLUME ADJUSTMENT MENU EXIT GUIDE Press the VOL + + or - - button to adjust the volume.

  • Page 36: On-Screen Menus Selection And Adjustment

    WATCHING TV /PROGRAMME CONTROL ON SCREEN MENUS SELECTION AND ADJUSTMENT Your TV's OSD ( On Screen Display ) may differ slightly from what is shown in this manual. Press the M M E E N N U U button and then button to display each menu.

  • Page 37: Auto Programme Tuning (In Digital Mode)

    AUTO PROGRAMME TUNING BACK INFO i (IN DIGITAL MODE) MENU EXIT GUIDE Use it to automatically find and store all of the programmes. When you start auto programming in digital mode, all the stored service information will be deleted. SETUP Auto Tuning PICTURE Manual Tuning...

  • Page 38: Manual Programme Tuning (In Digital Mode)

    WATCHING TV /PROGRAMME CONTROL MANUAL PROGRAMME TUNING BACK INFO i (IN DIGITAL MODE) MENU EXIT GUIDE Manual Tuning lets you manually add a programme to your programme list. SETUP Auto Tuning PICTURE Manual Tuning Press the MENU button and then button to Programme Edit AUDIO...

  • Page 39: Programme Edit (In Digital Mode)

    BACK INFO i MENU EXIT GUIDE PROGRAMME EDIT (IN DIGITAL MODE) When a programme number is skipped, it means that you will be unable to select it using PR + or - button during TV viewing. If you want to select the skipped programme, directly enter the programme number with the NUMBER buttons or select it in the MUTE Programme edit menu.
  • Page 40 WATCHING TV /PROGRAMME CONTROL Mini Glossary Displayed when the DTV Programme. Displayed when the Teletext Programme. Displayed when the Favourite Programme. Displayed when the Subtitle Programme. Displayed when the Locked Programme. Displayed when the Scramble Programme. Displayed when the Radio Programme. Displayed when the Dolby Programme.

  • Page 41: Antenna Power (In Digital Mode Only)

    5V ANTENNA POWER BACK INFO i (IN DIGITAL MODE ONLY) MENU EXIT GUIDE Even if there isn’t a special 5V adapter power in the external antenna, this function can output 5V in the set. SETUP Auto Tuning PICTURE Manual Tuning Press the MENU button and then button to Programme Edit...

  • Page 42: Software Update (In Digital Mode Only)

    WATCHING TV /PROGRAMME CONTROL SOFTWARE UPDATE BACK INFO i MENU (IN DIGITAL MODE ONLY) EXIT GUIDE Software Update means software can be downloaded through the digital terrestrial broadcasting system. Press the MENU button and then button to select the SETUP menu. Press the button and then button to select...

  • Page 43: Diagnostics (In Digital Mode Only)

    Programme Edit 5V Antenna Power Software Update Diagnostics To Set CI Information Engineering Diagnostics Channel 30 Manufacturer : LG Electronics Inc. Transmitter : Teracom_Mux_2 Model / Type : 37LC2D-EC Signal strength Serial No. : 604KG0000006 Software version : 1.1.0 Signal quality...

  • Page 44: Ci Information (In Digital Mode Only)

    WATCHING TV /PROGRAMME CONTROL CI [COMMON INTERFACE] INFORMATION BACK INFO i (IN DIGITAL MODE ONLY) MENU EXIT GUIDE This function enables you to watch some scrambled services (pay ser- vices). If you remove the CI Module, you can’t watch the pay services. When the module is inserted to CI slot, you can access the module menu.

  • Page 45: Auto Programme Tuning (In Analogue Mode)

    BACK INFO i MENU EXIT GUIDE AUTO PROGRAMME TUNING (IN ANALOGUE MODE) All stations that can be received are stored by this method. It is recommended that you use Auto tuning during installa- tion of this set. MUTE Press the M M E E N N U U button and then button to LIST Q.

  • Page 46: Manual Programme Tuning (In Analogue Mode)

    WATCHING TV /PROGRAMME CONTROL BACK INFO i MENU EXIT GUIDE MANUAL PROGRAMME TUNING (IN ANALOGUE MODE) Manual Tuning lets you manually tune and arrange the sta- tions in whatever order you desire. MUTE Press the MENU button and then button to select the SETUP menu.

  • Page 47: Fine Tuning (In Analogue Mode)

    FINE TUNING (IN ANALOGUE MODE) BACK INFO i MENU Normally fine tuning is only necessary if reception is poor. EXIT GUIDE Press the MENU button and then button to select the SETUP menu. Press the button and then button to select Manual Tuning.

  • Page 48: Programme Edit (In Analogue Mode)

    WATCHING TV /PROGRAMME CONTROL PROGRAMME EDIT (IN ANALOGUE MODE) BACK INFO i MENU This function enables you to delete or skip the stored programmes. EXIT GUIDE Also you can move some stations to other programme numbers or copy a blank station data into the selected programme number. SETUP Auto Tuning PICTURE...
  • Page 49 MUTE BACK INFO i MENU EXIT GUIDE LIST Q. V I E W Moving a programme Select a programme to be moved with button. Press the YELLOW button. Move the programme to the desired programme number with the button. Press the YELLOW button again to release this function. Skipping a programme number Select a programme number to be skipped with button.

  • Page 50: Calling The Programme Table

    WATCHING TV /PROGRAMME CONTROL EXIT GUIDE CALLING THE PROGRAMME TABLE You can check the programmes stored in the memory by displaying the programme table. MUTE LIST Q. V I E W Displaying programme LIST Press the LIST button to display the PROGRAMME DTV List LIST menu.

  • Page 51: Input Source Selection

    INPUT SOURCE SELECTION BACK INFO i MENU EXIT GUIDE Sets a label to each input source which is not in use. SETUP Language PICTURE Country Press the M M E E N N U U button and then use button Lock System AUDIO Parental Control...
  • Page 52 WATCHING TV /PROGRAMME CONTROL FUNCTION BACK INFO i MENU EXIT GUIDE This operates only for the devices with the SIMPLINK logo. Please check the SIMPLINK logo. This allows you to control and play other AV devices connected to the display through HDMI cable without additional cables and settings.

  • Page 53: Simplink Function

    SIMPLINK Functions D D i i s s c c p p l l a a y y b b a a c c k k Control connected AV devices by pressing the , OK buttons and buttons for play, stop, pause, fast reverse, fast forward, chapter skip.(The button does not provide such functions) D D i i r r e e c c t t P P l l a a y y...

  • Page 54: Picture Control

    PICTURE CONTROL EPG (ELECTRONIC PROGRAMME GUIDE) (IN DIGITAL MODE) This system has an Electronic Programme Guide (EPG) to help your navigation through all the possible viewing options. The EPG supplies information such as programme listings, start and end times for all available services.

  • Page 55: Button Function In Now/Next Guide Mode

    Button Function in NOW/NEXT Guide Mode Remote Control Buttons Function Change EPG mode YELLOW Enter Timer Record/Remind setting mode BLUE Enter Timer Record/Remind list mode Change to the selected channel Select NOW or NEXT Programme Select the Broadcasting Programme PR + or - Page Up/Down GUIDE/EXIT Switch off EPG...

  • Page 56: Button Function In Extended Description Box

    PICTURE CONTROL Button Function in Extended Description Box Remote Control Buttons Function Text Up/Down YELLOW Enter Timer Record/Remind setting mode INFO i The detail information on or off GUIDE/EXIT Switch off EPG Button Function in Record/Remind Setting Mode - This function is available only when recording equipment that use pin8 recording signalling has been connected to the DTV-OUT terminal, using a SCART cable.

  • Page 57: Picture Size (Aspect Ratio) Control

    PICTURE SIZE (ASPECT RATIO) CONTROL BACK INFO i MENU , F F u u l l l l , EXIT GUIDE You can watch the screen in various picture formats; S S p p e e c c t t a a c c l l e e O O r r i i g g i i n n a a l l , 4 4 : : 3 3 , 1 1 6 6 : : 9 9 , 1 1 4 4 : : 9 9 and Z Z o o o o m m 1 1 / / 2 2 .
  • Page 58 PICTURE CONTROL • 1 1 6 6 : : 9 9 • Z Z o o o o m m 1 1 Following selection will lead you to adjust the picture Following selection will lead you to view the horizontally, in a linear proportion, to fill the entire picture without any alternation, while filling screen (useful for viewing 4:3 formatted DVDs).

  • Page 59: Preset Picture Settings

    PRESET PICTURE SETTINGS BACK INFO i MENU EXIT GUIDE Picture Mode-Preset D D y y n n a a m m i i c c Select this option to display with a sharp image. S S t t a a n n d d a a r r d d The most general and natural screen display sta- tus.

  • Page 60: Auto Colour Tone Control (Warm/Medium/Cool)

    PICTURE CONTROL Auto Colour Tone Control (Warm/Medium/Cool) BACK INFO i MENU To initialize values (reset to default settings), select the EXIT GUIDE Cool option. Choose one of three automatic colour adjustments. Set to warm to enhance hotter colours such as red, or set to cool to see less intense colours with more blue.

  • Page 61: Manual Picture Adjustment

    MANUAL PICTURE ADJUSTMENT BACK INFO i MENU EXIT GUIDE Picture Mode-User option C C o o n n t t r r a a s s t t Adjusts the difference between the light and dark levels in the picture. B B r r i i g g h h t t n n e e s s s s Increases or decreases amount of white in the your picture.

  • Page 62: Colour Tone - User Option

    PICTURE CONTROL Colour Tone - User option BACK INFO i MENU EXIT GUIDE To adjust red, green, blue to any colour temperature you prefer. SETUP Picture Mode Colour Temperature PICTURE AUDIO Advanced Press the M M E E N N U U button and then button to select TIME Picture Reset...

  • Page 63: Xd - Picture Improvement Technology

    XD - PICTURE IMPROVEMENT TECHNOLOGY BACK INFO i MENU XD is LG electronic's unique picture improving technology to EXIT GUIDE display a real HD source through an advanced digital signal pro- cessing algorithm. It’s not available to use this function in RGB-PC mode.

  • Page 64: Xd Demo

    PICTURE CONTROL DEMO BACK INFO i MENU EXIT GUIDE Use it to see the difference between XD Demo on and XD Demo off. It’s not available to use this function in RGB[PC], HDMI[PC] mode. SETUP Picture Mode Colour Temperature PICTURE Press the MENU button and then button to select AUDIO...

  • Page 65: Advanced - Cinema

    ADVANCED - CINEMA BACK INFO i MENU EXIT GUIDE Set up the TV for the best picture appearance for viewing movies. This feature operates only in TV, AV, S-Video and Component 480i/576i mode. SETUP Picture Mode PICTURE Colour Temperature Press the M M E E N N U U button and then button to select AUDIO Advanced...

  • Page 66: Advanced - Black(Darkness) Level

    PICTURE CONTROL ADVANCED - BLACK(DARKNESS) LEVEL BACK INFO i MENU EXIT GUIDE When you watch the movie, this function adjusts the set to the best picture appearance. Adjusting the contrast and the bright- ness of the screen using the black level of the screen. This function works in the following mode: AV (NTSC-M), S- Video (NTSC-M) or HDMI.

  • Page 67: Picture Reset

    PICTURE RESET BACK INFO i MENU EXIT GUIDE Returns to the default settings Picture Mode, Colour Temperature, XD, Advanced at the factory. SETUP Picture Mode PICTURE Colour Temperature Press the M M E E N N U U button and then button to select AUDIO Advanced...

  • Page 68: Image Sticking Minimization(Ism) Method

    PICTURE CONTROL IMAGE STICKING MINIMIZATION (ISM) BACK INFO i METHOD MENU EXIT GUIDE A frozen of still picture from a PC/video game displayed on the screen for prolonged periods will result in a ghost image remaining even when you change the image. Avoid allowing a fixed image to remain on the set's screen for a long period of time.

  • Page 69: Low-Power Picture Mode

    LOW-POWER PICTURE MODE BACK INFO i MENU EXIT GUIDE This is the function to reduce the power consumption of the set. It’s not available to use this function in LCD TV models. SETUP Language PICTURE Country Press the MENU button and then button to Lock System AUDIO...

  • Page 70: Sound & Language Control

    SOUND & LANGUAGE CONTROL AUTO VOLUME LEVELER BACK INFO i MENU EXIT GUIDE AVL automatically keeps on an equal volume level even if you change programmes. SETUP Sound Mode PICTURE Auto Volume Press the MENU button and then button to Balance AUDIO select the AUDIO menu.

  • Page 71: Preset Sound Settings-Sound Mode

    PRESET SOUND SETTINGS-SOUND MODE BACK INFO i MENU EXIT GUIDE You can select your preferred sound setting; Surround MAX, Standard, Music, Movie or Sports and you can also adjust the sound frequency of the equalizer. Sound Mode lets you enjoy the best sound without any Special adjustment because the TV sets the appropriate sound options based on the programme content.

  • Page 72: Sound Setting Adjustment -User Mode

    SOUND &LANGUAGE CONTROL SOUND SETTING ADJUSTMENT -USER MODE BACK INFO i MENU EXIT GUIDE Adjust the sound equalizer. Press the M M E E N N U U button and then button to select the AUDIO menu. SETUP Sound Mode PICTURE Auto Volume Balance...

  • Page 73: Balance

    BALANCE BACK INFO i MENU EXIT GUIDE You can adjust the sound balance of speaker to the levels you prefer. SETUP Sound Mode PICTURE Auto Volume Press the MENU button and then button to Balance AUDIO select the AUDIO menu. TV Speaker TIME Digital Audio Out...

  • Page 74: Tv Speakers On/ Off Setup

    SOUND &LANGUAGE CONTROL TV SPEAKERS ON/ OFF SETUP BACK INFO i MENU EXIT GUIDE You can adjust the internal speaker status. In AV1, AV2, AV3, COMPONENT, RGB and HDMI1 with HDMI to DVI cable, TV speaker and/or variable audio can be outputted even though there is no video signal. If you want to use your external hi-fi stereo system, turn off the internal speakers of the set.

  • Page 75: Selecting Digital Audio Out

    SELECTING DIGITAL AUDIO OUT BACK INFO i MENU EXIT GUIDE This function lets you select your preferred Digital Audio Output. The set can output Dolby Digital in a channel only which broadcast Dolby Digital Audio. When it’s applied the Dolby Digital format, if you select Dolby Digital on Digital audio out menu, SPDIF Output will be out- putted Dolby Digital.

  • Page 76: I/Ii

    SOUND &LANGUAGE CONTROL I/II Stereo/Dual Reception (In Analogue Mode Only) When a programme is selected, the sound information for the station appears after the programme number and station name disappear. Broadcast On Screen Display Mono MONO Stereo STEREO Dual DUAL I M M o o n n o o s s o o u u n n d d s s e e l l e e c c t t i i o o n n If the stereo signal is weak in stereo reception, you can switch to mono by pressing the I I / / I I I I button twice.

  • Page 77: Nicam Reception (In Analogue Mode Only)

    NICAM Reception (In Analogue Mode Only) If the set is equipped with the receiver for NICAM reception, the high quality NICAM (Near Instantaneous Companding Audio Multiplex) digital sound can be received. Sound output can be selected according to the type of received broadcast as follows by press- ing the I/II button repeatedly.

  • Page 78: On-Screen Menus Language/Country Selection

    SOUND &LANGUAGE CONTROL INPUT MODE ON-SCREEN MENU LANGUAGE / POWER TV/RADIO COUNTRY SELECTION INPUT BRIGHT Installation guide menu appears on TV screen when it is turned SIMPLINK TEXT RATIO I/II on for the first time. Press the button and then, O O K K BACK INFO i MENU...

  • Page 79: Language Selection (In Digital Mode Only)

    SIMPLINK TEXT RATIO I/II LANGUAGE SELECTION (IN DIGITAL MODE ONLY) A A u u d d i i o o function lets you select your preferred language for audio. If the audio data in selected language is not broadcasted, default lan- BACK INFO i MENU...

  • Page 80: Time Setting

    TIME SETTING CLOCK SETUP BACK INFO i MENU EXIT GUIDE The clock is set automatically when receiving the digital signal. (You can set the clock if the TV has no DTV signal.) You must set to the time correctly before using on/off time function.

  • Page 81: Auto On/Off Timer Setting

    AUTO ON/OFF TIMER SETTING BACK INFO i MENU EXIT GUIDE The Off time automatically switches the set to standby at the preset time. Two hours after the set is switched on by the on time function it will automatically switch back to standby mode unless a button has been pressed.

  • Page 82: Auto Shut-Off Setting

    TIME SETTING AUTO SHUT-OFF SETTING BACK INFO i MENU EXIT GUIDE If set to on and there is no input signal, the set turns off auto- matically after 10 minutes. SETUP Clock PICTURE Off time Press the MENU button and then button to On time AUDIO...

  • Page 83: Time Zone Setup

    TIME ZONE SETUP BACK INFO i MENU When you select a Time Zone city, TV time is set by the time EXIT GUIDE offset information based on Time Zone and GMT (Greenwich Mean Time) information which is received to broadcasting signal when time is set automatically by a digital signal.

  • Page 84: Parental Control / Ratings

    PARENTAL CONTROL / RATINGS BACK INFO i MENU EXIT GUIDE SET PASSWORD & LOCK SYSTEM If you first enter the password, press ‘0’ , ‘0’ , ‘0’ , ‘0’ on the remote control handset. MUTE LIST Q. V I E W SETUP Language Country...

  • Page 85: Parental Control

    INPUT MODE POWER PARENTAL CONTROL TV/RADIO INPUT BRIGHT MUTE This function operates according to information BACK INFO i from the broadcasting station. Therefore if the MENU signal has wrong information, this function dose EXIT GUIDE not operates. Lets you set up blocking schemes to block specif- LIST Q.

  • Page 86: Teletext

    TELETEXT T T h h i i s s f f e e a a t t u u r r e e i i s s n n o o t t a a v v a a i i l l a a b b l l e e i i n n a a l l l l c c o o u u n n t t r r i i e e s s . . Teletext is a free service broadcast by most TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics.

  • Page 87: Fastext

    FASTEXT The teletext pages are colour coded along the bottom of the screen and are selected by pressing the correspond- ing coloured button. Page selection Press the button to select the index page. You can select the pages which are colour coded along the bottom line with the same coloured buttons. Corresponding to the SIMPLE teletext mode, you can select a page by entering its three digit page number with the NUMBER buttons in FASTEXT mode.

  • Page 88: Digital Teletext

    DIGITAL TELETEXT *This function works in UK only. The set gives you access to a digital teletext which is greatly improved in various aspects such as text, graphics and so on. This digital teletext can be accessed by special digital teletext services and specific services which broadcast digital teletext.

  • Page 89: Appendix

    APPENDIX TROUBLESHOOTING T T h h e e o o p p e e r r a a t t i i o o n n d d o o e e s s n n o o t t w w o o r r k k n n o o r r m m a a l l l l y y . . Check to see if there is any object between the product and the remote control causing obstruction.
  • Page 90 APPENDIX T T h h e e a a u u d d i i o o f f u u n n c c t t i i o o n n d d o o e e s s n n o o t t w w o o r r k k . . Press the VOL + + or - - button.

  • Page 91: Maintenance

    MAINTENANCE Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you can enjoy your new TV. Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning. Cleaning the Screen Here’s a great way to keep the dust off your screen for a while.

  • Page 92: Product Specifications

    APPENDIX PRODUCT SPECIFICATIONS 26LC4D * / 32LC4D * / 37LC4D * / 42LC4D * MODELS 26LC7D * / 32LC7D * / 37LC7D * / 42LC7D * 676.4 x 529.2 x 221.0 mm with stand 2 2 6 6 L L C C 4 4 D D * * 26.7 x 20.9 x 8.7 inches Dimensions 26LC4D-ZA...
  • Page 93 MODELS 42PC5D * / 50PC5D * / 50PB3D * 1048.0 x 766.0 x 310.0 mm with stand 4 4 2 2 P P C C 5 5 D D * * 41.3 x 30.2 x 12.3 inches Dimensions 42PC5D-ZB (Width x Height x Depth) 42PC5D1-ZD 1048.0 x 713.0 x 83.5 mm without stand...

  • Page 94: Programming The Remote Control

    APPENDIX PROGRAMMING THE REMOTE CONTROL The remote is a multi-brand or a universal remote. It can be programmed to operate most remote-con- trollable devices of other manufacturers. Note that the remote may not control all models of other brands. Programming a code into a remote mode Test your remote control.
  • Page 95 145 147 VIDEOSONIC 047 048 REALISTIC 003 008 010 014 WARDS 003 013 017 024 LG (GOLDSTAR) 001 012 013 020 031 033 034 040 031 033 034 040 101 106 1 14 123 053 054 101 053 054 131...

  • Page 96: Ir Codes

    APPENDIX IR CODES 1. How to Connect Connect your wired remote control to the Remote Control port on the TV. 2. Remote Control IR Codes Output waveform Single pulse, modulated with 37 .917KHz signal at 455KHz Carrier frequency FCAR = 1/TC = fOSC/12 Duty ratio = T1/TC = 1/3 Configuration of frame 1st frame...
  • Page 97 C C o o d d e e ( ( H H e e x x a a ) ) F F u u n n c c t t i i o o n n N N o o t t e e PR + + R/C BUTTON PR - -...

  • Page 98: External Control Device Setup

    APPENDIX EXTERNAL CONTROL DEVICE SETUP PCMCIA EJECT CARD SLOT RS-232C Setup AV 1 AV 2 HDMI/DVI IN 1 HDMI IN 2 Connect the RS-232C (serial port) input jack to an ANTENNA external control device (such as a computer or an A/V VIDEO AUDIO OPTICAL...

  • Page 99: Set Id

    Set ID BACK INFO i MENU EXIT GUIDE Use this function to specify a set ID number. Refer to ‘Real Data Mapping’. p p . . 1 1 0 0 1 1 SETUP Language Country PICTURE Press the M M E E N N U U button and then use button Lock System AUDIO...

  • Page 100: Communication Parameters

    APPENDIX Communication Parameters Baud rate : 9600 bps ( UART ) Stop bit : 1 bit Data length : 8 bits Communication code : ASCII code Parity : None Use a crossed (reverse) cable. Command Reference List Transmission / Receiving Protocol Transmission COMMAND COMMAND...
  • Page 101 0 0 1 1 . . P P o o w w e e r r ( ( C C o o m m m m a a n n d d 2 2 : : a a ) ) 0 0 4 4 .
  • Page 102 APPENDIX 0 0 9 9 . . C C o o l l o o u u r r ( ( C C o o m m m m a a n n d d 2 2 : : i i ) ) 1 1 4 4 .
  • Page 103 1 1 9 9 . . A A b b n n o o r r m m a a l l S S t t a a t t e e ( ( C C o o m m m m a a n n d d 2 2 : : z z ) ) 2 2 1 1 .
  • Page 104 APPENDIX 2 2 4 4 . . A A u u t t o o C C o o n n f f i i g g u u r r e e 2 2 7 7 . . I I n n p p u u t t s s e e l l e e c c t t ( ( C C o o m m m m a a n n d d 1 1 : : x x , , C C o o m m m m a a n n d d 2 2 : : b b ) ) ( ( C C o o m m m m a a n n d d 1 1 : : j j , , C C o o m m m m a a n n d d 2 2 : : u u ) ) ( ( M M a a i i n n P P i i c c t t u u r r e e I I n n p p u u t t ) ) To adjust picture position and minimize image shaking...

This manual is also suitable for:

26lc7d series37lc4d series37lc7d series32lc4d series32lc7d series42lc4d series ... Show all

Table of Contents
