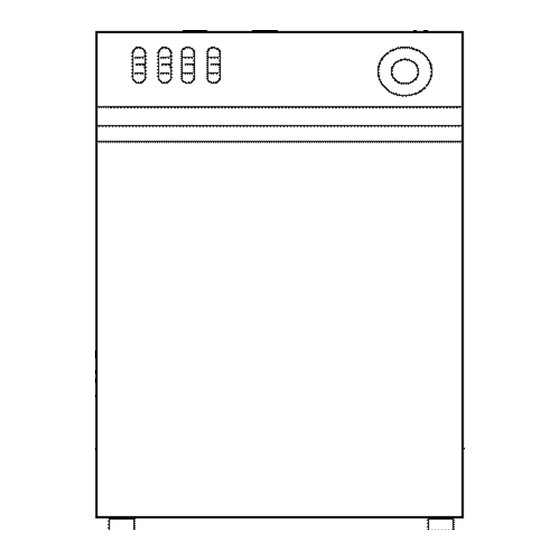

Maytag LAT9356AAE Installation Instructions Manual

Maytag LAT9356AAE Installation Instructions Manual

Laundry washer
Hide thumbs Also See for LAT9356AAE:

Advertisement

Quick Links

Read this before you start...
TOOLS
needed for installation:
• Cutting knife
• Channel
lock
• Nut driver
• Level
• Crescent
wrench
• Screwdriver-flatblade
Proper
installation
is the responsibility
of the purchaser.
SERVICE
CALLS
PERFORMED
AS A RESULT OF POOR INSTALLATION
ARE THE
RESPONSIBILITY
OF THE INSTALLER.
Make sure you have everything
necessary
for proper installation.
©
GROUNDED
ELECTRICAL
OUTLET
is required.
See Electrical
Requirements.
STANDPIPE
DRAIN SYSTEM
must be able to accept
1 1/2" O.D. drain hose.
Standpipe
height of 36" is recommended.
NOTE:
Unit is designed
to pump efficiently
to a height of 8 feet at normal spin speeds.
HOT AND COLD WATER FAUCETS
must be within 4 feet of the back of the washer.
LAUNDRY
TUB DRAIN SYSTEMS
(for use with Water-Saver
Models only).
Tub capacity
to hold a minimum of 21 gallons.
WATER HEATER set to deliver
140°F (60°C) hot water to the washer.
PROTECTION
FROM WEATHER:
Do not store or operate
washer below 60°F (15°C).
PARTS supplied
for installation:
• 2 inlet hoses
• 4 hose washers
• 2 hose screens
• 1 cable tie
• Literature
package
INSTALLATION
ACCESSORY
KITS
Pa_ No.
12001875
12001585
12001586
12001599
211692
204986
Description
Grounding
Kit
Drain Hose Extension
Anti-Siphon
Small Diameter
Standpipe
Drain Hose
Non-Slip
Disc
Carpet Installation
Disc
Application
Additional
grounding
if required
by local codes.
Extends drain hose for drain facilities
higher than 4 ft.
Used when an air-tight connection
exists between
drain hose and drain facility.
Floor drain facilities.
Used when standpipe
diameter
is too small to
receive end of drain hose.
For painted/sloped
basement
floors.
For carpeted
floors.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LAT9356AAE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Maytag LAT9356AAE

  • Page 1 Read this before you start... TOOLS needed for installation: • Cutting knife • Channel lock • Nut driver • Level • Crescent wrench • Screwdriver-flatblade Proper installation is the responsibility of the purchaser. SERVICE CALLS PERFORMED AS A RESULT OF POOR INSTALLATION ARE THE RESPONSIBILITY OF THE INSTALLER.
  • Page 2 (Part No. 12001875) containing accessory ground wire, clamp, ground screw and washer can be purchased. Contact your authorized Maytag dealer for further assistance. Follow ALL grounding require- ments and codes. EXPORT MODELS - 50 HZ AND 60 HZ EXPORT-specific...
  • Page 3 CABINET DIMENSIONS 26 3/4" 68.0 cm 28" 64.8 cm s" '1'-- '1'-- L._! L._! SIDE VIEW BACK VIEW DRAIN FACILITY FLOORING Recommended height of standpipe is 36". For best performance the washer must be the standpipe is less than 36" high, the drain installed on a solidly constructed floor.
  • Page 4 STEP 5 STEP 1 • Remove all items from inside of wash tub. Run water through both water faucets into a bucket to purge the water line particles that • Replace tub block and tape lid shut. might clog the hoses. While running water •...
  • Page 5 HOSE RETAINER -----4 STEP 9 c,,/ STANDARD MODELS STEP 10a 36" standpipe recommended • ff standpipe is less than 36"' (or floor drain) - Place the drain hose in the drain facility. If the drain hose should be routed through the clip hose is twisted after it has been placed in the to raise hose to the proper height.
  • Page 6 STEP 13 STEP 16 • Check machine again with a level. • Remove tape from lid. • Be sure that machine does not rock. • Open lid to remove tub block. • Remove any remaining shipping material, including protective dial cover(s). •...
