American DJ
User Instructions
7/04
®
American DJ
®
4295 Charter Street
Los Angeles Ca. 90058
www.americandj.com

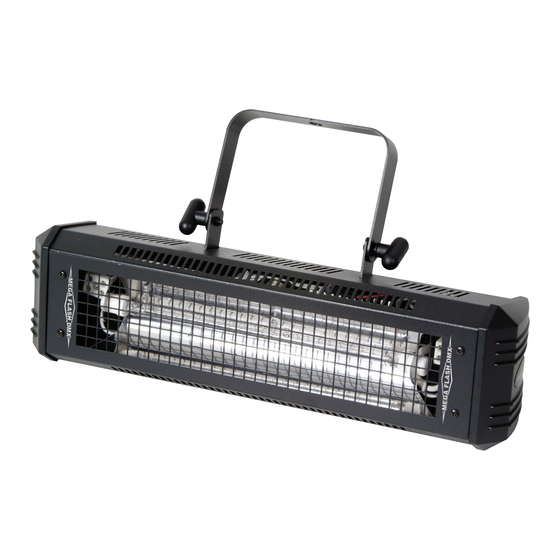

Mega Flash DMX™
Unpacking:
Thank you for purchasing the Mega Flash DMX™ by
American DJ
. Every Mega Flash DMX™ has been thoroughly tested
®
and has been shipped in perfect operating condition. Carefully check
the shipping carton for damage that may have occurred during ship-
ping. If the carton appears to be damaged, carefully inspect your unit
for damage and be sure all accessories necessary to operate the unit
have arrived intact. In the event damage has been found or parts are
missing, please contact our customer support number for further
instructions. Please do not return this unit to your dealer without first
contacting customer support at the number listed below.
Introduction:
To optimize the performance of this product, please
read these operating instructions carefully to familiarize yourself with
the basic operations of this unit. The Mega Flash DMX™ is a 800 watt
strobe, that has a flash rate range of 1 to 15 flashes per second. Up
to 16 units may be linked together and controlled by single controller.
The units' intensity, and flash rate can be manually adjusted using the
dipswitches.
Customer Support:
American DJ
port line, to provide set up help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments
or suggestions. For service related issue please contact American
DJ
. Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m.
®
Pacific Standard Time.
Voice:
(800) 322-6337
Fax:
(323) 582-2610
E-mail:
support@americandj..com
To purchase parts online visit http://parts.americandj.com
Warning!
To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Caution!
There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty.
Please recycle the shipping carton when ever possible.
American DJ
www.americandj.com - Mega Flash DMX™ Instruction Manual Page 2
® -
Introduction
provides a toll free customer sup-
®
Advertisement
Related Manuals for American DJ Mega Flash DMX
Summary of Contents for American DJ Mega Flash DMX
- Page 1 To optimize the performance of this product, please read these operating instructions carefully to familiarize yourself with the basic operations of this unit. The Mega Flash DMX™ is a 800 watt strobe, that has a flash rate range of 1 to 15 flashes per second. Up to 16 units may be linked together and controlled by single controller.
-
Page 2: Warranty Registration
• Do not spill water or other liquids into or on to your unit. The Mega Flash DMX™ carries a one year (365 days) limited war- • Do not attempt to remove or break off the ground prong from the ranty. - Page 3 Power Supply: Before plugging your unit in, be sure the source volt- sound activation. age in your area matches the required voltage for your American DJ ® Assigning DMX Address: Each dipswitch has a preset value. A spe- Mega Flash DMX.™ The American DJ Mega Flash DMX ™...
-
Page 4: Duty Cycle
3 Hot Pin 3 = Data True (positive) alone, sound-active unit, or in a Master/Slave configuration. It can also operate via DMX controller. The Mega Flash DMX™ is ready to Figure 3 be plugged in out of the box. Special Note: Line Termination. -
Page 5: Fuse Replacement
Fuse Replacement: Disconnect the unit’s main power supply. 4. The Mega Flash DMX™ uses two DMX channels. Channel 1 con Insert a standard flat head screw driver in to the fuse holder hous- trols the flash speed and chanel 2 controls the dimmer. Use your ing (located on the rear of the unit). -
Page 6: Warranty
® tive parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of American DJ ® under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of American DJ .
