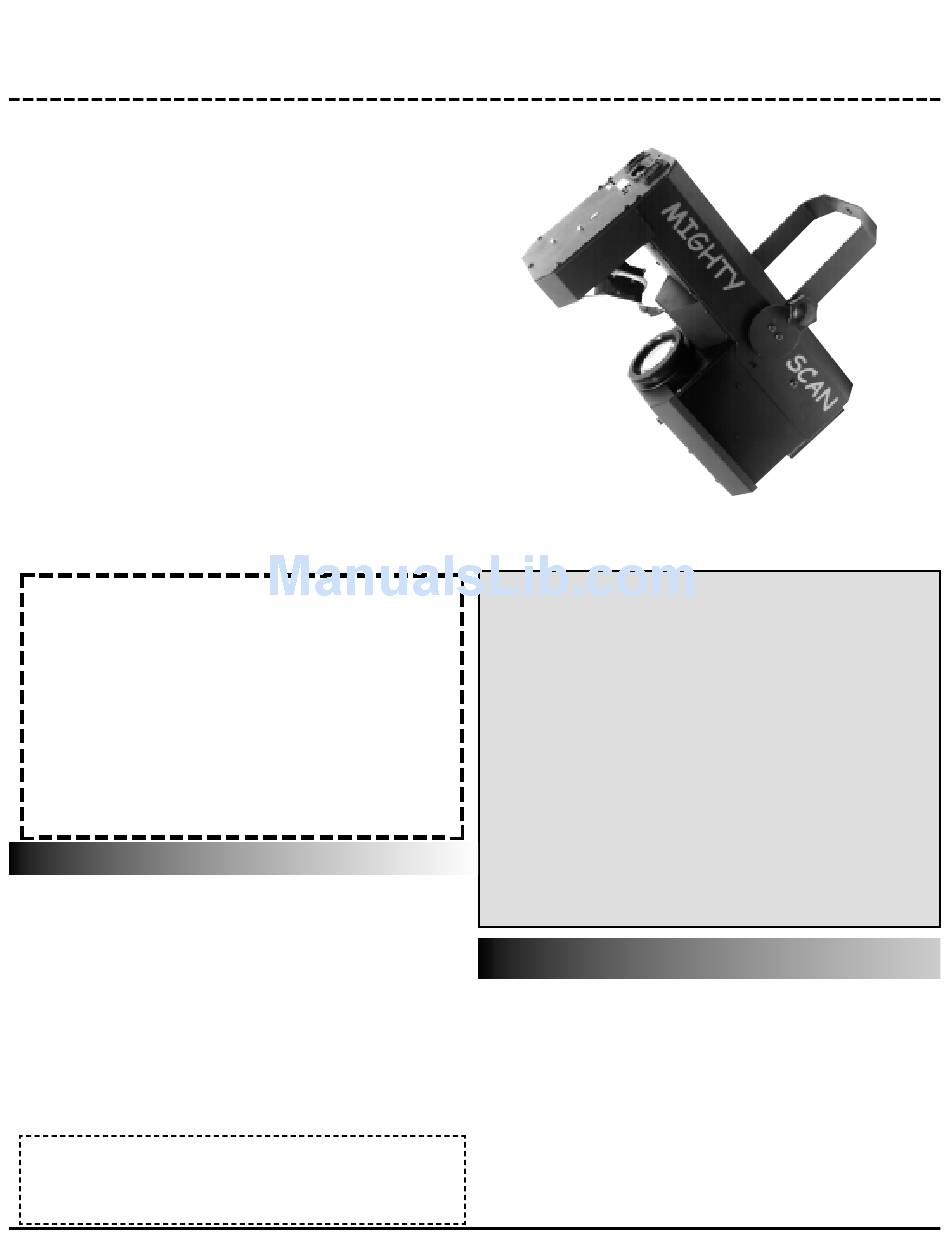

American DJ Mighty Scan User Instructions

American DJ
MIGHTY
SCAN
Thank you for purchasing this American DJ® product. Some setup required.
Please read the following instructions before installing or using your new unit.
HALOGEN LAMP WARNING!
This fixture is fitted with a halogen lamp which is
highly susceptible to damage if improperly handled.
Never touch lamp with bare fingers as the oil from
your hands will shorten lamp life. Also, never move
fixture until lamp has had ample time to cool.
Remember, lamps are not covered under warranty
conditions.

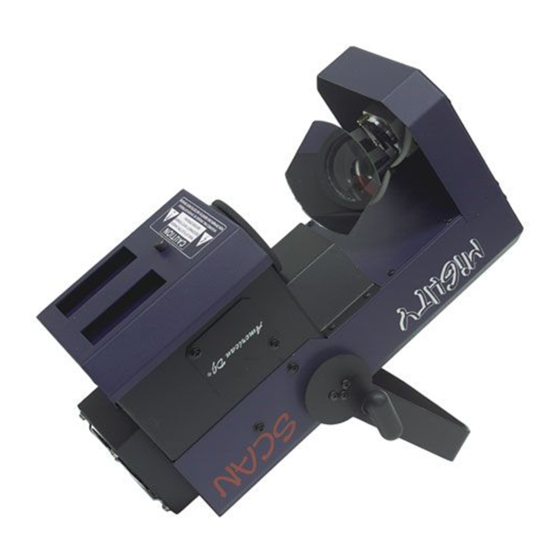

THE MIGHTY SCAN™ Features
• 20 Dichroic Colors + White
• 20 Gobos plus Spot
• High speed Shutter
• Strobes in every Color
• 16 flashes per second
• Variable Speeds
• DMX-512 Protocol
• Separate color and gobo wheels
• Split colors
• Full DMX capabilities
• Build in programs
*
At first start-up, this unit may smoke for a
few minutes until the excess paint can be
burned off lamp socket assembly.
American DJ Supply®
®
™
Important Notice:
This fixture follow the European DMX standard.
When operating this fixture with a standard DMX
controller, the fixture's DMX value will start on
one (1) with all the dip switches in the off posi-
tion. For example: To get a DMX value of one
(1) you would have to flip dip switch one (1) to
the on position. In the case of the Mighty
Scan™ however, dip switch one (1) on, would
give the Mighty Scan™ a DMX value of two (2).
To get a value of one (1), all the dip switches
would have to be in the off position. To get a
DMX value of two (2) set the DMX value to one
(1), for thee (3) set the DMX value for two (2)
and so on .
Voltage: 120v/220v 50/60 Hz
Dimensions: 14.25" x 5.75" x 7.5"
Lamp: ZB-ELC-3 250W 24V
Weight: 28 lbs.
Fuse: Dual 6.3A
Packing list:
www.americandj.com MIGHTY SCAN™ User Instructions page 1
User Instructions
THE MIGHTY SCAN™ Specifications
1. The MIGHTY SCAN™ Projector
2. IEC power cord
3. Operating manual
