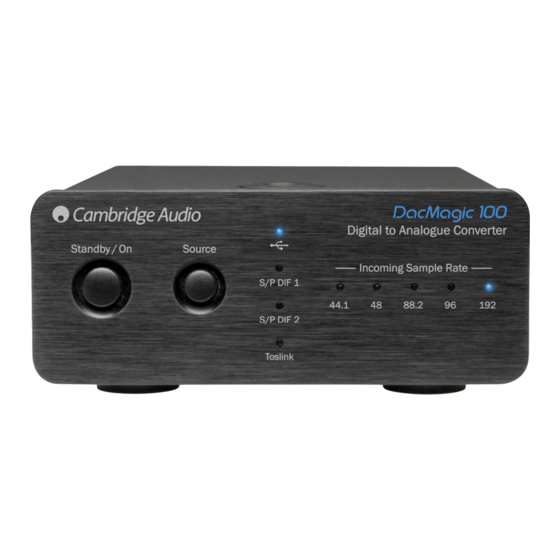

DacMagic 100 Digital to Analogue Converter
Digital to Analogue Converter featuring S/PDIF
•
and Toslink digital inputs and USB audio input (all
24 bit compatible)
Wolfson WM8742 24bit DAC
•
24-bit/96kHz driverless USB Audio 1.0 input
•
24-bit/192kHz USB Audio 2.0 input with ASIO or
•
kernel streaming modes
Asynchronous USB transfer for very low jitter USB
•
Audio input allowing streaming of up to 24-
bit/192kHz audio from computer
Detailed Specifications
Digital inputs
USB Audio Input
Audio Output
D/A converter
Frequency response
Digital input word widths supported
Digital input sampling frequencies
supported on all inputs
Output level (unbalanced)
Output impedance
Max power consumption
Dimensions (H x W x D)
Weight
USB audio input allows the DacMagic 100 to
•
act as a high quality DAC/soundcard for
your computer
RCA audio output
•
Full metal casework design with thick
•
brushed aluminium front panel
Available in black or silver finishes
•
2 x S/PDIF 75 ohms
1 x TOSLink optical
USB Type B conforming to Audio profile 1.0 or USB Audio profile
2.0 (user 1.0 or USB Audio profile 2.0 (user selectable)
1 x pair Gold Plated RCA phono outputs
Wolfson WM8742 24bit DAC
20Hz to 20kHz (±0.1dB)
16-24bit
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz *
2.3V rms
<50ohms
5W
46 x 106 x 130mm
0.5kg/1.1lbs
*
Toslink input supports 96kHz maximum
Feb 2012
