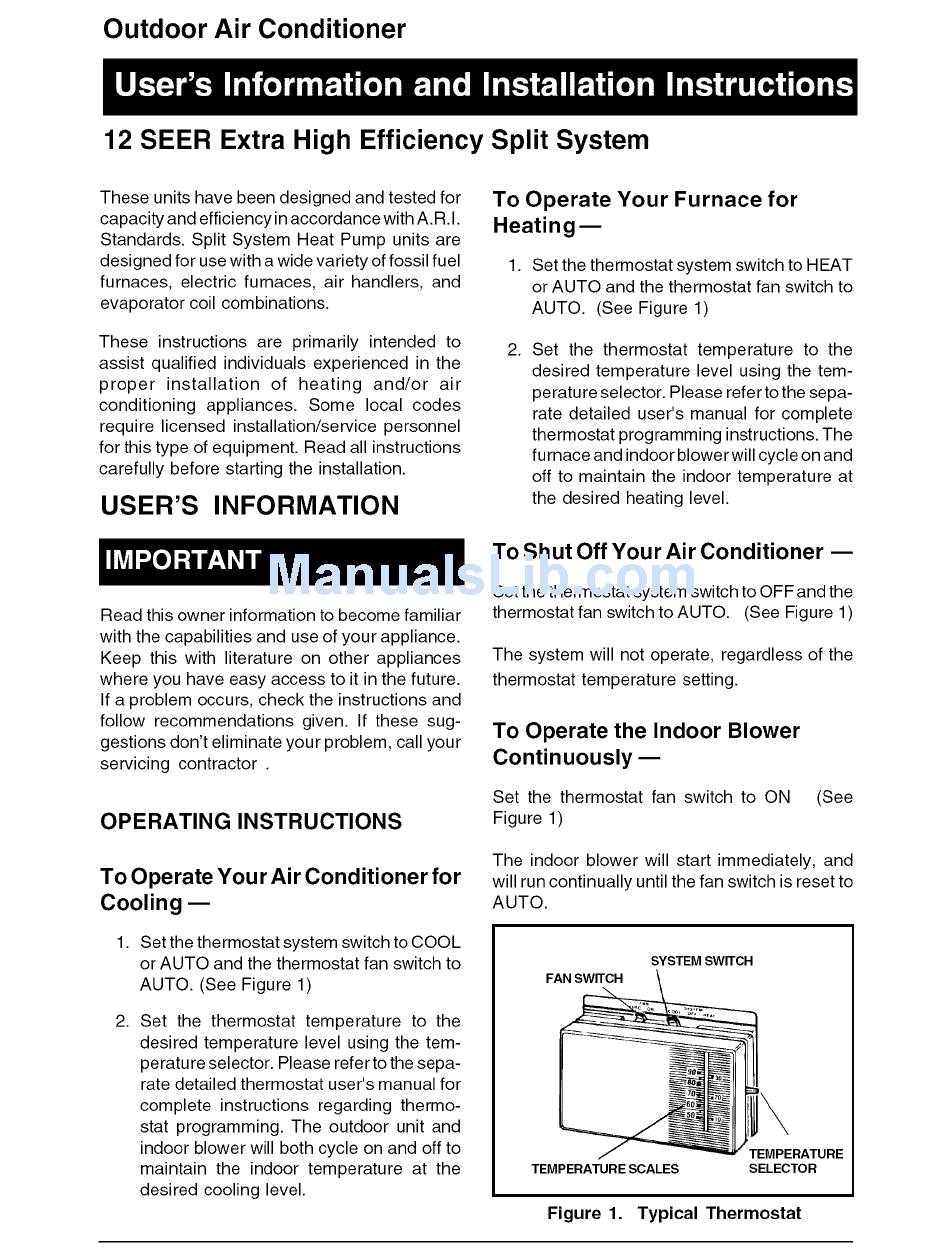

Nordyne MS3BC042KA Installation Instructions Manual

Outdoor Air Conditioner
12 SEER Extra High Efficiency Split System
These units have been designed and tested for
capacity and effici e ncyin accordance with A. R. I.
Standards. Split System Heat Pump units are
designed for use with a wide variety of fossil fuel
furnaces, electric furnaces, air handlers, and
evaporator coil combinations.
These instructions are primarily intended to
assist qualified individuals experienced in the
proper installation of heating and/or air
conditioning appliances. Some local codes
require licensed installation/service personnel
for this type of equipment. Read all instructions
carefully before starting the installation.
USER'S INFORMATION
Read this owner information to become familiar
with the capabilities and use of your appliance.
Keep this with literature on other appliances
where you have easy access to it in the future.
If a problem occurs, check the instructions and
follow recommendations given. If these sug-
gestions don't eliminate your problem, call your
servicing contractor .
OPERATING INSTRUCTIONS
To Operate You r Ai r Conditioner for
Cooling
1. Set the thermostat system switch to COOL
or AUTO and the thermostat fan switch to
AUTO. (See Figure 1)
2. Set the thermostat temperature to the
desired temperature level using the tem-
perature selector. Please refer to the sepa-
rate detailed thermostat user's manual for
complete instructions regarding thermo-
stat programming. The outdoor unit and
indoor blower will both cycle on and off to
maintain the indoor temperature at the
desired cooling level.
To Operate Your Furnace for
Heating
1. Set the thermostat system switch to HEAT
or AUTO and the thermostat fan switch to
AUTO. (See Figure 1)
.
Set the thermostat temperature to the
desired temperature level using the tem-
perature selector. Please refer to the sepa-
rate detailed user's manual for complete
thermostat programming instructions. The
furnace and indoor blower will cycle on and
off to maintain the indoor temperature at
the desired heating level.
To Shut Off Your Air Conditioner
Set the thermostat system switch to OFF and the
thermostat fan switch to AUTO. (See Figure 1)
The system will not operate, regardless of the
thermostat temperature setting.
To Operate the Indoor Blower
Continuously
Set the thermostat fan switch to ON (See
Figure 1)
The indoor blower will start immediately, and
will run continually until the fan switch is reset to
AUTO.
SYSTEM SWITCH
FAN SWITCH
TEMPERATURESCALES
TEMPERATURE
SELECTOR
Figure 1. Typical Thermostat
