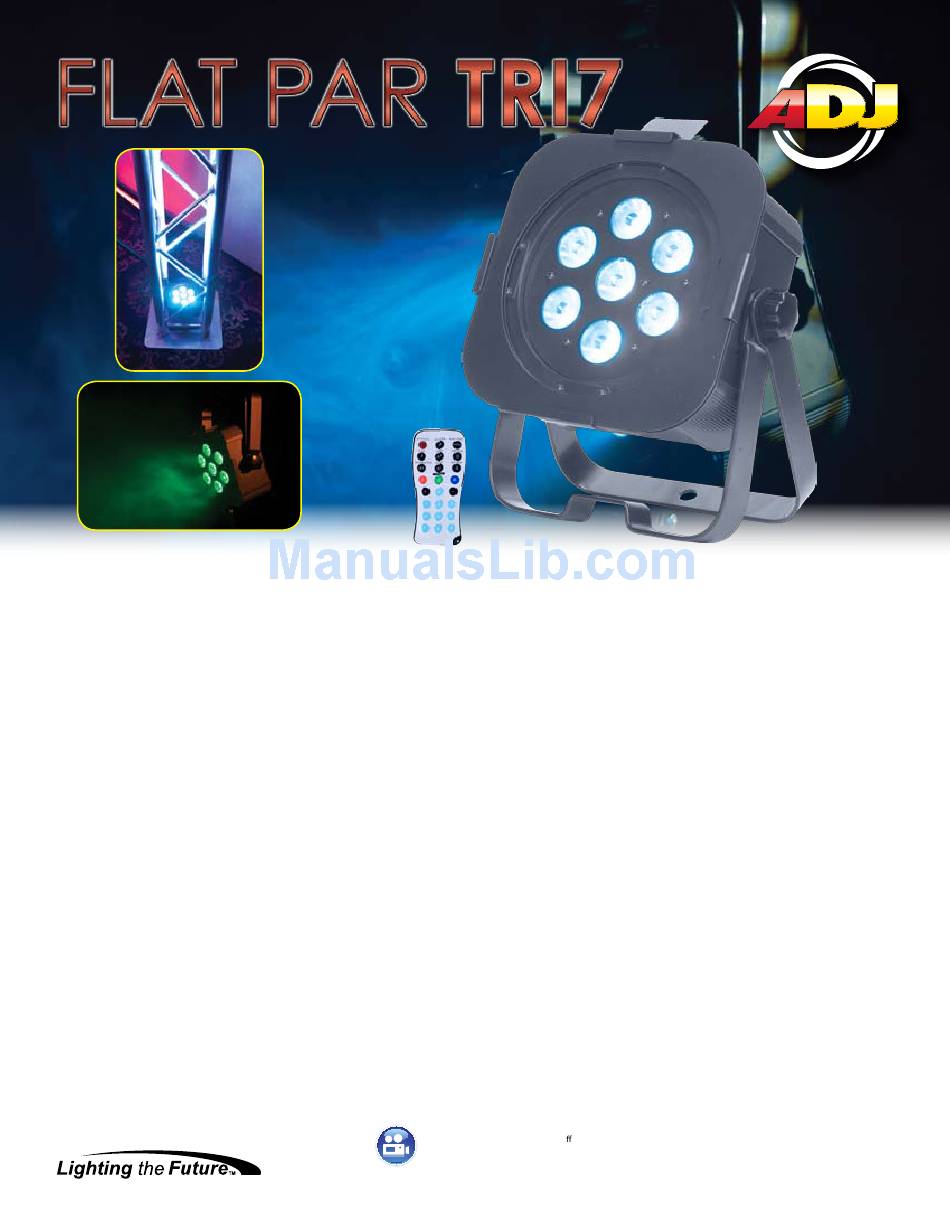

American DJ Flat Par Tri7 Quick Manual

Specifications:

• Ultra bright slim Par Can with 7x 3-Watt TRI LEDs (3-in-1 RGB)
• Great for performance stages where traditional par cans emit
a lot of heat onto performers
• Low profile case design
• Wireless infrared remote control up to 15 ft./4.5M (Model: ADJ
LED RC - sold separately)
• 7 DMX Channel modes: 1, 2, 3, 4, 5, 6 or 7 channel modes
• 6 Operational modes: Manual Color Mode; Color Change
Mode; Color Fade Mode; Auto (Program Run) Mode; Sound
Active Mode and DMX-512 Mode
• Smooth RGB color mixing (fast or slow color change
operation)
• TRI LED (3-in-1) projects no RGB shadows
• 32 built-in Color Macros
• Color strobe effect
• Electronic Dimming: 0 - 100%
• Beam angle: 40-degree
• Linkable via 3-pin XLR cable (In/Out)
• 4-button LED DMX display on rear panel
• Dual bracket system allows fixture to be hung or set on the
ground
• IEC AC IN/OUT outlets on rear to daisy chain power
• Safety hook on rear panel
* Remote sold separately
• Includes gel frame for optional diffusion filters
• Run all night – No duty cycl
• Long Life LEDs (50,000 hrs.)
• Power Draw: 25W max
• Multi-voltage operation: AC 90V-240V 50/60Hz
• Dimensions (LxWxH): 10.75"x9"x4.25"/272x230x105mm
• Weight: 7 lbs./2.8 kg.

ADJ LED RC Infrared Remote Control Features:

• Black Out: Turns fixture On/Off
• Auto Run: Automatically run through built-in programs
• Program Selection: Access units built-in programs
• Flash: Strobe effect
• Speed: Control speed of Auto Run
• DMX Mode Select
• Sound Active: Activates sound active mode
• Slave: Designates the fixture as a "slave" fixture in the Master
Slave configuration
• Set Address: Set DMX Address on a fixture
• RGB Buttons: Adjust RGB colors with the "+" and "-" buttons
• + and – Buttons: Adjust flash rate, speed of the Auto Run and
Program Selection
Specifications subject to change without notice
Check out video footage of this e ect @
www.americandj.com
