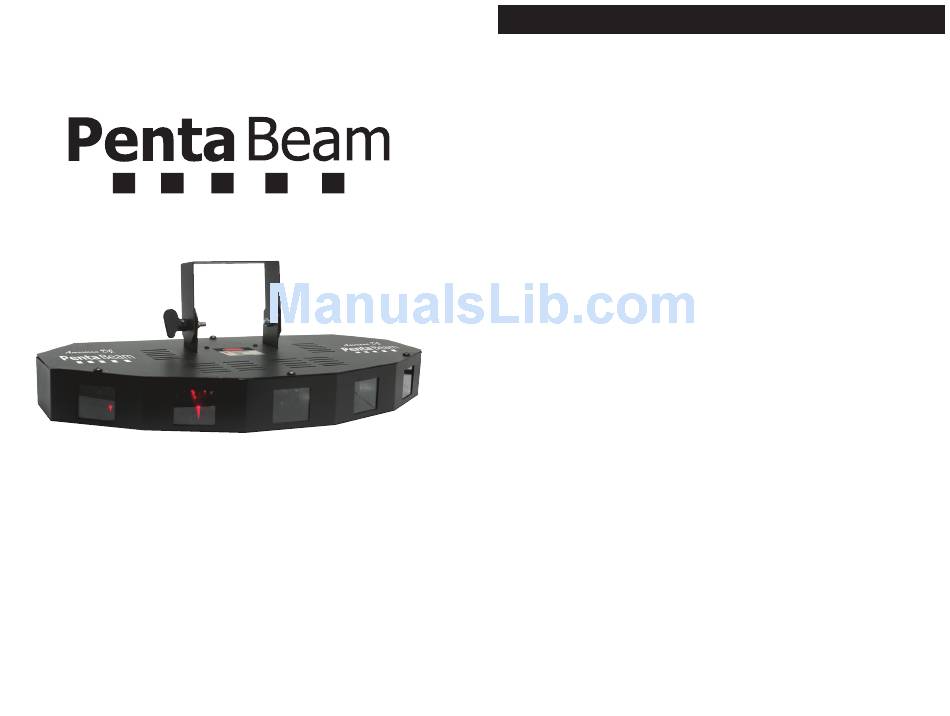

American DJ Penta Beam User Instructions

American DJ
User Instructions
Rev. 11/09
Penta Beam™
Unpacking:
Thank you for purchasing the Penta Beam™ by Ameri-
can DJ . Every Penta Beam™ has been thoroughly tested and has
®
®
been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If
the carton appears to be damaged, carefully inspect your unit for any
damage and be sure all equipment necessary to operate the unit has
arrived intact. In the event damage has been found or parts are miss-
ing, please contact our toll free customer support number for further
instructions. Please do not return the unit to your dealer without first
contacting customer support.
Introduction:

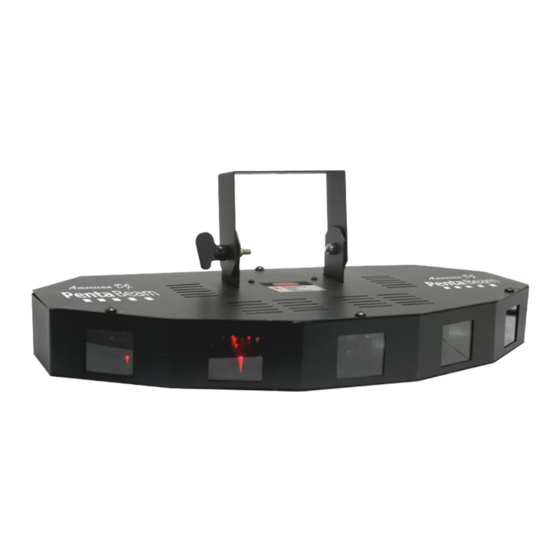

The Penta Beam™ is a unique six channel, DMX intel-
lingent red laser effect that creates several different patterns. The unit
uses five lasers to project several patterns over a wide area. This unit
can be used as a stand alone, sound-active unit or in a Master/Slave
configuration. The unit can also be controlled via DMX controller. The
unit's sound sensitivity may be adjusted by a sensitivity knob on the
rear of the unit. When used as a stand alone unit or when used in mul-
tiples linked in a master/slave configuration the optional MINI/C con-
troller may be used. The optional controller will control the blackout
function. For best results use fog or special effects smoke to enhance
the beams projections.
Customer Support:
support line, to provide set up help and to answer any question should
you encounter problems during your set up or initial operation. You
may also visit us on the web at www.americandj.com for any com-
ments or suggestions. For service related issue please contact Ameri-
can DJ . Service Hours are Monday through Friday 9:00 a.m. to 5:00
®
p.m. Pacific Standard Time.
Voice:
Fax:
E-mail:
To purchase parts online visit http://parts.americandj.com
Caution!
There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures
warranty. In the unlikely event your unit may require service please
contact American DJ customer support.
Please recycle the shipping carton when ever possible.
American DJ - www.americandj.com - Penta Beam™ Instruction Manual Page 2
© ®
General Introduction
American DJ provides a toll free customer
®
(800) 322-6337
(323) 582-2610
