American DJ Pinspot LED Quick Manual

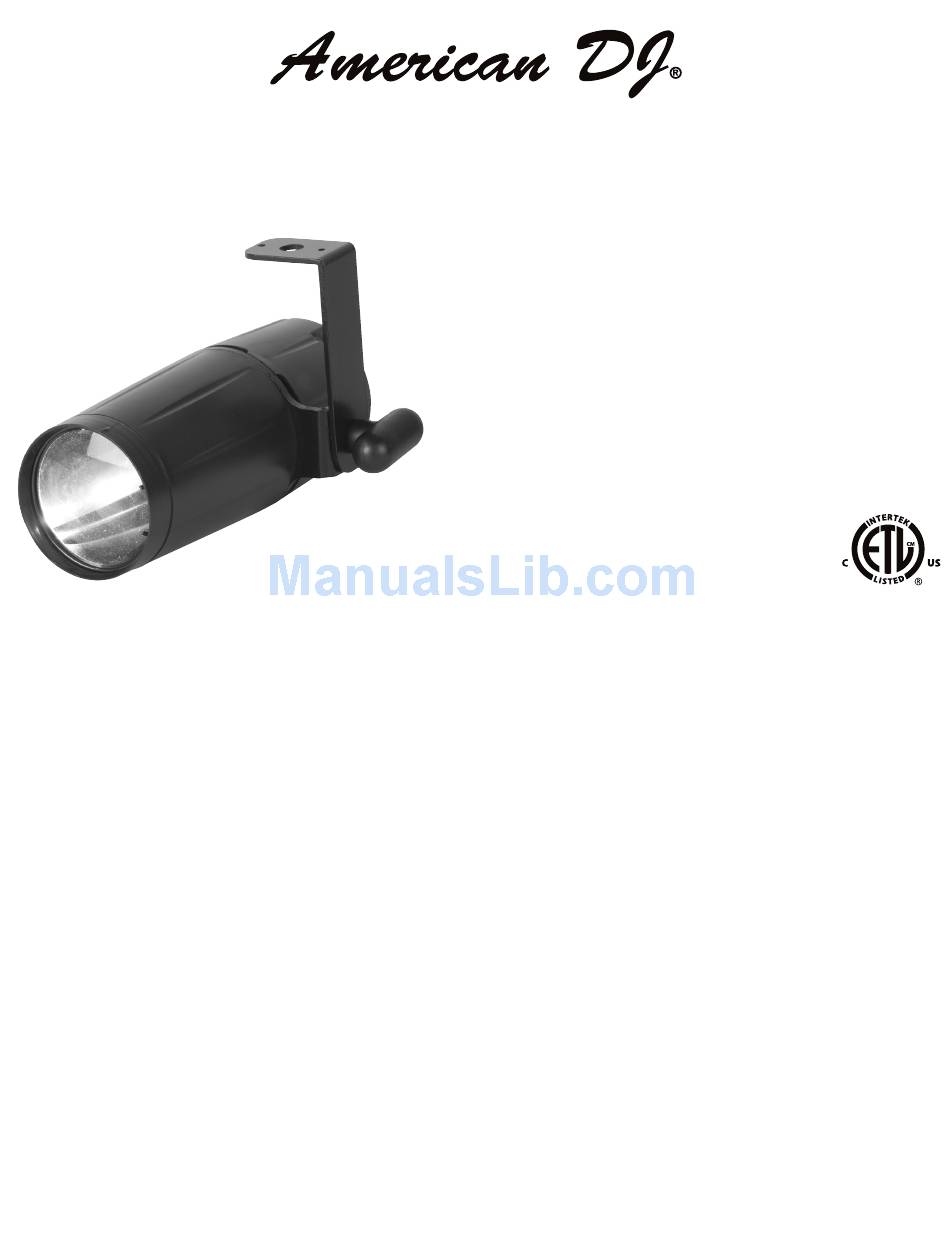

Pinspot LED
Unpacking: Thank you for purchasing the Pinspot LED by American DJ®. Every Pinspot LED has
been thoroughly tested and has been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If the carton appears to be damaged,
carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit
has arrived intact. In the case damage has been found or parts are missing, please contact our toll free
customer support number for further instructions. Do not return this unit to your dealer without first
contacting customer support.
Introduction: The Pinspot LED is part of American DJ's continuing pursuit for creating high quality
affordable fixtures. The Pinspot LED is a simple, small LED Pin Spot. This pin spot is light weight and
compact which makes it a great piece for mobile DJ's, archtectural lighting, or ligting effect.
Lens Change: The Pinspot LED comes with a standard 12 degree lens already attached. Included in
the box is an optional 6 degree lens. To switch lenses simply remove the retainer ring in front of the
current lens, carefully remove the lens, and attach the 6 degree lens. Replace the retainer ring and the
switch is complete.

Pinspot LED SPECIFICATIONS:

LED:
Working Position:
Power Input Voltage:
Weight:
Dimensions:
Warranty:
3W
Any safe working position
100~240V AC 50/60Hz
1lbs./ .5Kgs.
5.75"(L) x 3"(W) x 2.4"(H)
145 x 75 x 61mm
3 Year (1095 days)
4000358
