Manhattan 500 SX 460491 User Manual

Web cam 500 sx
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

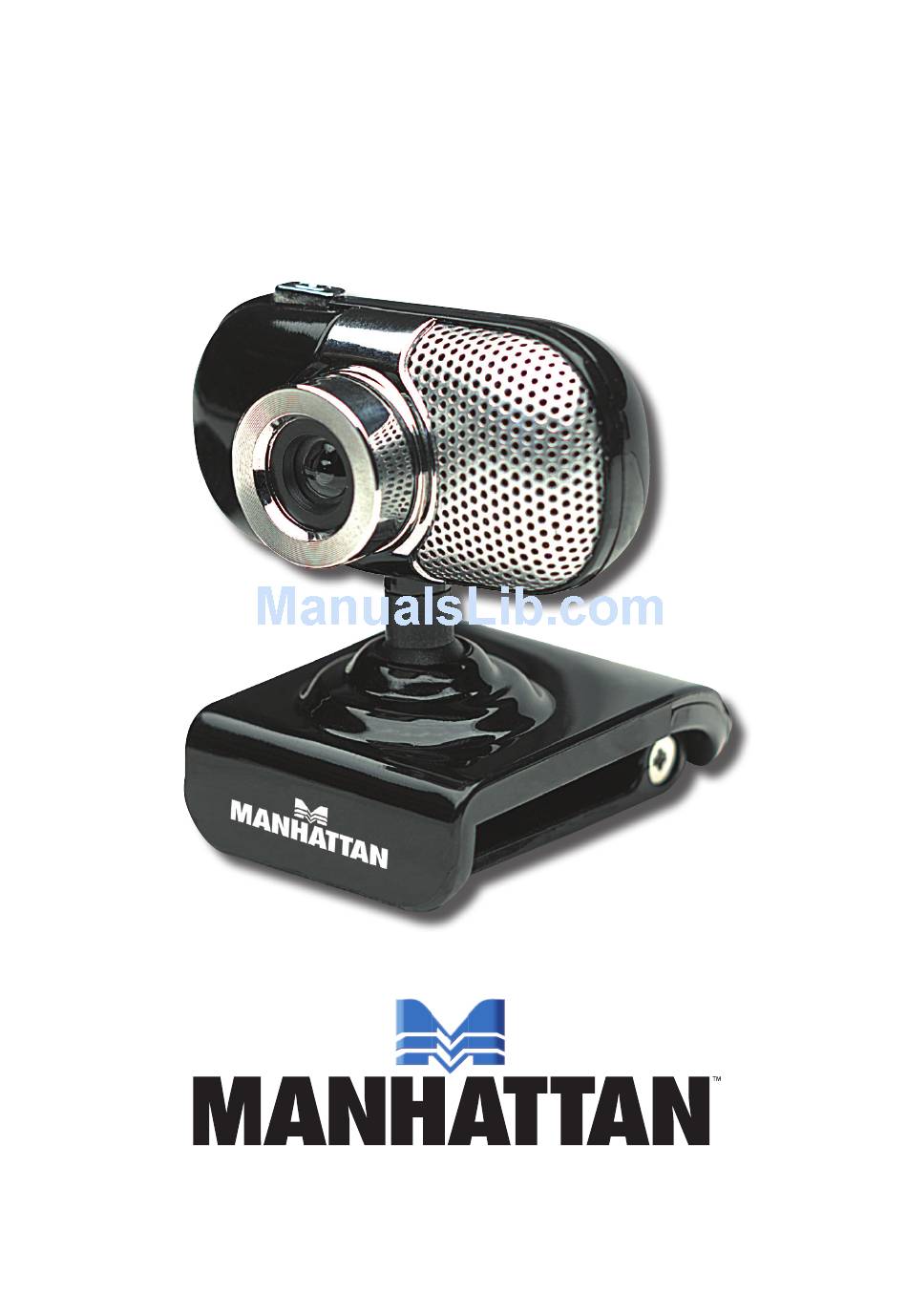

WEB CAM
500 SX
USER
MANUAL
MODEL 460491
MAN-460491-UM-1011-04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 500 SX 460491 and is the answer not in the manual?

Questions and answers

Related Manuals for Manhattan 500 SX 460491

Summary of Contents for Manhattan 500 SX 460491

  • Page 1 WEB CAM 500 SX USER MANUAL MODEL 460491 MAN-460491-UM-1011-04...
  • Page 2 INTRODUCTION Thank you for purchasing the MANHATTAN Web Cam 500 SX, Model 460491. ® With simple, operation and easy-to-use software, the Pro Cam’s 5.0-megapixel (software interpolated) CMOS lens captures crisp and clear images and smooth, steady video to share with family and friends. Automatic color balance, exposure and brightness controls combine with focus and tracking functions for professional results.

  • Page 3: Software Installation

    HARDWARE 1. With your computer on, plug the Top-mount snapshot button camera into a USB port on the PC/notebook/netbook. 2. Use the universal clip on the Focus ring camera base to position the camera as desired. NOTE: You may prefer to wait until Base with clip and you are adjusting the focus ring swivel mount...
  • Page 4       The Menu bar is at the top of the image screen. Beneath the image, the camera in use is identified. The feature items on the menu bar — File, Device, Options, Capture and Help — give you access to the various settings that let you configure your camera for optimal enjoyment.
  • Page 5 File index reset(R)     • Set Snapshot File Folder When this option is selected, a window will open so you can select a location for saving captured snapshots. This only needs to be done once: The VideoCap software program will continue to write to the same folder each time a snapshot is saved.
  • Page 6 Filter...(C)       • Video Capture Filter When this option is selected, the Properties box will open. These options (see the screens below) are used to edit the appearance and behavior of the video. Different versions of the software may provide various tabs and selections, but the options are the same.
  • Page 7 • Video Capture Pin This option allows for the configuration of the video stream properties. Unlike Filter, this has options such as frame rate, compression and output size settings. • Audio Capture Filter This allows the configuration of audio input properties. If no audio is selected in Devices, the options won’t be available.
  • Page 8 Capture This menu presents a list of various capture options. Still frame resolutions can be selected, and the active resolution will be displayed with a check mark. There are options for audio recording, frame rate, video format and maximum length (in time) of video capture.

  • Page 9: Specifications

    SPECIFICATIONS Standards and Certifications • USB 2.0 • CE • RoHS • WEEE Lens • CMOS Vimicro DSP color sensor; 300k pixels (software enhanced; interpolated to 5.0 M pixels) • Lens: F2.2 1/9-inch lens with focus ring • Image focus: 50 mm to infinity Image •...

  • Page 10: Waste Electrical And Electronic Equipment

    WASTE ELECTRICAL & ELECTRONIC EQUIPMENT Disposal of Electric and Electronic Equipment (applicable in the European Union and other European countries with separate collection systems) ENGLISH This symbol on the product or its packaging indicates that this product shall not be treated as household waste.
  • Page 11 ITALIANO Questo simbolo sui prodotto o sulla relativa confezione indica che il prodotto non va trattato come un rifiuto domestico. In ottemperanza alla Direttiva UE 2002/96/EC sui rifiuti di apparecchiature elettriche ed elettroniche (RAEE), questa prodotto elettrico non deve essere smaltito come rifiuto municipale misto. Si prega di smaltire il prodotto riportandolo al punto vendita o al punto di raccolta municipale locale per un opportuno riciclaggio.

  • Page 12: Warranty Information

    ITALIANO: Per informazioni sulla garanzia, accedere a www.manhattan-products.com/ warranty. EN MÉXICO: Póliza de Garantía MANHATTAN — Datos del importador y responsable ante el consumidor IC Intracom México, S.A. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlan Izcalli, Estado de México, C.P. 54730, México. •...

  • Page 13: Regulatory Statements

    REGULATORY STATEMENTS FCC Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 14 Wszystkie nazwy handlowe i towarów są nazwami i znakami towarowymi zastrzeżonymi odpowiednich firm odnośnych właścicieli. MANHATTAN® offre una linea completa di componenti per PC, periferiche, cavi e accessori. Chiedi maggiori informazioni al tuo rivenditore di computer o visita il sito www.manhattan-products.com.
