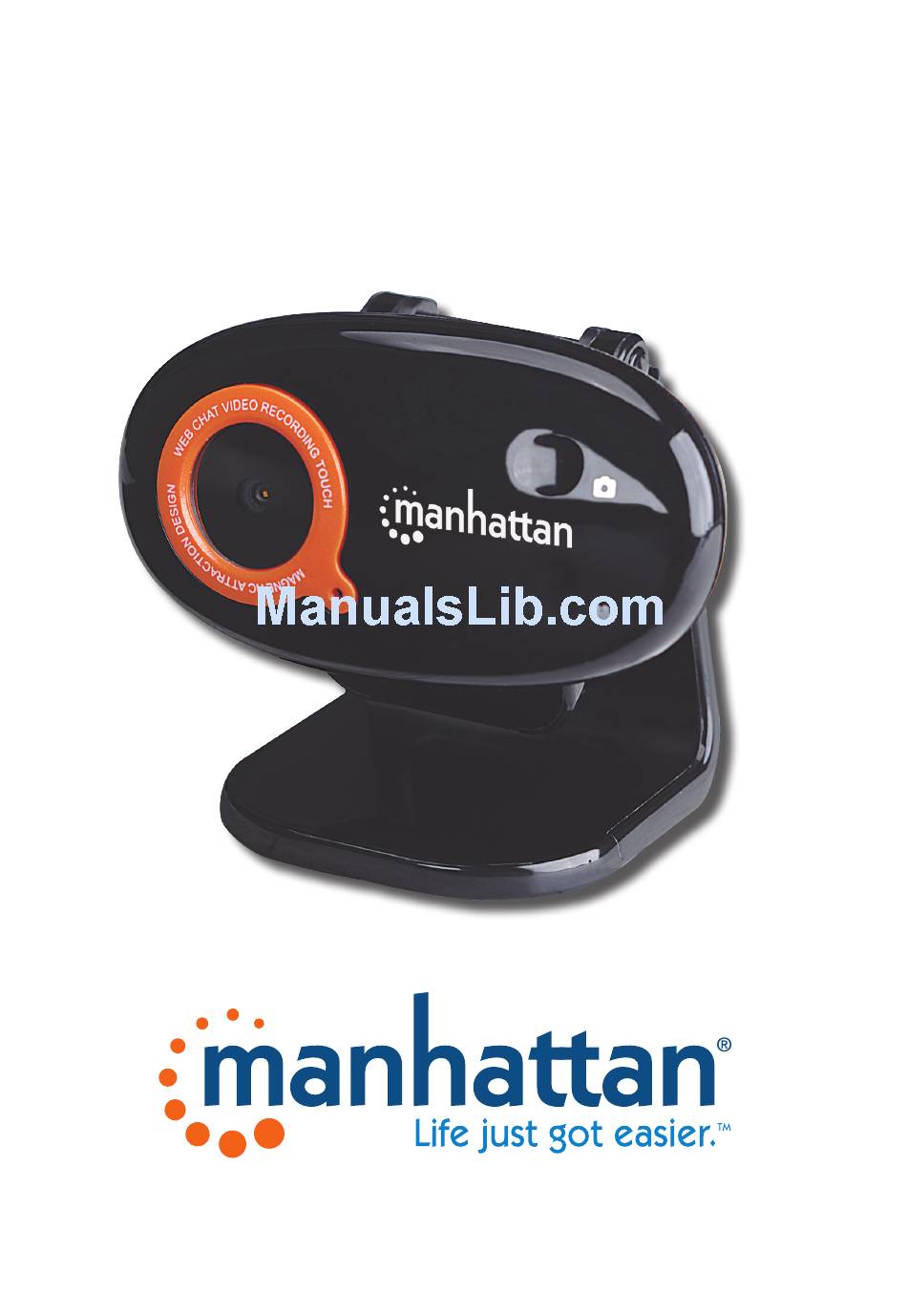

- Page 1 WIDESCREEN HD WEBCAM 860 PRO USER MANUAL MODEL 460545 MAN-460545-UM-0513-03...
- Page 2 INTRODUCTION Thank you for purchasing the Manhattan Widescreen HD Webcam 860 Pro, ® Model 460545. With simple, operation and easy-to-use software, the camera’s 21-megapixel (software interpolated) CMOS lens captures crisp images and smooth, steady video to share in widescreen HD resolutions up to 720p.
- Page 3 HARDWARE NOTE: Before you connect the camera to your computer or install any of its software, un-install any other webam drivers or software programs to avoid any conflicts that could prevent proper operation of this webcam. 1. Run the USB cable from the camera through the slot on the monitor clip. This helps prevent the camera from Monitor clip hitting your desk, keyboard or...
-
Page 4: Driver Installation
DRIVER INSTALLATION 1. With the camera connected to a USB port on your computer, insert the included software CD in your CD/DVD drive. 2. After a few moments, your system will detect the camera and you can begin the driver installation. On the initial screen of the InstallShield Wizard, click “Driver”; when the Ready to Install the Program screen displays, click “Install.”... - Page 5 4. The Setup Status screen will display to show the progress of the driver installation. If you need to interrupt the procedure, click “Cancel.” 5. When the InstallShield Wizard Complete screen displays, click “Finish” to complete the driver installation.
- Page 6 DRIVER & MICROPHONE INSTALL VERIFICATION 1. From your desktop, go to My Computer, then Properties. 2. On the Properties screen, go to the Hardware tab and click “Device Manager.”...
-
Page 7: Quick-Access Controls
3. Among your list of hardware icons, confirm that “USB 2.0 Webcam” is listed under Imaging Devices. If no exclamation point (!) appears in front of the listing, then the installation was succesful. USB 2.0 Webcam 4. From the desktop, go to Control Panel, and then click on the Sound icon. 5. -
Page 8: Advanced Settings
ADVANCED SETTINGS To make any changes to the camera settings (image controls and modes and such) or to take advantage of the variety of features (special effects and frame options), open the Webcam VideoCap application (in your Control Panel or on your desktop, depending on your operating system. For example: •... - Page 9 4. Drag the Record window so it overlaps and defines the area of the picture that you want to record. 5. Position your mouse anywhere within the Record area and double-click to display a Save As screen that lets you name your video file and designate a folder where you can save it.
-
Page 10: Frequently Asked Questions
SNAPSHOT 1. Double-click on the Webcam VideoCap icon. NOTE: If the icon isn’t displayed on your desktop, click on the Start icon, go to the All Programs tab, scroll down to and open the “Webcam” folder, then click on the Webcam VideoCap icon. 2. -
Page 11: Specifications
SPECIFICATIONS Standards and Certifications • USB 2.0 • USB 1.1 • CE • FCC • RoHS • WEEE Lens • CMOS 1/6” color sensor; 1.3 megapixels 720p (software enhanced; interpolated to 21 megapixels) with 4x digital zoom • Lens: plastic, 6 mm (0.25 in.); 64° angle •... - Page 12 © IC Intracom. All rights reserved. Manhattan is a trademark of IC Intracom, registered in the U.S. and other countries.
