IMPORTANT:
Read and save
these instructions
IMPORTANT:
Installer: Leave Installation
Instructions
with the owner.
Owner: Keep Installation
Instructions for
future reference.
Save Installation
Instructions
for local
electrical
inspector's
use.
COMMERCIAL
IC
120-volt, 60-Hz Models
®
Part No, 3360618
@
www.whirlpool.com
COMMERCIAL
LAUNDRY
PRODUCTS
Advertisement
Table of Contents
Related Manuals for Whirlpool CA2762XYW0
Summary of Contents for Whirlpool CA2762XYW0

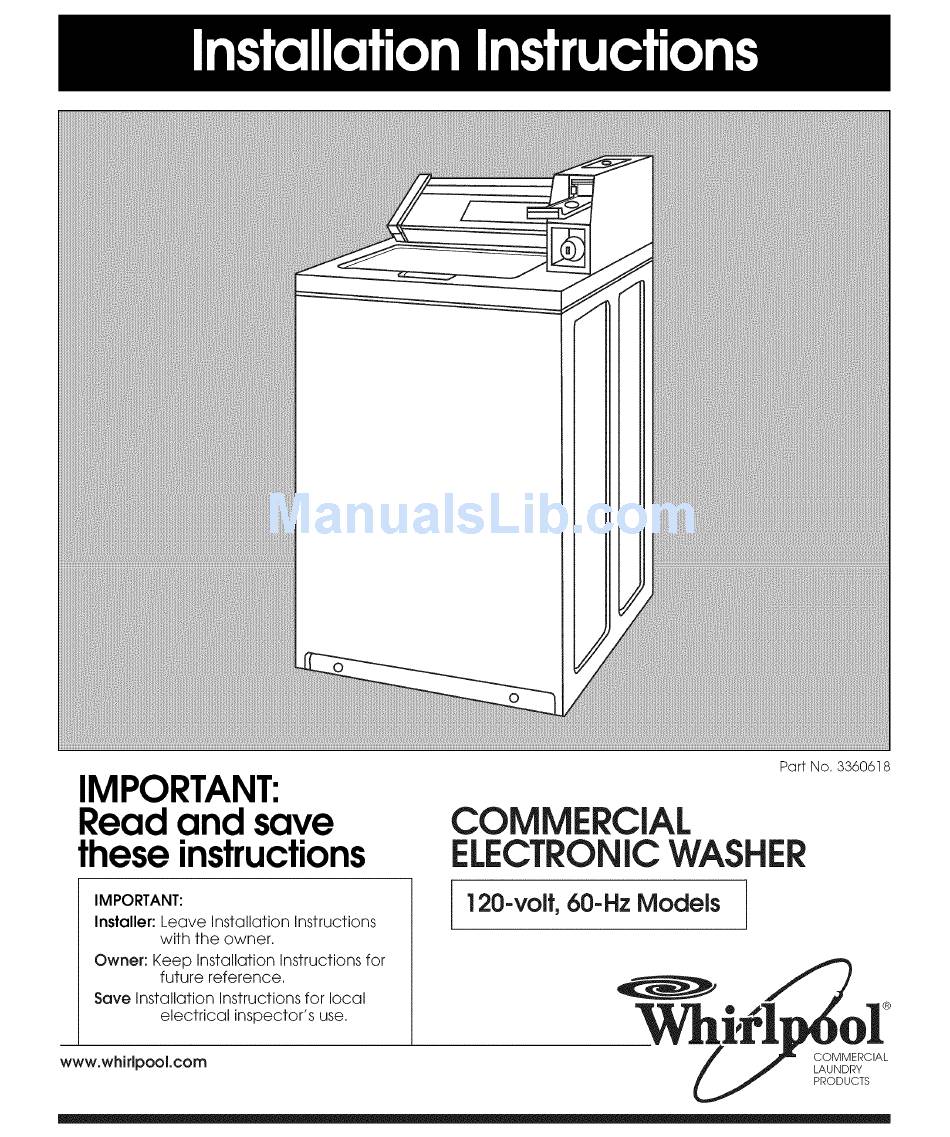

- Page 1 Part No, 3360618 IMPORTANT: Read and save COMMERCIAL these instructions IMPORTANT: 120-volt, 60-Hz Models Installer: Leave Installation Instructions with the owner. Owner: Keep Installation Instructions for future reference. Save Installation Instructions for local ® electrical inspector's use. COMMERCIAL www.whirlpool.com LAUNDRY PRODUCTS...
-
Page 2: Before You Start
Before you start._ Do Not store or operate washer below Your safety and the safety of 32°F (some water may remain in others is very important. washer). We have provided many important You wiii be killed or seriouslyinjured if See Use& Care Guide for safety messages in this manual and on you don't follow instructions. -
Page 3: Tools Needed For Installation
Tools needed for 3-prong ground- Electrical requirements 3-prong type outlet ------_--J]lllllt_l installation: ground level )liers plug power supply cord Figure ] Electrical Shock Hazard Now start... Plug into a grounded 3-prong outlet. Do not remove ground prong. With washer in laundry area. - Page 4 Whirlpool washer. Stack two corner posts on top of each other. Tilt washer backwards coupling washer and insert corner posts 3 inches in = Insert a flatwasher into each from one side of washer as shown.
- Page 5 console to manually operate timer. Remove the rear of the console to manually operate CORRECT ELECTRICAL SUPPLYAND timer of non-coin-operated washers. RECOMMENDED GROUNDING Start the washer and allow it to METHOD. complete the Normal cycle, Rotate REQUIREMENTS. BE SUREYOU HAVE counter- clockwise only.
- Page 6 Typical full load sizes. Owner options (coin- operated models) Load Load Loading Loading CAUTION: Disconnect power cord. Suggestion Type Type Suggestion 1. For WARM RINSE and WATER SAVER: • Remove screws from each end Mixed 3 double sheets 3 pair pants Heavy of the console bottom.
- Page 7 7" Power supply cord Cold 1-1/2" Water Inlets Drain hose connector 35" PAGE 7...
- Page 8 CORPORA[ION Part No, 3360618 ©1999 Whirlpool Corporation Prepared by Whirlpool Corporation, Benton Harbor, Michigan 49022 Printed in U,S,A,...
