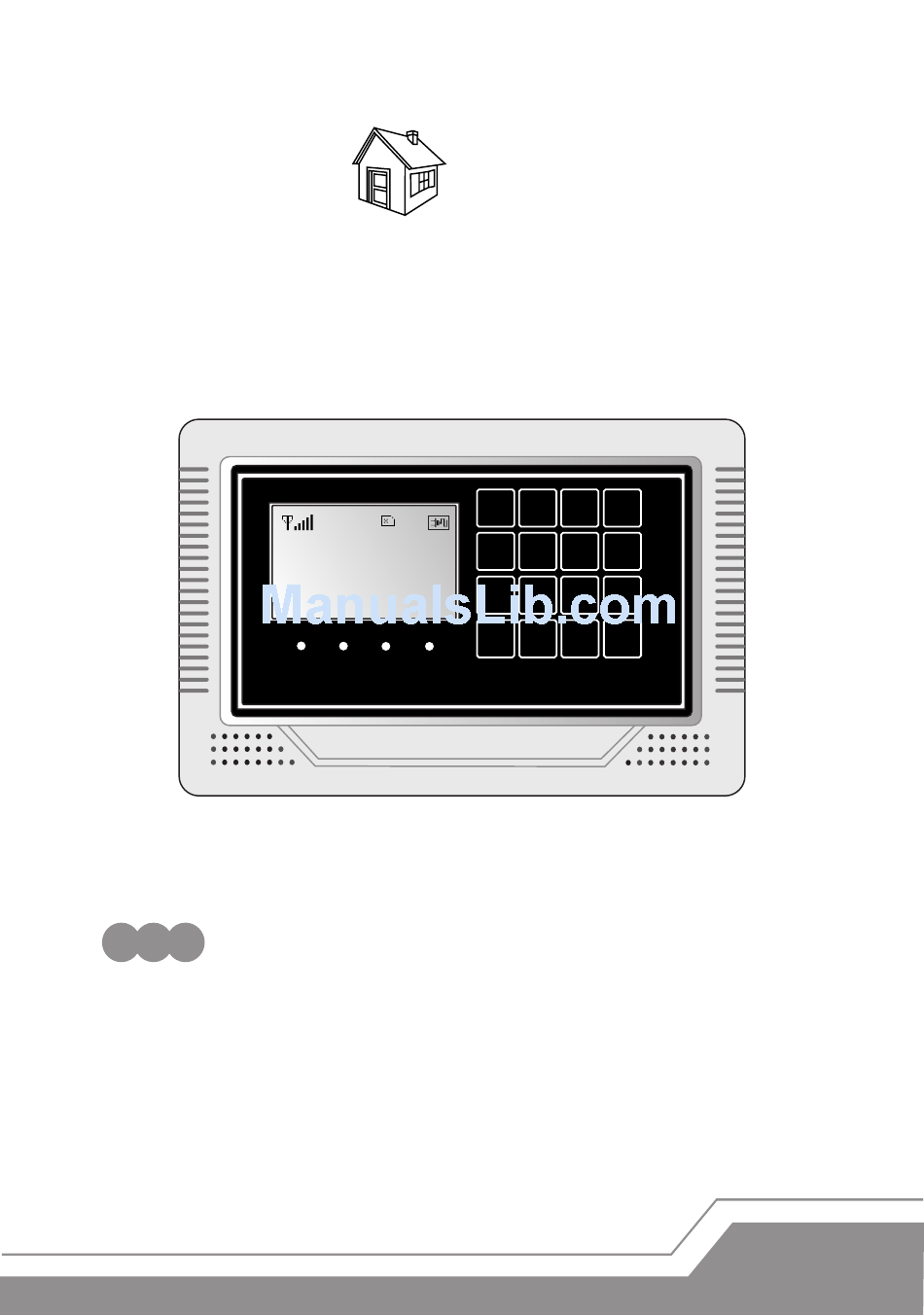

- Page 1 MOBILE CALL GSM Alarm System USER’ S MANUAL System disarmed STAY CALL 00/00/00 00:00 ENTER Power Signal Alarm Profile For a better understanding of this product, please read this user manual throughly before using it.
-
Page 2: Table Of Contents
CONTENTS Features Alarm Host Introduction Initialization System Settings Enter Settings Add Remote Controller Delete Remote Controller Coding of Defense Zone Delete Defense Zone Defense Zone Place Setting Defense Zone Mode Setting Siren Setting for Alarm Alarm Delay Setting Alarm Number Setting Delete Alarm Number SMS Number Setting Delete SMS Number... - Page 3 Wireless Siren Encryption Wireless Control for Home Appliance Change Operate Password Change Program Password Arm Delay Time Setting Alarm Delay Time Setting Voice Prompt Function Siren Prompt for Remote Controller Backlight Setting Siren Setting in “Emergency Help” Mode SMS Reply for Arm/ Disarm Language Setting Factory Reset Forget Password...
-
Page 4: Features
Features Features Chapter 1. Elegant and advanced touch keypad for easy operation; 128x64 lattice LCD screen with clock display; 4 wired and 10 wireless defense zones; each wireless zone supports maximum 10 sensors; Support maximum 8 remote controllers; Built-in high-volume speaker, and artificial intelligent digital voice announcer;... -
Page 5: Alarm Host Introduction
Alarm Host Introduction Chapter 2. Alarm Host Introduction System disarmed STAY CALL 00/00/00 00:00 ENTER Power Signal Alarm 1. LCD screen: Resolution: 128x64; support English and Chinese display. Status LED POWER: power and working status indicator. -flashing quickly (once per second) means the system is searching GSM network;... - Page 6 Alarm Host Introduction POWER IN BLACK SIREN WIRED SENSOR 4. Wired ports SIREN+ Positive of siren (red cable) SIREN- Negative of siren (black cable) Invalid port (does not have any function) T_VCC Invalid port Invalid port DATA Invalid port T_GND Zone 1 Wired sensor 1: support both NO and NC Zone 2...
-
Page 7: Initialization
Initialization Chapter 3. Initialization Correct initiation of the main panel is important to its normal working and lifespan. 1. Connect the wired accessories that you need. 2. Insert SIM card. Connect the power adaptor. The main panel will start self-inspection and the POWER indicator LED will flash once. -
Page 8: Add Remote Controller
System Settings 2. Add Remote Controller This device supports maximum 8 remote controllers. Extra remote controllers have to be coded to the host in order to perform normally. Their code cannot be empty or the same with the saved code in the host. -
Page 9: Coding Of Defense Zone
System Settings Method: enter remote controller setting menu, press “4” or “6” to choose the remote controller you want to delete. Press “8” to find “delete”, and then press ENTER. Operation figures: Fig 1: enter remote controller Fig 2: choose the controller you Fig 3: press ENTER to confirm setting want to delete... -
Page 10: Delete Defense Zone
System Settings Fig 4A: recognize successfully Fig 4B: the host has the same Fig 5: press ENTER to save code with sensor code Zone 1 Zone 1 Zone 1 241015162 Error Save completed Normal code Repeat code Back Save Back Save 5. -
Page 11: Defense Zone Mode Setting
System Settings Operation figures: Fig 1: enter defense zone setting Fig 2: choose defense zone place Fig 3: press ENTER to confirm Zone 1 Zone 1 Zone Place: Fire Place: GAS Armed: Enable Armed: Enable Enter Exit Back Enter Back Enter Fig 4: (this example) Before setting, the alarm SMS for zone 1 is: 01zone fire alarm;... -
Page 12: Siren Setting For Alarm
System Settings 8. Siren Setting for Alarm The siren can be set on or off when there's alarm from each defense zone. Method: enter defense zone setting, press “2” or “8” to choose siren enable or disable, and then press ENTER to confirm. Operation figures: Fig 1: enter defense zone setting Fig 2: choose siren status... -
Page 13: Alarm Number Setting
System Settings 10. Alarm Number Setting This system can store 6 alarm phone numbers. When alarming, it will make alarm call to these numbers in order for three times automatically, until someone gets through the call. Method: enter phone number setting menu, press “4” or “6” to choose serial number and then press ENTER. -
Page 14: Sms Number Setting
System Settings Fig 4: the 1st number is deleted Phone 1 Delete completed 12. SMS Number Setting This system can store 3 SMS receiving phone numbers. When alarming, it will send SMS to these numbers. Method: enter SMS number setting, press “4” or “6” to choose serial number and then press ENTER. -
Page 15: Network Center Setting
System Settings Operation figures: Fig 1: enter SMS number setting Fig 2: choose the number you Fig 3: choose “delete” want to delete SMS 1 SMS 1 SMS number 123456789# 13812345678# Delete Delete Enter Exit Back Enter Back Enter Fig 4: the 1st number is deleted SMS 1 Delete completed 14. -
Page 16: System Date Setting
System Settings Enter record setting, and then press “6” to choose “play”. The panel will start playing the voice message you recorded. You can re-record if you're not satisfied with it. Operation figures: Fig 1: enter record setting Fig 2: you'll see this menu Fig 3: press “6”... -
Page 17: System Time Setting
System Settings 18. System Time Setting Time in this alarm system is 24-hour system. Enter “Time” menu, you will see “Date” menu, then press “6” to choose “Time”. Input the exact time you want to set and press ENTER to confirm. Operation figures: Fig 1: enter time setting menu Fig 2: you'll see date setting menu... -
Page 18: Timely Disarm Setting
System Settings Fig 4: input the time you want to set Timely arm Save completed 20. Timely Disarm Setting After this setting, the alarm system will disarm automatically at the preset time. Method: enter “Time” menu, you will see “Date” menu, then press “6” to choose “Timely disarm”. -
Page 19: Wireless Siren Coding
System Settings 22. Wireless Siren Coding Wireless sirens have to be coded to the main panel in order to work normally. Method: set the wireless siren which you want to code in coding status. Then enter “wireless control” menu in this panel, you'll see “control” menu. -
Page 20: Wireless Control For Home Appliance
System Settings Operation figures: Fig 1: enter wireless control Fig 2: control menu Fig 3: press “6” to choose menu wireless siren Control Wireless siren Wireless Control Disable Enable Encryption Enter Exit Back Enter Back Enter Fig 4: input 4 numbers randomly Fig 5: press ENTER to save Wireless siren Wireless siren... -
Page 21: Change Program Password
System Settings Fig 4: save it Operate password Save completed 26. Change Program Password Program password is used to setup the system. System default is 888888. Method to change this password: enter “settings” menu, and then “operate password”, press '6” to choose “program password”. Input the 6-digit password you want to set, and save it. -
Page 22: Alarm Delay Time Setting
System Settings Method: enter “settings” menu, then you'll see “operate password”. Press “6” to choose “delay arm”. Input the time you want to set and save it. Operation figures: Fig 1: enter settings menu Fig 2: you'll see “Operate Fig 3: press “6” to choose password”... -
Page 23: Voice Prompt Function
System Settings Fig 4: input time and save it Delay alarm Please input Back Save 29. Voice Prompt Function This main panel has voice prompt function. When user press arm or disarm of the remote controller, it will give voice prompt. System default for the prompt is on. -
Page 24: Backlight Setting
System Settings Method: enter “settings” menu, and then you'll see “operate password”. Press “6” to choose “siren prompt” and choose “enable” or “disable”. Operation figures: Fig 1: enter settings menu Fig 2: you'll see operate Fig 3: press “6” to choose password menu “siren prompt”... -
Page 25: Siren Setting In "Emergency Help" Mode
System Settings Fig 4: choose enable/ disable Backlight on Enable Enable Enter Back 32. Siren Setting in “Emergency Help” Mode System default is that when you press the emergency button of the remote controller, the siren does not ring. Users can set it according to the actual needs. -
Page 26: Language Setting
System Settings numbers, so that users could know the status of the system in time. SMS content: Out arm: System armed; disarm: System disarmed. Method: enter “settings” menu, and then you'll see “operate password”. Press “6” to choose “arm disarm SMS” and choose “enable” or “disable”. -
Page 27: Factory Reset
System Settings Fig 4: choose the version you need 语言 中文 返回 确定 35. Factory Reset When the system is unstable, it is recommended to reset it. Enter “settings” menu, and then you'll see “operate password”. Press “6” to choose “factory setting”. After this operation, all the settings return to factory default. -
Page 28: Operation Instructions
Operation Instructions password”. After this operation, the operate password return to factory setting “1234” and program password to “888888”. Operation figures: Fig 1: under disarm status Fog 2: input 95175308246 Fig 3: confirm the operation System disarmed System disarmed Plesse wait Back to default Enter: password... -
Page 29: Home Arm
Operation Instructions 2. Home Arm Home arm means part of the defense zones are in arm status. When there's someone at home, it is recommended, for safety purpose, to enable some of the detectors (such as sensors for door, window, balcony, etc), and disable the others (such as sensors for the hall or some places easy to be triggered by person at home). -
Page 30: Answer Alarm Call
Operation Instructions System Disarmed 11/12/12 11:49 4. Answer Alarm Call When the main unit sounds alarm, it will dial the preset numbers. If no one answers the call, the system will call the next number automatically. It will call all the preset numbers in order for 3 times. If you answer the call, you will hear the pre-record voice. -
Page 31: Emergency Help
Operation Instructions Press [1]: arm, if finished successfully, you will hear a voice prompt “System armed”. Press [2]: disarm, if finished successfully, you will hear a voice prompt “System disarmed”. Press [3]: monitoring for 30 seconds, to continue monitoring, press [3] again to monitor for another 30 seconds. -
Page 32: Alarming Record Checking
Technical Parameters 8. Alarming Record Checking This alarm system can store 30 alarm records. The last alarm is ranked as the first record. And when the record number exceeds 30, the most previous record will be deleted automatically. Checking method: In disarm state, input [00] + ENTER, the main unit enters the state of alarm record checking. -
Page 33: Components List
Components List List 2 Home Alarm Defense Zone Out Arm Type Siren Information Zone 1 effective invalid real-time Door alarm Zone 2 effective invalid real-time Hall alarm Zone 3 effective effective real-time Window alarm Zone 4 effective effective real-time Balcony alarm Zone 5 effective effective... -
Page 34: Care And Maintenance
Care and Maintenance Chapter 8. Care and Maintenance The alarm system has excellent design and uses advanced technologies. It shall be used with care. The following suggestions are required to maintain your obligations under the warranty terms, and for prolonging the service life of the system. Place the control panel and all parts and accessories out of children's reach. - Page 35 Care and Maintenance Check the SIM card: Check the use of SIM card, such as network signal, balance, etc. Make sure the PIN code verification of the SIM card is closed. Please keep the password and SIM card number safe, in case that other people remote control the system illegally.
- Page 36 Components List The following sensors are optional: Optional sensors/detectors are packed separately. You can choose according to your specific requirements.
- Page 37 MOBILE CALL GSM Alarm System 2012.01.V1.0...
