Profile yl-007eg Mobile Call User Manual

Gsm alarm system
Hide thumbs
Table of Contents

Advertisement

Quick Links

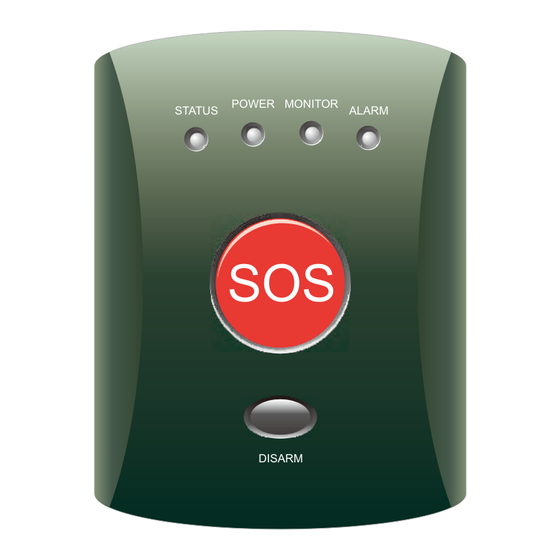

POWER MONITOR
STATUS
ALARM
SOS
DISARM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the yl-007eg Mobile Call and is the answer not in the manual?

Questions and answers

Related Manuals for Profile yl-007eg Mobile Call

Summary of Contents for Profile yl-007eg Mobile Call

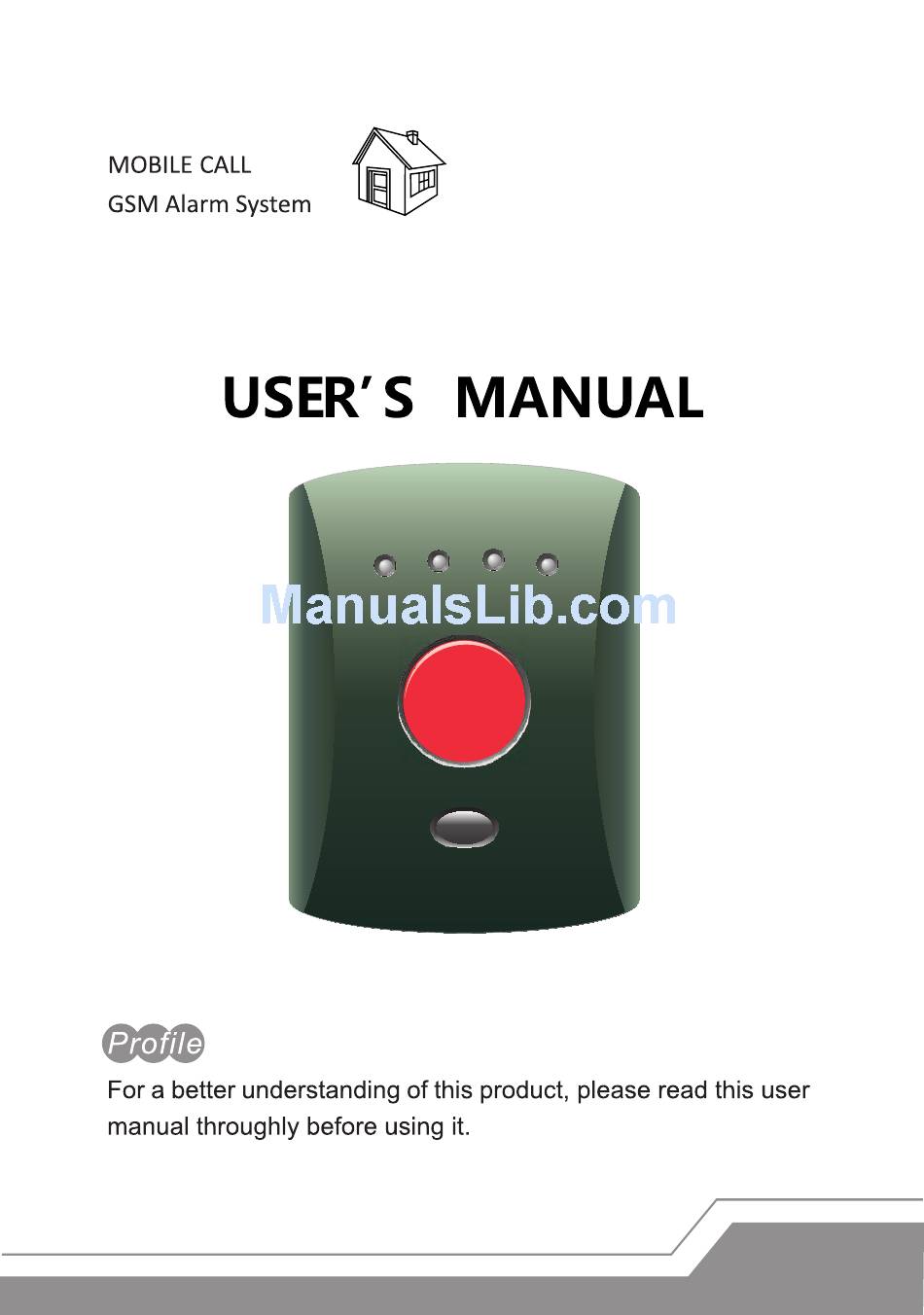

  • Page 1 POWER MONITOR STATUS ALARM DISARM...

  • Page 2: Table Of Contents

    I. Features II. Preparation before use III. Host 1.LED status explanation 2. Host panel IV. System Settings 1. Coding of wireless sensors 2. Exit coding 3. Settings by call 4. Settings by SMS V. Operation Instruction VI. Technical Parameters VII. Standard Kit VIII.

  • Page 3: Features

    Features I. Features Adopt GSM 850 900/1800/1900 bands, can be used all over the world. Can per-set 5 phone numbers: when there is an alarm, it will call these numbers in order. Press DISARM button on the main panel, it will stop alarming.

  • Page 4: Host

    Preparation before use SIM card 2. Connect all devices needed a. Connect the antenna Screw the antenna to the unit carefully; do not over-tighten the screw or leave it too loose! b. Connect the alarm siren (optional) c. Connect the two-way intercom speaker (optional) d.

  • Page 5: Host Panel

    Host Status System working status Hasn’t turned on the switch; hasn’t connected the power; no power in built-in POWER battery power supply is normal Red (flash quickly) Check SIM card and search GSM network SIM card and GSM signal are normal; have Green (flash slowly) stored numbers in SIM card;...

  • Page 6: System Settings

    System Settings SPK- Wired port 2 Wired port 1 Siren+ Siren- SPK+ Speaker SPK- Negative of two - way intercom speaker (black cable) SPK+ Posi tive of two - way intercom speaker (red cable) Wired sensor 2 Wired sensor 1 Positive of siren (red cable) Negative of siren (black cable) IV.

  • Page 7: Coding Of Wireless Sensors

    1. Coding of wireless sensors This device supports maximum 30pcs wireless sensors. Press the [reset] button at the back side of the panel, there will be a shot beep and the STATUS LED will be on red, indicating the device enters coding status.
  • Page 8 Table 1: Function setting Setting format Change remote control 30#[new password]# Password should be password 6-digit. Default: 123456 Change operation 31#[new password]# Password should be password 6-digit. Default: 888888 Alarm call number [50-54]#number# 50: the 1st number, setting 51: the 2nd number …...

  • Page 9: Settings By Sms

    4. Settings by SMS Use your mobile phone to send a message to the number of the device. All the above settings in Table 1 can also be set by SMS. And they should begin with “operation password#”. The default password is 888888.

  • Page 10: Operation Instruction

    Operation Instruction Note: After successful setting, user will receive a SMS reply with the content of “OK…”. If the SMS setting format is wrong, user will receive “FORMAT ERROR!”. 5. Factory reset Press the [RESET] button for 5 seconds until the LEDs on the panel are flashing quickly.

  • Page 11: Technical Parameters

    Technical Parameters beep. Then press remote control password (default: 123456) and # to enter listen-in status. User can hear the sound around the alarm panel. If the password is input wrong, there will be three short beeps; while a long beep means correct. A long beep means password is correct, while three short beeps mean wrong, you need to input again.

  • Page 12: Care And Maintenance

    VIII. Care and Maintenance...
  • Page 15 2012.07.V1.0...
