Summary of Contents for Synaps 11011324

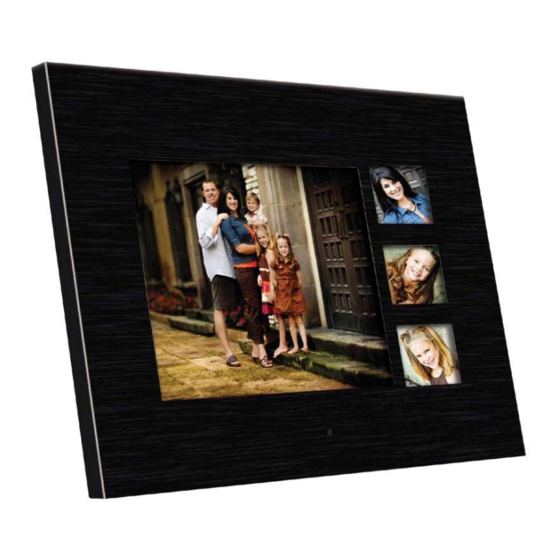

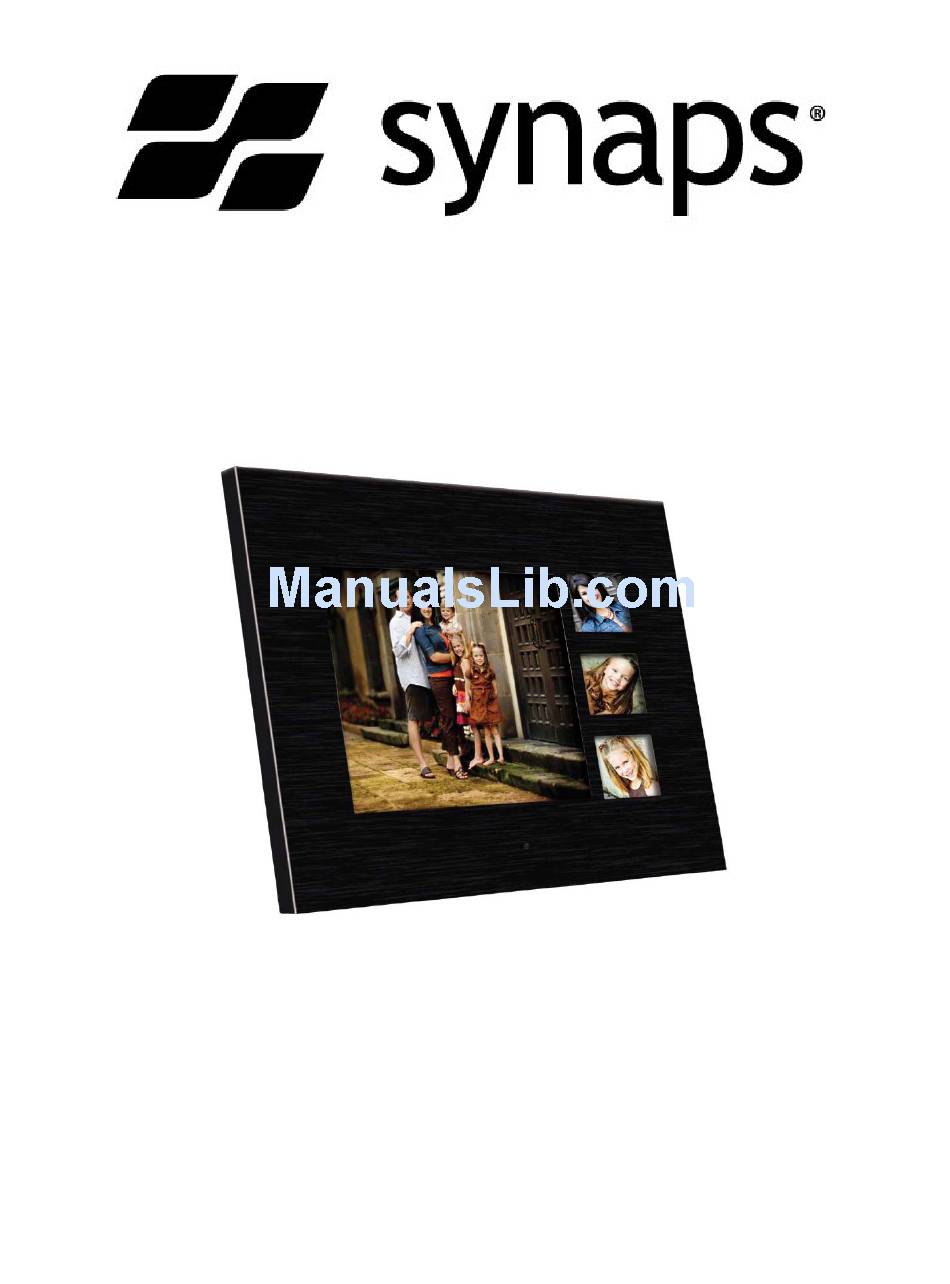

- Page 1 10.2” Tru-Collage Digital Photo Frame Item Number: 11011324 Installation & User’s Guide All brand names and trademarks are the property of their respective owners...
-
Page 2: Table Of Contents
Contents Overview ............................. 3 Quick Start Guide..........................3 Attaching the Easel Stand to the Digital Photo Frame ..............4 Package Contents..........................5 Digital Photo Frame Front View ....................... 6 Digital Photo Frame Back View ......................6 Installation and Setup of Accessories..................... 7 Connecting the Digital Photo Frame .................... -
Page 3: Overview
(up to 4GB) to transfer your files. 1-508-435-4830 4. If you have any questions, feel free to contact customer support at 800-639-3803 or via email at techsupport@fourstari.com, please reference item number: 11011324 and we will be happy to assist you. -
Page 4: Attaching The Easel Stand To The Digital Photo Frame
Attaching the Easel Stand to the Digital Photo Frame 1. Clear a flat clean area to set your photo frame down upon in order to attach the easel stand to the back of the frame. Make sure there are no sharp objects in the area that can make contact with the LCD screen of the photo frame that may cause damage to the screen. -
Page 5: Package Contents
Package Contents 10.2” Tru-Collage Digital Photo Frame Easel Stand with Knob Power Adapter USB Cable Remote Control 1 Black & 1 Champagne User’s Manual Aluminum frame... -
Page 6: Digital Photo Frame Front View
10.2” Tru-Collage Digital Photo Frame – Front View 8” LCD Display 2.3” LCD Display Removable Frame Remote Control Sensor 10.2” Tru-Collage Digital Photo Frame - Back View Operation buttons Wall Mount Holes USB Host Input Mini USB Port CF Built-in Card Slot Audio output 3 in 1 Built-in... -
Page 7: Installation And Setup Of Accessories
Installation and Setup of Accessories 1. Carefully position your Digital Photo Frame so that you can see all of the connection ports on the side of the frame. 2. Plug the DC Power Adapter Cable into the DC input, and plug the AC end of the adapter into a normal AC outlet. -
Page 8: Connecting The Digital Photo Frame
Connecting the Digital Photo Frame to your PC 1. Press the power button on the Digital Photo Frame or remote control to turn ON the unit. 2. Connect the Mini USB cable included on the right side of the Digital Photo Frame and connect the other end of the cable to your computer. -
Page 9: Menu Control Buttons
Menu Control Buttons No. Button Function Moves the cursor upward when making a selection. Moves the cursor downward when making a selection. ENTER Access the selected function. EXIT Exits the current menu or function. POWER Turns the unit on or off. -
Page 10: Remote Control Functions
Remote Control Functions POWER: Turns the unit on or off. UP: Moves the cursor up when making a selection. OSD: Press OSD to display the info of the playing file. LEFT: Moves the cursor/highlight to the left when making a selection. -
Page 11: Osd Main Menu
On Screen Display (OSD) Main Menu Main Menu without a card Main Menu with a media storage device Main Menu 1. Press the POWER button on the unit or on the remote control to turn ON the unit. NOTE: The Digital Photo Frame will automatically display a slide show of the pictures preprogrammed into the unit. -
Page 12: Osd Menu
OSD Menu Functions Operation Screen Press the POWER button to turn the unit ON, it will displays photos in the internal memory in 4 separate screen. Displaying photos In the main menu, enter into the internal memory or external device, select PHOTO and press ENTER. -
Page 13: Setup Menu Instructions
Settings Menu Instructions The Setup Menu allows you to manage options in Photo and Music files. To access the Setup menus, press the SETTING button on the key pad to enter the SETUP Mode. Allows you to set the OSD language of the Digital Photo Frame. Language For this product, only English can be chosen. -
Page 14: Additional Feature
Additional Features You may copy files from an external memory card or USB thumb drive into the Digital Photo Frame built-in memory, or deleting the pictures stored in the DPF. 1. Copy file Select the desired device; press ENTER to enter into the device menu. Select FILE and press ENTER to enter the file list. - Page 15 Troubleshooting No power Ensure the power button is on Ensure the power cord is not damaged Ensure the power plug is connected firmly to the outlet Could not read the card 1. Please copy the content in your card to your PC, then format your card, then past your photos/music/movies in your card again, then insert the card to DPF to read it.
-
Page 16: Specifications
Specifications LCD Panel Type 10.2” (One 8” + Three 2.3”) TFT LCD Display Viewing Angle H: 120° , V: 100 Contrast Ratio 250: 1 Brightness 200 cd/m2 Response Time 18ms Resolution 800 X 480 Aspect Ratio 4 : 3 Built-in Card Reader Type SD, MMC, MS and CF memory card Power... -
Page 17: Maintenance
Maintenance To clean your digital photo frame, please refer to the instructions below: NOTE: To prevent electrical shock, do not open the Digital Photo Frame casing. Leave repair of the frame to qualified personnel, please see the tech support information in the warranty. 1. -
Page 18: Precautions
Precautions 1. Read all of these instructions and save this manual for later use. 2. Follow all warnings and instructions on the product. 3. Do not insert sharp objects or spill liquid into the digital photo frame through the cabinet slots; this may cause accidental fire, electric shock or failure. -
Page 19: Fcc Norm
FCC Norm This equipment has been tested and complies with limits for Class B digital devices pursuant to Part 15 of Federal Communications Commission (FCC) rules. FCC Compliance Statement These limits are designed to provide reasonable protection against frequency interference in residential installations. -
Page 20: Service Procedure
Service Procedure Beyond the retailer return policy, please call the toll free number below to obtain service. A customer representative will give you a return authorization number (RA number) allowing you to ship your product to the service center. Please have the following information available when you call the service center: Your Name and Address Date of Purchase Model Number... -
Page 21: Warranty
Warranty 90 Days Limited Warranty This product is warranted to be free from defects in material and workmanship for a period of 90 days. Warranty obligations are limited to replacement or repair of defective parts and components, at the option of the manufacturer. If the original model is no longer available, we will substitute with a model of equal or better value than the original item.
