QuickSpecs

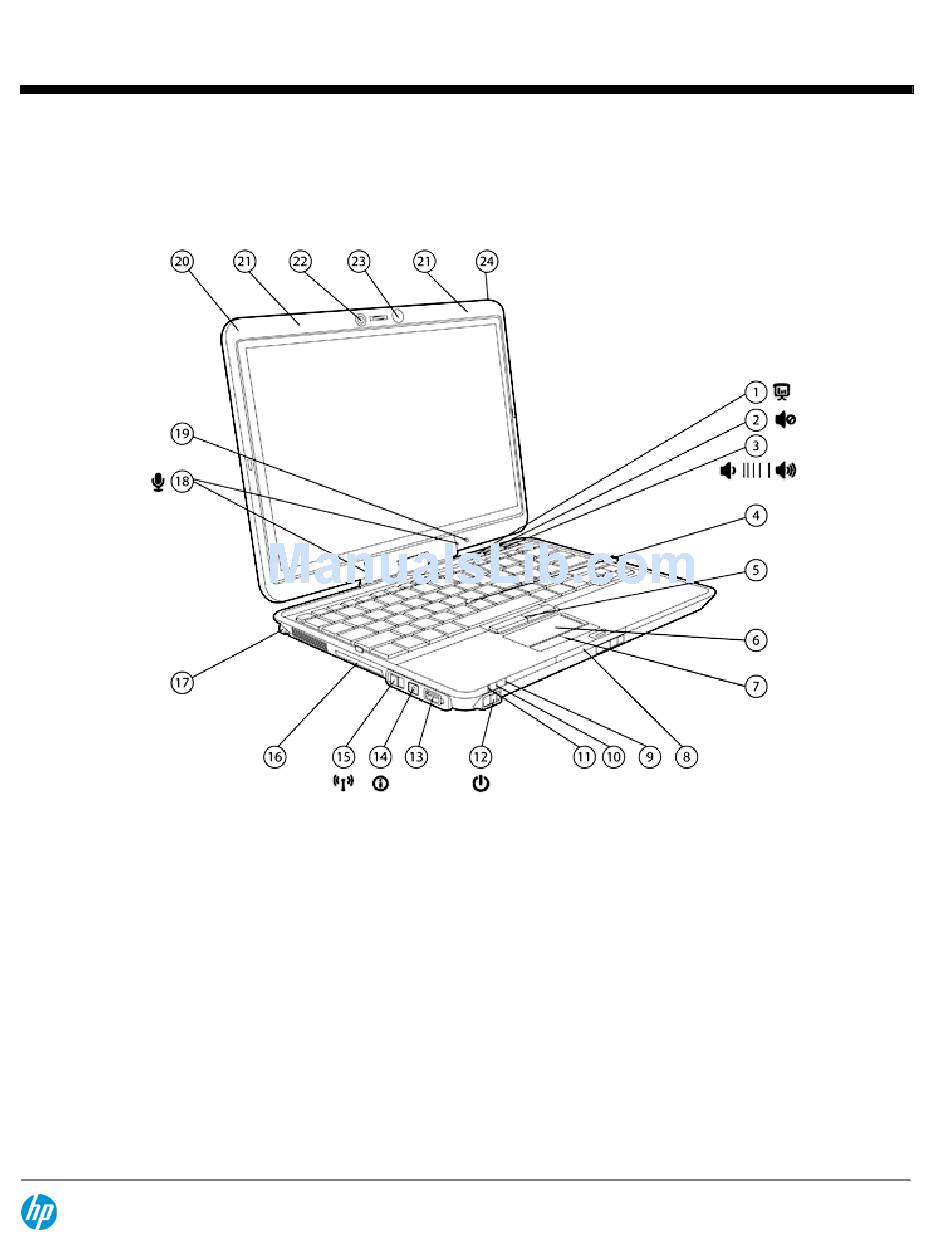

Overview
1.
HP Presentation button with LED indicator
2.
Volume mute button with LED indicator
3.
Volume scroll zone with up/down LED indicators
4.
Pointstick
5.
Pointstick buttons
6.
Touchpad with scroll zone
7.
Touchpad buttons
8.
Business card slot
9.
Hard drive / optical drive activity / HP 3D DriveGuard LED
10. Battery charging LED
11. Power/standby LED
12. Power on/off
DA - 13097 North America — Version 10 — June 30, 2009
HP EliteBook 2730p Notebook PC
HP recommends
Windows Vista
13. USB 2.0 port (powered)
14. HP Info / HP QuickLook button
15. Wireless on/off with LED
16. ExpressCard/54 slot or Smart Card Reader
17. Pen holder
18. Dual-microphone array
19. Ambient light sensor
20. Internal WWAN antenna
21. Two internal WLAN antennas
22. Optional 2 MP webcam with LED (select models)
23. HP Night Light
24. External WWAN antenna
®
Business
Page 1

Advertisement

loading

Related Manuals for HP EliteBook 2730p

Summary of Contents for HP EliteBook 2730p

  • Page 1 19. Ambient light sensor Business card slot 20. Internal WWAN antenna Hard drive / optical drive activity / HP 3D DriveGuard LED 21. Two internal WLAN antennas 10. Battery charging LED 22. Optional 2 MP webcam with LED (select models) 11.
  • Page 2 HP EliteBook 2730p Notebook PC Overview Power/standby LED 14. Stereo microphone in Battery charging LED 15. Stereo headphone/line out Hard drive activity / HP 3D DriveGuard LED 16. 1394a port HP Night Light button 17. Jog dial External WWAN antenna button 18. Esc button External WWAN antenna 19.
  • Page 3 October 2008) Integrated 802.11 a/b/g/draft-n, a/b/g, or b/g wireless LAN module Bluetooth® Enhanced security features including HP ProtectTools, HP SpareKey, HP Fingerprint Sensor, TPM 1.2 Embedded Security Chip**, and optional Smart Card Reader Optional integrated camera DA - 13097 North America — Version 10 — June 30, 2009...
  • Page 4 Overview HP QuickLook 2 for instant access to email, calendar, and contact information HP Night Light Full magnesium alloy chassis, chemically-strengthened glass over display, HP DuraKeys and HP DuraFinish ExpressCard/54 slot Intel® Centrino® 2 with vPro™ technology capable Up to 8 GB of 800 MHz DDR2 SDRAM supported, dual channel memory support...

  • Page 5: Standard Features

    QuickSpecs HP EliteBook 2730p Notebook PC Standard Features Processors Intel Core 2 Duo LV Processor SL9400 (1.86 GHz, 6 MB L2 cache, 1066 MHz FSB)* Intel Core 2 Duo LV Processor SL9300 (1.60 GHz, 6 MB L2 cache, 1066 MHz FSB)* Intel Core 2 Duo ULV Processor SU9300 (1.20 GHz, 3 MB L2 cache, 800 MHz FSB)*...
  • Page 6 QuickSpecs HP EliteBook 2730p Notebook PC Standard Features Business Rugged Meets the military standard Mil-Std-810F* for: Shock: Method 515.5 Proc. I (Functional) Vibration: Method 514.5, Proc I, Cat. 20 & 24 High Temperature: Method 501.4, Proc I & II (140°F/60°C operational) Sand and Dust: Method 510.4, Proc.
  • Page 7 Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots. NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
  • Page 8 19-mm x 19-mm key pitch (center-to-center spacing), 2.0-mm stroke, and comfort-dished keycaps. HP DuraKeys is a clear coating applied over the notebook keyboard that helps protect the finish and the printed characters on the keys. HP DuraFinish helps protect the finish on the keyboard deck, graphics, and icons from normal wear and tear.
  • Page 9 Stereo microphone in Stereo headphone/line Power connector RJ-11/modem RJ-45/Ethernet USB 2.0 Two (including one powered USB 2.0 port to support HP External MultiBay II) Docking connector For HP 2700 Ultra-Slim Expansion Base Secondary battery For HP 2700 Ultra-Slim Battery connector...
  • Page 10 First update included. Subscription required for updates thereafter. HP Recovery Manager Each Vista unit is shipped with HP Recovery Manager. HP Recovery Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important system files are accidentally deleted.
  • Page 11 HP Fast Charge* * HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. Fast Charge does not apply to the optional HP 2700 Ultra-Slim Battery. DA - 13097 North America — Version 10 — June 30, 2009...
  • Page 12 HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool. Additional HP Care Pack Services information by product is available at: http://www.hp.com/hps/carepack.

  • Page 13: Warranty

    QuickSpecs HP EliteBook 2730p Notebook PC Standard Features 2730p Processor Intel Core 2 Duo LV Processor SL9400 (1.86 GHz, 6 MB L2 cache, 1066 MHz FSB) FW401AW#ABA Global SKU (see exceptions Intel Centrino 2 with vPro Enabled below) technology Operating System...
  • Page 14 QuickSpecs HP EliteBook 2730p Notebook PC Standard Features Integrated Security Drive Encryption for HP ProtectTools HP Fingerprint Sensor TPM 1.2* Pointing Device Dual pointing devices (Touchpad and Pointstick) Digital eraser pen Battery 6-cell (44 WHr) Lithium-Ion Power External 65W adapter...
  • Page 15 Integrated microphone Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC) 56K V.92 modem Integrated Wireless Intel® WiFi Link 5100AGN (802.11a/b/g/draft-n) HP Integrated Module with Bluetooth® Wireless Technology Integrated Security Drive Encryption for HP ProtectTools HP Fingerprint Sensor TPM 1.2* Pointing Device...
  • Page 16 Integrated microphone Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC) 56K V.92 modem Integrated Wireless Intel® WiFi Link 5100AGN (802.11a/b/g/draft-n) HP Integrated Module with Bluetooth® Wireless Technology Integrated Security Drive Encryption for HP ProtectTools HP Fingerprint Sensor TPM 1.2* Pointing Device...
  • Page 17 56K V.92 modem Integrated Wireless Intel® WiFi Link 5100AGN (802.11a/b/g/draft-n) HP Integrated Module with Bluetooth® Wireless Technology HP Mobile Broadband Module (powered by Gobi - coming mid October 2008) Integrated Security Drive Encryption for HP ProtectTools HP Fingerprint Sensor TPM 1.2*...
  • Page 18 Integrated microphone Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC) 56K V.92 modem Integrated Wireless Intel® WiFi Link 5100AGN (802.11a/b/g/draft-n) HP Integrated Module with Bluetooth® Wireless Technology Integrated Security Drive Encryption for HP ProtectTools HP Fingerprint Sensor TPM 1.2* Pointing Device...
  • Page 19 Integrated microphone Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC) 56K V.92 modem Integrated Wireless Intel® WiFi Link 5100AGN (802.11a/b/g/draft-n) HP Integrated Module with Bluetooth® Wireless Technology Integrated Security Drive Encryption for HP ProtectTools HP Fingerprint Sensor TPM 1.2* Pointing Device...
  • Page 20 Integrated microphone Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC) 56K V.92 modem Integrated Wireless Intel® WiFi Link 5100AGN (802.11a/b/g/draft-n) HP Integrated Module with Bluetooth® Wireless Technology Integrated Security Drive Encryption for HP ProtectTools HP Fingerprint Sensor TPM 1.2* Pointing Device...
  • Page 21 56K V.92 modem Integrated Wireless Intel® WiFi Link 5100AGN (802.11a/b/g/draft-n) HP Integrated Module with Bluetooth® Wireless Technology HP Mobile Broadband Module (powered by Gobi - coming mid October 2008) Integrated Security Drive Encryption for HP ProtectTools HP Fingerprint Sensor TPM 1.2*...
  • Page 22 Integrated microphone Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC) 56K V.92 modem Integrated Wireless Intel® WiFi Link 5100AGN (802.11a/b/g/draft-n) HP Integrated Module with Bluetooth® Wireless Technology Integrated Security Drive Encryption for HP ProtectTools HP Fingerprint Sensor TPM 1.2* Pointing Device...
  • Page 23 HP MultiBay II DVD+/-RW SuperMulti DL Drive PA851A Advanced Docking Station or HP External MultiBay II Expansion Solutions HP 2700 Ultra-Slim Expansion Base with 7mm DVD+/-RW SuperMulti Drive GD229AA#ABA HP External MultiBay II PA509A#ABA Communications HP un2400 EV-DO/HSPA Mobile Broadband Module...
  • Page 24 QuickSpecs HP EliteBook 2730p Notebook PC Options Input/Output Devices HP Tablet PC Tether/Eraser Pen PL800A HP USB Keyboard & Mouse Bundle RC465AA#ABA HP USB/PS2 Optical 2-Button Scroll Mouse DC369A HP USB Optical Travel Mouse RH304AA DA - 13097 North America — Version 10 — June 30, 2009...
  • Page 25 NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Availability of 4 GB or more of memory requires Windows Vista Business 64-bit or Linux.

  • Page 26: Internal Storage Device

    QuickSpecs HP EliteBook 2730p Notebook PC Storage Internal Storage Device Hard Drives (1.8” SMART SATA II) Quantity Supported Drive Bay 80 GB 5400 rpm Dedicated hard drive bay 120 GB 5400 rpm Dedicated hard drive bay - or - Solid State Drive...

  • Page 27: Technical Specifications

    QuickSpecs HP EliteBook 2730p Notebook PC Technical Specifications System Unit Dimensions (HxWxD) 1.11 in (at front) x 11.42 in x 8.35 in 28.2 mm (at front) x 290 mm x 212 mm Weight Starting from 3.74 lb (1.70 kg) NOTE: Height varies depending upon where on the notebook the measurement is made. Starting weight includes 6-cell battery, hard drive, 1 GB memory, 802.11 wireless communications module.
  • Page 28 HP EliteBook 2730p Notebook PC Technical Specifications UKRSERTCOMPUTER * Configurations of the HP EliteBook 2730p that are ENERGY STAR qualified are identified as HP EliteBook 2730p ENERGY STAR on HP websites and on www.energystar.gov. ** EPEAT registration varies by country. See www.epeat.net...
  • Page 29 2.5 hours Standby System ON 3 to 5 hours (depending on system power consumption) HP Fast Charge Technology Charges the battery up to 90% within 90 minutes when system is OFF Displays 12.1-inch Illumi-Lite Active Area (W x H) 10.3 x 6.4 in (26.1 x 16.3 cm)
  • Page 30 QuickSpecs HP EliteBook 2730p Notebook PC Technical Specifications 12.1-inch Illumi-Lite Active Area (W x H) 10.3 x 6.4 in (26.1 x 16.3 cm) WXGA UWVA. anti-glare Diagonal Size 12.1 in (30.7 cm) with Digitizer and Surface Treatment Anti-glare Outdoor View...
  • Page 31 QuickSpecs HP EliteBook 2730p Notebook PC Technical Specifications 80 GB 5400 rpm Drive Weight 0.13 lb (62 g) 1.8" SATA Hard Drive Capacity 80 GB Height 0.31 in (8 mm) Width 2.12 in (54 mm) Interface ATA-8, SATA 2.5, 1.5 Gb/s...
  • Page 32 QuickSpecs HP EliteBook 2730p Notebook PC Technical Specifications 7mm DVD+/-RW Access Times Random <180 ms CD (typical) SuperMulti Drive <200 ms DVD (typical) Max Data Transfer Rate 24X CD-ROM Up to 3,600 KB/s 8X DVD Up to 10,800 KB/s 16X CD-R...
  • Page 33 QuickSpecs HP EliteBook 2730p Notebook PC Technical Specifications DVD+/-RW SuperMulti DL Dimensions 0.37 x 5.51 x 5.04 in (0.95 x 14.0 x 12.8 cm) Drive Weight 0.45 lb (205 g) Access Times Random <150 ms CD (typical) <125 ms DVD (typical)
  • Page 34 QuickSpecs HP EliteBook 2730p Notebook PC Technical Specifications Hardware Implementation ADI1984A High Definition CODEC Touch-Sensitive Volume Volume up, volume down, and mute Controls Full Duplex Sound Blaster Pro compatible Microphone In Stereo Headphone/Line Out Stereo Integrated Mono Power Rating 2 Watts...
  • Page 35 QuickSpecs HP EliteBook 2730p Notebook PC Technical Specifications V.92 56K Data/Fax Modem Form Factor MDC 1.5 Daughtercard Power Management APM Revision 1.2, ACPI Support Approvals/ UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark, Other...

  • Page 36: Configuration Utilities

    QuickSpecs HP EliteBook 2730p Notebook PC Technical Specifications HP un2400 Technology/Operating GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS), 1900MHz (PCS) EV-DO/HSPA Mobile Bands UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I), 1900MHz Broadband Module (UTRA FDD Band II), 850MHz (UTRA FDD Band V)
  • Page 37 QuickSpecs HP EliteBook 2730p Notebook PC Technical Specifications Interoperability Wi-Fi certified (802.11abg only) Cisco Compatible Extensions Program compliant (802.11abg only) with Microsoft Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN) Tested with wireless access points from several major manufacturers (details at: http://www.hp.com/go/notebooks/WLAN/draft-n) Frequency Band 2.4 GHz and 5 GHz...

  • Page 38: Configuration Utility

    QuickSpecs HP EliteBook 2730p Notebook PC Technical Specifications Weight 0.013 lb (6 g) Dimensions 0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm) Operating Voltage 3.3V +/- 9%, 1.5V +/- 5% Temperature Operating 32° to 176° F (0° to 80° C) Non-operating –40°...
  • Page 39 QuickSpecs HP EliteBook 2730p Notebook PC Technical Specifications Data Rates 802.11b: 1, 2, 5.5, 11 Mbps 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n (draft): 6, 6.5, 9, 12, 13, 13.5, 18, 19.5, 24, 26, 27, 36, 39, 40.5, 48, 52, 54, 58.5, 65, 78, 81, 104, 108, 117, 121.5, 130, 135, 162, 216, 243, 270,...
  • Page 40 QuickSpecs HP EliteBook 2730p Notebook PC Technical Specifications Temperature Operating 14° to 149° F (–10° to 65° C) Non-operating –40° to 176° F (–40° to 80° C) Humidity Operating 10% to 90% (non-condensing) Non-operating 5% to 95% (non-condensing) Altitude Operating...
  • Page 41 QuickSpecs HP EliteBook 2730p Notebook PC Technical Specifications Sub-channels Multinational support with frequency bands and channels compliant to local regulations. Media Access Protocol CSMA/CA (Collision Avoidance) with ACK Network Architecture Ad-hoc (Peer to Peer) Infrastructure (Access Point Required) Models Roaming IEEE 802.11 compliant roaming between access points...
  • Page 42 QuickSpecs HP EliteBook 2730p Notebook PC Technical Specifications Check latest software/driver release for updates on supported security features. Maximum output power may vary by country according to local regulations. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).
  • Page 43 QuickSpecs HP EliteBook 2730p Notebook PC Technical Specifications Temperature Operating –4° to 158° F (–20° to 70° C) Non-operating –40° to 176° F (–40° to 80° C) Humidity Operating 10% to 90% Non-operating 5% to 95% Altitude Operating 15,000 ft (4,572 m)

  • Page 44: Additional Information

    This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive - 2002/95/EC. information: This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive - 2002/96/EC. This product is in compliance with California Proposition 65 (State of California;...
  • Page 45 Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards. Material Usage This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General Specification of the Environment (http://www.hp.com/hpinfo/globalcitizenship/environment/ supplychain/gen_specifications.html):...
  • Page 46 This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment. Hewlett-Packard...
  • Page 47 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
