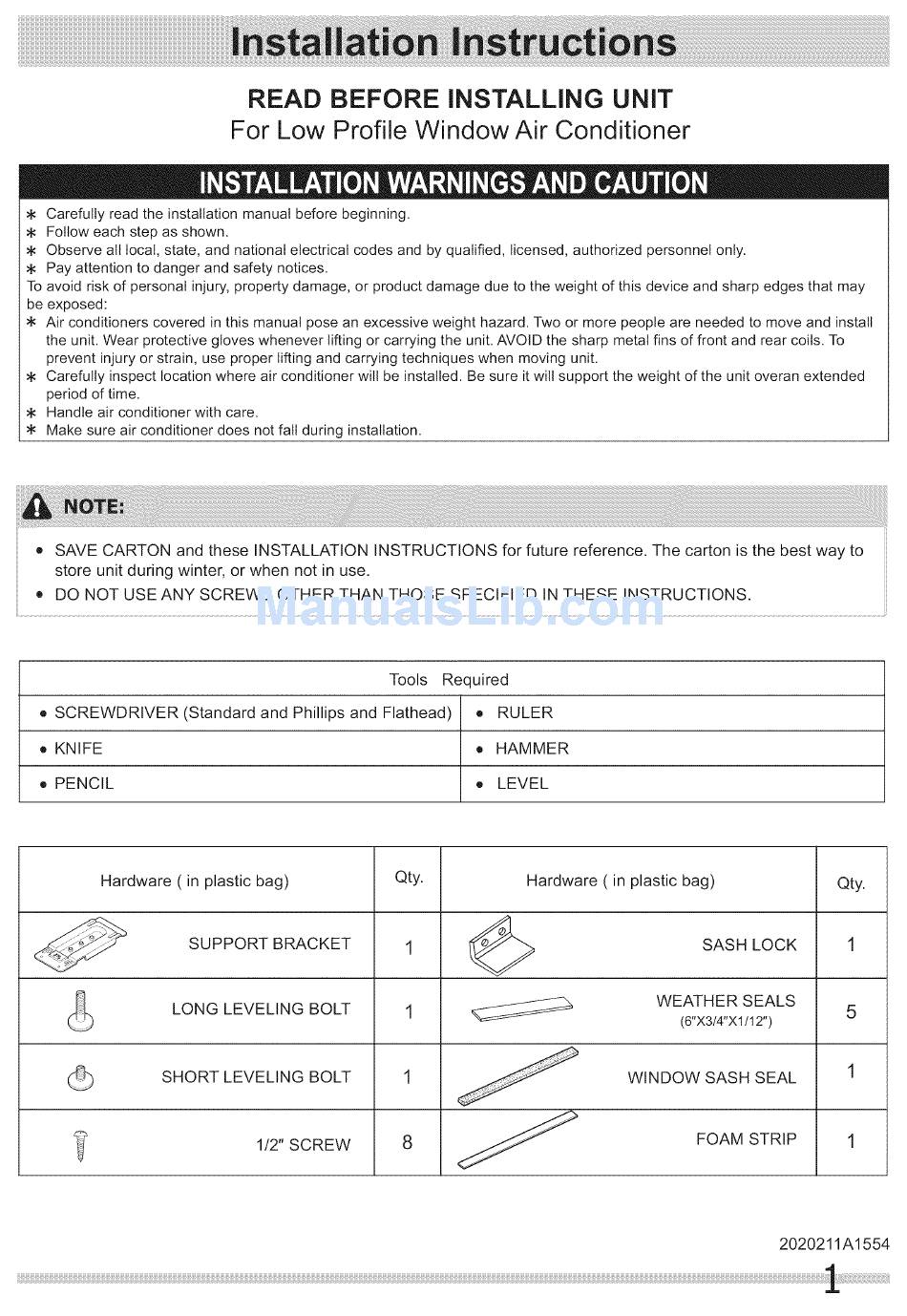

READ BEFORE INSTALLING
UNIT
For Low Profile Window Air Conditioner
Carefully read the installation manual before beginning.
Follow each step as shown.
Observe all local, state, and national electrical codes and by qualified, licensed, authorized personnel only.
Pay attention to danger and safety notices.
To avoid risk of personal injury, property damage, or product damage due to the weight of this device and sharp edges that may
be exposed:
Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to move and install
the unit. Wear protective gloves whenever lifting or carrying the unit. AVOID the sharp metal fins of front and rear coils. To
prevent injury or strain, use proper lifting and carrying techniques when moving unit.
Carefully inspect location where air conditioner will be installed. Be sure it will support the weight of the unit overan extended
period of time.
Handle air conditioner with care.
Make sure air conditioner does not fall during installation.
• SAVE CARTON and these INSTALLATION INSTRUCTIONS for future reference. The carton is the best way to
store unit durin 9 winter, or when not in use.
o DO NOT USE ANY SCREWS OTHER THAN THOSE SPECIFIED IN THESE INSTRUCTIONS.
Tools
Required
• SCREWDRIVER
(Standard and Phillips and Flathead)
•
RULER
• KNIFE
® HAMMER
e PENCIL
•
LEVEL
Hardware
( in plastic bag)
SHORT
LEVELING
BOLT
1
SUPPORT BRACKET
1
LONG LEVELING BOLT
1
1/2" SCREW
Qty.
Hardware (in plastic bag)
SASH LOCK
WEATHER
SEALS
(6"x3/4"x1/12")
WINDOW SASH SEAL
FOAM STRIP
Qty.
5
2020211A1554
