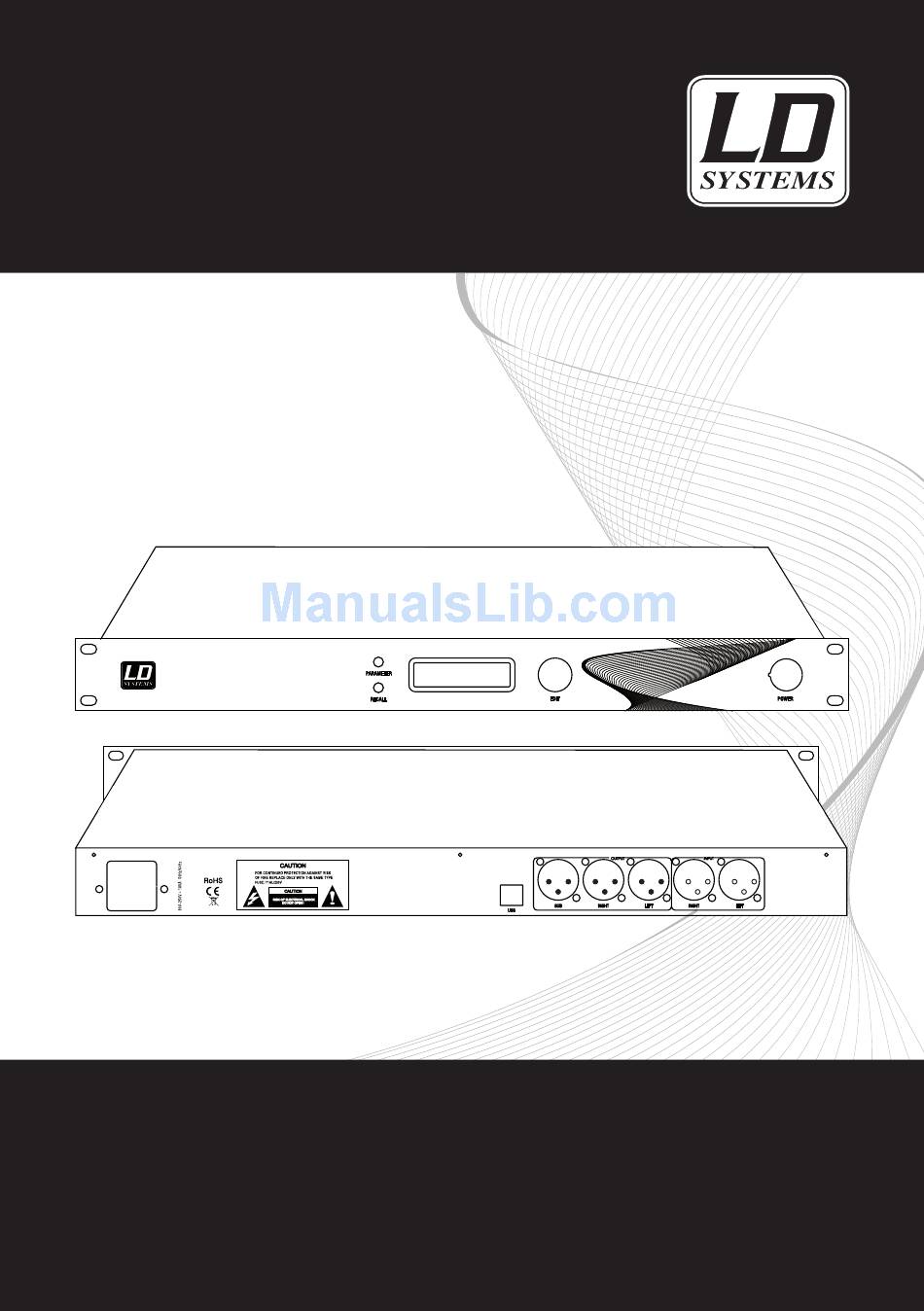

USER´S MANUAL
BEDIENUNGSANLEITUNG
MODE D´EMPLOI
DS2.1
2+1 -CHANNEL
SPEAKER PROCESSOR
LD DS2.1
2+1 -CHANNEL SPEAKER PROCESSOR
24/BIT DSP / 48 KHZ SAMPLING RATE
Vers.1.23

Advertisement

loading
Need help?

Need help?

Do you have a question about the DS2.1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LD DS2.1

  • Page 1 USER´S MANUAL BEDIENUNGSANLEITUNG MODE D´EMPLOI DS2.1 2+1 -CHANNEL SPEAKER PROCESSOR 24/BIT DSP / 48 KHZ SAMPLING RATE LD DS2.1 2+1 -CHANNEL SPEAKER PROCESSOR Vers.1.23...
  • Page 2 Thank you for choosing LD-Systems! We have designed this product to operate reliably over many years. Therefore LD-Systems guarantees for high quality products with its name and many years of experience as a producer. Please, take a few moments to read these instructions carefully, as we want you to enjoy your new LD-Systems products quickly and to the fullest.
  • Page 3 LD DS2.1 2+1 - CHANNEL SPEAKER PROCESSOR DS2.1 2+1 -CHANNEL SPEAKER PROCESSOR 24/BIT DSP / 48 KHZ SAMPLING RATE...
  • Page 4 PREVENTIVE MEASURES: 1. Please read the attached safety instructions as well as the following instructions carefully. 2. Please keep the manual and all the instructions. 3. Please use the device only as intended. 4. Please respect the valid waste management rules. Deliver the packaging divided into plastic and paper / cardboard to the recycling management.
  • Page 5 Features: DS2.1 2+1 -CHANNEL SPEAKER PROCESSOR 24/BIT DSP / 48 KHZ SAMPLING RATE • 24 bit DSP. • 3-way output: left channel, right channel and subwoofer channel; link function for L/R stereo setting. • 3 bands PEQ; EQ types: Lowshelf, Highshelf.
  • Page 6: Front Panel

    LD DS2.1 FEATURES: FRONT PANEL: DS2.1 2+1 -CHANNEL SPEAKER PROCESSOR 24/BIT DSP / 48 KHZ SAMPLING RATE Parameter Edit encoder Navigate menu Adjust the parameter value Recall Power Recall a programm Power on / off 2x 16 LCD View menu and parameter...
  • Page 7 SYSTEM SETUP: When you power up the unit, the system displays the main interface, showing the realtime input levels. Press “PARAMETER” to view the menu. By repeatedly pressing the “PARAMETER” button you can access the system settings. Realtime metering of the inputs. Sub: Adjust the input level of the subwoofer with the Edit-knob.
  • Page 8 SYSTEM SETUP: Adjust the output level of the L&R channels using the Edit-knob. L&R VOLUME GAIN= 0.0dB Adjust the phase of the L&R channels using the Edit-knob. L&R PHASE [ 0 ] Adjust the XOVER of the L&R channels using the Edit-knob. L&R XOVER XOVER= OFF Adjust the delay time of the L&R Channels using the Edit-knob.
  • Page 9 SPECIFICATIONS: Input Channels Left, Right Output channels Left, Right, Subwoofer Gain -60dB 6dB 0.5dB/step Delay Max 12.5ms 3 bands EQ Gain -12dB 12dB, 0.1dB/step EQ Frequence 20kHz EQ Q value 128 HighShelf, lowShelf Polarity 0°, 180° Highpass frequence 10.0Hz 16kHz Highpass slopes 6dB/12dB/24dB Butterworth 12dB718dB/24dB Bessel...
  • Page 10: Limited Warranty

    MANUFACTURER´S DECLARATIONS: LIMITED wARRANTY This Limited Warranty applies to the Adam Hall, LD Systems, Defender, Palmer and Eminence branded products. The statutory warranty rights towards the seller are not affected by this guarantee. In fact it justifies additional independent warranty claims towards Adam Hall.
  • Page 11: Limitation Of Liability

    LIMITATION OF LIABILITY If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy shall be repair or replacement. Adam Hall’s maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repair or replacement of any hardware components that malfunction in conditions of normal use.
  • Page 12 wEEE-DECLARATION Your LD-Systems product was developed and manufactured with high quality materials and components wich can be recycled and/or reused. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal waste at the end of its operational lifetime. Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment.
  • Page 13 NOTES:...
  • Page 14 Sie haben die richtige Wahl getroffen! Diese LD-Systems Produkte werden Sie lange Jahre durch Zuverlässigkeit, Wirtschaftlichkeit und einfaches Handling überzeugen. Dafür garantiert LD-Systems mit seinem Namen und seiner in vielen Jahren erworbenen Kompetenz als Hersteller hochwertiger Geräte. Nehmen Sie sich nun ein paar Minuten Zeit, diese Anleitung zu lesen. Wir möchten, dass Sie einfach und schnell in den Genuss dieser Technik kommen.
  • Page 15 LD DS2.1 2+1 - CHANNEL SPEAKER PROCESSOR DS2.1 2+1 -CHANNEL SPEAKER PROCESSOR 24/BIT DSP / 48 KHZ SAMPLING RATE...
  • Page 16 VORSICHTSMASSNAHMEN: 1. Bitte beachten Sie die Sicherheitshinweise und studieren Sie diese Anleitung sorgfältig. 2. Bewahren Sie alle Hinweise und Anleitungen sicher auf. 3. Verwenden Sie das Gerät nur in der vorgesehenen Art und Weise. 4. Beachten die in Ihrem Land geltenden Entsorgungsgesetze. Trennen Sie bei der Entsorgung bitte Plastik und Papier bzw.
  • Page 17 SYSTEMKOMPONENTEN: DS2.1 2+1 -CHANNEL SPEAKER PROCESSOR 24/BIT DSP / 48 KHZ SAMPLING RATE • 24 bit DSP • 3-Wege Ausgang: Linker Kanal, Rechter Kanal und Subwoofer Kanal; Linkfunktion für Stereo L/R Einstellung • 3-Band parametrischer EQ, Low Shelf und High Shelf •...
  • Page 18 LD DS2.1 FUNKTIONEN: VORDERSEITE: DS2.1 2+1 -CHANNEL SPEAKER PROCESSOR 24/BIT DSP / 48 KHZ SAMPLING RATE Parameter Edit encoder / Drehknopf Im Menü navigieren. Einstellen des Wertes eines Parameters. Recall Power Ein Programm aufrufen. Ein- und ausschalten 2x 16 LCD Anzeige des Menüs und der Parameter.
  • Page 19 SYSTEMEINSTELLUNGEN: Schalten Sie das Gerät ein, das System befindet sich auf der Hauptseite und zeigt die Pegel in Echtzeit an. Drücken Sie „PARAMETER“ um ins Menü zu gelangen. Durch mehrmaliges Drücken der „PARAMETER“ Taste gelangen Sie an die verschiedenen Einstellungsmöglich- keiten die nachfolgend erklärt werden: Echtzeit Pegelanzeige der Eingänge.
  • Page 20 SYSTEMEINSTELLUNGEN: Stelen Sie hier Mithilfe des Edit Drehknopfes die Ausgangslaut- L&R VOLUME stärke des linken und des rechten Kanals ein. GAIN= 0.0dB Mit dem Edit Drehknopf lässt sich hier die L&R Phase einstellen. L&R PHASE [ 0 ] L&R XOVER Hier können Sie mithilfe des Edit Drehknopfes die L&R Frequenz- XOVER= OFF weiche einstellen.
  • Page 21 SPEZIFIKATIONEN: Input Channels Left, Right Output channels Left, Right, Subwoofer Gain -60dB 6dB 0.5dB/step Delay Max 12.5ms 3 bands EQ Gain -12dB 12dB, 0.1dB/step EQ Frequence 20kHz EQ Q value 128 HighShelf, lowShelf Polarity 0°, 180° Highpass frequence 16kHz 10.0Hz Highpass slopes 6dB/12dB/24dB Butterworth 12dB718dB/24dB Bessel...
  • Page 22 HERSTELLERERKLÄRUNGEN: GARANTIEBESTIMMUNGEN Diese Garantie erstreckt sich auf die Marken Adam Hall, LD Systems, Defender, Palmer und Eminence. Die gesetzlichen Gewährleistungsrechte gegenüber dem Verkäufer werden von dieser Garantie nicht berührt. Viel- mehr begründet diese Garantie zusätzliche selbständige Ansprüche gegenüber Adam Hall.
  • Page 23 HAFTUNGSBESCHRÄNKUNG Wenn das unter der Marke Adam Hall vertriebene Produkt nicht entsprechend der obigen Garantie funktioniert, besteht Ihr alleiniger und ausschließlicher Anspruch aus dieser Garantie in der Reparatur oder dem Ersatz. Weitergehende Gewährleistungsansprüche bleiben hiervon unberührt. Die maximale Haftung von Adam Hall im Rahmen dieser Garantie ist ausdrückliche beschränkt auf den jeweils niedrigeren Betrag, der sich entweder aus dem Kaufpreis für das Produkt oder aus den Reparatur- bzw.
  • Page 24 wEEE-DEKLARATION Ihr LD-Systems Produkt wurde unter der Verwendung hochwertiger Materialien und Komponenten die wiedever- wertet oder wieder verwendet werden können hergestellt. Dieses Symbol weist darauf hin, dass elektronische Geräte nicht im normalen Hausmüll entsorgt werden dürfen. Entsorgen Sie dieses Gerät bitte fachgerecht bei einer entsprechenden Stelle für Elektromüll und helfen Sie dabei unsere Umwelt zu schützen.
  • Page 25 NOTES:...
  • Page 26 Merci d’avoir choisi LD-Systems! Nous avons conçu ce produit afin de vous offrir un matériel fiable, qui vous accompagnera durant de longues années. En achetant l’un des produits de la marque LD-Systems vous bénéficiez de notre compétence reconnue et de nos nombreuses années d’expérience en tant que fabricant. Notre nom est notre garantie. Veuillez s’il-vous-plait prendre quelques minutes pour lire attentivement ces instructions d’utilisation car nous souhaitons que vous puissiez profiter pleinement et au plus vite de votre matériel LD-Systems.
  • Page 27 LD DS2.1 2+1 - CANAUX PROCESSEUR HP DIGITAL DS2.1 2+1 -CHANNEL SPEAKER PROCESSOR 24/BIT DSP / 48 KHZ SAMPLING RATE...
  • Page 28 PRÉCAUTIONS D’UTILISATION: 1. Veuillez lire attentivement les précautions d’utilisation et les instructions suivantes. 2. Veuillez conserver ce manuel d’utilisation. 3. Veuillez utiliser cet appareil uniquement conformément à son but d’utilisation initial. 4. Veuillez respecter les règles de traitement des déchets. Veuillez s’il-vous-plait séparer les déchets plastiques des déchets papiers et les déposer dans un bac à...
  • Page 29 CONTENU DE LA BOÎTE: DS2.1 2+1 -CHANNEL SPEAKER PROCESSOR 24/BIT DSP / 48 KHZ SAMPLING RATE • Processeur de signal digital 24 bits • 3 voies de sortie: Canal droit, Canal gauche, Caisson de graves • Fonction de liaison droite/gauche pour réglages panoramiques •...
  • Page 30: Face Avant

    LD DS2.1 CARACTÉRISTIQUES: FACE AVANT: DS2.1 2+1 -CHANNEL SPEAKER PROCESSOR 24/BIT DSP / 48 KHZ SAMPLING RATE Touche “Parameter” Touche “Edit” Menu de navigation Régler la valeur d’un paramètre Touche “Recall” Power Rappeler un programme Allumer / Éteindre Écran LCD Affichage menu et paramètres...
  • Page 31 RÉGLAGES DU SYSTÈME: Lorsque vous allumez l’appareil, le système affiche l’interface principale, indiquant les niveaux d’entrée en temps réel. Appuyer sur “PARAMETER” pour afficher le menu. En appuyant plusieurs fois sur le bouton “PARAMETER” vous accédez aux réglages du système. Mesure des niveaux d‘entrée en temps réel Sub: Utiliser le bouton de réglage “Edit”...
  • Page 32 RÉGLAGES DU SYSTÈME: Utiliser le bouton de réglage „Edit“ pour ajuster le niveau de sortie L&R VOLUME des canaux gauche et droite. GAIN= 0.0dB Utiliser le bouton de réglage „Edit“ pour ajuster la phase sur les L&R PHASE canaux gauche et droite. [ 0 ] Utiliser le bouton de réglage „Edit“...
  • Page 33 CARACTÉRISTIQUES TECHNIQUES: Input Channels Left, Right Output channels Left, Right, Subwoofer Gain -60dB 6dB 0.5dB/step Delay Max 12.5ms 3 bands EQ Gain -12dB 12dB, 0.1dB/step EQ Frequence 20kHz EQ Q value 128 HighShelf, lowShelf Polarity 0°, 180° Highpass frequence 10.0Hz 16kHz Highpass slopes 6dB/12dB/24dB Butterworth...
  • Page 34 DÉCLARATIONS DU FABRICANT: GARANTIE LIMITÉE: Cette garantie limitée s’applique aux produits de la marque Adam Hall, LD Systems, Defender, Palmer et Emi- nence. Les droits inhérents à la garantie légale vis-à-vis du revendeur ne sont pas affectés par cette garantie. En fait elle justifie d’une garantie supplémentaire indépendante auprès de la société...
  • Page 35 LIMITATION DE LA RESPONSABILITÉ Si votre produit Adam Hall devait ne pas fonctionner correctement, votre seul et unique dédommagement sera la réparation du produit ou son remplacement. La responsabilité maximale imputable à Adam Hall dans le cadre de cette garantie limitée se limite au montant le plus bas. Ce montant découle du prix d’achat du produit ou bien du coût de la réparation ou des pièces de remplacement qui sont tombés en panne dans des conditions d’utilisation normales.
  • Page 36 DÉCLARATION DEEE Votre produit LD-Systems a été développé et fabriqué avec des matériaux et des composants de haute qualité qui peuvent être recyclés voire réutilisés. Ce signe figurant sur le produit ou dans la brochure jointe au produit indique qu’il ne doit pas être jeté dans le même bac à ordures que les déchets ménagers classiques lorsqu’il arrive en fin de vie.
  • Page 37 NOTES:...
  • Page 38 NOTES:...
  • Page 39 NOTES:...
  • Page 40 WWW.LD-SYSTEMS.COM Adam Hall GmbH | Daimlerstrasse 9 | 61267 Neu-Anspach | Germany Tel. +49(0)6081/9419-0 | Fax +49(0)6081/9419-1000 web : www.adamhall.com | e-mail : mail@adamhall.com...
