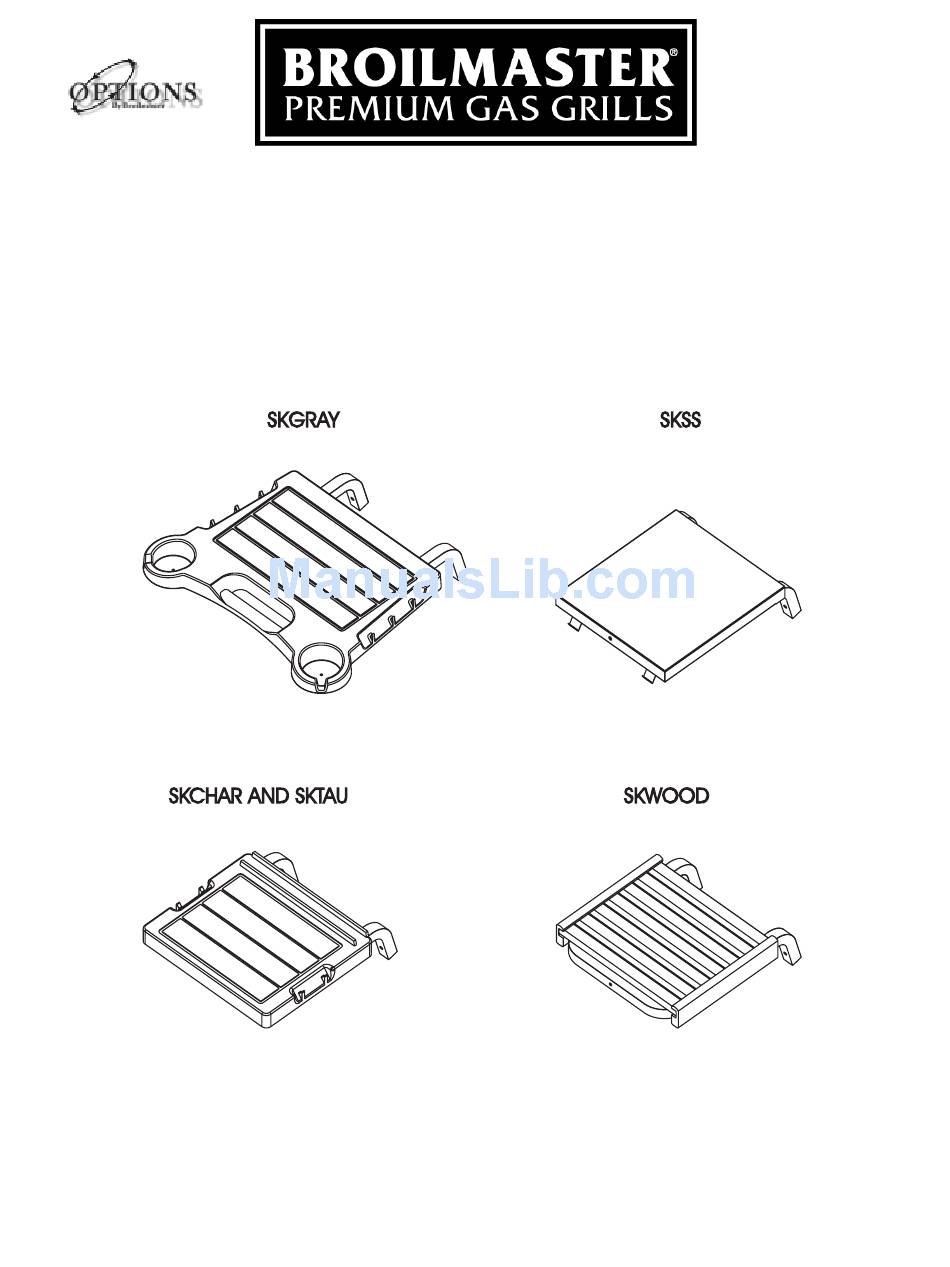

- Page 1 TATIONARY HELF ’ WNER ANUAL ’ ETAIN WNER ANUAL FOR UTURE EFERENCE B100623-0-1102 B100623-0-1102 Page 1...
-
Page 2: Before You Begin
ONGRATULATIONS You have chosen the finest accessory for your outdoor cooking pleasure. ® Please take time to read this entire manual before installing your premium Broilmaster Shelf Kit. Pull Handle ..........................3 Side Shelf Installation - SKCHAR, SKTAU ................... 4 Side Shelf Installation - SKSS ...................... - Page 3 Pull Handle Pull Handle Place two bolts 1/4-20 x 1-1/2 into holes in pull handle (10) and through holes on left or right side of grill bottom. IGURE Fasten each bolt with a washer, lock washer, and nut. F IGURE Repeat procedure for the right side.
- Page 4 HELF NSTALLATION SKCHAR SKTAU Solid Surface Side Shelf IGURE Place solid surface side shelf (5) onto the grill pull handle. Fasten shelf bracket (10) to the bottom of the side shelf with two #10-24 x 1" screws. F IGURE IGURE...
- Page 5 HELF NSTALLATION SKSS Stainless Steel Side Shelf IGURE Slide the tool hook bar into the side shelf aligning the holes in the tool hook bar (2) and the side shelf (10). Slide each stainless steel side shelf (1) onto the grill pull handle. Secure with one 1/4-20 screw.
- Page 6 HELF NSTALLATION SKWOOD Wood Side Shelf IGURE Insert screw through spacer and into hole on top of pull handle (10). Tighten. Position wood side shelf (3) onto pull handle (10) with spacer inserted between two wooden shelf slats. F IGURE IGURE Page 6 B100623-0-1102...
- Page 7 HELF NSTALLATION SKGRAY Pull Handle Place two bolts 1/4-20 x 1-1/2 into holes in pull handle (10) with SKGARY attached (6) and through holes on left or right side of grill bottom. IGURE Fasten each bolt with a washer, lock washer, and nut.
- Page 8 & P ARTS IAGRAM ARTS HELF All repair part orders should be placed through your local Broilmaster ® dealer. To locate a dealer in your area, contact Broilmaster Customer Service at 800-851-3153 • .broilmaster.com. To ensure prompt and accurate service, please provide the following information when placing a repair part order: Model Number of your grill, Part Name, Part Number, and Quantity of parts needed.
