Summary of Contents for SoundPals DMIC-24

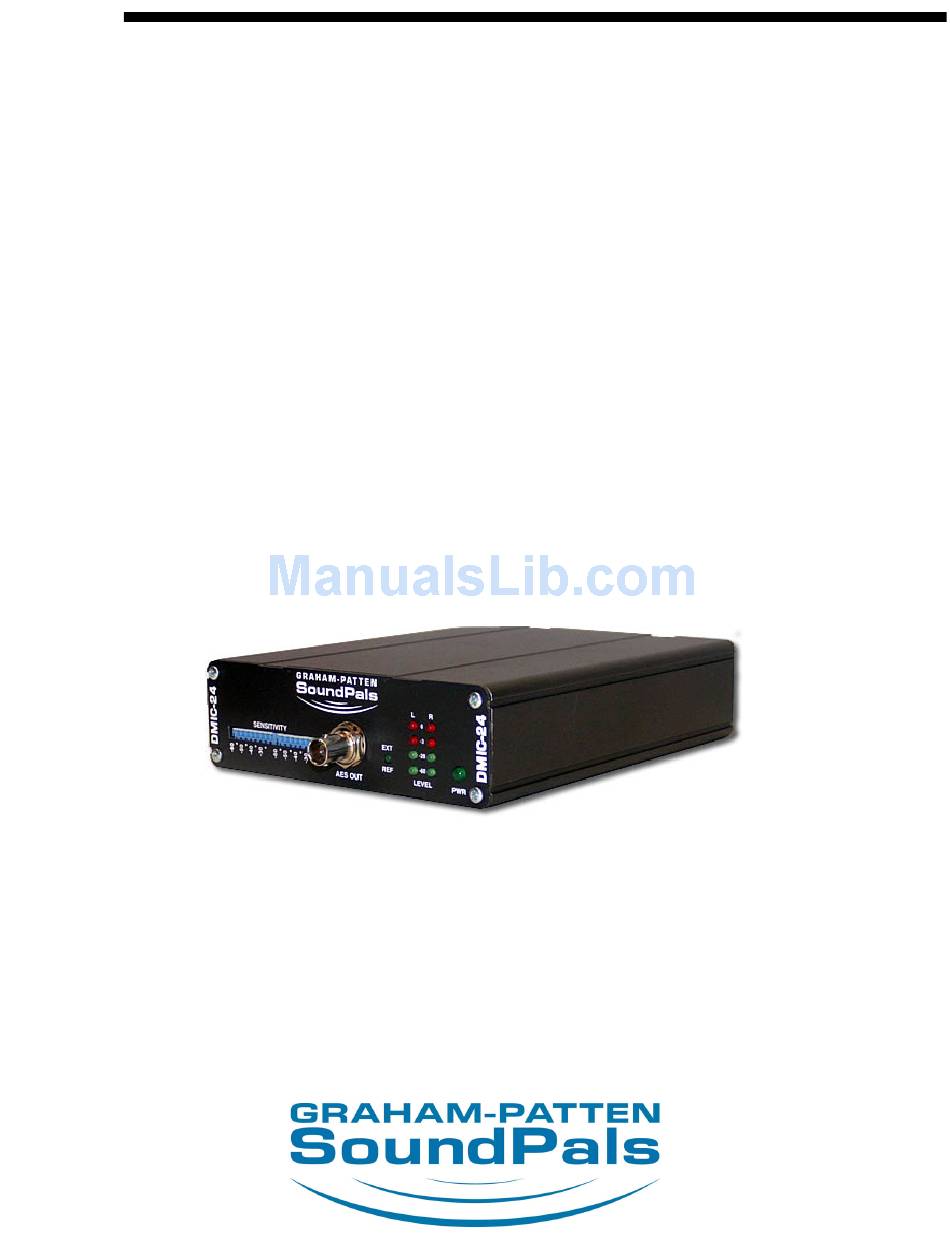

- Page 1 SoundPals™ DMIC-24 User Guide Dual Microphone Pre-amp & A-to-D converter...
-
Page 3: Fcc Compliance
Printing History ™ SoundPals DMIC-24 Microphone Amplifier & A-to-D converter Rev. N/C March 2007 Printed in U.S.A. Part Number 08-2048-00 The information contained in this guide is subject to change without notice or obligation. Copyrights and Trademarks © 2005 GRAHAM-PATTEN SYSTEMS, INC. -
Page 5: Table Of Contents
Signals and Values ........................1 Warnings..........................1 Unpacking and Inspection ....................... 2 Power Supply Note ........................2 DMIC-24 About the DMIC-24 ........................3 DMIC-24 Installation ........................ 5 Connecting Power ......................5 Connecting Inputs ......................5 Connecting Outputs......................5 Using Phantom Power ...................... 5 DMIC-24 Operation........................ -
Page 7: Introduction
Introduction What are SoundPals? Each Graham-Patten SoundPals module is essentially a digital audio building block that can be used independently, or interconnected to perform more advanced mixing and audio processing functions. SoundPals can be used in both standalone and system configurations: •... -
Page 8: Unpacking And Inspection
Unpacking and Inspection When you receive your SoundPals modules, inspect the cartons for signs of damage. Contact your dealer and the shipper immediately if you suspect any damage has occurred during shipping. Check the contents of each box to be sure that all parts are included. If any items are missing, contact your dealer immediately. -
Page 9: About The Dmic-24
DMIC-24 About the DMIC-24 The SoundPals DMIC-24 is a dual microphone pre-amplifier with a built-in, 24-bit analog-to-digital AES converter. The unit takes two low-level, low-impedance inputs, amplifies the signals, and converts them to one AES output on both XLR and BNC outputs. - Page 10 AES REF RIGHT IN LEFT IN 1) DMIC-24 Version — the printed legend indicates the default frequency (either 44.1 KHz or 48 KHz). 2) Power Connector — accepts the power jack from the 6 VDC power supply. Refer to “External Power” for more information regarding external power.
-
Page 11: Dmic-24 Installation
Plug a 6 VDC power supply into the appropriate voltage outlet for your specific country, and connect the end of the cord into the DMIC-24 rear panel jack marked +6V. Secure the locking ring finger tight. The green LED on the front panel lights when power is applied. -
Page 12: Dmic-24 Operation
Program Out Digital In Mics AES Out AES Out AES Ref Right In Sensitivity Left In SoundPals DMIC-24 Note how one of the mixer’s outputs is used to synchronize the DMIC-24 (via the AES REF connector). Page 6 DMIC-24 User Guide... -
Page 13: Advanced - Sub-Mix From Analog Equipment
In this application, SoundPals are combined to provide a sub-mix (from analog equipment). Dual mics feed the DMIC-24, and then the DMIX. An analog ATR is converted in the ADC, routed through a DFADE for level control, and then to the DMIX. -
Page 14: Dmic-24 Internal Jumpers
DMIC-24 Internal Jumpers This section provides information about the DMIC-24’s internal jumpers and adjustments. NOTE For detailed instructions on opening and closing the DMIC-24 “Inside the Module.” Input Termination Jumper Phantom Power Jumpers DMIC-24 04-0237- Status Bit High Pass Jumper Pinout 1 2 3... - Page 15 If Switch 1 is Open the unit is in the Consumer Mode and the following switch settings apply. • Switches 2 and 3 define the Sample Frequency. Function 44.1 CD 48 kHz 32 kHz 44.1 kHz • Switch 4 defines the Emphasis. Function 50/51 Page 9 DMIC-24 User Guide...
-
Page 16: Dmic-24 Troubleshooting
• Switch 8 determines the Generation Table. Function Generation or Higher Original DMIC-24 Troubleshooting The table below lists DMIC-24 problems and solutions. Problem Procedure • No signal at either Is power applied? Check power LED and power supply. AES output. -
Page 17: Dmic-24 Specifications
13.2 x 4.1 x 16.8 cm Power 300 mA @ 6 Vdc with Phantom Power Off. 500 mA @ 6 Vdc with Phantom Power On. ° Operating Temp 10 – 50 Operating Humidity 10 – 90% RH non-condensing Page 11 DMIC-24 User Guide... -
Page 18: Inside The Module
1. On the rear panel, remove the four Phillips screws from the four corners of the SoundPals module. 2. On the front panel, remove all Philips XLR mounting screws from the SoundPals module. 3. On the front panel remove the BNC nut and associated lock washer. -
Page 19: External Power
Any power supply meeting these specifications will supply adequate power for a single SoundPals module. Although the specification is written for power supplies running from AC line inputs, DC (battery) sources may be used if they meet all of the listed requirements. -
Page 20: Power Supply Sources
(CE compliant). Note the following important points regarding the DMIC-24: • Under normal conditions, a DMIC-24 requires about 300 mA. • When phantom power is used, 500 mA (with low ripple) is required. Only the GPS-supplied universal power supply or the Elpac MI2007 is satisfactory for the DMIC- 24, when phantom power is used.
