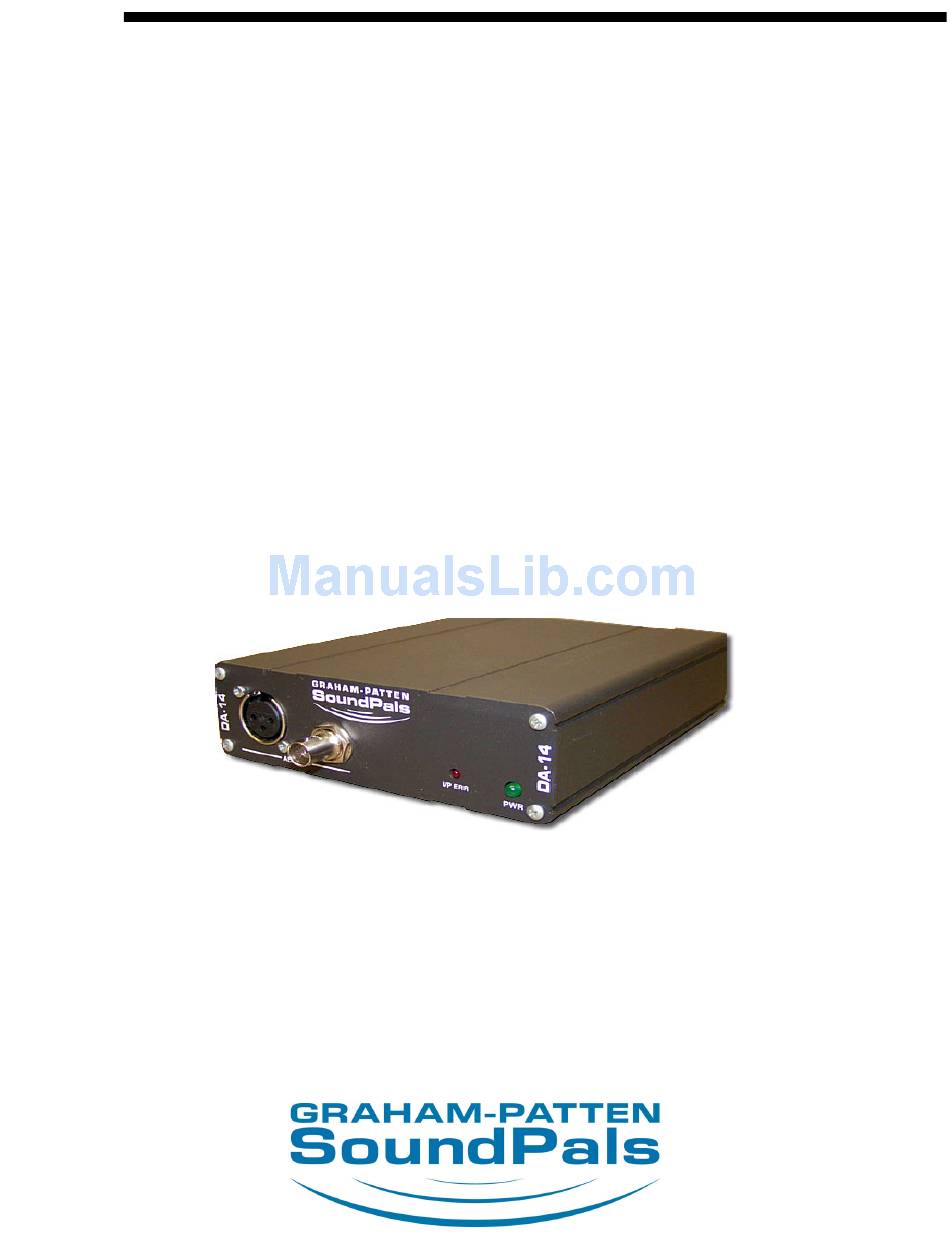

- Page 1 SoundPals™ DA-14 User Guide AES Distribution Amplifier...
-
Page 3: Fcc Compliance
Printing History ™ SoundPals DA-14 AES Distribution Amplifier Rev. N/C March 2007 Printed in U.S.A. Part Number 08-2051-00 The information contained in this guide is subject to change without notice or obligation. Copyrights and Trademarks © 2005 GRAHAM-PATTEN SYSTEMS, INC. -
Page 5: Table Of Contents
About the DA-14 ........................3 DA-14 Installation ........................5 Connecting Power ......................5 Connecting Inputs ......................5 Connecting Outputs......................5 DA-14 Operation and Application .................... 6 DA-14 Interconnection ......................7 Basic Digital Distribution ....................7 Multiple Outputs ........................ 8 DA-14 Internal Jumpers......................9 DA-14 Troubleshooting...................... -
Page 7: Introduction
Introduction What are SoundPals? Each Graham-Patten SoundPals module is essentially a digital audio building block that can be used independently, or interconnected to perform more advanced mixing and audio processing functions. SoundPals can be used in both standalone and system configurations: •... -
Page 8: Unpacking And Inspection
Unpacking and Inspection When you receive your SoundPals modules, inspect the cartons for signs of damage. Contact your dealer and the shipper immediately if you suspect any damage has occurred during shipping. Check the contents of each box to be sure that all parts are included. If any items are missing, contact your dealer immediately. -
Page 9: About The Da-14
DA-14 About the DA-14 The SoundPals DA-14 is a one-input, four-output “data regenerator” for distributing AES digital audio signals. Two versions of the DA-14 are available: • Model A The DA-14 Model A provides four balanced AES3 outputs on XLR connectors. - Page 10 AES OUT 1 AES OUT 2 AES OUT 3 AES OUT 4 1) DA-14 Model — the printed legend indicates the model: A (AES, balanced) or B (AES3ID, unbalanced) NOTE The Model A (with balanced XLRs) is shown above. The Model B provides unbalanced BNC connectors.
-
Page 11: Installation
Plug a 6 VDC power supply into the appropriate voltage outlet for your specific country, and connect the end of the cord into the DA-14 rear panel jack marked +6V. Secure the locking ring finger tight. The green LED on the front panel lights when power is applied. -
Page 12: Operation And Application
• S/PDIF to AES conversion Because the DA-14 can operate in a range as low as 165mv, it can be used as an S/PDIF to AES converter. By using an S/PDIF adapter on your S/PDIF source and connecting it to the DA-14’s BNC input, you can achieve full level AES output (times four), provided that the source output is above the 165mv threshold. -
Page 13: Interconnection
• Basic Digital Distribution In this application, the DA-14’s input is connected to an AES source (such as the ADC- 24). The unit’s four AES digital outputs are connected to AES destination devices in your facility. Note that both DA-14 models are shown. -
Page 14: Multiple Outputs
• Multiple Outputs In this application, three DA-14 units are bridged together to produce 12 identical AES outputs. Note that the last DA-14 in the chain is terminated externally with a 75 Ω terminator. NOTE All internal termination jumpers should be removed for this configuration. Refer to the “DA-14 Internal Jumpers”... -
Page 15: Internal Jumpers
AES signals, place jumper J903 between pins 2 and 3. When the jumper is between pins 1 and 2, the LED only indicates invalid AES signals (this is the default position). DA-14 Troubleshooting The table below lists several DA-14 problems, and provides a variety of “checklist” procedures designed to solve them. Problem Procedure •... -
Page 16: Specifications
Options RT-2, 1RU rack tray for mounting up to 3 units Power supplies: • PSU-1, 90-260V 50/60Hz in-line power supply with detachable IEC power cord NOTE All specifications listed above subject to change without notice. Page 10 DA-14 User Guide... -
Page 17: Environmental Specifications And Dimensions
10 – 90% RH non-condensing Inside the Module In This Section This section provides instructions for opening and closing the SoundPals DA-14 module to gain access to the internal circuit board. NOTE The internal circuit board should only be removed from the module if you want to reset the jumpers. -
Page 18: Closing The Module
Any power supply meeting these specifications will supply adequate power for a single SoundPals module. Although the specification is written for power supplies running from AC line inputs, DC (battery) sources may be used if they meet all of the listed requirements. -
Page 19: Power Supply Sources
120V AC, 60 Hz Stancor STAF-0797F 220V AC, 50 Hz with European wall plug (CE compliant). Elpac MI2007 95-250V AC, 47-63 Hz with IEC inlet (line cord required). Will power up to six units (CE compliant). Page 13 DA-14 User Guide...
