Hitzer Energy Master II Stoker Furnace
Installation and Operation
Operating Instructions and Maintenance Enclosed.
Thoroughly Read and Understand Instructions.
Always Leave this Manual with Stove Owner.
FOLLOW THE INSTRUCTIONS WITHIN THIS MANUAL. IF
INSTRUCTIONS ARE NOT FOLLOWED, A FIRE MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL INJURY, OR EVEN DEATH. REFER
TO MARKINGS ON THE FURNACE FOR ADDITIONAL INFORMATION.
CARBON MONOXIDE AND SMOKE DETECTORS/ALARMS MUST BE
INSTALLED IN THE HOME AND WORKING PROPERLY
DANGER – RISK OF FIRE OR EXPLOSION
DO NOT BURN GARBAGE, GASOLINE, DRAIN OIL, OR OTHER
FLAMMABLE LIQUIDS. DO NOT USE CHEMICALS OR FLUIDS TO
START FIRE
BURN RICE SIZE ANTHRACITE COAL ONLY
STOVE SURFACES MAY BE HOT WHILE IN OPERATION. KEEP
CHILDREN AWAY. DO NOT TOUCH DURING OPERATION.
DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING
ANOTHER APPLIANCE
DO NOT OPERATE WITH FLUE DRAFT EXCEEDING .06 WC (14.945 Pa)
Model 710
Owner's Manual
Save this Manual
Warning
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hitzer Energy master II 710
Summary of Contents for Hitzer Energy master II 710

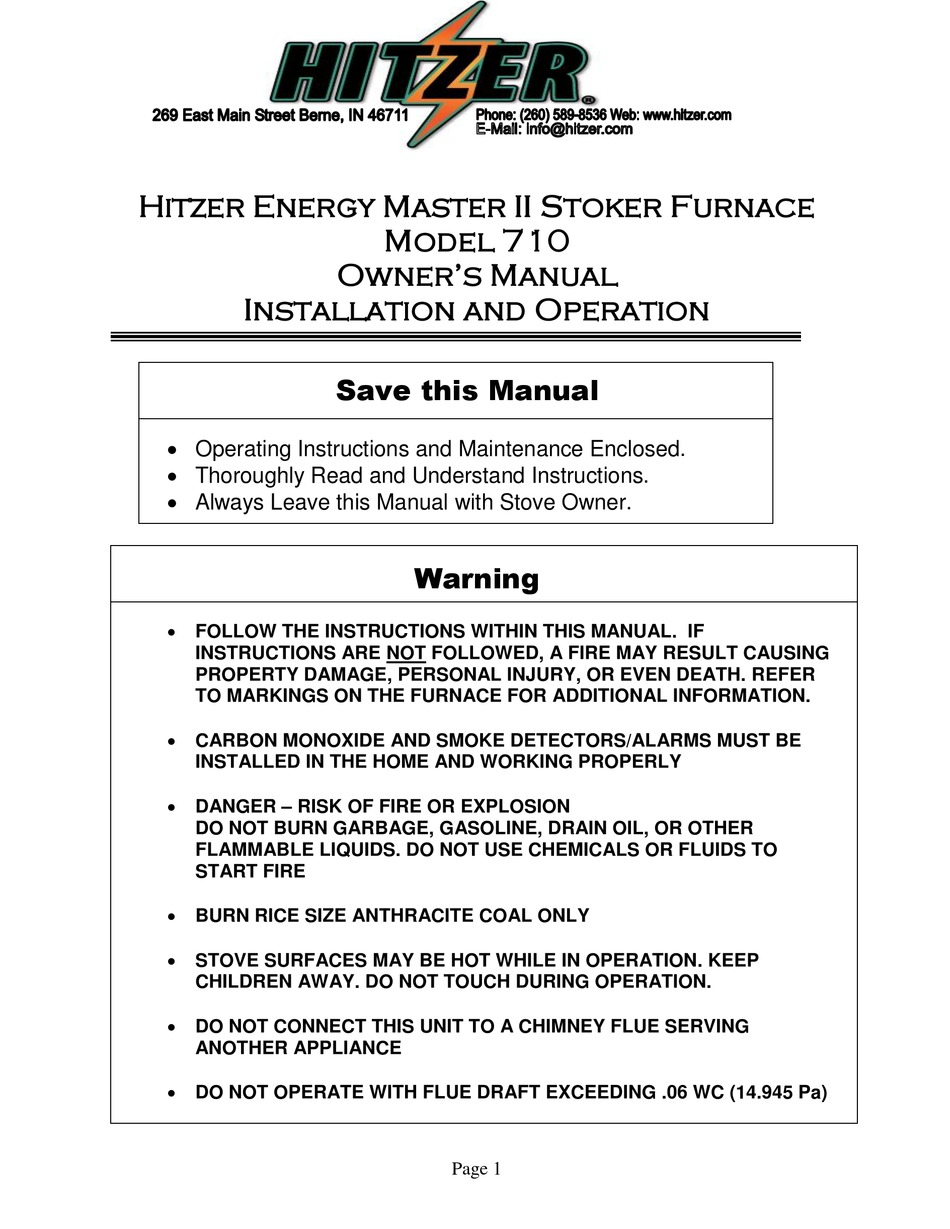

- Page 1 Hitzer Energy Master II Stoker Furnace Model 710 Owner’s Manual Installation and Operation Save this Manual Operating Instructions and Maintenance Enclosed. Thoroughly Read and Understand Instructions. Always Leave this Manual with Stove Owner. Warning FOLLOW THE INSTRUCTIONS WITHIN THIS MANUAL. IF INSTRUCTIONS ARE NOT FOLLOWED, A FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR EVEN DEATH.
-
Page 2: Table Of Contents
Table of Contents I. Welcome to Hitzer Family A. Safety Notice II. Location of Stove & Installation A. Pre Installation Information B. Location C. Clearances To Combustibles/Floor Protection D. Requirements In Regards To Installation E. Connecting Furnace To Chimney III. Typical Installation A. -
Page 3: Welcome To Hitzer Family
“Our Stoves Make Warm Friends.” Safety Notice Safety Notice: If this Hitzer Stove is not properly installed a house fire may result. For your safety and to reduce the risk of fire, follow the installation instructions carefully. Failure to follow these instructions may result in property damage, bodily injury, or even death. -
Page 4: Location Of Stove & Installation
Hitzer dealer or heating contractor and your local, state and national building codes and regulations to determine if your central heating system is compatible with your Hitzer Energy Master Furnace. Once it is determined your existing furnace will accept an add-on installation a parallel installation with return air (outlined later in this manual) is recommended. -
Page 5: Location
Location: The location of the stove is very important for optimum stove performance as well as safety assurance. When searching for the location of the stove be sure to strictly follow manufactures guidelines, clearance to combustible material requirements, local building, and fire codes. Failure to follow manufacture’s instruction and local jurisdiction codes may result in bodily injury, property damage, fire, or death. -
Page 6: Illustrations
CAUTION: It is mandatory to abide by clearance to combustibles regulations provided on the furnace label and in this instruction manual. Failure to abide by the clearance requirements may result in a fire. Requirements In Regards To Installation: DO NOT connect to a chimney serving another appliance. Only one appliance is to be used per chimney. - Page 7 Page 7...
- Page 8 Notice: Installations are drawn with a masonry chimney. Manufactured metal chimney listed to UL 103 (CAN/ULC-S629-M87) Type HT or a Hitzer approved power vent system may also be used. Follow manufacturer’s instructions/guidelines when using these products. Page 8...
-
Page 9: Supply Duct
In order to achieve maximum performance it is important to have the correct size of duct work that corresponds with your Hitzer ENERGY MASTER Stoker Furnace. Your furnace is equipped with a 1009 CFM Blower. In order to achieve maximum performance and heat, it is important to make sure the duct work is sized properly and not too small for the blower assembly. - Page 10 Do not have the supply air flow back into the blower of existing oil or gas furnace. This could damage the existing furnace controls and/or void any warranty. Do not have hot air from gas or oil furnace flow downward into the Hitzer Furnace and flow out the Hitzer Furnace to existing duct work.
-
Page 11: Flue Systems
Hitzer Furnace. The diameter of the flue size including chimney liner should never be less than the diameter of the flue exhaust collar on the Hitzer Furnace. The flue size for the Stoker Furnace should be a minimum of 6 inches in diameter The flue size also has a maximum size of inches in order to sustain the desired draft. -
Page 12: Chimney Height Requirements
VENTER. Follow the instructions that come with the power venter, for cutting the hole, and mounting the venter to the wall. Connect your Hitzer Energy Master II Stoker Furnace to the power vent using a 6 inch stove pipe and a barometric damper. You need to make certain that the pipe joints are tight together and screwed with a minimum of three sheet metal screws per joint. -
Page 13: Basic Regulations For Safe Operations
IV. Basic Regulations for Safe Operations Standard Cautions: CAUTION: ALWAYS HAVE WORKING CARBON MONOXIDE AND SMOKE DETECTORS/ALARMS INSTALLED WHEN USING THIS APPLIANCE. ONE ON EACH FLOOR AND BY SLEEPING ROOMS IS RECOMMENDED CAUTION- Hot Surfaces WARNING-Risk of Fire -Keep children away Do NOT operate with fuel or ash door open -Do not touch during operation Do NOT store fuel or other combustible... -
Page 14: Start Up
Start Up: Note: For the first fire in your new Hitzer Furnace, create a small hot fire to allow paint to cure to the stove. This may create a slight odor as paint cures to the furnace. Let this small fire burn for at least 2 hours before you raise the Coal-Trol temperature setting to maximum heating potential. -
Page 15: Maintenance
VII. Maintenance Failure to maintain or properly use this appliance may cause a house fire. At the beginning of each heating season this appliance, the connector pipe, and chimney should be inspected to see that it is in good working condition. Daily: ... - Page 16 VI. Troubleshooting Page 16...
-
Page 17: Power Outages
Other outputs can cause the Coal-Troll Digital™ to not work. You may also contact your Hitzer dealer or Hitzer Inc., for questions or more information regarding stove installation and operation.
