Vax VCC-05

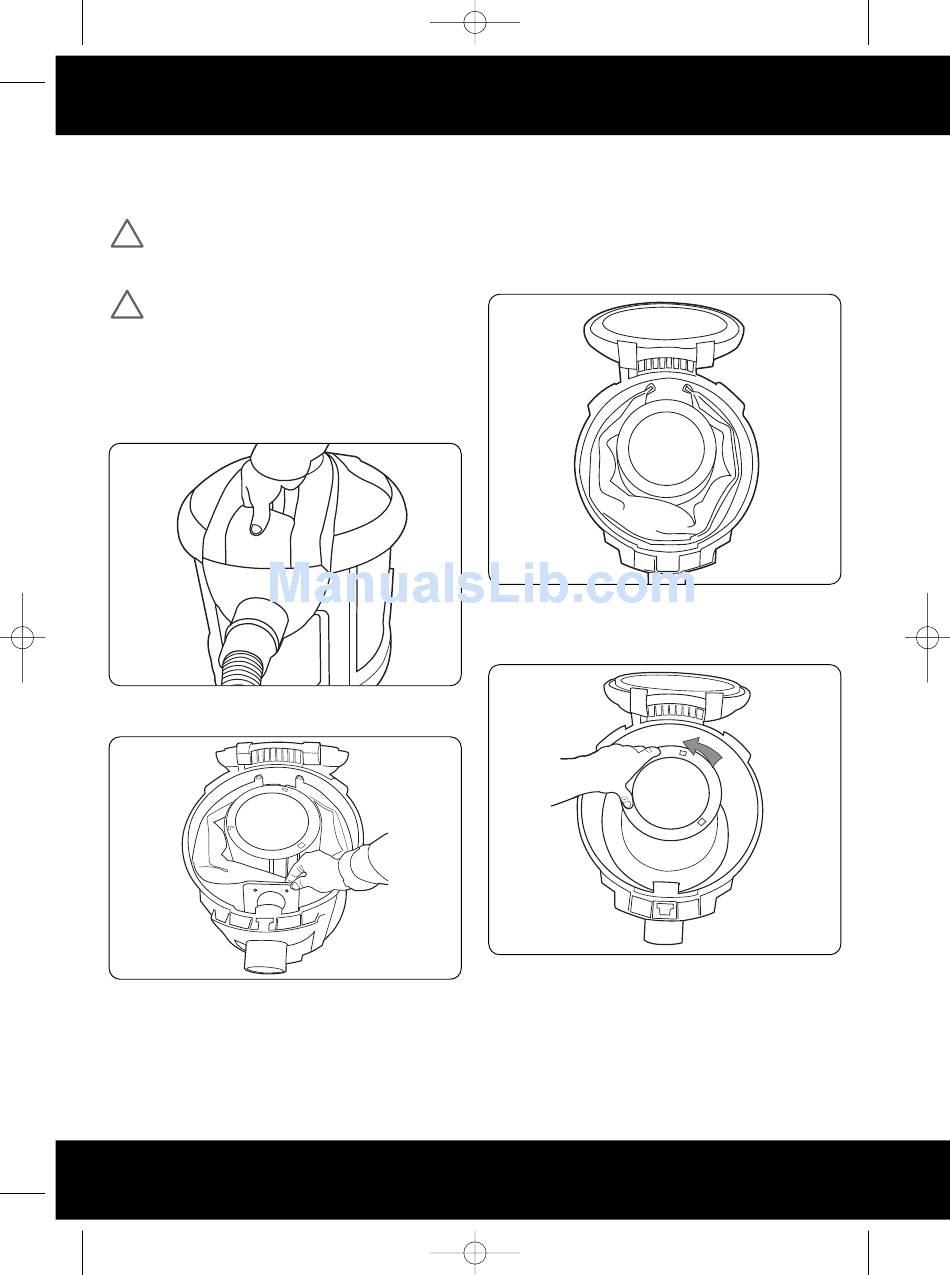

7. Dirt Container & Filters:
Removal & Replacement
IMPORTANT: Always unplug the vacuum cleaner
!
from the electrical outlet before removing the
dust bag.
IMPORTANT: DO NOT use the vacuum cleaner
!
without ALL of the filters in place.
Dust Bag Replacement
1. Turn off the vacuum cleaner and unplug it from the
mains. Remove the hose unclip the retainer clip on the top
of the unit and lift up to gain access to the dust bag
compartment. (Fig.7/1)
Fig.7/1
2. Lift out the full paper dust bag Fig.7/2
Fig.7/2
3. Dispose of the full paper dust bag and insert a new
paper dust bag into the vacuum cleaner aligning the front
of the paper dust bag with the air entrance.
NOTE: The seal ring around the dust bag opening
should cover the air entrance connector inside the
housing.
6
dust bag & filters
25/4/07 14:22 Page 6
Pre-motor Filter
1. Turn off the vacuum cleaner and unplug it from the
electrical outlet.
2. Unclip the retainer clip on the top of the vacuum cleaner
and lift up to gain access to the dirt container department.
(Fig.7/3)
Fig.7/3
3. The pre-motor filter is found in the centre of the dirt
container. Rotate the filter retaining disc anti-clockwise to
gain acess to the filter (Fig.7/4).
Fig.7/4
