Summary of Contents for Bewator Bewacard BC610

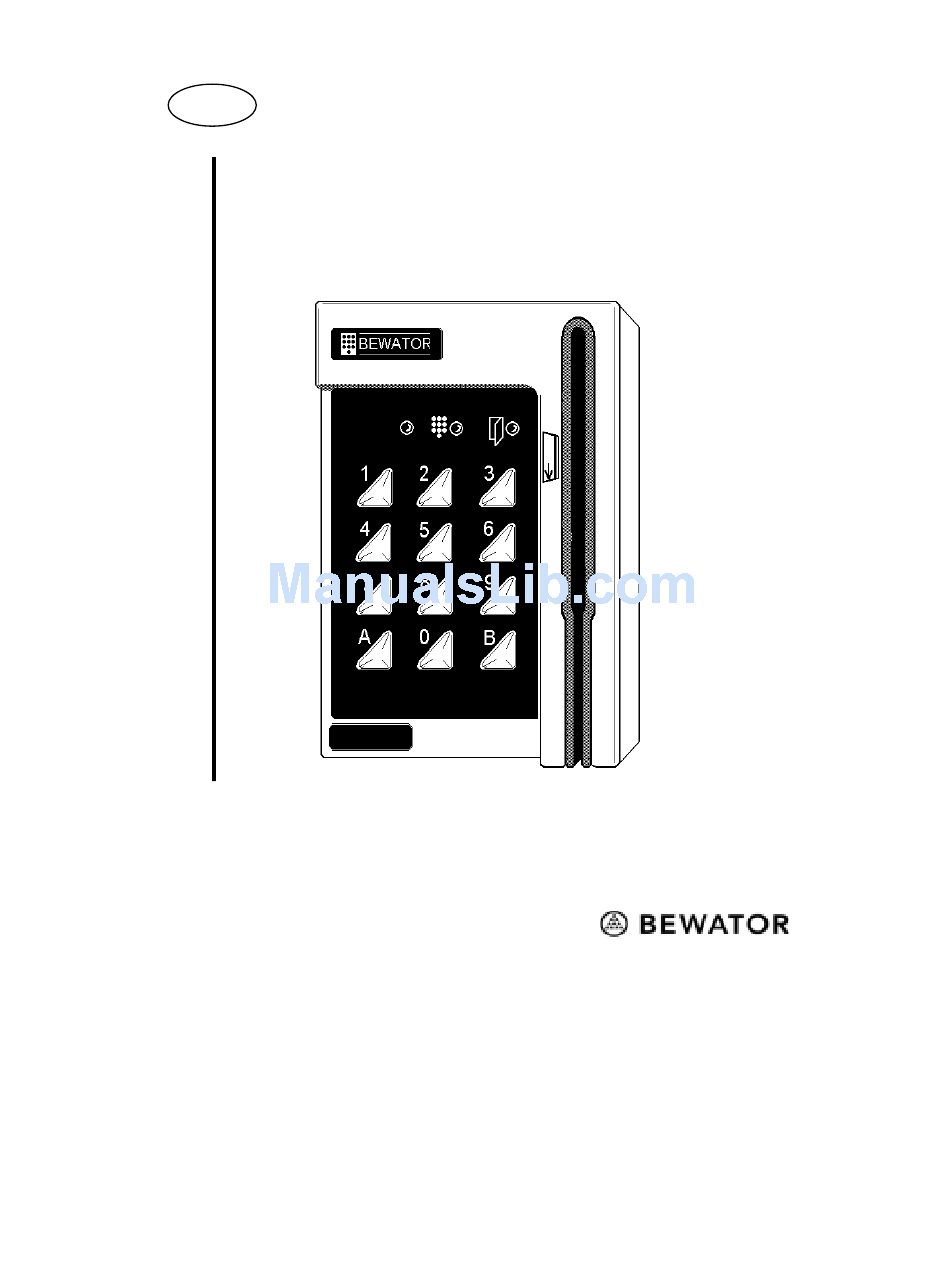

- Page 1 Bewacard BC610 Installation and User manual...
- Page 2 Copyright © January 1998 Bewator AB, Solna, Sweden. Material from the BC610 Technical manual may only be copied with the consent in writing of Bewator. Bewator reserves the right to alter both the content of the manual and the design of the product.
-
Page 3: Table Of Contents
BC610 Installation and User manual Contents THIS IS THE BC610............4 How does the card reader work? ........4 Timing security levels............4 Duress ................5 INSTALLING THE CARD READER ........ 6 HOW TO SELECT CONNECTING CABLES ....7 INSTALLATION ............... 8 LAYOUT OF THE KEYPAD........... 10 PROGRAMMING ............ -
Page 4: This Is The Bc610

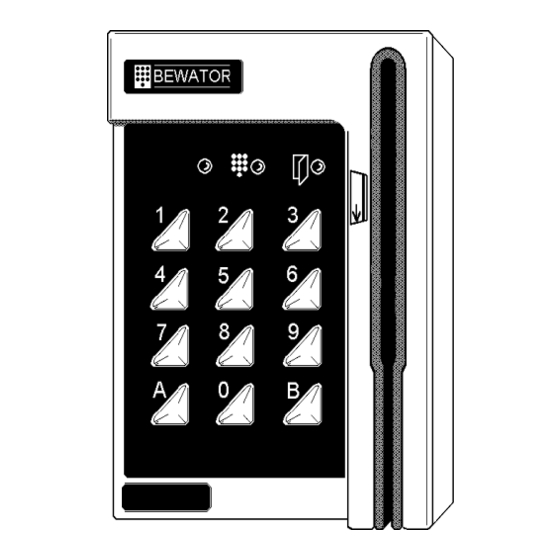

BC610 Installation and User manual This is the BC610 BC610 is a 500 card capacity compact card reader designed for one door. All programming is done from the keypad. How does the card reader work? BC610 can be used in different ways depending on the security requirements. -
Page 5: Duress
The pupils may come in and out without having cards or common code. Duress BC610 is equipped with a duress output. If a visitor is forced to open the door under threat, he or she may enter a special code that activates an alarm. -
Page 6: Installing The Card Reader
BC610 Installation and User manual Installing the card reader Install the card reader at a height of 120–140 cm (from the floor to the bottom edge of the card reader). To cater for disabled persons, a suitable height is approximately 95 cm. -
Page 7: How To Select Connecting Cables
BC610 Installation and User manual How to select connecting cables It is important to use cables with the correct conductor gauge, to keep the voltage drop in the cables as low as possible. 12 volt supplies. A 12 V electric locking device generally needs at least 11 V to work properly, so the voltage at the card reader should never be less than 11 V. -
Page 8: Installation
BC610 Installation and User manual Installation BACK LIGHT 1 2 3 4 5 8 9 10 11 12 13 12-30V LOCK 15 14... - Page 9 BC610 Installation and User manual Installation continued The numbers below refer to the numbers on the wiring diagram. Electric locking device. Dashed line shows connection to locks with fail unlocked operation. Power in, terminal block nos. 1 and 2. Exit Request button. To operate short terminal nos. 6 and 9.
-
Page 10: Layout Of The Keypad
BC610 Installation and User manual Layout of the keypad Diagram of the LEDs and push-buttons on the BC610 keypad. Yellow LED. Red LED. Indicates keypresses. Lit when PIN Indicates errors. E.g. code should be entered. cancellation of card following 3 incorrect PIN codes. -
Page 11: Programming
Programming In the sections below are the instructions on how to program BC610. To be able to program the card reader you have to set the card reader to programming mode. This is done by entering a six-digit code (see the next page). -
Page 12: Set Password
BC610 Installation and User manual Set password The first thing to do before starting to programme the card reader is to set a password. Open the card reader with the key supplied. The lock is located on the underside of the card reader. -
Page 13: Log On A Card (With A Card)
BC610 Installation and User manual Log on a card (with a card) Using this function, the cards to be used are programmed in to the card reader. Set the card reader to programming mode. !"" Press A01. Swipe the card. If the card is already in the reader, the ”faulty programming”... -
Page 14: Log On A Series Of Cards
BC610 Installation and User manual Log on a series of cards Using this function you can quickly log on a contiguous series of cards. Set the card reader to programming mode. !"" Press A04. Enter the card number of the first card in the series. -
Page 15: Cancel Card (Without Card)
BC610 Installation and User manual Cancel card (without card) Using this function cards can be cancelled using the card number. Set the card reader to programming mode. "!! Press A16. Enter the card number. If the card is not logged on the ”faulty programming”... -
Page 16: Change The Door Opening Time
BC610 Installation and User manual Change the Door Opening time The opening time determines for how long the lock should remain open following a correct entrance. The default is 7 seconds. This is how to change the opening time, if required. -
Page 17: Erase The Memory And Reset The Default Settings
BC610 Installation and User manual Erase the memory and reset the default settings When the card reader’s memory is erased, the default settings are restored (see below). Set the card reader to programming mode. Open the card reader with the key supplied. The lock is located on the underside of the card reader. -
Page 18: Change Password
BC610 Installation and User manual Change password To change the password: Press B and enter the present password. """ Press A27. Enter the new password. A warning tone is heard. Enter the new password again. The warning tone sounds until all six digits have been entered. -
Page 19: Card Parameters
BC610 Installation and User manual Card parameters When BC610 is delivered, the card reader reads positions 9 to 16 on the card’s magnetic strip, or the last 8 positions if they are fewer than 16. If you want to use your own cards and they... -
Page 20: Door Operation On Change Of Toggle Enable
BC610 Installation and User manual Door operation on change of toggle enable The default setting is that if the door is unlocked when a security level changes, the door will be locked immediately. This is setting 0 of this function. -
Page 21: Programming Overview
BC610 Installation and User manual Programming overview Step 1 Step Step 3 Step 4 Step 5 Function Change Password Set card reader to Press A27 Enter a new Enter the programming password password again mode Log on cards(with Set card reader to... -
Page 22: Name Chart
BC610 Installation and User manual Name chart Common Code Name Card Number... -
Page 23: Daily Use
BC610 Installation and User manual Daily use Entrance To open the door the user should do the following: Enter a four-digit common code (if Common code is the current security level). Swipe a card (if Card is the current security level). -
Page 24: Choose/Change Pin Code
BC610 Installation and User manual Choose/change PIN code To choose/change your individual PIN: Press A on the card reader’s keypad. Swipe your card through the card reader. If it is the first you are choosing a PIN code for this card, enter 0000. -
Page 25: Troubleshooting
BC610 Installation and User manual Troubleshooting Problem Possible cause Action Red, yellow and green A button is pressed. Adjust the button. LEDs blink on voltage Memory error. Change card reader. feed. Cannot enter Wrong password. Choose a new programming mode. -
Page 26: Technical Information
BC610 Installation and User manual Technical information Power supply: 12-24 V AC/DC. Max power consumption 60 mA. Lock relay: Max 2A, 30 V DC. Duress output: Open collector to 0 volt. Max 500 mA, 30 V DC. Tamper switch: Max 1A, 30 V DC. - Page 27 BC610 Installation and User manual Notes _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ ________________________________________________...
