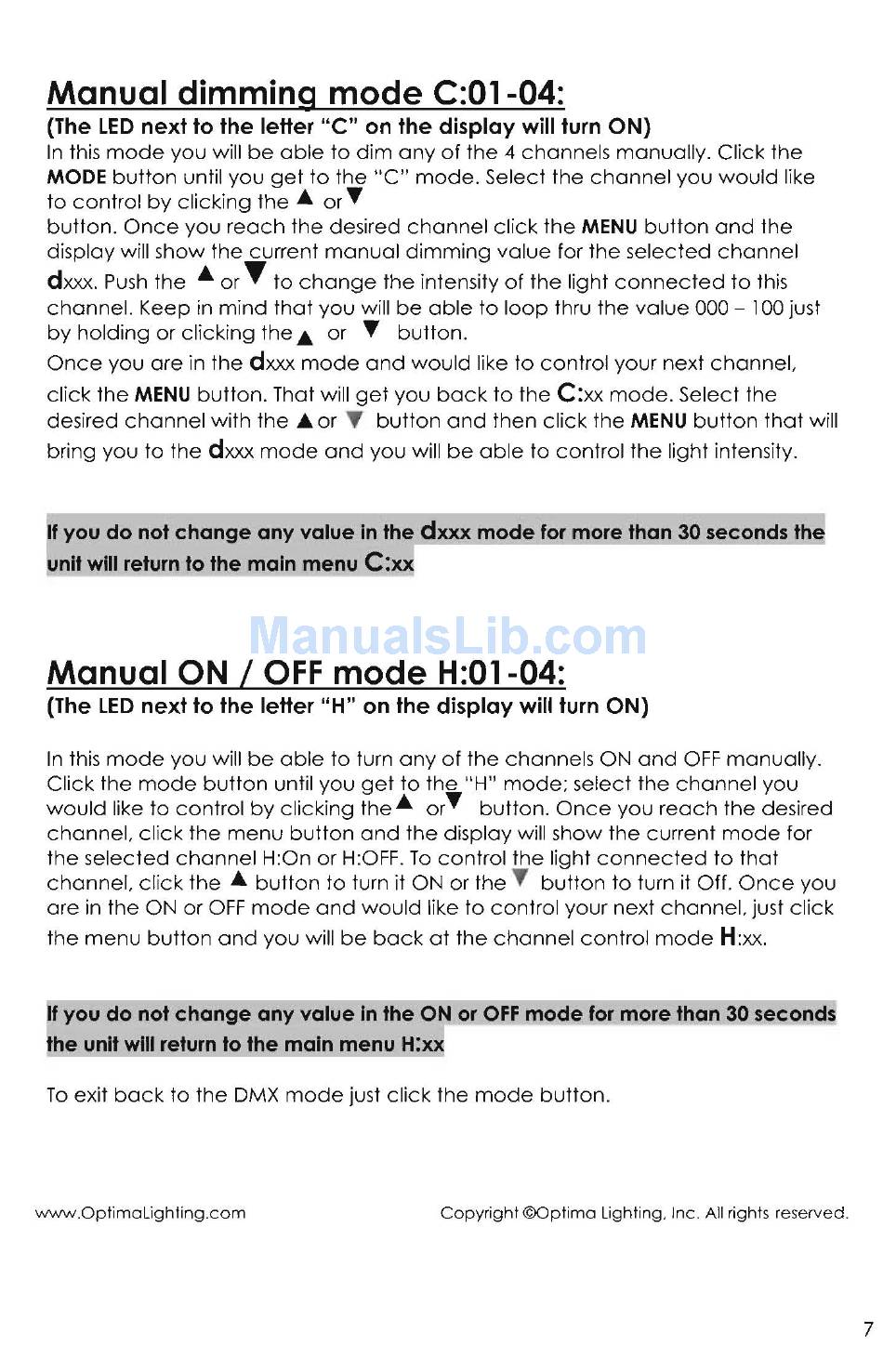

Manual dimming mode C:Ol-04:
(The LED next to the letter "C" on the display will turn ON)
In this mode you will be able to dim any of the 4 channels manually. Click the
MODE button until you get to the "C" mode. Select the channel you would like
to control by clicking the" or
T
button. Once you reach the desired channel click the MENU button and the
display will show the current manual dimming value for the selected channel
dxxx.
Push the .. or
T
to change the intensity of the light connected to this
channel. Keep in mind that you will be able to loop thru the value 000 - 100 just
by holding or clicking the.. or
T
button.
Once you are in the
dxxx
mode and would like to control your next channel,
click the MENU button. That will get you back to the
C:xx
mode. Select the
desired channel with the" or
T
button and then click the MENU button that will
bring you to the
dxxx
mode and you will be able to control the light intensity.
If you do not change any value in the
dxxx
mode for more than 30 seconds the
unit will return to the main menu
C:xx
Manual ON / OFF mode H:Ol-04:
(The LED next to the letter
"H"
on the display will turn ON)
In this mode you will be able to turn any of the channels ON and OFF manually.
Click the mode button until you get to the "H" mode: select the channel you
would like to control by clicking
the" or T
button. Once you reach the desired
channel. click the menu button and the display will show the current mode for
the selected channel H:On or H:OFF. To control the light connected to that
channel. click the" button to turn it ON or the
T
button to turn it Off. Once you
are in the ON or OFF mode and would like to control your next channel. just click
the menu button and you will be back at the channel control mode
H:xx.
If you do not change any value In the ON or OFFmode for more than 30 seconds
the unit will return to the main menu
H:xx
To exit back to the DMX mode just click the mode button.
