Chase Mode Up" 01 -16 - Optima Lighting Matrix DMX PRO+ User Manual

than 30 seconds the Ra c k
will
automatically return to the main menu Axxx.

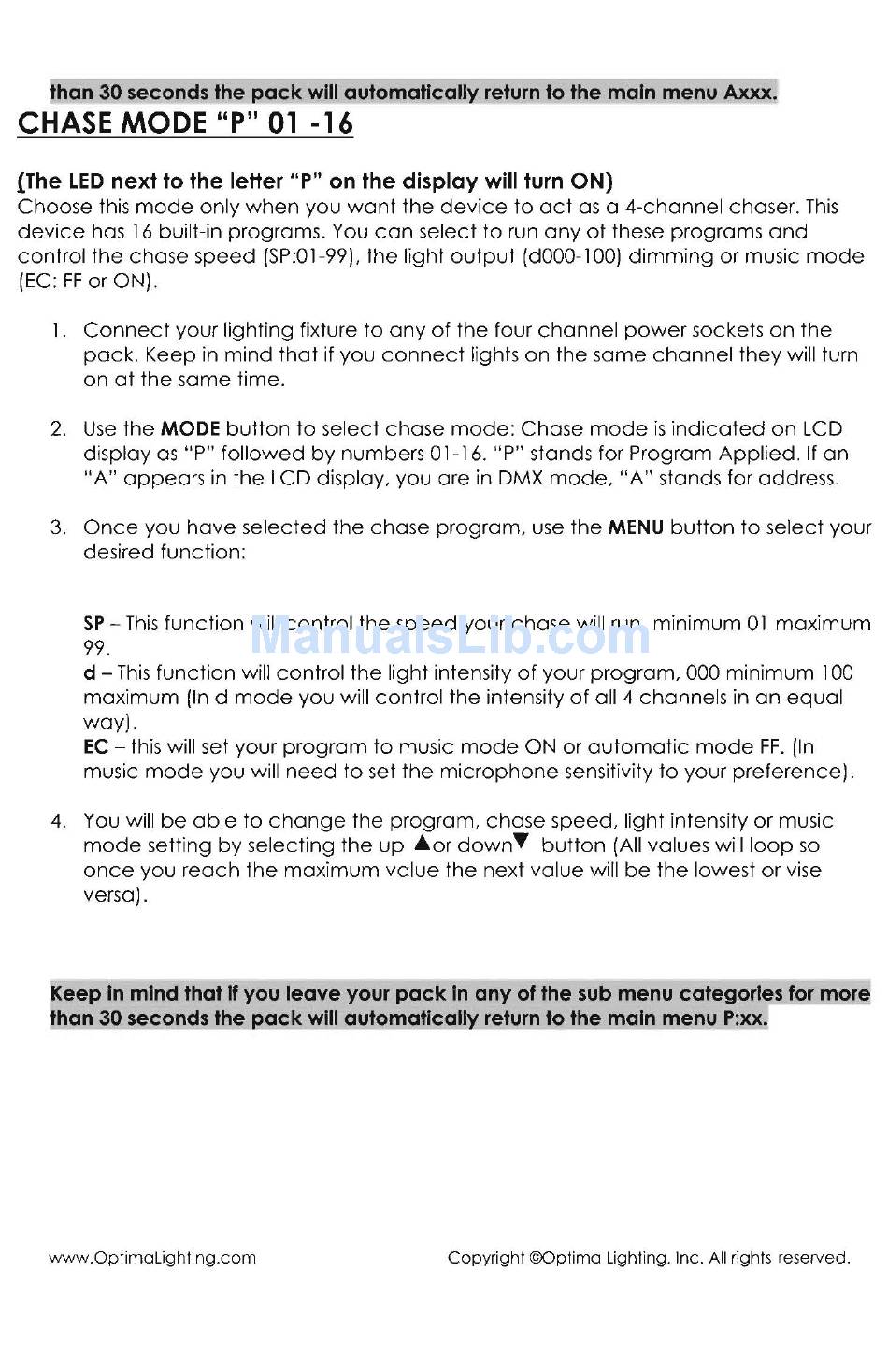

CHASE MODE uP" 01 -16
{The LED next to the letter
"P"
on the display
will
turn ON}
Choose this mode only when you want the device to act as a 4-channel chaser. This
device has 16 built-in programs. You can select to run any of these programs and
control the chase speed (SP:01-99), the light output (dOOO-lOO) dimming or music mode
(Ee: FF or ON).
1. Connect your lighting fixture to any of the four channel power sockets on the
pack. Keep in mind that if you connect lights on the same channel they will turn
on at the same time.
2. Use the MODE button to select chase mode: Chase mode is indicated on LCD
display as "P" followed by numbers 01-16. "P" stands for Program Applied. If an
"A" appears in the LCD display, you are in DMX mode, "A" stands for address.
3. Once you have selected the chase program, use the MENU button to select your
desired function:
SP - This function will control the speed your chase will run, minimum 01 maximum
99.
d - This function will control the light intensity of your program, 000 minimum 100
maximum (In d mode you will control the intensity of all 4 channels in an equal
way).
EC - this will set your program to music mode ON or automatic mode FF. (In
music mode you will need to set the microphone sensitivity to your preference).
4. You will be able to change the program, chase speed, light intensity or music
mode setting by selecting the up Aor down
T
button (All values will loop so
once you reach the maximum value the next value will be the lowest or vise
versa) .
Keep in mind that if you leave your pack in any of the sub menu categories for more
than 30 seconds the J:1ack
will
automatically,return to the main menu P:xx.
