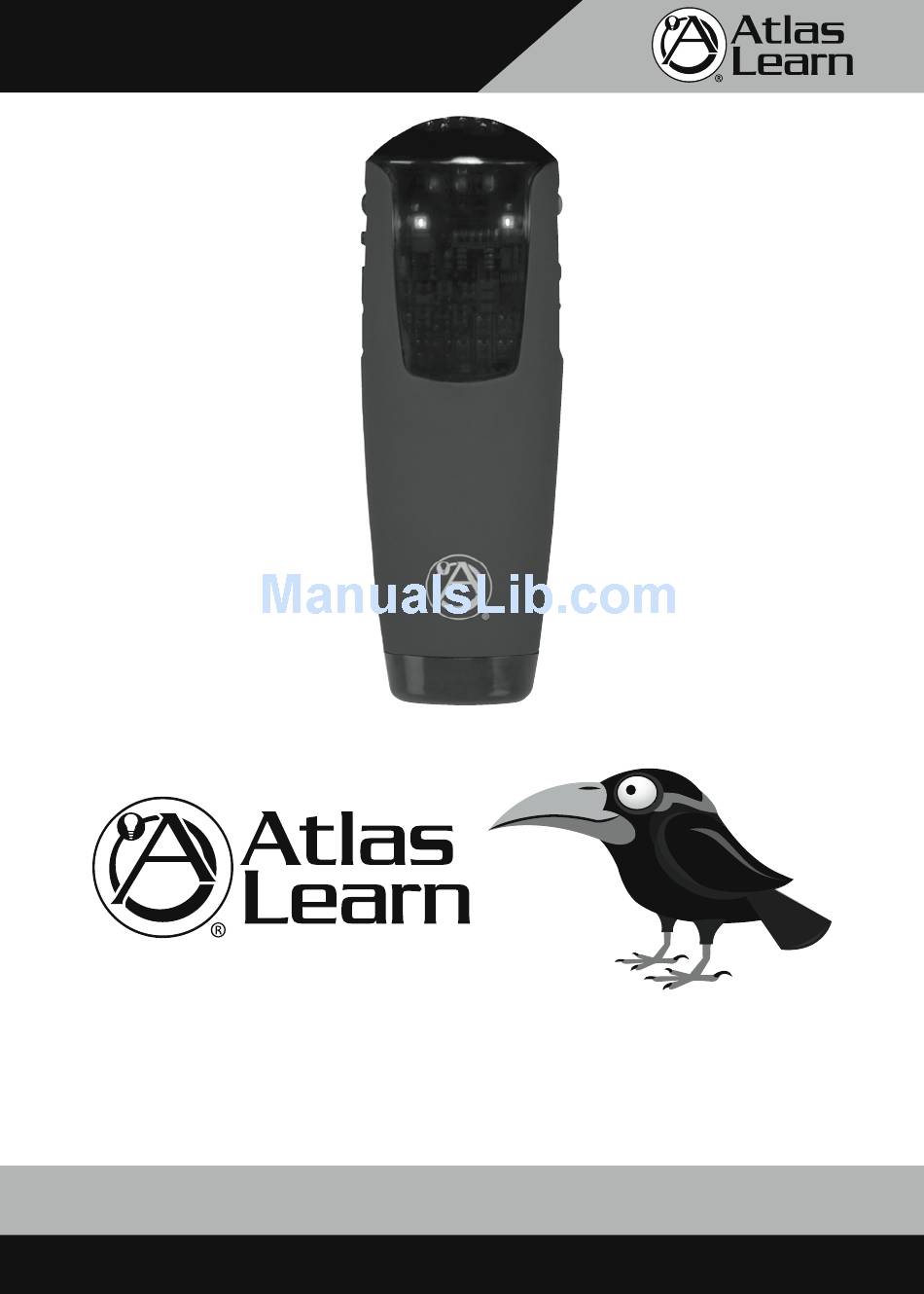

- Page 1 Owner’s Manual AL-MYNA Wireless Infrared Microphone 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Specifications are subject to Telephone: 800.876.3333 • Fax: 800.765.3435 change without notice. – 1 – AtlasLearn.com...
-
Page 2: Table Of Contents
Table of Contents Important Safety Instructions ............2 Introduction ................... 6 Features ..................6 Applications .................. 6 AL-MYNA Wireless Microphone Description ......7 AL-MYNA-NEST Charging Station Description ......9 Functions ..................9 Specifications ................11 Warranty ..................12 Important Safety Instructions... - Page 3 Owner’s Manual 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
- Page 4 AL-MYNA Wireless Infrared Microphone • Never move the device with the power cord plugged into the wall, as damage to the power cord may result. • When unplugging the cord from the wall, grasp the plug, NOT the cord. •...
- Page 5 Owner’s Manual • Operate the device only with the voltage specified on the unit. Fire and/or electric shock may result if a higher voltage is used. • Do not modify, kink, or cut the power cord. Do not place the power cord in close proximity to heaters and do not place heavy objects on the power cord, including the device itself, doing so may result in fire or electrical shock.
-
Page 6: Introduction
AL-MYNA Wireless Infrared Microphone Introduction Congratulations and thank you for purchasing the Atlas Sound AL-MYNA Wireless Infrared Microphone. This innovative, professional grade microphone has been designed to include unique features and excellent performance that is required for delivering clear and concise audio through Amplified Learning. -
Page 7: Al-Myna Wireless Microphone Description
Owner’s Manual AL-MYNA Wireless Microphone Description Microphone High quality internal microphone is used when the unit is in the handheld or lapel configuration. Mode Button Used to switch the AL-PH from Mode 1 or Mode 2 (See page 10 for detailed operation of Modes). - Page 8 AL-MYNA Wireless Infrared Microphone Panic Button Used in conjunction with the Mode button. A signal is sent to the AL2430 Receiver / Amplifier to close the “Panic” relay that sends a message to an external source, like a school’s paging system.
-
Page 9: Al-Myna-Nest Charging Station Description
IR Channel to either A or B. One AL-MYNA must be set to Channel A and the other AL-MYNA must be set to Channel B. The system will not function properly if there are two AL-MYNAs set to the same IR channel. - Page 10 AL-MYNA Wireless Infrared Microphone The AL-MYNA can be used in two different modes that effect the control it has over the AL2430 amplifier/receiver. Mode 1: • The right side blue LED will be illuminated • Volume UP / DOWN buttons will control the microphone volume •...
-
Page 11: Specifications
Owner’s Manual AL-MYNA Microphone Specifications IR Led’s Aux Input 1, 3.5mm Phono Jack, Mic Level External Controls Power, Panic, Mic Volume Internal Controls Lockout, Mic A/B Channel Indicator LED’s Mode (2 Blue), Lockout (1Red), PWR/BATT (1 Green/ Red) Dimensions 5.25" x 1.75" x 1.15" (133mm x 44mm x 29mm) Weight With Battery 4.23oz (120g) -
Page 12: Warranty
Visit our website at www.AtlasSound.com to see other Atlas products. ©2012 Atlas Sound L.P. All rights reserved. Atlas Sound and Atlas Learn are trademarks of Atlas Sound L.P. All other trademarks are the property of their respective owners. ATS004262 RevA 2/12 Specifications are subject to change without notice.
