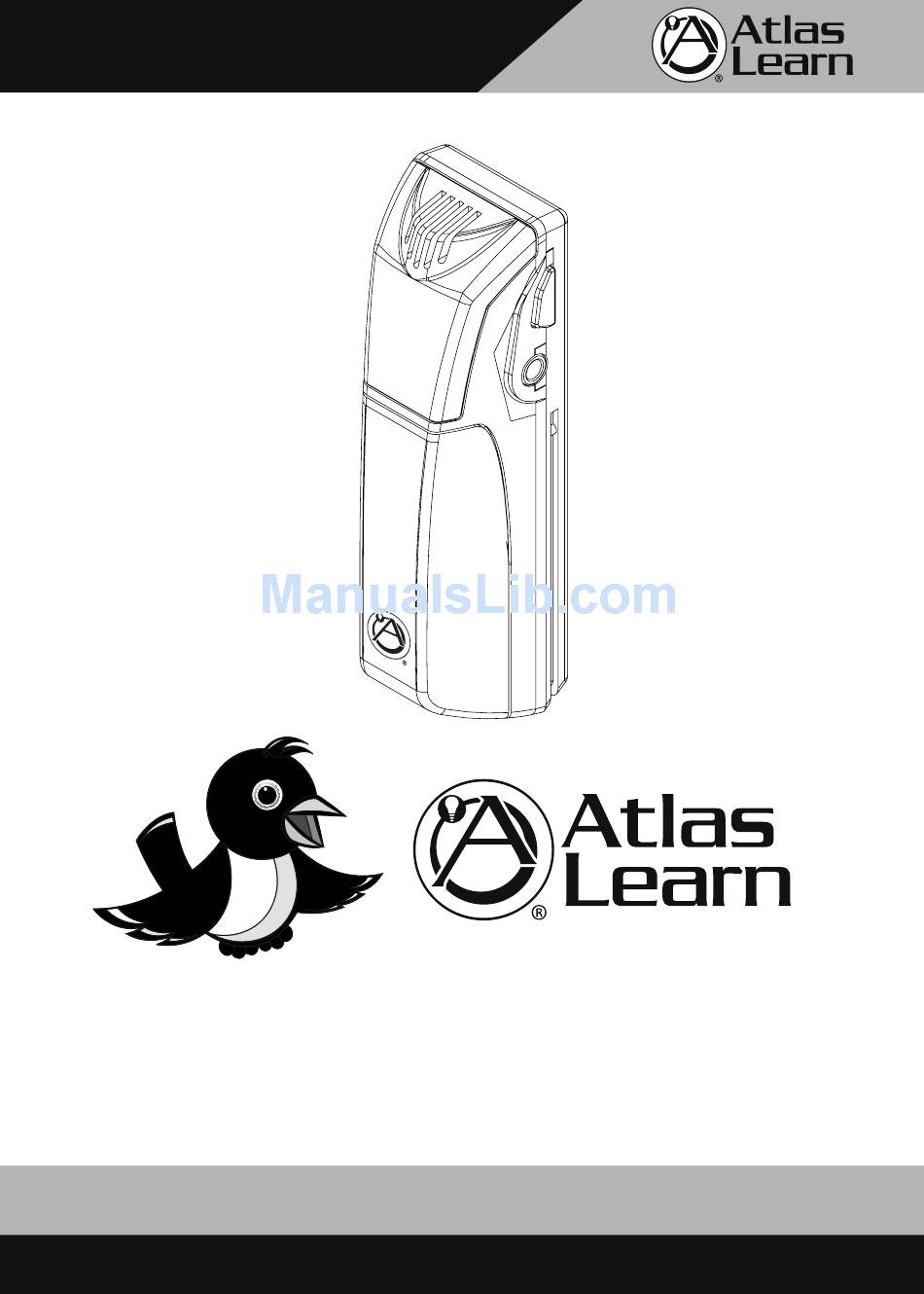

- Page 1 Owner’s Manual AL-MAGPIE Wireless Infrared Microphone 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Specifications are subject to Telephone: 800.876.3333 • Fax: 800.765.3435 change without notice. – 1 – AtlasLearn.com...
-
Page 2: Table Of Contents
Table of Contents Important Safety Instructions ............3 Introduction ................... 7 Features ..................7 Applications .................. 7 AL-MAGPIE Wireless Microphone Description ......8 AL-MAGPIE-NEST Charging Station Description ...... 10 Functions ..................11 Specifications ................12 Warranty ..................14 Specifications are subject to change without notice. -
Page 3: Important Safety Instructions
Owner’s Manual Important Safety Instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ´ ATTENTION RISQUE DE DECHARGE ELECTRIQUE -NE PAS OUVRIR. eered WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. Read these instructions. - Page 4 AL-MAGPIE Wireless Infrared Microphone when moving the cart/device combination to avoid injury from tip-over. 13. Unplug this device during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when...
- Page 5 Owner’s Manual WARNING – When the Device is in Use • To prevent electric shock, do not remove the device cover as there are high voltage components inside. Refer all servicing to Atlas Sound. • Should any of the following irregularities occur during use, immediately switch off the power, disconnect the power cord from the AC outlet and contact Atlas Sound.
- Page 6 AL-MAGPIE Wireless Infrared Microphone • Ensure that the safety ground terminal is connected to a proper ground. Never connect the ground to a gas pipe as a catastrophic disaster may result. • Be sure the installation of the product is stable, avoid slanted surfaces as the product may fall and cause injury or property damage.
-
Page 7: Introduction
Microphone Volume Controlled via Transmitter Applications The Atlas Learn AL-MAGPIE is an in-classroom sound reinforcement solution designed for use in K-12 and higher education facilities or where a room constrained public address system is required. When used in conjunction with... -
Page 8: Al-Magpie Wireless Microphone Description
2. IR LEDs This cluster of IR LEDs ensure quality communications with an AL-IRDS infrared receiver. 3. Power LED Displays the battery power of the AL-MAGPIE. Blue indicates Good battery power. indicates Low battery power. indicates the Microphone is turned off. - Page 9 Owner’s Manual AL-MAGPIE Wireless Microphone Description 8. Panic Button When both red buttons are pressed simultaneously, a signal is sent to the AL2430 Receiver / Amplifier to close the "Panic" relay that sends a VOLUME message to an external source, like a school's paging system.
-
Page 10: Al-Magpie-Nest Charging Station Description
AL-MAGPIE Wireless Infrared Microphone AL-MAGPIE-NEST Charging Station Description 12. Microphone Charging Receptacles Holds the Microphones in place while charging. 13. Microphone Charging LEDs These LEDs indicate the current charging status of each receptacle: Red = Charging, Green = Charged. Specifications are subject to change without notice. -
Page 11: Functions
IR Channel to either A or B. One AL-MAGPIE must be set to Channel A and the other AL-MAGPIE must be set to Channel B. The system will not function properly if there are two AL -MAGPIEs set to the same IR channel. -
Page 12: Specifications
AL-MAGPIE Wireless Infrared Microphone AL-MAGPIE Microphone Specifications IR Led’s Aux Input 1, 3.5mm Phono Jack, Mic Level External Controls Power, Panic, Mic Volume Internal Controls Lockout, Mic A/B Channel Dimensions 1.15" x 1" x 3.8" (29mm x 25mm x 97mm) Weight With Battery .14lb (65g) - Page 13 Owner’s Manual AL-MAGPIE-NEST Charging Station AL-MAGPIE Ports Two Charging Ports Charge Indicator LED's Two Charge Indicator LEDs PSU Type 100VAC – 240VAC, 50/60Hz, 0.2A, 5VDC, 1A Dimensions ⁄ " x 6 ⁄ " x 2 ⁄ " (45mm x 165mm x 70mm) Specifications are subject to change without notice.
-
Page 14: Warranty
AL-MAGPIE Wireless Infrared Microphone Limited Warranty All products manufactured by Atlas Sound are warranted to the original dealer/ installer, industrial or commercial purchaser to be free from defects in material and workmanship and to be in compliance with our published specifications, if any. - Page 15 Owner’s Manual Limited Warranty (Continued) EXCEPT TO THE EXTENT THAT APPLICABLE LAW PREVENTS THE LIMITATION OF CONSEQUENTIAL DAMAGES FOR PERSONAL INJURY, ATLAS SOUND SHALL NOT BE LIABLE IN TORT OR CONTRACT FOR ANY DIRECT, CONSEQUENTIAL OR INCIDENTAL LOSS OR DAMAGE ARISING OUT OF THE INSTALLATION, USE OR INABILITY TO USE THE PRODUCTS.
- Page 16 Visit our website at www.AtlasSound.com to see other Atlas products. ©2012 Atlas Sound L.P. All rights reserved. Atlas Sound and Atlas Learn are trademarks of Atlas Sound L.P. All other trademarks are the property of their respective owners. ATS004078 RevB 4/12 Specifications are subject to change without notice.
