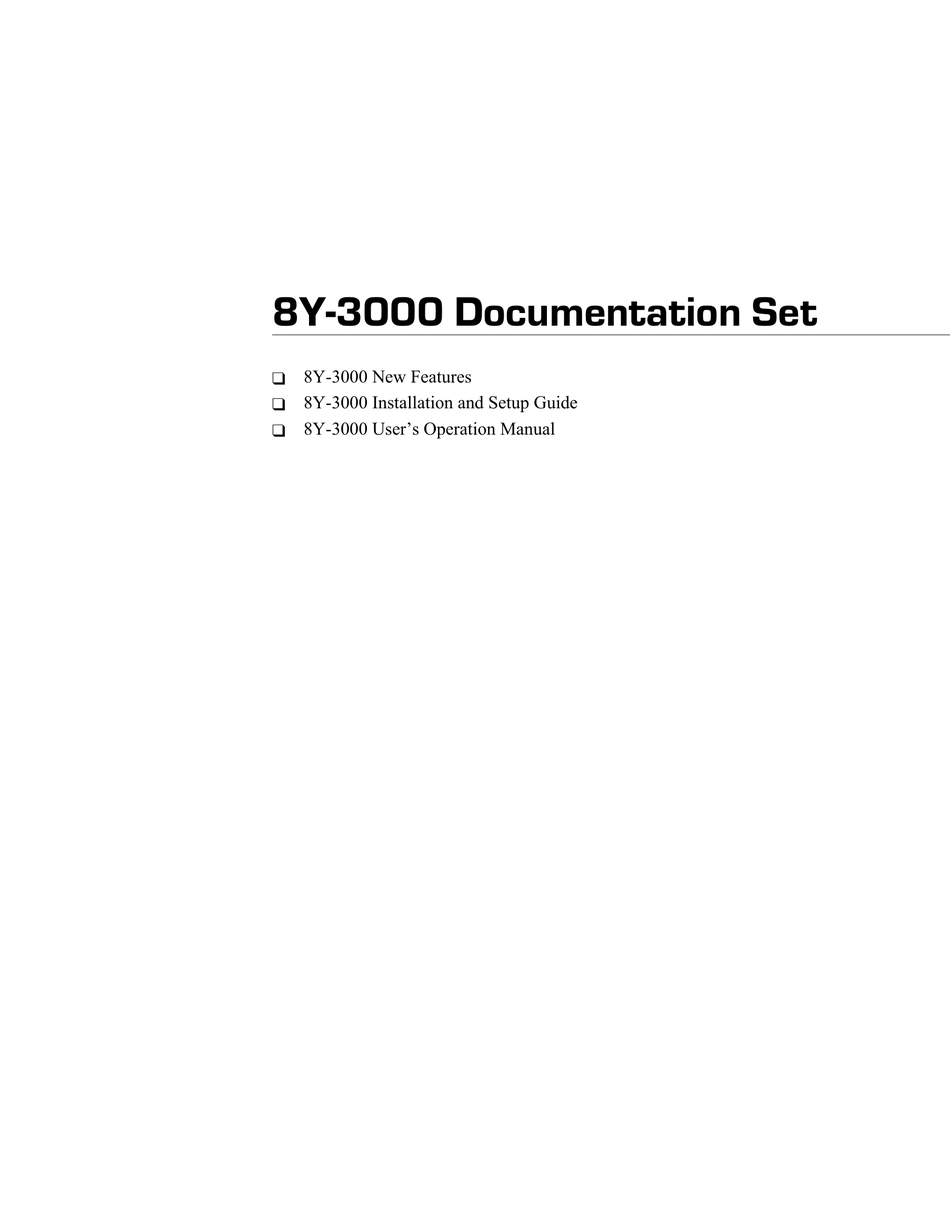

  • Page 1 8Y-3000 Documentation Set 8Y-3000 New Features 8Y-3000 Installation and Setup Guide 8Y-3000 User’s Operation Manual...
  • Page 2 8Y-3000 New Features This manual contains information for the 8Y-3000 Distribution Matrix, an advanced 8Y-XL system with the following additional features: 32-bit processor Link to other AutoPatch products with an X Net network compatible interface Link to a larger line of X Net AutoPatch control accessories –...
  • Page 3 8Y-XL Installation and Setup Guide Version A0 Version B0 905197...
  • Page 4 Grounding straps, conductive smocks, and conductive work mats are specifically designed for this purpose. Anyone performing field maintenance on AutoPatch equipment should utilize an appropriate ESD field service kit complete with at least a dissipative work mat with a ground cord and a UL listed adjustable wrist strap with another ground cord.

  • Page 5: Important Safety Information And Instructions

    There are no user serviceable parts inside an AutoPatch product; service should only ä be done by qualified personnel. If you see smoke or smell a strange odor coming from your AutoPatch product, turn ä it off immediately and call AutoAssist.
  • Page 6 ä Veillez à ce que la prise de courant soit proche de l’appareil et facile d’accès. ä Veillez à ce que votre appareil AutoPatch soit installé sur une surface stable ou qu’il ä y soit fermement maintenu. Fermez toutes les composantes de l’équipement avant de relier des pièces, à moins ä...
  • Page 7 No patent liability is assumed with respect to the use of information contained herein. While every precaution has been taken in the preparation of this publication, AutoPatch assumes no responsibility for error or omissions. No liability is assumed for damages resulting from the use of the information contained herein.
  • Page 8 This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402, Stock N. 004-000-00345-4. ™ ™ ™ 8Y-XL , and X Connect are trademarks of X Technologies, Inc. Use shielded cables. To comply with FCC Class B requirement, all external data interface cables and adapters must be shielded.
  • Page 9 Statement of Warranty AutoPatch, a division of X Technologies, Inc., Cheney, Washington, warrantees that the products manufactured by AutoPatch will be free of defects in materials and workmanship for the lifetime of the product, subject to the following terms and conditions.
  • Page 10 AutoPatch’s option. The AutoPatch warranty does not apply to any AutoPatch product that has been modified, repaired by an unauthorized agent, or improperly installed, used, or maintained. AutoPatch shall not be liable under any circumstances...

  • Page 11: Table Of Contents

    Technical Support ..........v Chapter 1 – Unpacking the 8Y-XL Front of the Enclosure .
  • Page 12 Adding Enclosures ......... . 10-5 Appendix A – AutoPatch Service and Returns Policy Service.
  • Page 13 Welcome Welcome to the 8Y-XL Installation and Setup Guide. This book is the first part of a three document set: Installation and Setup Guide – compiled for the technician installing the system. User’s Operation Manual – created for the end-user who operates the system.

  • Page 14: Welcome

    Welcome Installer’s Product Notes An 8Y-XL Distribution Matrix can stand alone or comprise a virtually unlimited number of linked enclosures, including any other AutoPatch products with an X Net network compatible interface. Each 8Y-XL enclosure can hold up to 8 input and 8 output boards and each board can have up to 8 connectors, for a total capacity of 64 inputs and 64 outputs per enclosure.

  • Page 15: Meet The Manual

    Meet the Manual This manual contains 10 chapters and 3 appendices. The information in this manual progresses from unpacking the 8Y-XL in Chapter 1 to BCS (Basic Control Structure) commands in Appendix C. Use the following chapter descriptions to guide you through the manual.

  • Page 16: Terms To Know

    Input and output connectors are on the rear of an enclosure. Input and output signal cables attach to the input and output connectors. Standard 8Y-XL audio and data connectors are 3-position terminal block; video and sync connectors are BNC. Level A level is a set of input and output signals that are grouped and, therefore, switch together.

  • Page 17: Technical Support

    Ethernet and Neuron interfaces. Technical Support AutoPatch provides technical support 24 hours a day, 7 days a week (except for U.S. holidays). Before calling with a question, please consult the 8Y-XL documentation. If these manuals cannot fully answer your...

  • Page 18: Chapter 1 - Unpacking The 8Y-Xl

    Unpacking the 8Y-XL The 8Y-XL is shipped with one enclosure in each shipping box. Each box contains one of each of the following items (invoices are sent separately): Power cords (one per enclosure) Enclosure The shipping boxes are marked as “Box #_of_,” where the first blank is the box number and the second blank is the total number of boxes in the shipment.

  • Page 19: Front Of The Enclosure

    An enclosure can have a blank front panel or a CP-10 Control Panel (a front panel that is produced by AutoPatch and has an LCD screen and keys for entering commands). Although a CP-10 Control Panel is optional, we recommend one on at least one enclosure in the system for system verification, redundant control, and troubleshooting.

  • Page 20: Control Panel

    BACKLI GHT UNDO Front view of an 8Y-XL enclosure with a CP-10 Control Panel A CP-10 Control Panel has 29 keys – 10 number keys for entering digits, 4 directional arrow keys, and 1 each of the following: Cancel, Take, Status, Level, Change, Input, Output, Preset, Program, Backlight, Space, Special, Undo, Comma, and Period (the last four are not implemented).
  • Page 21 Unpacking the 8Y-XL Cancel Key Use the Cancel key to abort a command that is incomplete. If you make a mistake while entering a command, press the Cancel key to remove the partially entered command from the screen and enter the correct command.
  • Page 22 Front of the Enclosure Backlight Key The Backlight key illuminates the LCD. The backlight remains illuminated for approximately 20 seconds; however, you can turn it off before the 20 seconds are up by pressing the key again. Space Key Use the Space key to insert a space between multiple outputs or multiple local presets when entering a command;...

  • Page 23: Rear Of The Enclosure

    Unpacking the 8Y-XL 1.2 Rear of the Enclosure All the enclosure’s connectors (input and output, X Net, serial, Ethernet, and power) are on the rear of the enclosure. Audio and video input and output connectors, the CPU, expansion/control slots, the power supply, (AC powered entry), and the serial number are all on the rear of the enclosure.
  • Page 24 The power supply fan vent is to the right of the power supply unit. The 8Y-XL input voltage range is AC 100-240V single phase. The power supply will accept all major, international, standard power sources (see page B-1 for power supply specifications).

  • Page 25: Chapter 2 - Placing The Enclosure(S)

    Placing the Enclosure(s) You can install 8Y-XL enclosures in a standard EIA 19 in. (48.26 cm) rack. To hold enclosures in place, they are shipped with rack installation ears already attached. To make control panel operations easier, mount the enclosure with the CP-10 Control Panel attached in the rack at eye level.
  • Page 26 2. If you have a multi-enclosure system, link the enclosures. See Chapter 3, "Linking Enclosures." 3. Following the 8Y-XL Connector and Groupings Guide, attach only the first two input and output signals to the correct input and output connectors on the rear of the correct enclosure. See Chapter 4, "Attaching Inputs and Outputs."...

  • Page 27: Chapter 3 - Linking Enclosures

    Note: If any of the linked enclosures were not in your original system, you need a new configuration file (call AutoAssist; see Technical Support, page v). You can link 8Y-XL enclosures using link cables and the connectors on the CPU (see the linking diagrams on the following pages). Installation and Setup Guide...
  • Page 28 Note: Termination connectors are required on the open ends of all “T” connectors when linking enclosures. To link an 8Y-XL enclosure to a Modula enclosure using Ethernet link connectors: 1. Fasten “T” connectors to the Ethernet ports on both enclosures.
  • Page 29 To link an 8Y-XL enclosure to a Modula enclosure using the X Communication link connectors: 1. Insert the wires on one end of the link cable into the X Net terminal block on the first enclosure as shown in the graphic below.

  • Page 30: Chapter 4 - Attaching Inputs And Outputs

    This pattern repeats downward to the bottom of the section and then continues from the top on the remaining two sets of connectors on the right. Connectors on an 8Y-XL enclosure could include: Signal Type Connector Type...

  • Page 31: Attaching Input And Output Cables

    4.1 Attaching Input and Output Cables When attaching input and output signal cables, refer to the sheet labeled "AutoPatch 8Y-XL Connector and Groupings Guide" that was included in the shipping box(es). The sheet shows you where to attach each signal cable on the rear of each enclosure.
  • Page 32 Attaching Input and Output Cables To attach audio inputs and outputs, unscrew the clamps on the audio connector, insert the proper wire, and re-tighten the clamps so they hold the wire tightly and make proper connections. The graphic below shows balanced audio connections, and the graphic on the next page shows unbalanced audio connections.
  • Page 33 Attaching Inputs and Outputs Input INPUT +GND - Signal Direction Output OUTPUT +GND - Signal Direction Unbalanced audio connections Installation and Setup Guide...

  • Page 34: Paralleling Inputs

    I/O connectors of an enclosure. To parallel inputs, the matrix must be equipped with high impedance I/O boards. Each enclosure in an 8Y-XL is its own switching environment, so the inputs of one enclosure cannot be switched to the outputs of another.
  • Page 35 I/O board in the top enclosure should be 75 and the board in the bottom enclosure should be high impedance. You can order high impedance boards from AutoPatch. Caution: Do not split an input signal between more than four connectors without a line amplifier.

  • Page 36: Chapter 5 - Attaching An External Controller

    Attaching an External Controller The 8Y-XL can be controlled with external controllers using two types of communication protocols: Serial, BCS (Basic Control Structure) – serial ports ä Net* – all ports (including serial) ä Control systems and panels (such as SBCs* and remote control panels*) usually connect to the X Net connector.
  • Page 37 RS232 or RS422. You can connect a serial controller to either of the two serial connectors on an enclosure’s CPU board. Connect serial controllers with either standard RS232or RS422 connections (refer to the following graphics for RS232 and RS422 cable connector pin mappings). AutoPatch: DB9 PC: DB9 RS232 pin diagram PC: DB9 AutoPatch: DB9 GND #5........GND #5...
  • Page 38 When controlling the system with a PC, use serial communication software and make sure the BAUD rate is set correctly for the system. Available BAUD rates for 8Y-XL systems are 9600, 19200, 38400 and 57600; the default is 9600. Recommended settings (also default settings) for serial communication...

  • Page 39: Chapter 6 - Applying Power And The Startup Sequence

    Applying Power and the Startup Sequence Your 8Y-XL ships with power cords that are compatible with your country’s power sources. Always use an earth-grounded power cord/system with this matrix switcher. The system’s universal power supplies will accept all major, international, standard power sources (see page B-1 for power supply specifications).

  • Page 40: Applying Power

    Applying Power and the Startup Sequence 6.1 Applying Power To apply power: 1. Plug each enclosure into a power source. WE RECOMMEND SURGE PROTECTORS AND/OR AN AC LINE CONDITIONER. 2. Press the “1” side of the power switch to turn it on. 6.2 Startup from the CP-10 Control Panel After applying power and turning on the enclosure(s), the CP-10 Control...

  • Page 41: Startup From A Control Device

    AutoAssist (see Technical Support, page v). A sample splash screen for an 8Y-XL is shown below. The system is ready for a test switch (see Chapter 7, "Executing a Test Switch").

  • Page 42: Chapter 7 - Executing A Test Switch

    The BCS Command test switch (see page 7-4) routes input 1 to output 2 on Level 0. Before executing these switches, make sure the first two inputs and outputs are connected exactly as shown on the AutoPatch “8Y-XL Connector and Groupings Guide.”...

  • Page 43: Executing A Test Switch Using Cp-10 Control Panel

    The following test switch routes Input 2 to Output 1 on Level 0. Before executing these switches, make sure the first two inputs and outputs are connected exactly as shown on the AutoPatch “8Y-XL Connector and Groupings Guide.” To execute a test switch using the CP-10 Control Panel: 1.
  • Page 44 Using the CP-10 Control Panel 4. Press the Output key and enter “1.” 5. Press Take key. The signal is routed and the Command screen appears. If the switch did not execute properly: Check all power switches to make sure the source and destination devices are turned on.

  • Page 45: Executing A Test Switch Using Bcs Commands

    The following test switch routes Input 1 to Output 2 on Level 0. Before executing these switches, make sure the first two inputs and outputs are connected exactly as shown in the AutoPatch “Modula Connector and Groupings Guide.” To execute a test switch, enter the following BCS command line into a...

  • Page 46: Chapter 8 - Managing Configuration Files

    If you lose any of your AutoPatch software, contact AutoAssist (see Technical Support, page v) to replace it. Make sure that you have your system’s serial number ready when you call.

  • Page 47: Conceptual Overview

    To install X Connect: 1. Close all other applications currently running on your PC. 2. Insert the AutoPatch Configuration Software Disk 1 into your floppy drive. 3. From the Start menu in Windows, select Run. 4. Type in A:\setup.exe (or the letter for whichever floppy drive you are using) and click OK.

  • Page 48: Panes, Views, And Dialog Boxes

    C:\AutoPtch\Connect\. To launch X Connect: 1. From the Start menu, select Programs. 2. Select AutoPatch Applications (or any other file group you selected during the install). 3. Select the Connect file group. 4. Select the Connect program.

  • Page 49: Opening And Downloading A Configuration File

    Managing Configuration Files A variety of dialog boxes for modifying your system’s configuration file are accessed through the main menu. The menu commands include topics such as Modifying Serial Port Settings, Set Password Combo, Managing Boards, Managing Virtual Matrices, and Managing Presets. Note: If you have questions regarding a dialog box you have open, Connect provides a context-sensitive Help file that can be accessed by pressing the F1 key.

  • Page 50: Modifying Configuration Files

    Modifying Configuration Files 8.5 Modifying Configuration Files Modifying a configuration file with X Connect involves entering information in one or a series (depending on the modification) of dialog boxes. A brief look at the Help file Contents provides an overview of the modifications possible with X Connect.
  • Page 51 Managing Configuration Files The Name New Preset dialog box allows you to start the process of creating a preset by giving it a name. To name a new preset (in preparation for specifying preset information): 1. In the Virtual Matrices view, select the targeted virtual matrix, and from the Edit menu, select Manage Local Presets.
  • Page 52 Configuring Local Presets To modify presets: 1. In the Manage Local Presets dialog box, click the Modify Preset button. The Modify Preset dialog box opens. 2. Select any of the following field or button options. 3. When done, click OK to return to the Manage Local Presets dialog box.

  • Page 53: Modifying Groupings

    Managing Configuration Files Reconnect either a source or destination channel that has been ä disconnected by selecting it. Click the Reconnect button. The channel is now available again for assignments. Note: Reconnecting does not re-establish previous presets. To delete an existing preset: 1.
  • Page 54 Modifying Groupings To specify connector groupings from the Virtual Matrix view: 1. From the Edit menu, choose Manage Virtual Matrix Groupings. The Manage Virtual Matrix Groupings dialog box appears. 2. Click the Group by Pattern button to assign sequential or spanning groupings of signals for connectors (see page 8-10).
  • Page 55 Managing Configuration Files Group Connectors by Pattern The Group Connectors by Pattern dialog box allows you to group signals with connectors in either a spanning or sequential pattern, thereby creating a large number of virtual source and destination channels simultaneously. Choose the spanning pattern to create groupings with blocks of similar signal types;...
  • Page 56 Modifying Groupings 3. In the Starting Channel box, choose the starting channel number that you want if it is different from the next available channel that is already displayed. 4. Enter the number of channels you want to create in the Number of Channels to Create box.
  • Page 57 Managing Configuration Files To access the Assign Connectors Individually dialog box: 1. In the Virtual Matrix View, right click the virtual matrix for which you want to make connector assignments. 2. Select Manage Connector Groupings. The Manage Virtual Matrix Groupings dialog box appears. 3.
  • Page 58 Modifying Groupings 9. From the Connector list, select the connector you want to assign a signal to and click the Assign Connector button. The signal and its connector appear in the Signals with Connector Assignments list. 10. Continue to make assignments until all signals in all channels have been given connector assignments.

  • Page 59: Chapter 9 - Adjusting Gain

    Gain control on audio and video output signals is standard in the 8Y-XL. However, you can also order audio and video input boards with gain control.
  • Page 60 (see graphic below). Immediately after adjusting signal gain, remove the extender board. Do not continue normal operation of the 8Y-XL with the extender board in place. COMM STATUS...
  • Page 61 3. Attach the extender board between the switching board and the daughter board. 4. Reapply power. The 8Y-XL should be in proper working order. 5. While monitoring the input or output signal(s), adjust the signal gain as necessary by placing the tip of the gain adjustment tool in the gain adjustment pot (TR#) and turning the tool clockwise or counterclockwise (see graphic below).
  • Page 62 Adjusting Gain 6. Remove the extender board alone by pushing down on the daughter board side of the extender board arm while pulling the board out (see graphic below). Note: Only use the extender board while adjusting the gain. Do not continue using the extender board during normal operation.

  • Page 63: Chapter 10 - Adding Hardware

    Adding enclosures increases the entire system’s switching capabilities. When you add hardware to an 8Y-XL, you must update the system’s configuration information by downloading a new configuration file. A new configuration file, link cables, and other system products are provided with the new hardware.

  • Page 64: Adding Boards

    Warning: To avoid ESD (Electrostatic Discharge) damage to sensitive components, make sure you are properly grounded (see the Caution page inside front cover) before handling any internal 8Y-XL materials. 1. Turn off the enclosure. 2. Remove the plate that covers the empty expansion/control slot.

  • Page 65: Vertical Interval Timing Board

    (such as a composite video input) or can be used with a blackburst generator. Each enclosure in an 8Y-XL can contain one sync board. You may want a sync board in each enclosure that switches video signals. If the system was originally ordered with sync boards, they are already installed in the enclosures.
  • Page 66 Warning: To avoid ESD (Electrostatic Discharge) damage to sensitive components, make sure you are properly grounded (see the Caution page inside front cover) before handling any internal 8Y-XL materials. 1. Make sure all enclosures receiving a sync board are turned off.

  • Page 67: Adding Enclosures

    Guide, attach all inputs and outputs. See Chapter 4, “Attaching Inputs and Outputs” for more information about attaching inputs and outputs. 4. Turn on all the enclosures in the system. The 8Y-XL goes through its startup sequence. Installation and Setup Guide...

  • Page 68: Appendix A - Autopatch Service And Returns Policy

    AutoPatch Service and Returns Policy A.1 Service The AutoPatch 8Y-XL is to be serviced only by AutoPatch authorized service agents. Return Authorizations Except for warranty claims, merchandise will not be accepted for return or exchange after the first thirty (30) days following the invoice date.

  • Page 69: Replacement Policies And Procedures

    A.2 Replacement Policies and Procedures During the warranty period: 1. Describe the problem to an AutoPatch dealer, regional representative, or the AutoPatch customer service department. 2. Upon verification of a problem that requires factory repairs, an AutoPatch customer service representative will issue a Return...

  • Page 70: Special Notice

    Special Notice Following warranty expiration: 1. Call your AutoPatch dealer, area representative, or the AutoPatch customer service department with a description of the problem. 2. Upon verification of a problem that requires factory repairs, an AutoPatch customer service representative will issue a Return Materials Authorization (RMA) number.

  • Page 71: Appendix B - Product Specifications

    Product Specifications The following pages contain performance specifications for your AutoPatch 8Y-XL Distribution Matrix. The AutoPatch web site (www.autopatch.com) also has a full list of specifications for all AutoPatch products. B.1 General AC Power 100 - 240 V single phase...

  • Page 72: Analog Audio

    Product Specifications B.2 Analog Audio Standard Audio Boards Throughput Parameter Conditions Value Frequency Response (20 Hz to 20 kHz) <ñ0.1 dB (20 Hz to 20 kHz) 0.01 dB Gain Flatness (20 Hz to 100 kHz) 0.1 dB Vin=3.3 dBu to 13.2 dBu THD + Noise <.01% f=20 Hz to 20 kHz...

  • Page 73: Analog Video

    Analog Video B.3 Analog Video Standard Video Boards Throughput Parameter Conditions Value Bandwidth (1 dB) 12 MHz (1:ALL) Vin= 1 V Bandwidth (3 dB) 30 MHz (1:ALL) Vin= 1 V Differential Gain f=3.58 MHz 0.1% or Better Differential Phase f=3.58 MHz 0.1 or Better Signal to Noise Ratio (S/N) Vin=+0.7 V...

  • Page 74: Wideband Video Boards

    Product Specifications Wideband Video Boards Throughput Parameter Conditions Value Bandwidth (3 dB) Vin= 1 V 250 MHz (1:ALL) Signal to Noise Ratio (S/N) Vin=0.7 V (100% IRE) -70 dB Crosstalk f=5 MHz -60 dB (adjacent channel) Time Delay <20 ns Vin= 0.5 V square wave Input Parameter...

  • Page 75: Ultra-Wideband Video Boards

    Analog Video Ultra-wideband Video Boards Throughput Parameter Conditions Value Bandwidth (3 dB) Vin= 1 V 400 MHz (1:ALL) Signal to Noise Ratio (S/N) Vin=0.7 V (100% IRE) <-70 dB Crosstalk f=5 MHz <-60 dB (adjacent channel) Time Delay <20 ns Vin= 0.5 V square wave Input Parameter...

  • Page 76: Appendix C - Bcs (Basic Control Structure) Commands

    BCS is a set of alphanumeric characters that allows a PC or other control device to send commands to the system serially. When using a PC to control the 8Y-XL, use serial software, such as Windows95 HyperTerminal, to establish communication. Command lines are not case-sensitive.
  • Page 77 BAUD The speed at which communications travel through the serial connector. The 8Y-XL can send and receive communications at 9600, 19200, 38400, and 57600 BAUD. BCS (Basic Control Structure) A set of alphanumeric characters that combine to form command lines.
  • Page 78 The metal chassis that holds input and output boards, a CPU board, and a power supply. Each 8Y-XL enclosure can contain up to 8 input and 8 output boards, providing a total capacity of up to 64 input and 64 output signal paths.
  • Page 79 Input Board A circuit board that receives video, audio, or data signals from outside sources. LCD (Liquid Crystal Display) The screen on the CP-10 Control Panel for user interaction. Level A level is a set of input and output signals that are grouped and, therefore, switch together.
  • Page 80 Glossary Serial Controller An external controller that communicates with the matrix switcher via a serial cable. Signal A set of connectors whose signals switch together. A signal may contain audio, video, data, or sync information. Single Bus Controller (see SBC) Switch An active connection between an input signal and one or more output devices.
  • Page 81 Index boards AC line conditioner 1-7, 2-2, 6-1 capacity ii extender 9-2 AC power B-1 high impedance 4-6 adding boards see also inputs and outputs see hardware, adding buttons (keys) adding enclosures see CP-10 Control Panel see hardware, adding adjusting gain 9-1 cable illus.
  • Page 82 Index configuration file enclosure (continued) definition iv dimensions B-1 location 8-1 linking 3-1 to 3-3 rack installation 2-2 configuration file, X Connect rear, illus. 1-6 configure local presets 8-5 to 8-8 weight B-1 download 8-4 ESD (electrostatic discharge) graphical representation 8-2 Help file 8-5 definition iv modify file 8-5 to 8-13...
  • Page 83 LCD screen (continued) hardware, adding illus. 1-3 viewing angle 2-1 configuration files 10-1, 10-2, 10-4, 10-5 level enclosures 10-5 definition iv input and output boards 10-2 see also virtual matrix vertical interval sync board 10-3 Level key, CP-10 1-4 Warning, adding boards, ESD 10-2 linking, enclosures Warning, adding enclosures, ESD 10-5...
  • Page 84 Index presets specifications (continued) see X Connect, configure local audio B-2 presets dimensions B-1 frequency B-1 product specifications fuse B-1 see specifications humidity B-1 Program key, CP-10 1-5 video, standard B-3 video, ultra-wideband B-5 video, wideband B-4 rear of enclosure, illus. 1-6 weight B-1 replacement policies and procedures A-2 startup...
  • Page 85 video Net (continued) attaching boards, illus. 4-2 definition v board specifications B-3 to B-5 enclosures, linking, illus. 3-1 external controllers, attaching 5-1 virtual matrix definition 8-5 modifying groupings 8-8 to 8-13 see also level Warning adding boards, ESD 10-2 adding enclosures, ESD 10-5 adding sync, ESD 10-4 adjusting gain, ESD 9-3 warranty repair and replacement...
  • Page 86 8Y-XL User’s Operation Manual Version B0 905464...
  • Page 87 Grounding straps, conductive smocks, and conductive work mats are specifically designed for this purpose. Anyone performing field maintenance on AutoPatch equipment should utilize an appropriate ESD field service kit complete with at least a dissipative work mat with a ground cord and a UL listed adjustable wrist strap with another ground cord.
  • Page 88 There are no user serviceable parts inside an AutoPatch product; service should only ä be done by qualified personnel. If you see smoke or smell a strange odor coming from your AutoPatch product, turn ä it off immediately and call AutoAssist.
  • Page 89 ä Veillez à ce que la prise de courant soit proche de l’appareil et facile d’accès. ä Veillez à ce que votre appareil AutoPatch soit installé sur une surface stable ou qu’il ä y soit fermement maintenu. Fermez toutes les composantes de l’équipement avant de relier des pièces, à moins ä...
  • Page 90 No patent liability is assumed with respect to the use of information contained herein. While every precaution has been taken in the preparation of this publication, AutoPatch assumes no responsibility for error or omissions. No liability is assumed for damages resulting from the use of the information contained herein.
  • Page 91 Use shielded cables. To comply with FCC Class B requirement, all external data interface cables and adapters must be shielded. ™ ™ ™ 8Y-XL , and X Connect are trademarks of X Technologies, Inc. MS-DOS, Windows, and Windows95 are registered trademarks of Microsoft Corporation.
  • Page 92 Statement of Warranty AutoPatch, a division of X Technologies, Inc., Cheney, Washington, warrantees that the products manufactured by AutoPatch will be free of defects in materials and workmanship for the lifetime of the product, subject to the following terms and conditions.
  • Page 93 AutoPatch’s option. The AutoPatch warranty does not apply to any AutoPatch product that has been modified, repaired by an unauthorized agent, or improperly installed, used, or maintained. AutoPatch shall not be liable under any circumstances...
  • Page 94 Meet the 8Y-XL ........
  • Page 95 Appendix B – Product Specifications General ........... . . B-1 Analog Audio .

  • Page 96: Welcome

    This manual does not provide information on managing configuration files. (We recommend all system modifications be made only by an installer.) This topic is covered in the “8Y-XL Installation and Setup Guide.” The 8Y-XL User’s Operation Manual does not include any detailed information about SBCs (Single Bus Controllers) for the 8Y-XL.

  • Page 97: Meet The 8Y-Xl

    8 input and 8 output boards with 8 connectors each, for a total capacity of 64 input and 64 output connectors per enclosure. The 8Y-XL can also be combined with the smaller Modula for unique systems with additional versatility.

  • Page 98: Meet The Manual

    Meet the Manual This manual contains five chapters and three appendices. The information in this manual progresses from introducing the 8Y-XL in Chapter 1 to BCS (Basic Control Structure) commands in Appendix C. Use the following chapter descriptions to guide you through the manual.

  • Page 99: Terms To Know

    Input and output connectors are on the rear of an enclosure. Input and output signal cables attach to the input and output connectors. Standard 8Y-XL audio and data connectors are 3 position terminal block; video and sync connectors are BNC.

  • Page 100: Technical Support

    Ethernet and Neuron interfaces. Technical Support AutoPatch provides technical support 24 hours a day, 7 days a week (except for U.S. holidays). Before calling technical support with a question, please consult the 8Y-XL documentation set. If these manuals...

  • Page 101: Chapter 1 - Introduction To The 8Y-Xl

    Introduction to the 8Y-XL An 8Y-XL Distribution Matrix is composed of one or more enclosures. Enclosures are the structural basis of a matrix switcher. Since AutoPatch 8Y-XL Distribution Matrices are custom-built for each installation, factors such as control method and signal types affect the appearance and weight of each enclosure.

  • Page 102: Front Of Enclosure

    An 8Y-XL enclosure with a CP-10 Control Panel An enclosure can have either a blank front panel or a CP-10 Control Panel (a front panel produced by AutoPatch that has an LCD screen and keys for controlling the system’s inputs and outputs). Although a CP-10...
  • Page 103 Front of Enclosure To use the CP-10 Control Panel, use the keys to choose commands and values from the Command Screen. To choose a command, push the key that corresponds with the one you want to choose. To select values for fields (such as Level, Source, Destination, and Preset values), use the number keys.
  • Page 104 Introduction to the 8Y-XL Change Key Use the Change key to switch signals. Press the Change key and the Change menu appears, prompting you for information about the switch you want to perform. See Chapter 2 for more information on executing switches.

  • Page 105: Rear Of Enclosure

    Rear of Enclosure 1.2 Rear of Enclosure The rear of the enclosure has the input and output connectors, CPU, expansion/control slots, power supply, and serial number (see graphic below). Power Supply Fan Vent Fuse Drawer Inputs Power Switch Power Connector Optional Redundant Power Supply Serial Number Expansion/Control Slot...
  • Page 106 The power supply holds the power switch, power connector, and fuse drawer. The power supply fan vent is to the right of the power supply unit. The 8Y-XL input voltage range is AC 100-240V single phase. The power supply will accept all major, international power sources (see page B-1).

  • Page 107: Chapter 2 - Executing Switches

    The CP-10 Remote Control Panel works the same as an attached control panel. SBCs are not covered in this manual. *AutoPatch provides, at no charge, an interface library for various controllers. This library is called the X Net Communication Library.

  • Page 108: Executing Switches Using The Cp-10 Control Panel

    Executing Switches 2.1 Executing Switches Using the CP-10 Control Panel You can execute switches from the CP-10 Control Panel by using the steps below or by executing a local preset. For information about local presets, see Chapter 4, “Executing Local Presets.” BCS (Basic Control Structure) commands can also be used to execute switches (see page 2-5).
  • Page 109 Using the CP-10 Control Panel 2. Press the Level key. The cursor appears after the Level prompt. 3. Enter the number of the level where you want the switch to occur. 4. Press the Input key. The cursor appears after the Input prompt. 5.
  • Page 110 Executing Switches 6. Press the Output key. The cursor appears after the Output prompt. 7. Enter the number of the output you want to receive the specified input. If, at any time, you enter an incorrect number, press the Cancel key and enter the entire sequence again.

  • Page 111: Executing Switches Using Bcs Commands

    Using BCS Commands You can only execute switches with BCS commands through a device that can connect to the serial connector on the CPU. The 8Y-XL can be configured for both RS232 and RS422. Note: In each switch command, you can enter multiple levels and multiple output signals, but only one input signal.
  • Page 112 Executing Switches The following table shows the BCS command characters (keys) you will use when executing switches. Appendix C gives a complete list of the BCS command characters. Function Description Initiates an execute switch command; this must precede Change the input and output specification Level Flags the next 1 - 3 digit number as a level specification Identifies inputs, outputs, presets, and levels;...

  • Page 113: Chapter 3 - Verifying Signal Status

    The CP-10 Remote Control Panel works the same as an attached control panel. SBCs are not covered in this manual. *AutoPatch provides, at no charge, an interface library for various controllers. This library is called the X Net Communication Library.

  • Page 114: Verifying Signal Status Using The Cp-10 Control Panel

    Verifying Signal Status 3.1 Verifying Signal Status Using the CP-10 Control Panel Input status and Output status both function on the CP-10 Control Panel and in BCS commands (see page 3-4). You can return to the Command screen at any time by pressing the Cancel key. The following example verifies signal status for input 2 on level 0.
  • Page 115 Using the CP-10 Control Panel 4. Press the Input key. The cursor appears after the Input prompt. 5. Enter the number of the input you want to check. 6. Press the Take key. The output status for the selected input is displayed. Multiple outputs may also be displayed (for an example of a screen displaying multiple outputs, see page 3-4).

  • Page 116: Verifying Signal Status Using Bcs Commands

    Verifying Signal Status The screen below shows an example of a multiple output display. When the screen does not have enough room to show all the outputs that the input is connected to, scroll right using the right arrow key to see the rest. Use the right Arrow key to display additional outputs 3.2 Verifying Signal Status...
  • Page 117 Using BCS Commands The following table shows the BCS command characters (keys) used to verify switches. Appendix C gives a complete list of the BCS command characters. Function Description Initiates verification of signal status; this must precede the Status level, input, and output specifications Level Flags the next 1 - 3 digit number as a level specification Identifies inputs, outputs, presets, and levels;...

  • Page 118: Chapter 4 - Executing Local Presets

    Local presets are not programmed when we ship your system, so before executing any, contact your AutoPatch dealer to program them. An 8Y-XL can store hundreds of local presets. You can enter commands to execute Local Presets from the following: CP-10 Control Panel ä...

  • Page 119: Executing Local Presets Using The Cp-10 Control Panel

    You can execute local presets on your system at any time using either the CP-10 Control Panel or BCS commands (see page 4-4). Your system is shipped without programmed local presets, so ask your AutoPatch dealer to program these into your system.
  • Page 120 Using the CP-10 Control Panel 2. Press the Level key. The cursor appears after the Level prompt. 3. Enter the Level for the local preset you want to execute. 4. Press the Preset key. The cursor appears after the Execute prompt. 5.

  • Page 121: Executing Local Presets Using Bcs Commands

    Executing Local Presets 6. Press the Take key. The Local Preset 6 is executed and the Command screen appears. Note: To return to the Command screen without executing the local preset, press the Cancel key. 4.2 Executing Local Presets Using BCS Commands You can execute local presets through a device that connects to one of the RS232 connectors on the CPU.
  • Page 122 Using BCS Commands The following table shows the BCS command characters (keys) used to execute local presets. Appendix C gives a complete list of the BCS command characters. Function Description Initiates an execute global preset or execute local Global Preset preset command Note: Global presets are not implemented at this time Flags the next 1 - 3 digit number as a local preset...

  • Page 123: Chapter 5 - Disconnecting Switches

    An SBC (Single Bus Controller) ä SBCs are not covered in this manual. *AutoPatch provides at no charge, an interface library for various controllers. This library is called the X Net Communication Library. This library, documentation, and programming examples are available upon request from your AutoPatch representative.
  • Page 124 Disconnecting Switches You can disconnect switches through a device that can connect to one of the RS232 connectors on the CPU. Caution: Disconnecting an input disconnects all the outputs receiving that input signal. To disconnect a switch, enter the command using the following command line format, where “#”...
  • Page 125 The following table shows the BCS command characters (keys) used to disconnect switches. Appendix C gives a complete list of the BCS command characters. Function Description Disconnect Initiates a disconnect switch command Level Flags the next 1 - 3 digit number as a level specification Identifies inputs, outputs, presets, and levels;...

  • Page 126: Appendix A - Autopatch Service And Returns Policy

    AutoPatch Service and Returns Policy A.1 Service The AutoPatch 8Y-XL is to be serviced only by AutoPatch authorized service agents. Return Authorizations Except for warranty claims, merchandise will not be accepted for return or exchange after the first thirty (30) days following the invoice date.

  • Page 127: Replacement Policies And Procedures

    A.2 Replacement Policies and Procedures During the warranty period: 1. Describe the problem to an AutoPatch dealer, regional representative, or the AutoPatch customer service department. 2. Upon verification of a problem that requires factory repairs, an AutoPatch customer service representative will issue a Return...

  • Page 128: Special Notice

    Special Notice Following warranty expiration: 1. Call your AutoPatch dealer, area representative, or the AutoPatch customer service department with a description of the problem. 2. Upon verification of a problem that requires factory repairs, an AutoPatch customer service representative will issue a Return Materials Authorization (RMA) number.

  • Page 129: Appendix B - Product Specifications

    Product Specifications The following pages contain performance specifications for your AutoPatch 8Y-XL Distribution Matrix. The AutoPatch web site (www.autopatch.com) also has a full list of specifications for all AutoPatch products. A.1 General AC Power 100 - 240 V single phase...

  • Page 130: Analog Audio

    Product Specifications A.2 Analog Audio Standard Audio Boards Throughput Parameter Conditions Value Frequency Response (20 Hz to 20 kHz) <±0.1 dB (20 Hz to 20 kHz) 0.01 dB Gain Flatness (20 Hz to 100 kHz) 0.1 dB Vin=-3.3 dBu to 13.2 dBu THD + Noise <.01% f=20 Hz to 20 kHz...

  • Page 131: Analog Video

    Analog Video A.3 Analog Video Standard Video Boards Throughput Parameter Conditions Value Bandwidth (1 dB) Vin= 1 V 12 MHz (1:ALL) Bandwidth (3 dB) Vin= 1 V 30 MHz (1:ALL) Differential Gain f=3.58 MHz 0.1% or Better Differential Phase f=3.58 MHz 0.1 or Better Signal to Noise Ratio (S/N) Vin=+0.7 V...

  • Page 132: Wideband Video Boards

    Product Specifications Wideband Video Boards Throughput Parameter Conditions Value Bandwidth (3 dB) 250 MHz (1:ALL) Vin= 1 V Signal to Noise Ratio (S/N) Vin=0.7 V (100% IRE) <-70 dB Crosstalk f=5 MHz <-60 dB (adjacent channel) Time Delay Vin= 0.5 V square wave <20 ns Input Parameter...

  • Page 133: Ultra-Wideband Video Boards

    Ultra-Wideband Video Boards Ultra-Wideband Video Boards Throughput Parameter Conditions Value Bandwidth (3 dB) 400 MHz (1:ALL) Vin= 1 V Signal to Noise Ratio (S/N) Vin=0.7 V (100% IRE) <-70 dB Crosstalk f=5 MHz <-60 dB (adjacent channel) Time Delay Vin= 0.5 V square wave <20 ns Input Parameter...
  • Page 134 BCS is a set of alphanumeric characters that allows a PC or other control device to send commands to the system serially. When using a PC to control the 8Y-XL, use serial software, such as Windows95 HyperTerminal, to establish communication. Command lines are not case-sensitive.
  • Page 135 BAUD The speed at which communications travel through the serial connector. The 8Y-XL can send and receive communications at 9600 (default), 19200, 38400, and 57600. BCS (Basic Control Structure) A set of alphanumeric characters that combine to form command lines.
  • Page 136 The metal chassis that holds input and output boards, a CPU board, and a power supply. Each 8Y-XL enclosure can contain up to 8 input and 8 output boards, providing a total capacity of up to 64 input and 64 output signal paths.
  • Page 137 Input Board A circuit board that receives video, audio, or data signals from outside sources. LCD (Liquid Crystal Display) The screen on the CP-10 Control Panel for user interaction. Level A set of input and output signals that are grouped and, therefore, switch together.
  • Page 138 Glossary Serial Connector A 9-pin female connector on the rear of an enclosure used to connect serial external control devices to the matrix switcher. Serial Controller An external controller that communicates with the matrix switcher via a serial cable. Signal A set of connectors whose signals switch together.
  • Page 139 Index Caution AC line conditioner 1-6 disconnecting inputs 5-2 multiple presets 4-3 AC power B-1 Change key, CP-10 1-2, 1-4 arrow keys 1-3 chapter descriptions iii audio Comma (,) key, CP-10 1-2, 1-4 board specifications B-2 board, illus. 1-5 command line format connectors iv see BCS (Basic Control Structure) AutoAssist v...
  • Page 140 1-6 output connectors external control options ii definition iv illus. 1-5 features, 8Y-XL ii Output key, CP-10 1-2, 1-4 frequency B-1 front of enclosure, illus. 1-2 performance specifications B-1 fuse Period key (.), CP-10 1-2...
  • Page 141 replacement policies and procedures A-2 sync return authorizations A-1 connectors iv signals iv, 1-5 returning equipment A-1 RMA (Return Materials Authorization) A-1 Take key, CP-10 1-3 Technical Support v serial connectors terms to know iv illus. 1-5 serial number 1-6 Undo key, CP-10 1-2, 1-4 serial ports location, illus.

This manual is also suitable for:

8y-3000

Table of Contents
