ProSoft Technology RLXIC-S User Manual

Radiolinx intelligent cellular serial modem for the verizon wireless cdma network
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

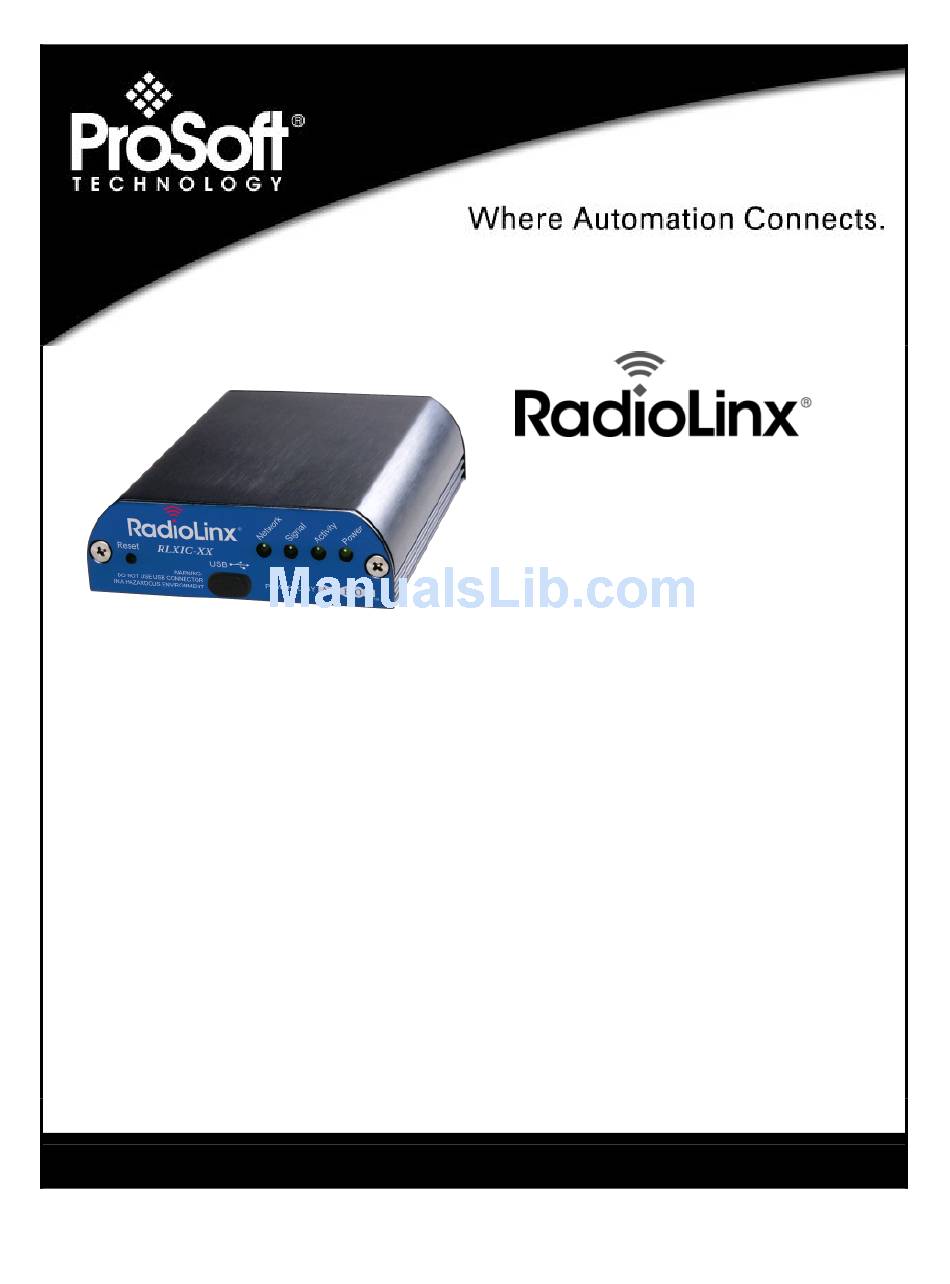

RLXIC-SV
Intelligent Cellular
RadioLinx Intelligent Cellular
Serial Modem for the
Verizon Wireless CDMA Network
May 29, 2009
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RLXIC-S and is the answer not in the manual?

Questions and answers

Related Manuals for ProSoft Technology RLXIC-S

Summary of Contents for ProSoft Technology RLXIC-S

  • Page 1 RLXIC-SV Intelligent Cellular RadioLinx Intelligent Cellular Serial Modem for the Verizon Wireless CDMA Network May 29, 2009 USER MANUAL...

  • Page 2: Important Notice

    Notwithstanding the foregoing, in no event shall ProSoft Technology and/or its affiliates aggregate liability arising under or in connection with the ProSoft Technology product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the ProSoft Technology product.

  • Page 3: Patents

    5,659,569 5,710,784 5,778,338 Manufactured or sold by Prosoft Technology or its licensees under one or more patents licensed from InterDigital Group. Your Feedback Please We always want you to feel that you made the right decision to use our products. If you have suggestions, comments, compliments or complaints about the product, documentation or support, please write or call us.

  • Page 4: Prosoft Technology® Product Documentation

    ProSoft Technology® Product Documentation In an effort to conserve paper, ProSoft Technology no longer includes printed manuals with our product shipments. User Manuals, Datasheets, Sample Ladder Files, and Configuration Files are provided on the enclosed CD, and are available at no charge from our web site: www.prosoft-technology.com Printed documentation is available for purchase.

  • Page 5: Table Of Contents

    Important Notice..........................2 Safety and Hazards ..........................2 Limitation of Liability..........................2 Patents ..............................3 Your Feedback Please........................3 ProSoft Technology® Product Documentation ...................4 Introduction to the RLXIC-SV ALEOS™ ........................7 AceWare™ ........................8 Connecting to your cellular provider................10 1x Communication EV-DO ..................11 Specifications Interface Port Pin-Outs....................15...
  • Page 6 1x/EV-DO......................132 Support, Service & Warranty 12.1 How to Contact Us: Technical Support..............135 12.2 Return Material Authorization (RMA) Policies and Conditions ......136 12.3 LIMITED WARRANTY ..................137 Index Page 6 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 7: Introduction To The Rlxic-Sv

    ALEOS enables: Persistent Network Connectivity Over-The-Air (OTA) Upgrades Wireless Optimized TCP/IP Real-Time Notification ProSoft Technology, Inc. Page 7 of 146 May 29, 2009...

  • Page 8: Aceware

    These modem utilities, except AceNet, are free of charge to those who own Prosoft Technology RadioLinx modems. You can download the applications and their user guides from the Prosoft Technology RadioLinx Solutions web site: www.prosoft-technology.com. Contact your dealer or Prosoft Technology representative for information on AceNet.
  • Page 9 RLXIC-SV activity which you can then send to Prosoft Technology support, erase the current configuration completely., and temporarily set the RLXIC-SV to a known configuration to aid in trouble shooting (SOS mode). ProSoft Technology, Inc. Page 9 of 146 May 29, 2009...

  • Page 10: Connecting To Your Cellular Provider

    Internet uses, such as web browsing, looking up data on another computer system, or other client functions (such as data only being sent out or only being received after an initial request). Page 10 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 11: Communication Ev-Do

    EV-DO Rev. 0 and 1x networks ensuring reliable and pervasive connectivity. Note: Your RLXIC-SV does not have a second antenna for received diversity. Received diversity is disabled by default. ProSoft Technology, Inc. Page 11 of 146 May 29, 2009...
  • Page 12 CDMA technologies is obtained by spreading the digital information contained in a particular signal of interest over multiple coded paths, over a much greater bandwidth than the original signal. Page 12 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 13: Specifications

    CDMA 1x EV-DO (Release 0) CDMA 1xRTT CDMA IS-95 2.1.3 Bands 800 Mhz Cellular 1900 Mhz PCS 2.1.4 Environmental Operating Temperature: -30° to 70° Celsius Storage Temperature: -40° to 85° Celsius ProSoft Technology, Inc. Page 13 of 146 May 29, 2009...
  • Page 14 76mm x 25mm x 92mm 160 grams 2.1.9 Application Interfaces TCP/IP, UDP/IP, DHCP, HTTP, SNMP, SMTP, SMS, MSCI, Binary, Modbus, and more 2.1.10 LED Indicators Network Signal Activity Service Power Page 14 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 15: Interface Port Pin-Outs

    Interface Port Pin-Outs 2.2.1 Serial Port Power Connector Warning: Explosion Hazard - Do not disconnect equipment unless power has been switched off or the area is known to be non-hazardous. ProSoft Technology, Inc. Page 15 of 146 May 29, 2009...
  • Page 16 RLXIC-SV ♦ Intelligent Cellular Specifications RadioLinx Intelligent Cellular Serial Modem for the Verizon Wireless CDMA Network User Manual Page 16 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 17: Activating Your Rlxic-Sv On Your Cellular Provider

    Please refer to Installing the USB driver (page 47). Setup Wizard You can find the Setup Wizard installation on the CD which came with your RLXIC-SV or on the ProSoft Technology website at www.prosoft- technology.com.Use only the Setup Wizard for your cellular provider for best results.
  • Page 18 The default password for the modem is entered for you. Click Note: If you want to use USB with the Setup Wizard you will need to first install the driver, refer to Installing the USB driver section in this Chapter. Page 18 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 19 After the Setup Wizard connects to your RLXIC-SV, the details for your specific model will be displayed. If the incorrect model is displayed, press the Reset Button on your RLXIC-SV so the Wizard can attempt to connect again. Click ProSoft Technology, Inc. Page 19 of 146 May 29, 2009...
  • Page 20 PDATE Note: While checking for ALEOS Firmware updates, the Setup Wizard uses the Internet connection on your computer to connect to the ProSoft Technology server. Your RLXIC-SV is not connected to the wireless network for this process. Page 20 of 146 ProSoft Technology, Inc.
  • Page 21 RLXIC-SV ♦ Intelligent Cellular User Manual RadioLinx Intelligent Cellular Serial Modem for the Verizon Wireless CDMA Network Tip: You can download current ALEOS firmware from the ProSoft Technology website, and install it separately. Click N when you are finished updating or if you choose not to update.
  • Page 22 Failed", "Network Authentication Failed", "Modem Not Registered", or the Reg Net light on the modem is not lit, double-check your device activation information and return to the Activate Modem step to reconfigure your RLXIC-SV. Page 22 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 23 HA Shared Secret Password is used for both Home Agents. This may be filled in for you with a password created for your RLXIC-SV for the your cellular provider network. ProSoft Technology, Inc. Page 23 of 146 May 29, 2009...
  • Page 24 Modem Installation screen. If you have other modems installed on your computer using the same serial port, they may conflict. As long as you do not intend to use them, you can Remove other modems using this menu. Page 24 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 25 RLXIC-SV. From the drop down menu, select S IERRA IRELESS MODEM The defaults for the phone number, user name and password will already be entered. ProSoft Technology, Inc. Page 25 of 146 May 29, 2009...

  • Page 26: Activating Using At Commands

    1234567@carrier.com). This information should be provided by your carrier. You may not need this step. AT*NETUID=[NAI] Enter the password of your account. This information should be provided by your carrier. You may not need this step. AT*NETPW=[password] Page 26 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 27 10-15 seconds and will return an "OK" when it is complete. AT\APASSTHRU Verify you are in Passthru mode. AT!STATUS Unlock the module. AT~NAMLCK=MSL Set the MDN and MSID. ProSoft Technology, Inc. Page 27 of 146 May 29, 2009...
  • Page 28 Status will be output until IOTA completes with "IOTA Successful" or " 1012 ERROR". 12 Reset the module. AT!RESET 13 Press the reset button on the front of the modem. When the modem restarts, it should register on the network. Page 28 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 29: Hardware Installation Of The Rlxic-Sv

    RLXIC-SV can withstand. Note: This device is not intended for use within close proximity of the human body. Antenna installation should provide for at least a 20 CM separation from the operator. ProSoft Technology, Inc. Page 29 of 146 May 29, 2009...

  • Page 30: Connecting To Power

    BLACK (2 conductor) = Ground RED (1 conductor) = Power Note: When using a DC power source (such as a solar cell), ProSoft Technology recommends placing a fuse (1-2 Amp) on the line close to the power source to protect your power source from possible surges due to shorts or other line issues.

  • Page 31: Connecting To A Computer Or Other Device

    Activity - Lights will flash as data is transferred to and from the RLXIC-SV modem on the remote network. Power - Indicates the power adapter is connected, and there is power getting to the RLXIC-SV. ProSoft Technology, Inc. Page 31 of 146 May 29, 2009...

  • Page 32: Mounting

    Rotate the bracket onto the DIN rail with the top of the rail hooked under the lip on the rear of the bracket. Page 32 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 33 DIN rail and release the locking tab to lock the bracket in place. 4.4.1 Optional Mounting Bracket 4.4.2 Mounting Bracket Installation ProSoft Technology, Inc. Page 33 of 146 May 29, 2009...
  • Page 34 RLXIC-SV ♦ Intelligent Cellular Hardware Installation of the RLXIC-SV RadioLinx Intelligent Cellular Serial Modem for the Verizon Wireless CDMA Network User Manual 4.4.3 Mounting Bracket Dimensions Page 34 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 35: Configuring Your Rlxic-Sv

    Refer to Configuration Commands for a full listing of the available commands (page 97). Using AceManager AceManager is a free utility and is available on the product CD or can be downloaded from the ProSoft Technology website. ProSoft Technology, Inc. Page 35 of 146 May 29, 2009...
  • Page 36 For SMS, enter the phone number of the modem, and select your wireless carrier. For PPP, select the COM port to which the modem is connected. Enter the password. The default password will be entered for you. Click OK. Page 36 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 37 You can reset the modem by using the Reset button in AceManager or by using the reset button on the modem. You can also reset the modem by cycling the power. ProSoft Technology, Inc. Page 37 of 146 May 29, 2009...

  • Page 38: Using Templates

    Cellular Technology specific settings (the SV group) *MODEMNAME *HOSTPRIVIP *HOSTPEERIP *HOSTUID *HOSTPW Click the S button on the toolbar. Page 38 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 39 Verify the configuration settings. Tip: After you load the template, it is best to go back over the AceManager groups to make sure all the settings are what you require. ProSoft Technology, Inc. Page 39 of 146 May 29, 2009...
  • Page 40 You will get a "partial success" status if all items in a template cannot be applied by the receiving modem. Select modems to configure with the template. Page 40 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 41 (you may need to change folders). Set the Retry Interval and check if you want to have the modems Reset when the template has been applied. ProSoft Technology, Inc. Page 41 of 146 May 29, 2009...

  • Page 42: Using A Terminal Application With At Commands

    . The name and icon are only for your own reference so you can OLUTIONS find the connection at a later date. Click OK. Connect To Select TCP/IP (W ) for the "Connect Using". INSOCK Page 42 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 43 Change the "Port Number" to 2332 Click OK. Port Settings (serial only) Change or verify the settings: Bits per Second: 115200 (default) Data Bits: 8 Parity: None Stop Bits: 1 Flow Control: Hardware. ProSoft Technology, Inc. Page 43 of 146 May 29, 2009...
  • Page 44 Acceptable parameters and/or specific formats are listed with each command. Most commands with parameters can be entered with ? to read the current value (for example, will respond with "2" if the default has not been AT&D? changed). Page 44 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 45 Caution: Symbols listed with commands, such as *, /, &, or ?, are part of the command and must be included. Commands with symbols other than * may require PassThru mode. ProSoft Technology, Inc. Page 45 of 146 May 29, 2009...
  • Page 46 RLXIC-SV ♦ Intelligent Cellular Configuring your RLXIC-SV RadioLinx Intelligent Cellular Serial Modem for the Verizon Wireless CDMA Network User Manual Page 46 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 47: Universal Serial Bus (Usb)

    6.1.2 Connect the RLXIC-SV to your computer's USB port When you connect the RLXIC-SV for the first time to a USB port on your computer, Windows should detect a new device, and prompt you to install the driver. ProSoft Technology, Inc. Page 47 of 146 May 29, 2009...
  • Page 48 If you will be installing the driver from a file downloaded from the ProSoft Technology website, select Include this location in the search, and type in the location where you downloaded the file. Page 48 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 49 C ONTINUE NYWAY Click F to complete the installation. The driver should be enabled without INISH any need to reboot your computer. ProSoft Technology, Inc. Page 49 of 146 May 29, 2009...
  • Page 50 USB port on your computer, the USB Ethernet may show up with a number. You can also verify the installation by looking in the Device Manager. Click on S > C TART ONTROL ANEL Double-click on the S icon. YSTEM Page 50 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 51 USB port. More than one copy of the driver should not cause any problems, because only the connected port, and its driver, would be active. ProSoft Technology, Inc. Page 51 of 146 May 29, 2009...
  • Page 52 Select the H tab, and click the D button. ARDWARE EVICE ANAGER Click on the + in front of M ODEMS The newly installed driver, AirLink USB Serial Port, should be displayed. Page 52 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 53 The driver installation will automatically assign a port or you can change it if you wish to another unused port. From the Device Manager, right click on the driver name, and select Properties. ProSoft Technology, Inc. Page 53 of 146 May 29, 2009...
  • Page 54 At the bottom of the screen, the current port used will be listed. Use the drop down menu to select an available COM port number if you need to change it. Page 54 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 55: Using The Virtual Ethernet Port

    Use the IP address of the modem ( by default) as the 192.168.13.31 destination, and use the telnet port of the modem ( by default). 2332 Enter the modem password ( by default) when requested. 12345 ProSoft Technology, Inc. Page 55 of 146 May 29, 2009...

  • Page 56: Changing The Usb Port Communication

    Use the PPP connection, and select the COM# serial port of the USB connection. Tip: You will need to open AceManager after you connect the USB cable to your computer for AceManager to have access to the USB Serial PORT. Page 56 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 57 Change the Bits per Second to 115200 (default), Data Bits to 8, Parity to None, Stop Bits to 1, and Flow Control to Hardware. You should also need to make sure your connection uses Auto Detect for the terminal emulation. ProSoft Technology, Inc. Page 57 of 146 May 29, 2009...
  • Page 58 RLXIC-SV ♦ Intelligent Cellular Universal Serial Bus (USB) RadioLinx Intelligent Cellular Serial Modem for the Verizon Wireless CDMA Network User Manual Page 58 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 59: Data Communication And Host Modes

    PPP Mode: The RLXIC-SV uses PPP to communicate with a device or computer connected to the serial or USB port. SLIP Mode: The RLXIC-SV uses SLIP to communicate with a device or computer connected to the serial or USB port. ProSoft Technology, Inc. Page 59 of 146 May 29, 2009...

  • Page 60: Basic Modes

    Resetting or Power cycling the modem. Note: DTR needs to be asserted (S211=1 or &D0) by the host before PPP Mode, SLIP Mode, UDP PAD Mode, or TCP PAD Mode can be entered. Page 60 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 61 OK, at which point a direct connection to the internal hardware is established. You can also configure the modem to enter PassThru mode on start up using MD. ProSoft Technology, Inc. Page 61 of 146 May 29, 2009...
  • Page 62 O tab. The default telnet port THER . You can also change the Telnet timeout, if the connection is idle, default 2332 2 minutes. Page 62 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 63: Serial Modes

    The public IP is passed to the host in the PPP negotiations, so when the network forces a change, the modem has to force the host to renegotiate the PPP link to make this happen. ProSoft Technology, Inc. Page 63 of 146 May 29, 2009...
  • Page 64 UDP packet. The session, started by either method, will be terminated when no data has been sent or received for the S82 period. After the session terminates, another may be initiated by either means. Page 64 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 65 Destination IP and Port in each to point to each other. Serial data will then be sent reliably between the two. Caution: Although it adds reliability, the simple implementation of the Reliable UDP mode in the RLXIC-SV does not check for duplicate packets. ProSoft Technology, Inc. Page 65 of 146 May 29, 2009...
  • Page 66 (TCPS=0) or seconds (TCPS=1) used for this idle time-out. Caution: TCPT should never be 0 when using the TCP mode. A broken TCP session can result in the modem being left with a TCP Auto Answer Page 66 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 67: Data Communication

    Note: If you have a device connected to the serial port and the USB port, they will not be able to communicate to each other. Each port is routed separately to the cellular network with one-to-one routing for each. ProSoft Technology, Inc. Page 67 of 146 May 29, 2009...
  • Page 68 RLXIC-SV will use NAT to forward packets to the end device. Tip: When using Public mode, ProSoft Technology recommends connecting the modem directly to the computer or other end device. Using a hub or switch may prevent the RLXIC-SV from updating the IP address of the end device when an IP address is received from the cellular network.
  • Page 69 Port Forwarding Any data coming in on the defined Public Port will be passed to the corresponding Private Port connected to the physical interface specified and using the host IP address. ProSoft Technology, Inc. Page 69 of 146 May 29, 2009...
  • Page 70 Public Port: Port number of the Modem/Gateway. Host/IF: Physical connection type to the modem. (USB, Ethernet, Serial). Host IP: IP address of the connected device/computer. Private Port: Port number on the connected device. Page 70 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 71 Default Interface: Choose the Default Interface desired (that is, Ethernet or USB or Serial). Default IP: Enter this option only when you want to forward ports not specified, to the default IP. Firewall Functions ProSoft Technology, Inc. Page 71 of 146 May 29, 2009...

  • Page 72: Keepalive

    Internet connection is not functioning properly. If it determines the connection is not functioning, the modem will then attempt to reconnect to your cellular provider to reestablish IP connectivity. Page 72 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 73 66 bytes of data over the network, and is billable by your cellular provider. The following *IPPING settings will incur approximate monthly data usage in addition to any other data usage: ProSoft Technology, Inc. Page 73 of 146 May 29, 2009...
  • Page 74 RLXIC-SV ♦ Intelligent Cellular Data Communication and Host Modes RadioLinx Intelligent Cellular Serial Modem for the Verizon Wireless CDMA Network User Manual Page 74 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 75: Ip Manager

    Static IP addresses are granted the same address every time your RLXIC-SV is connected, and are not in use when your modem is not connected. ProSoft Technology, Inc. Page 75 of 146 May 29, 2009...

  • Page 76: Understanding Domain Names

    This would be the same as above, but with the addition of the country code. In this example, the country code (.ca) is for Canada. Page 76 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 77: Dynamic Names

    To allow your RadioLinx modem to be addressed by name, the modem needs to have a minimum of three elements configured. You can also configure a second dynamic server as a backup, secondary, or alternate server. In AceManager, select D YNAMIC ProSoft Technology, Inc. Page 77 of 146 May 29, 2009...
  • Page 78 *IPMGRKEY1 and *IPMGRKEY2: User defined password key which is used instead of RadioLinx secret key when using an IP Manager server other than the one provided by ProSoft Technology. Restrictions for Modem Name For the Modem Name, you should use something which is unique but also easy to remember.

  • Page 79: Understanding Dns

    RadioLinx Intelligent Cellular Serial Modem for the Verizon Wireless CDMA Network 8.4.2 Eairlink.com As a service, ProSoft Technology offers an IP Manager server, which can be used for any RadioLinx Intelligent Cellular modem. Note: The IP Manager service is currently not a guaranteed service, although every effort is made to keep it operational 24/7.
  • Page 80 PPP or SLIP address mode to resolve the address of the device or computer connected via PPP or SLIP address. If the RLXIC-SV is not in PPP or SLIP address mode, "ppp-peer" will resolve to 0.0.0.0. Page 80 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 81: Configuring Modbus/Bsap

    RTU ID which corresponds to the ID of one of the remote units. The Modbus host looks for the ID, and sends to only the unit with the matching ID. The RTU would then reply back to the central station. ProSoft Technology, Inc. Page 81 of 146 May 29, 2009...
  • Page 82 RTU ID and serial data to the remote unit. The remote units operate in normal UDP mode, and their data is sent to the host via the remote RLXIC-SV and host RLXIC-SV. Page 82 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 83: Configuring The Rlxic-Sv At The Polling Host For Modbus On Udp

    9.2.2 Configure the default mode for start-up. In AceManager, select UDP in the side menu. Select the appropriate MD mode from the drop down menu. ProSoft Technology, Inc. Page 83 of 146 May 29, 2009...
  • Page 84 When you configure IP Manager for the host modem, make note of your modem name and domain setting in AceManager in the menu selection D IP to be YNAMIC used with the remote modems. Page 84 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 85: Configuring The Remote Rlxic-Svs For Modbus With Udp

    This section covers standard Modbus settings for the RLXIC-SV at the remote unit, variations may need additional commands. 9.3.1 Configure the ports In AceManager, select M in the side menu. ProSoft Technology, Inc. Page 85 of 146 May 29, 2009...
  • Page 86 In AceManager, select UDP in the side menu. Enable S82, UDP auto answer. Set S83 to the idle time-out applicable to your application, commonly 20. Page 86 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 87 (*IPMANAGER1). If your modems have dynamic IP addresses, and not static (the IP address can change when it is powered up), configure *DNSUPDATE to a low interval to allow frequent updates. ProSoft Technology, Inc. Page 87 of 146 May 29, 2009...
  • Page 88 RLXIC-SV ♦ Intelligent Cellular Configuring Modbus/BSAP RadioLinx Intelligent Cellular Serial Modem for the Verizon Wireless CDMA Network User Manual Page 88 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 89: 10 Snmp : Simple Network Management Protocol

    SNMP traps are alerts that can be sent from the managed device to the Network Management Station when an event happens. Your RLXIC-SV is capable of sending the linkUp trap when the network connection becomes available. ProSoft Technology, Inc. Page 89 of 146 May 29, 2009...

  • Page 90: Snmp Configuration

    2 - Authentication required, and messages are encrypted. SNMPv3 is required to do authentication. SNMPv2c, and SNMPv3 authNoPriv transmissions will be silently discarded. Authentication and encryption is equivalent to the authPriv setting in SNMPv3. Page 90 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 91 Note: Traps are sent out according to the SNMP security level (that is, if the security level is 2, traps will be authenticated and encrypted). Currently, the only trap supported is LinkUp. 10.2.5 Community String The community string can be configured using *SNMPCOMMUNITY. The default is "public". ProSoft Technology, Inc. Page 91 of 146 May 29, 2009...

  • Page 92: Snmp Mib Definition Sample

    MAX-ACCESS read-only STATUS current ::= { general 6 } modemSWVer OBJECT-TYPE SYNTAX DisplayString MAX-ACCESS read-only STATUS current ::= { general 7 } modemHWVer OBJECT-TYPE SYNTAX DisplayString MAX-ACCESS read-only STATUS current Page 92 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 93 MAX-ACCESS read-only STATUS current ::= { common 8 } serialPortSettings OBJECT-TYPE SYNTAX DisplayString MAX-ACCESS read-only STATUS current ::= { common 9 } serialPortFlowControl OBJECT-TYPE SYNTAX INTEGER { none(0), hardware(2), software(4) } ProSoft Technology, Inc. Page 93 of 146 May 29, 2009...
  • Page 94 STATUS current ::= { status 8 } fixObtained OBJECT-TYPE SYNTAX INTEGER { no(0), yes(1) } MAX-ACCESS read-only STATUS current ::= { gps 1 } satelliteCount OBJECT-TYPE SYNTAX INTEGER MAX-ACCESS read-only Page 94 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 95: Display Responses

    *NETRSSI? hostMode *HOSTMODE? 10.3.2 Product ID Each modem type has a unique ID associated with it so you can more easily identify the modem from its type on your network. ProSoft Technology, Inc. Page 95 of 146 May 29, 2009...
  • Page 96 RLXIC-SV ♦ Intelligent Cellular SNMP : Simple Network Management Protocol RadioLinx Intelligent Cellular Serial Modem for the Verizon Wireless CDMA Network User Manual Page 96 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 97: 11 Configuration Commands

    Some of the information displayed in this group does not correspond directly to AT commands. *DEVICEID? The 64-bit device ID the modem uses to identify itself to the cellular network. ProSoft Technology, Inc. Page 97 of 146 May 29, 2009...

  • Page 98: Info (Information)

    : View active profile (the contents of the active registers). Not displayed with AceManager. 11.1.1 Information Displayed in AceManager without AT Commands Listed Versions of ALEOS, internal hardware, boot, and MSCI: Versions of internally configured hardware and software. Page 98 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 99: Status

    Connecting To Network: The RLXIC-SV is in the process of trying to connect to the cellular network. Network Authentication Fail: Authentication to the cellular network has failed. Verify settings to activate the RLXIC-SV. ProSoft Technology, Inc. Page 99 of 146 May 29, 2009...
  • Page 100 +PRL? Preferred Roaming List (PRL) version. *PRLSTATUS? The status of the most recent PRL Update. 0 : None 1 : In Progress 2 : Success Any other value : Failure Page 100 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 101 Temperature of the Internal Hardware Module: The temperature of the internal radio module. 11.2.2 AT Commands Requiring PassThru mode These commands are not displayed in AceManager. +GSN ESN (Electronic Serial Number) of the internal hardware module. ProSoft Technology, Inc. Page 101 of 146 May 29, 2009...

  • Page 102: Common

    AT Escape sequence. If the RLXIC-SV is in a data mode (any mode other than PassThru), this command causes the modem to re-enter AT command mode. The "+" is ASCII 0x2B.+++ is not available in AceManager. Tip: DAE=1 disables the +++ command. Page 102 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 103 Tip: The source port of the session is the Device Port (set by S110 or *DPORT). DS=n Allows a PPP connection to be initiated on the host port. n=2 : Initiates the PPP connection. Cannot be configured in AceManager. ProSoft Technology, Inc. Page 103 of 146 May 29, 2009...
  • Page 104 Online (Remote): Causes the RLXIC-SV to go from Command State to data state. Cannot be configured in AceManager. OPRG=n Enables/disables over-the-air firmware upgrading of the RLXIC-SV. When ProSoft Technology releases a new version of ALEOS, you can upgrade your remote modems with OPRG enabled. n=0 : Disables n=1 : Enables S53=[method][d.d.d.d][/ppppp]...
  • Page 105 *NETPHONE? The modem's phone number, if applicable or obtainable. *NETROAMPREF=n Allow configuration of the roaming preference. n=0 : Restrict to home network only. n=1-3 : Allow roaming to affiliated networks. ProSoft Technology, Inc. Page 105 of 146 May 29, 2009...
  • Page 106 Checks if an SMS message has been received by the modem. n=1-255 : Seconds between checks. n=0 : Never check. 11.3.2 Serial This group includes commands specific to general use of the serial port. Page 106 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 107 Specifies the time that the received carrier must be present for the modem to recognize it, and turn on Data Carrier Detect (DCD) if applicable. The implementation is entirely at the IWF modem. Cannot be configured in AceManager. ProSoft Technology, Inc. Page 107 of 146 May 29, 2009...
  • Page 108 : Ignore DTR, and assert DSR. This value is deprecated, and it is recommended to use &S to control the DSR instead. When this value is set to 3, &S will automatically be set to 0. See also: &D and &S. Page 108 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 109 Set modem operation to PPP mode. Cannot be configured in AceManager. \ASLIP Set modem operation to SLIP mode. DTR must be asserted (&D0 or S211=1). Cannot be configured in AceManager. ProSoft Technology, Inc. Page 109 of 146 May 29, 2009...
  • Page 110 Clear To Send Enable: This feature asserts CTS when there is a network connection. n=0 : Disabled (Default). n=1 : Enable assertion of CTS when there is network coverage. RS232 voltage levels: Positive = Network coverage. Negative = No coverage. Page 110 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 111 Provides a "No Carrier" message to a device connected to the serial port using PPP or CHAP when the cellular connection becomes unavailable. n=0 : Disabled (Default). n=1 : Enabled. 11.3.3 TCP This group includes commands specific to TCP serial communications. ProSoft Technology, Inc. Page 111 of 146 May 29, 2009...
  • Page 112 : minutes n=1 : seconds TCPT=n Interval to terminate a TCP connection when no in or outbound traffic. This value affects only the TCP connection in TCP PAD mode. Page 112 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 113 : No response codes when UDP session is initiated. n=1 : RING CONNECT response codes sent out serial link before the data from the first UDP packet. Note: Quiet Mode must be Off. ProSoft Technology, Inc. Page 113 of 146 May 29, 2009...
  • Page 114 Ethernet host data will cause a connection to be restored to the last IP accepted through UDP auto answer. n=0 : Does not change S53 setting. (Default). n=1 : Set S53 to the last accepted IP. Page 114 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 115 Sets a user-provided DNS to query first when performing name resolutions in the modem. d.d.d.d=IP address of domain server Note: You can set up a second DNS User, if you have two DNS users. ProSoft Technology, Inc. Page 115 of 146 May 29, 2009...
  • Page 116 AT*IPMANAGER2. Updates to a server can be disabled by setting that entry to nothing (for example, "AT*IPMANAGER1="). n=1 : First IP Manager server. n=2 : Second IP Manager server. name=domain name Page 116 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 117 #NETPHONE - The phone number will be used as the name. Tip: Each modem using IP Manager needs a unique name. Two modems cannot be called "mymodem". One could be "mymodem1" with the other as "mymodem". ProSoft Technology, Inc. Page 117 of 146 May 29, 2009...
  • Page 118 PPP or CHAP negotiation on the host connection. The username and password set in *HOSTUID and *HOSTPW will be used. n=0 : Disable PAP or CHAP request (Default). n=1 : PAP and CHAP. n=2 : CHAP Page 118 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 119 1 to 1 NAT-like address translation, which shields the Host from network IP changes. *HOSTPW=string Host Password for PAP or CHAP. string=password *HOSTUID=string Host User ID for PAP or CHAP. string=user id (up to 64 bytes) ProSoft Technology, Inc. Page 119 of 146 May 29, 2009...
  • Page 120 Note: If the modem is asserting DCD, data will be passed from the host to the modem as it normally is when *CSX1=0. *PTINIT=string Any AT Command string to be passed to the OEM module before entering PASSTHRU mode, for example, AT&S1V1, etc. string=AT command(s) Page 120 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 121 Cannot be used with AceManager. n=SMS/E-mail server number *SMTPADDR=[d.d.d.d][name] Specify the IP address or Fully Qualified Domain Name (FQDN) of the SMTP server to use. d.d.d.d=IP Address name=domain name (maximum: 40 characters). ProSoft Technology, Inc. Page 121 of 146 May 29, 2009...
  • Page 122 The email account username to authenticate with the SMTP server (*SMTPADDR) for sending email. user=username (maximum: 40 characters). Note: Not required to use SMTP settings but may be required by your cellular carrier. Page 122 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 123 Set the IP address or valid internet domain name for the RLXIC-SV to ping to keep itself alive (online). *IPPING must to be set to a value other than 0 to enable pinging. d.d.d.d=IP address name=domain name ProSoft Technology, Inc. Page 123 of 146 May 29, 2009...
  • Page 124 : No security required. SNMPv2c and SNMPv3 communications are allowed. n=1 : Authentication equivalent to "authNoPriv" setting in SNMPv3. SNMPv3 is required to do authentication, SNMPv2c transmissions will be silently discarded. Page 124 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 125 : Disabled. n=1-65535 Tip: Many networks have the ports below 1024 blocked. It is recommended to use a higher numbered port. *TQUIT Disconnects the telnet session. Not available in AceManager. ProSoft Technology, Inc. Page 125 of 146 May 29, 2009...
  • Page 126 Firewall mode - Only allow specified IPs to access the RLXIC-SV modem. n=0 : Disable Firewall mode n=1 : Enable Firewall mode - Only packets from friends will be accepted, packets from other IP addresses are ignored. Page 126 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 127 Note: The Port Filtering is in addition to any port blocking or allowing done by the cellular provider. If the port is blocked by the cellular carrier, setting it for allowed here will have no effect, because the connection would be blocked before even reaching the RLXIC-SV. ProSoft Technology, Inc. Page 127 of 146 May 29, 2009...
  • Page 128 = 1-5 Public Port = n Port number of the Modem/Gateway. n = 8090 Host/IF = n Physical connection type to the modem. (USB, Ethernet, Serial). Page 128 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 129: Logging

    Sets the logging level for the PPP stack. n=0 : No logging n=1 : Log client events (default) n=2 : Log server events n=3 : Log client and Server events ProSoft Technology, Inc. Page 129 of 146 May 29, 2009...

  • Page 130: Telemetry/Addr List

    00 - no mask, all 8 bits (default) 0F - only the low order 4 bits MVOFF=n Modbus (variable mode) Offset: Indicates the offset in the data of where the Modbus ID starts. n=0 - 255 Page 130 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 131 11.5.1 Addr List MLIST and MLISTX are configured by the fields available in the Addr List group. AceManager automatically differentiates between them to enter the correct command for the modem. ProSoft Technology, Inc. Page 131 of 146 May 29, 2009...

  • Page 132: 1X/Ev-Do

    PPP. During the negotiation process the RLXIC-SV is NOT required to present a username and password to authenticate because the authentication parameters are stored in the modem itself. Page 132 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 133 A second set of modem provision parameters, when the MDN and MIN (MSID) are different or "split". Cannot be configured in AceManager. MSL=master lockcode MDN/MIN=phone number SID=system ID NID=network ID ProSoft Technology, Inc. Page 133 of 146 May 29, 2009...
  • Page 134 ID Note: If ~NAMLCK has not been successfully executed, the modem returns ERROR. nam=0 min=phone number msid=second number sid=0 or the system ID nid=63355 or the network ID Page 134 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 135: 12 Support, Service & Warranty

    How to Contact Us: Technical Support..........135 Return Material Authorization (RMA) Policies and Conditions..... 136 LIMITED WARRANTY................. 137 ProSoft Technology, Inc. (ProSoft) is committed to providing the most efficient and effective support possible. Before calling, please gather the following information to assist in expediting this process:...

  • Page 136: Return Material Authorization (Rma) Policies And Conditions

    If no defect is found, Customer will be charged the equivalent of $100 USD, plus freight charges, duties and taxes as applicable. A new purchase order will be required. Page 136 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 137: Limited Warranty

    (collectively, the "Terms") of this Limited Warranty. All sales of software or other intellectual property are, in addition, subject to any license agreement accompanying such software or other intellectual property. ProSoft Technology, Inc. Page 137 of 146 May 29, 2009...
  • Page 138 Product such as, but not limited to, exposure to extremes of temperature or humidity, power failure or power surges; or (viii) disasters such as fire, flood, earthquake, wind and lightning. Page 138 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 139 Customer is granted no right or license to use any software or other intellectual property in any manner or for any purpose not expressly permitted by any license agreement accompanying such software or other intellectual property. ProSoft Technology, Inc. Page 139 of 146 May 29, 2009...
  • Page 140 This Warranty gives you specific legal rights, and you may also have other rights which vary from place to place. 12.3.7 Time Limit for Bringing Suit Any action for breach of warranty must be commenced within 39 months following shipment of the Product. Page 140 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 141 Warranty shall remain in full force and effect. Any cause of action with respect to the Product or Services must be instituted in a court of competent jurisdiction in the State of California. ProSoft Technology, Inc. Page 141 of 146 May 29, 2009...
  • Page 142 RLXIC-SV ♦ Intelligent Cellular Support, Service & Warranty RadioLinx Intelligent Cellular Serial Modem for the Verizon Wireless CDMA Network User Manual Page 142 of 146 ProSoft Technology, Inc. May 29, 2009...

  • Page 143: Index

    +GSN • 101 +HWTEMP? • 101 *MODEMHISPEED • 111 +IPR=n • 110 *MODEMNAME=name • 117 +PRL? • 100 *MSCIUPDADDR=name[/port] • 124 +WVLASS=n • 110 *MSCIUPDPERIOD=n • 124 *NETALLOWZEROIP=n • 105 ProSoft Technology, Inc. Page 143 of 146 May 29, 2009...
  • Page 144 UDP • 85 Technical Support • 135, 136 Configuring the RLXIC-SV at the Polling Host for Hybrid Mode • 67 Modbus on UDP • 83 Configuring your RLXIC-SV • 35 Page 144 of 146 ProSoft Technology, Inc. May 29, 2009...
  • Page 145 Product ID • 95 Limitation of Remedies ** • 140 Programmable Logic Controller (PLC) • 82 LIMITED WARRANTY • 137 ProSoft Technology® Product Documentation • 4 Listening Port • 90 Public and Private Mode • 68 Logging • 129 Public Port = n • 128 Purchasing Warranty Extension: •...
  • Page 146 Understanding Domain Names • 76 Universal Serial Bus (USB) • 47 User Name and Password • 91 Using a Terminal Application with AT Commands • 42 Using AceManager • 35 Page 146 of 146 ProSoft Technology, Inc. May 29, 2009...
