CTIM-00429 Revision: 0.01, November 28, 2013

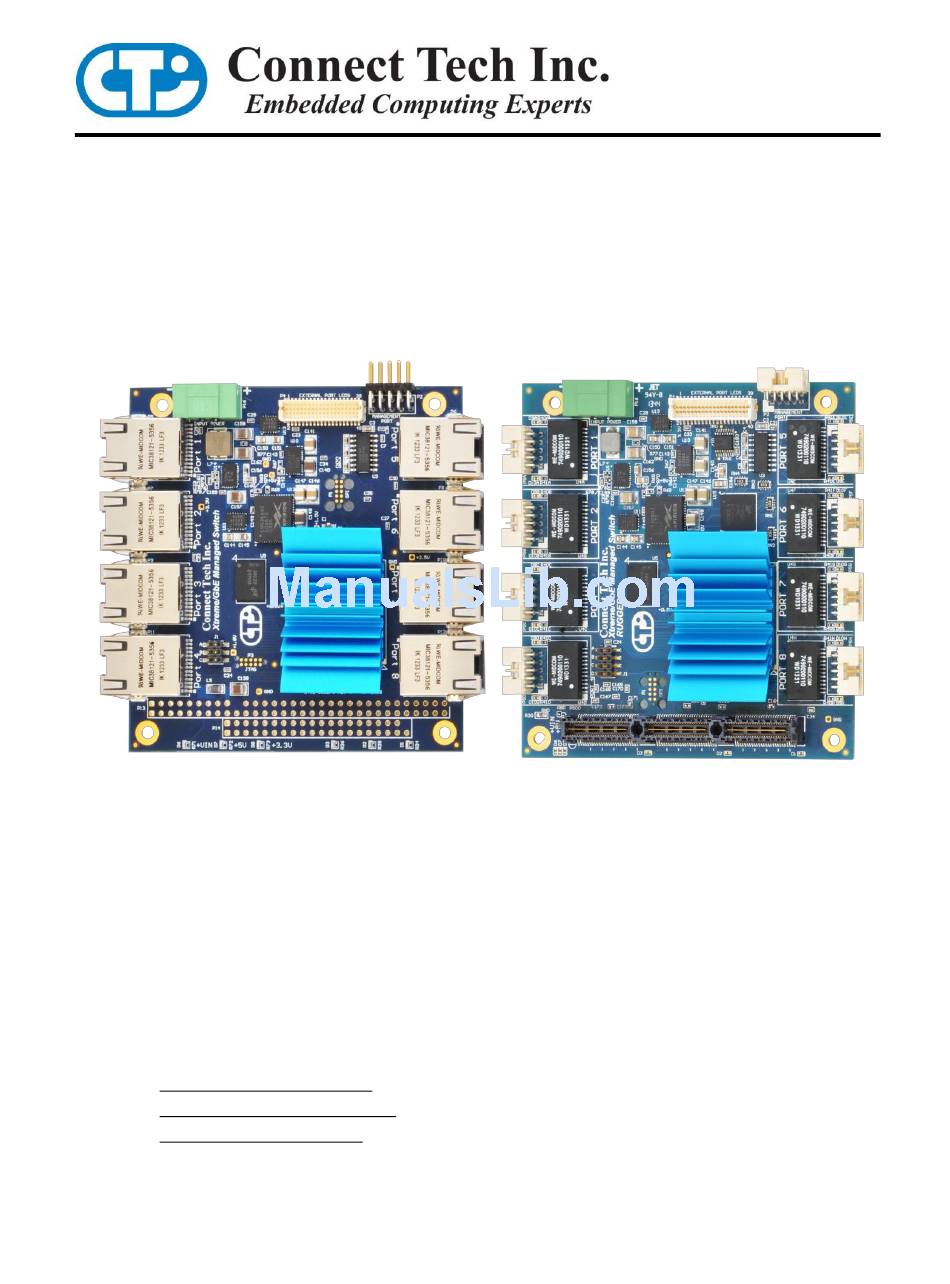

Xtreme/GbE
Users Guide
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Connect Tech Xtreme/GbE
Summary of Contents for Connect Tech Xtreme/GbE
- Page 1 Xtreme/GbE Managed Carrier Ethernet Switch Users Guide Connect Tech Inc. 42 Arrow Road Guelph, Ontario N1K 1S6 Tel: 519-836-1291 Toll: 800-426-8979 (North America only) Fax: 519-836-4878 Email: sales@connecttech.com support@connecttech.com Web: www.connecttech.com CTIM-00429 Revision: 0.01, November 28, 2013...
-
Page 2: Table Of Contents
Web GUI Management Overview ........................20 Factory Default Configuration........................21 Typical Hardware Installation Procedure ......................22 Instructions for Standalone Operation ......................22 Instructions for Installation in PCIe/104 Stack ....................22 Stacking Multiple Xtreme/GbE Boards to Achieve Higher Port Densities ............. 23 Thermal Details .............................24 Revision 0.01... -
Page 3: Customer Support Overview
Customer Support Overview If you experience difficulties after reading the manual and/or using the product, contact the Connect Tech reseller from which you purchased the product. In most cases the reseller can help you with product installation and difficulties. In the event that the reseller is unable to resolve your problem, our highly qualified support staff can assist you. -
Page 4: Limited Lifetime Warranty
Connect Tech Inc.'s opinion, fail to be in good working order during the warranty period, Connect Tech Inc. will, at its option, repair or replace this product at no charge, provided that the product has not been subjected to abuse, misuse, accident, disaster or non-Connect Tech Inc. -
Page 5: Introduction
Connect Tech’s Xtreme/GbE Managed Carrier Ethernet Switch provides Carrier Grade Ethernet switching capabilities in an extremely small embedded form factor. Excellent for high-end applications such as Mobile and Microwave backhaul, the Xtreme/GbE Managed Carrier Ethernet Switch is also a highly reliable way to communicate with 10/100/1000 devices in an embedded system. -
Page 6: Product Features And Specifications
Connect Tech – Xtreme/GbE - User Manual Product Features and Specifications Feature Description Ethernet Switch Engine Vitesse VSC7428 Carrier Grade Ethernet Switch Chipset A powerful embedded 416 MHz RISC 32-bit CPU with DDR2 external memory and DMA-based frame extraction and insertion supports timing over packet, Ethernet OAM, and performance monitoring. -
Page 7: Block Diagram
Connect Tech – Xtreme/GbE - User Manual Block Diagram RS-232 External Tranciever Header (P2) PCIe/104 PCIe UART External Management LEDs SPI FLASH Port DDR2 SDRAM GBE Port1 GBE Port5 GBE Port2 GBE Port6 8-Port Carrier Ethernet Managed Switch Chipset GBE Port3... -
Page 8: Connector Locations
Connect Tech – Xtreme/GbE - User Manual Connector Locations RJ-45 Models XDG004 Part Number Shown: XDG004 Rugged Models XDG007 Part Number Shown: XDG009 Revision 0.01... -
Page 9: Jumper And Connector Summary
Connect Tech – Xtreme/GbE - User Manual Jumper and Connector Summary Designator Connector Description P5-P12 RJ-45 10/100/1000 Ethernet Connectors (XDG004/5/6) P5A-H 2x5 2mm rugged 10/100/1000 Ethernet Connectors (XDG007/8/9) locking connector 2x20 1mm Connector External LED Connector 2-pin 3.5mm pitch External Input Power (+9V to +36V) terminal block header 2x5 0.1”... -
Page 10: Detailed Feature Pinouts And Descriptions
Connect Tech – Xtreme/GbE - User Manual Detailed Feature Pinouts and Descriptions 10/100/1000 Ethernet RJ-45 Connector Function LAN Connector Locations P1-P8 (XDG004/5/6) 7498111120 - Manufacturer: Wurth Connector PN Mating Standard Cat5e (8P8C RJ-45 Plug) Connector PN Pinout Signal MX1P MX1N... -
Page 11: External Led Connectors
Connect Tech – Xtreme/GbE - User Manual External LED Connectors External Port LEDs Function Locations DF20G-40DP-1V(56) - Manufacturer: Hirose Connector PN DF20A-40DS-1C - Manufacturer: Hirose Mating Connector PN Pinout Revision 0.01... -
Page 12: Idc Serial Management Connector (Xdg004/5/6)
Connect Tech – Xtreme/GbE - User Manual IDC Serial Management Connector (XDG004/5/6) Serial Management Connector Function Locations Top view TSW-105-08-L-D-RA - Manufacturer: Samtec Connector PN: Mating Any IDC 2x5 0.1” pitch female assembly. Connector PN: Pinout Signal Side view looking at connector... -
Page 13: System Jumper Block
Connect Tech – Xtreme/GbE - User Manual System Jumper Block System Jumper Block Function Locations J1 2x3 (or 2x4) 2mm pitch Jumper Block Type Pinout Signal Name Description RESET# JUMPER ON = XDG goes into reset JUMPER OFF = XDG... -
Page 14: Pc/104 Connector
Connect Tech – Xtreme/GbE - User Manual PC/104 Connector PC/104 Connector Function Locations P9, P10 Type PC/104 Stacking Connector Pinout compliant to PC/104 specification Pinout pinout. This connector is only used to * Shown uninstalled source power for the board (+12V), all other pins will be pass-through. -
Page 15: Input Power
Connect Tech – Xtreme/GbE - User Manual Input Power The Xtreme/GbE can be powered by EITHER an external 3.5mm pitch Phoenix style connector OR directly via the PC/104 or PCIe/104 bus. Powering via the Phoenix style connector is called standalone mode ... -
Page 16: On-Board Indicator Leds
Connect Tech – Xtreme/GbE - User Manual On-board Indicator LEDs Function Details Xtreme/GbE Main Status LED Normal behavior = blinking every 1000ms Programming = blinking every 100ms Firmware Check Error = blinking every 100ms (with D2) Xtreme/GbE Error State LED... -
Page 17: Advanced Management Interface
CLI Management via the External Serial Port All models of the Xtreme/GbE product have an external serial port connector which is used to access the CLI management interface. Ensure Jumper J1 position D is OFF if you want to access the CLI via the External Serial Port. -
Page 18: Cli Commands
The show command will be where you can view all status and current configuration settings of the Xtreme/GbE. Type show ? for details on what can be viewed. Some examples of using show would be: show ip interface brief... -
Page 19: Web Gui Management Interface
Setup your host PC’s IP address to be on the same subnet as Xtreme/GbE (192.168.42.X) Open a web browser and go to the 192.168.42.1 address. Now you should see the login screen and from here you can setup the Xtreme/GbE to an IP address on your network. -
Page 20: Web Gui Management Overview
Connect Tech – Xtreme/GbE - User Manual Web GUI Management Overview Logout Button Help Button Press at any page to get detailed information on what the settings are, and what to change. Configuration Current Page Details Settings Monitor Status and... -
Page 21: Factory Default Configuration
Connect Tech – Xtreme/GbE - User Manual Factory Default Configuration The factory default configuration is a VLAN unaware L2 switch with automatic learning/ageing and auto negotiation enabled on all ports: System: The system name string is empty. Console: The password string is empty and inactivity timeout is disabled. The prompt is “#”. -
Page 22: Typical Hardware Installation Procedure
Connect Tech – Xtreme/GbE - User Manual Typical Hardware Installation Procedure Instructions for Standalone Operation Ensure all external system power supplies are off. Plug in external power into the external input power connector. Ensure voltage is in the range of +9V to +36V... -
Page 23: Stacking Multiple Xtreme/Gbe Boards To Achieve Higher Port Densities
Stacking Multiple Xtreme/GbE Boards to Achieve Higher Port Densities Due to the stacking nature of the PC/104 and PCIe/104 for factor board, the Xtreme/GbE can easily be stacked with other XDGs to achieve higher switch port densities. Some simple topology examples are listed below to achieve 7 downstream ports with one XDG, 13 downstream ports with two XDG’s and 20... -
Page 24: Thermal Details
Connect Tech – Xtreme/GbE - User Manual Thermal Details All components on the Xtreme/GbE Managed Carrier Ethernet Switch rare rated to a maximum operating temperature of -40°C to +85°C. The carrier has been fully tested to run in both extremes in an environmental test chamber with 125 CFM of airflow. -
Page 25: Mechanical Details
Connect Tech – Xtreme/GbE - User Manual Mechanical Details 3D STEP Model Download A complete set 3D STEP Model files for the Xtreme/GbE products can be downloaded here: http://www.connecttech.com/ftp/3d_models/XDG-Gen2_3D_MODEL.zip 2-D Dimension Drawings All dimensions are in millimeters. Below is a dimensioned drawing of the XDG004. These measurements will be the same for the XDG005 and XDG006 as well. - Page 26 Connect Tech – Xtreme/GbE - User Manual Below is a dimensioned drawing of the XDG007. These measurements will be the same for the XDG008 and XDG009 as well. Revision 0.01...
-
Page 27: Cables And Cable Kit Information
Connect Tech – Xtreme/GbE - User Manual Cables and Cable Kit Information The Xtreme/GbE Managed Carrier Ethernet Switch has various cabling options. Cables XDG004/5/6 Models CAG104 - These models each ship with a 2x5 0.1” IDC to DB-9 cable (CAG104) to access the serial management interface. -
Page 28: Detailed Cable Information
Connect Tech – Xtreme/GbE - User Manual Detailed Cable Information RJ-45 panel mount to 10-pin MiniTek w/Latch - CBG117 10-pin RJ45 (8P8C) Signal MiniTek MX1- MX1+ MX2- MX2+ SHELL SHELL SHELL SHELL MX3- MX3+ MX4- MX4+ Revision 0.01... -
Page 29: Panel Mount To Rj-35 - P115-012
Connect Tech – Xtreme/GbE - User Manual RJ-45 panel mount to RJ-35 - P115-012 RJ45 (8P8C) RJ45 (8P8C) Signal Male Female MX1- MX1+ MX2- MX2+ MX3- MX3+ MX4- MX4+ Revision 0.01... -
Page 30: Db-9 To 10-Pin Idc Cable - Cag104
Connect Tech – Xtreme/GbE - User Manual DB-9 to 10-pin IDC cable – CAG104 2x5 0.1” IDC DB-9 Signal Side A Side B Revision 0.01... -
Page 31: Db-9 To 10-Pin Minitek W/Latch - Cbg117
Connect Tech – Xtreme/GbE - User Manual DB-9 to 10-pin MiniTek w/Latch - CBG117 DB-9 2x5 2mm Minitek Signal Revision 0.01...
