Hamlet XZMP3128 User Manual

Magicstar mp3 usb flash drive
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

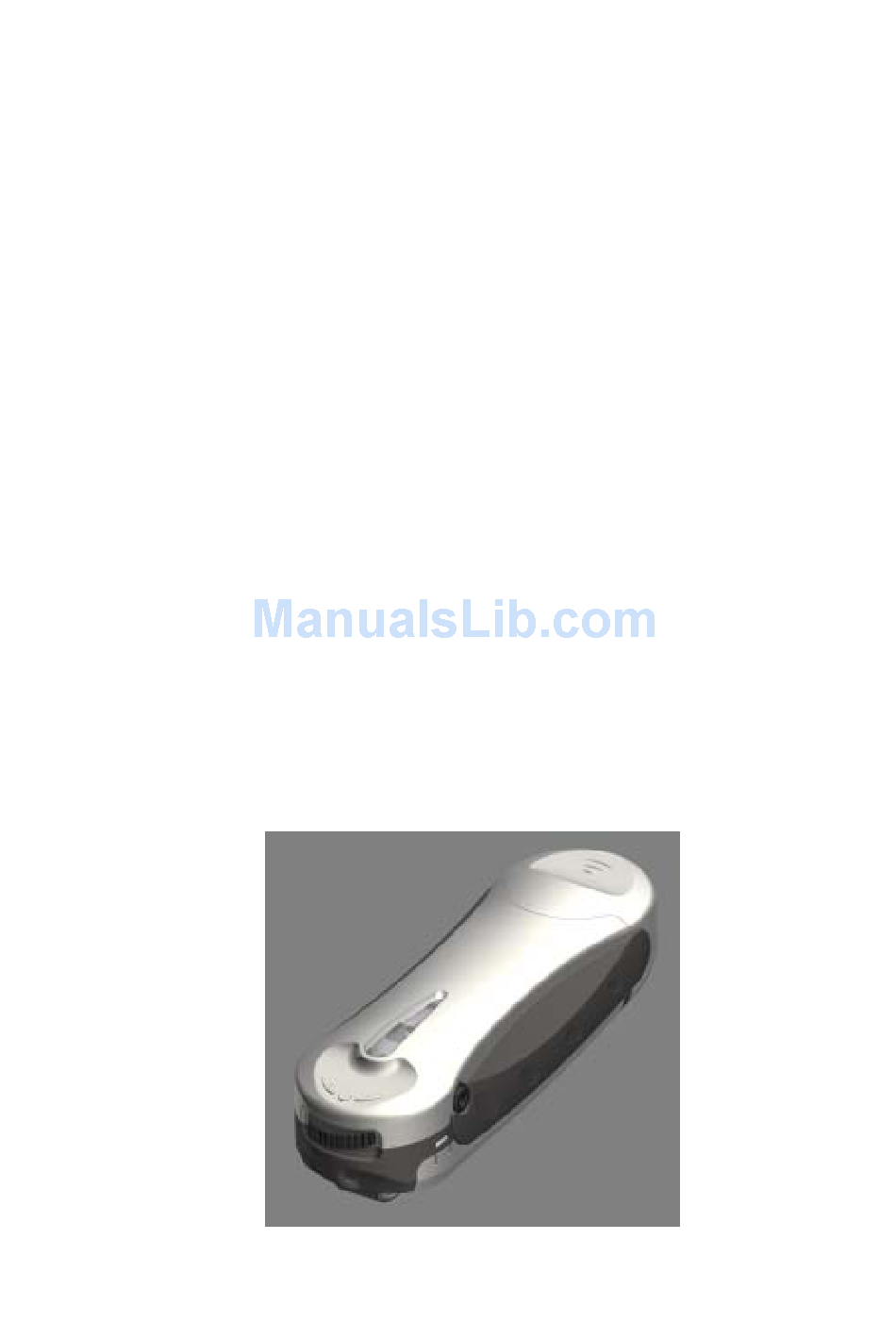

MagicStar
MP3 USB Flash Drive
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XZMP3128 and is the answer not in the manual?

Questions and answers

Related Manuals for Hamlet XZMP3128

Summary of Contents for Hamlet XZMP3128

  • Page 1 MagicStar MP3 USB Flash Drive User Manual...

  • Page 2: Table Of Contents

    Table of Contents Introduction 1.1 About MagicStar MP3-------------------------------------------------------------2 1.2 Features -----------------------------------------------------------------------------3 How to use MP3 player Mechanical parts------------------------------------------------------------------4 How to install battery-------------------------------------------------------------4 Function-----------------------------------------------------------------------------5 How to Install / Modify / Repair / Remove driver 3.1 Windows 98 / 98SE Installation ----------------------------------------------- 10 3.2 Modify or Repair driver for Windows 98 / 98SE---------------------------- 12 3.3 Remove driver from Windows 98 / 98SE------------------------------------ 14 3.4 Windows 2000 / ME / XP Installation----------------------------------------- 16...

  • Page 3: Introduction

    Important Notice: Some of computers may have power leaky or other problems, to avoid any direct damage caused to MagicStar MP3, we suggest you use extension cable, USB hub or docking station to connect MagicStar MP3 to your computer. Do not straightly plug MagicStar MP3 to computer. 1.

  • Page 4: Features

    1.2 Features Current available: 64MB / 128MB / 256MB - Support music format: MP3 - Earphone jack: 2.5 mm - Audio output: 5mW+5mW - Output frequency range: 20HZ – 20KHZ - Battery: Lithium-ION 500mA 3.7V, continue using player at lease 6 hours at full-charge.

  • Page 5: How To Use Mp3 Player Mechanical Parts

    2. How to use MP3 player 2.1 Mechanical parts 2.2 How to install battery 1. Please remove battery cover by press two sides and take out. 2. Connect battery’s cord to the power port. 3. Put back battery cover. 4. Please connect to USB port to charge battery when you first time use it.

  • Page 6: Function

    2.3 Function: MP3 player mode 1. Power on when earphone plugged. (earphone port is 2.5mm)
  • Page 7 Press the Control Switch button once: Play / Pause Slide to right side and hold: volume raise Slide to left side and hold: volume low down Volume down Volume raise...
  • Page 8 4. Quick pull to right side: next song Quick pull to left side: previous song previous song next song 5. Power LED: (i) Orange LED on indicates battery in charge. Plug MagicStar MP3 into USB port to re-charge battery through computer. (ii) Green LED on indicates battery is in full charge.
  • Page 9 6. Play LED: (i) Red LED indicates you are using MP3 player mode. (ii) Red LED quickly flashes when no MP3 file found. (iii) Red LED slowly flashes when you pause MP3 player. (iv) Green LED indicates you are using USB removable disk mode. (v) Green LED blinking when you are reading/writing from/on USB removable disk.
  • Page 10 7. To charge battery: take off cap and plug into USB port of notebook or desktop computer to charge battery. For better usage, please charge at least 1 hour and 45 minutes.

  • Page 11: How To Install / Modify / Repair / Remove Driver

    3. How to Install / Modify / Repair / Remove driver 3.1 Windows 98/98SE Installation¡ G (1) Go to CD or floppy disk driver in “My Computer.” (2) Execute “Setup.exe” by double click on the icon. (3) Follow up the instruction by click “Next”.
  • Page 12 (4) System will install all the necessary files into your Windows operating system. After setup installation completed, click “OK” to restart computer. Once installation is finished completely, you can see a “Removable Disk” in “My Computer” when you plug MagicStar MP3.

  • Page 13: Modify Or Repair Driver For Windows 98 / 98Se

    3.2 Modify or repair driver for Win 98 / Win 98 SE (1) If you have installed the driver once before. When execute the “Setup.exe” file again, you will see the following screen. If somehow the driver is wrong or damaged, you can select “Repair”.
  • Page 14 (3) Click “Finish” to complete modification.

  • Page 15: Remove Driver From Windows 98 / 98Se

    3.3 Remove driver from Win 98 / Win 98 SE (1) To remove driver from operating system. Execute the “Setup.exe” file from CD driver disk again. Select “Remove” and click “Next”. (2) System will then ask you to confirm deletion. Click “OK”. (3) This screen may or may not appear.
  • Page 16 (4) Click “Finish” to complete the process of removing device driver from system.

  • Page 17: Windows 2000 / Me / Xp Installation

    3.4 Windows ME / Windows 2000 / XP Installation For these three operating systems, NO Driver is needed, because Windows has built-in driver to support USB removable disk. Simply plug MagicStar MP3 into the USB port and it will be recognized by the system. System will setup MagicStar MP3 automatically without any further installation of driver.

  • Page 18: Linux 2.4.0 + / Mac 8.6 + Installation

    5 Linux 2.4.0 + / Mac 8.6 + Installation Again, No Driver is required for these two operating systems. Simply plug the MagicStar MP3 into the USB port and the system will automatically find MagicStar MP3. After using MagicStar MP3, you could unplug MagicStar MP3 from the USB port directly once the LED stops blinking, then its icon would disappear automatically.
  • Page 19 6.2 Mail account setting: Choose Tools/Account setting, you'll see the following screen: (1) This program can import existing Outlook Express accounts directly. Just click here (the right side) and choose the account name you're going to import. (2) You may click here to recall existing accounts. This is useful when you want to modify or copy an account.
  • Page 20 P.S. You may establish many mail accounts in the same way. You may also delete a saved account by entering the account name first, then click "Delete" button. OK! You may start to receive mails now! Just click the button. 6.3 Mail sending/receiving settings: When you go traveling with your MagicStar MP3, and you don’t want to leave your log on other machine, you can set up in this way.
  • Page 21 on the server. After you’re back from traveling, you can download again your mails from server to your personal computer. (1) Choose [Tools]/[Options] on the main menu. (2) Select [Receive settings] and check "Do not delete mails from POP3 server" here.
  • Page 22 6.5 Mail Composition: (1) Click [File]/[New Mail] to create a new mail. After you finish all the editing of your mail, you may click "Save" to hold this mail into Outbox, or choose “Send Immediately" to send it right away. (2) Write HTML Mails: Click [Format]/[Rich Text - HTML] to go into HTML editing mode.

  • Page 23: Important Notices

    6.7 Password: (1) Set up password: Choose [Tools]/[Set password to protect account info] (2) Cancel password: Choose [Tools]/[Set password to protect account info]. Leave it blank and click “OK”, then the existing password will be canceled. ¡ G Important Notices (i) In OS Windows 98/98SE, if you don’t set up installation firstly, system will ask you to put driver disk for running installation.

This manual is also suitable for:

Xzmp3512Xzmp3256
