INSTALLATION
AND SERVICE MUST BE PERFORMED BY A
QUALIFIED
INSTALLER.
IMPORTANT:
SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
_FOR
YOUR SAFETY: Do not store or use gasoline
or other
iflammable
vapors and liquids
in the vicinity
of this or any other appliance,

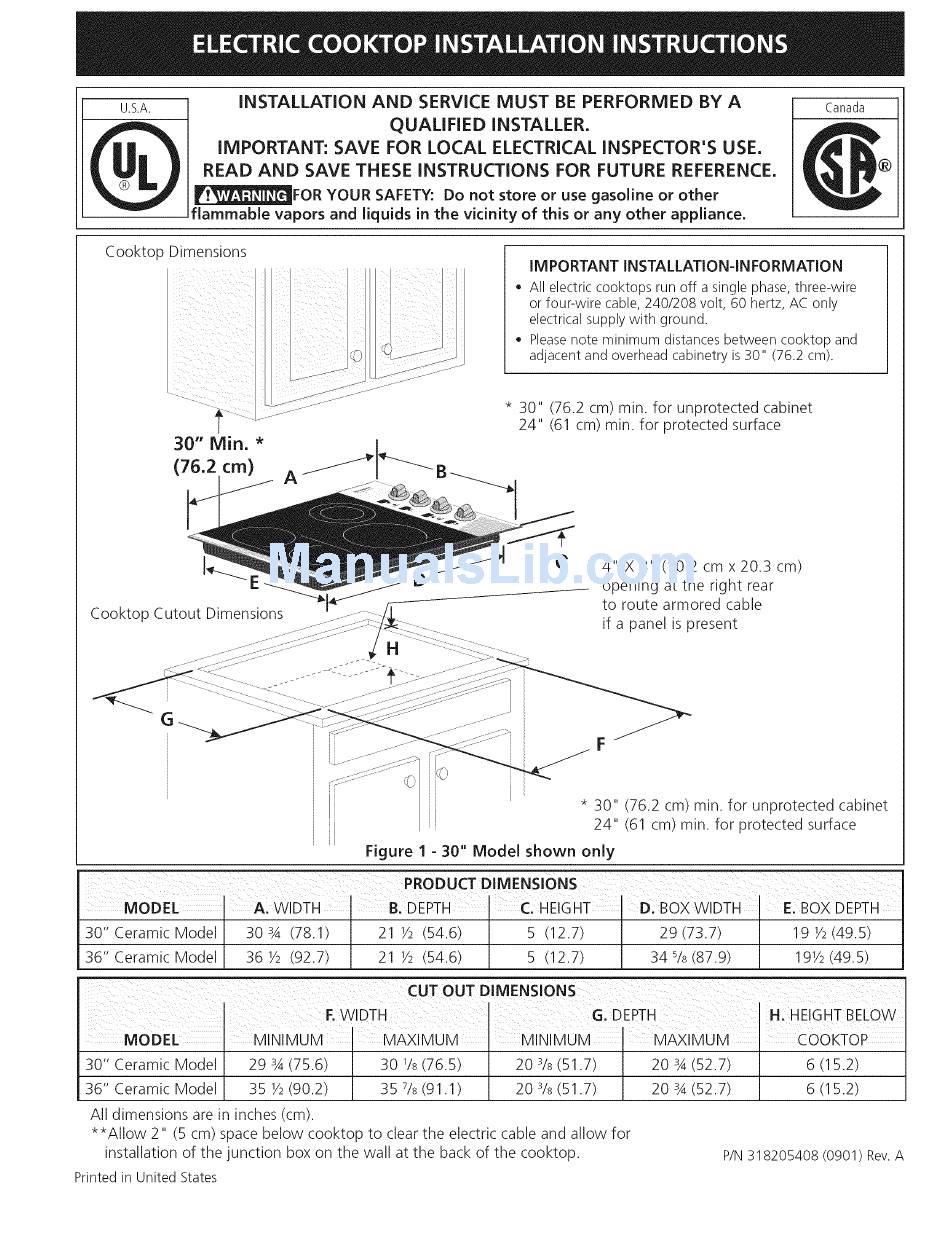

Cooktop Dimensions
IMPORTANT INSTALLATION-IN FORMATION
o All electric cooktops run off a single phase, three-wire
or four-wire cable, 240/208 volt, 60 hertz, AC only
electrical supply with ground.
Please note minimum distances between cooktop and
adjacent and overhead cabinetry is 30" (76.2 cm).
* 30" (76.2 cm) min. for unprotected cabinet
24" (61 cm) min. for protected surface
Cooktop Cutout Dimensions
C
4" X 8" (10.2 cm x 20.3 cm)
opening at the right rear
to route armored cable
if a panel is present
i
G
CUT OUT DIMENSIONS
i<_:: k :/::/<< < ¢: %t:i F.WiDTH
:)::: <(::::!f (>:: iL: ¸GIDERTH:
:C:: Lt: ¸ ":HEIGHT
BELOW
MODEL
MINIMUM
MAXIMUM
MINIMUM
'
MAXIMUM
COOKTOP
30" Ceramic Model
29 sA(75.6)
30 l/s (76.5)
20 s/s(51.7)
36" Ceramic Model
35 1/2(90.2)
35 7/s(91.1)
20 s/s(51.7)
All dimensions are in inches (cm).
**Allow 2" (5 cm) space below cooktop to clear the electric cable and allow for
installation of the junction box on the wall at the back of the cooktop.
Printed in United States
20 sA(52.7)
20 3A(52.7)
6 (1 5,2)
6 (1 5,2)
P/N 318205408 (0901) Rev.A
ii
°_-2<
- -
* 30" (76,2 cm) min. for unprotected cabinet
24" (61 cm) min. for protected surface
Figure 1 =30" Model shown only
PRODUCT DIMENSIONS
MODEL
A: WIDTH
B: DEPTH
WIDTH
DEPTH
30" Ceramic Model
30 3A (78.1)
21 1/2(54.6)
5 (12.7)
29 (73.7)
19 1/2(49.5)
36" Ceramic Model
36 1/2 (92.7)
21 1/2(54.6)
5 (12.7)
34 % (87.9)
191/2(49.5)
