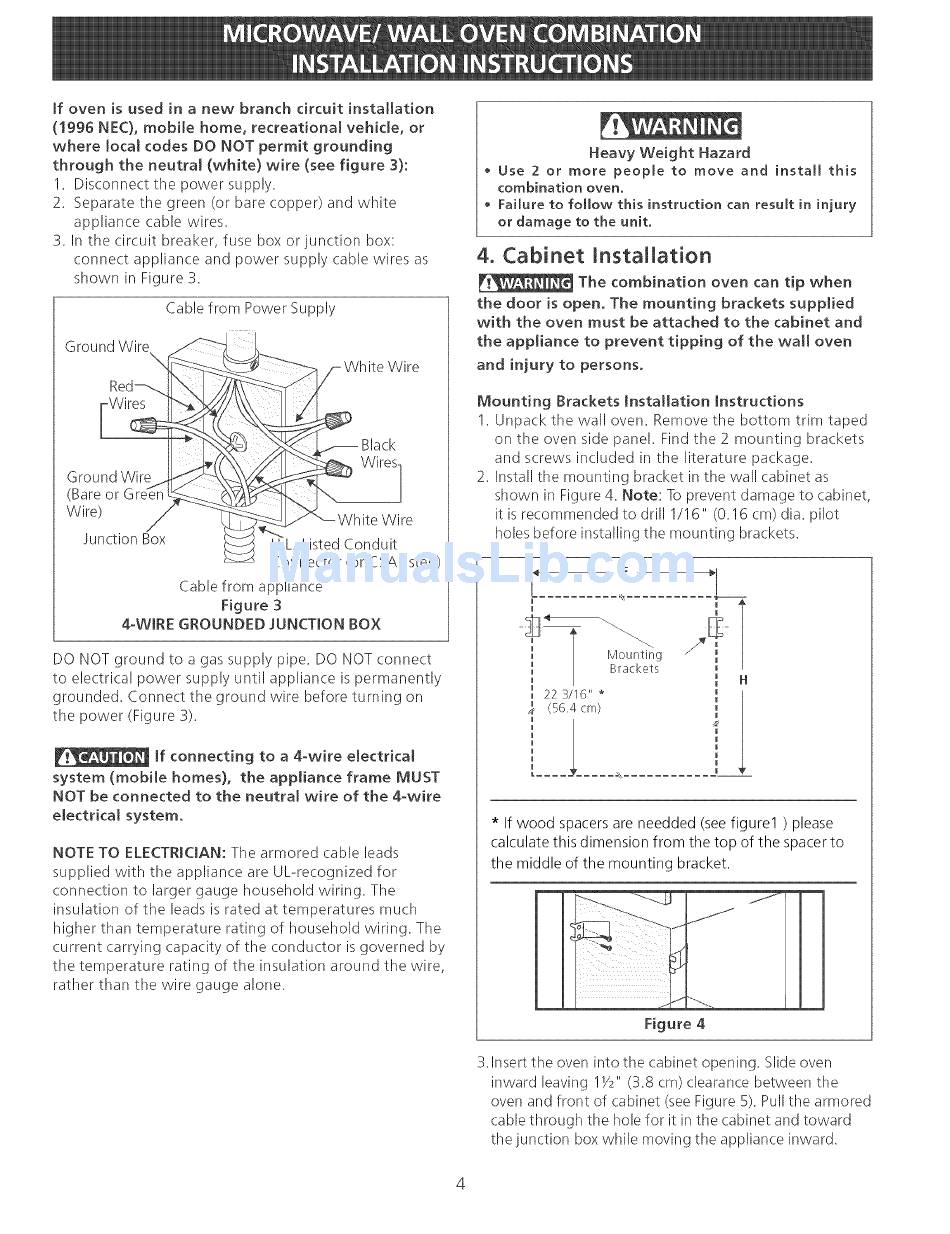

Cabinet Installation - Frigidaire GLEB27M9FQA Installation Instructions Manual

27" (68.6 cm), 30" (76.2 cm) microwave/wall oven combination
Hide thumbs

Advertisement

tf oven is used in a new branch circuit installation
(!996 NEC), mobile
home, recreational
vehicle,
or
where
tocal codes DO NOT permit
grounding
through
the neutrat (white)
wire (see figure
3):
1. Disconnect the power supply.
2. Separate the green (or bare copper) and white
appliance (:able wires.
3. In the circuit breaker, fuse box or junction box:
connect appliance and power supply cable wires as
shown in Figure 3.
Cable from Power Supply
Ground
Wires
Ground Wire
(Bare
Wire)
Junction Box
U.L.-Listed Conduit
Connector (or CSA listed)
Cable from appliance
Figure 3
4-WIRE GROUNDED JUNCTION BOX
DO NOT ground to a gas supply pipe. DO NOT connect
to electrical power supply until appliance is permanently
grounded. Connect the ground wire before turning on
the power (Figure 3).
If connecting
to a 4-wire
electrical
system (mobile
homes),
the appliance
frame MUST
NOT be connected
to the neutral
wire of the 4-wire
electrical
system.
NOTE TO ELECTRICIAN: The armored cable leads
supplied with the appliance are Ubrecognized
for
connection to larger gauge household wiring. The
insulation of the leads is rated at temperatures much
higher than temperature rating of household wiring. The
current carrying capacity of the conductor is governed by
the temperature rating of tile insulation around the wire,
rather than tile wire gauge alone.
Heavy
Weight
Hazard
Use 2 or more
people
to move
and
install
this
combination
oven.
Failure to follow
this instruction
can result
in injury
or damage
to the unit.
4. Cabinet
Installation
The combination
oven can tip when
the door is open. The mounting
brackets supplied
with the oven must be attached
to the cabinet
and
the appliance
to prevent
tipping
of the wail oven
and injury
to persons.
Mounting
Brackets Installation
Instructions
1. Unpack the wall oven. Remove the bottom trim taped
on the oven side panel. Find the 2 mounting brackets
and screws included in the literature package.
2. Install tile mounting bracket in the wall cabinet as
shown in Figure 4. Note: To prevent damage to cabinet,
it is recommended to drill 1/16" (0.16 cm) dia. pilot
holes before installing the mounting brackets.
H
H
22 3/16"
*
(56.4 cm)
T
H
* If wood spacers are needded (see figure1 ) please
calculate this dimension from the top of the spacer to
the middle of the mounting bracket.
j_m
J
Figure 4
3. Insert the oven into the cabinet opening. Slide oven
inward leaving !_/2" (3.8 cm) clearance between the
oven and front of cabinet (see Figure 5). Pull the armored
cable through the hole for it in the cabinet and toward
the junction box while moving the appliance inward.
