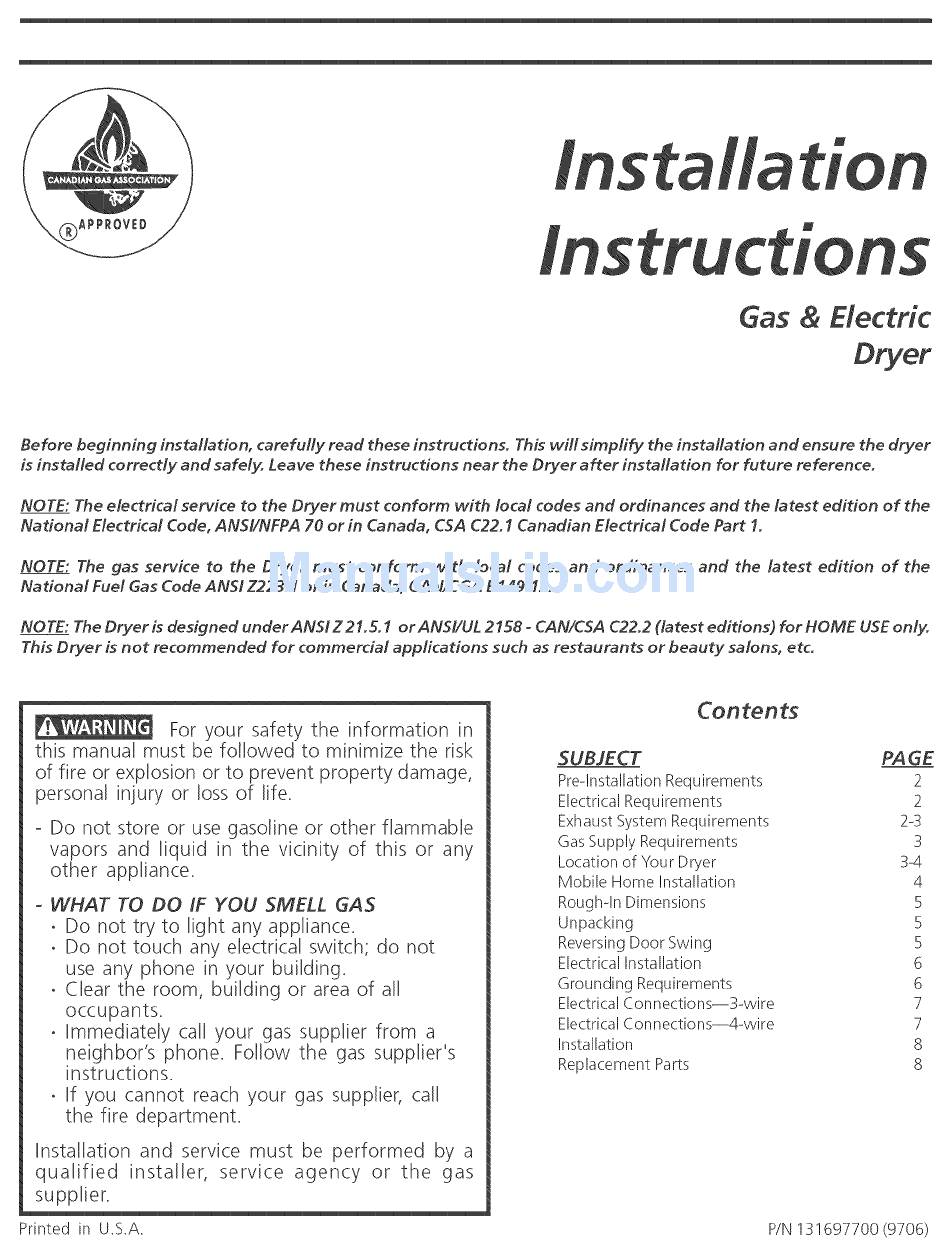

Gas & Electric
Dryer
Before beginning
installation,
carefully
read these instructions.
This will simplify
the installation
and ensure
the dryer
is installed
correctly
and safely.
Leave these
instructions
near the Dryer after installation
for future
reference.
NOTE: The electrical
service
to the Dryer must conform
with local codes and ordinances
and the latest edition
of the
Nationa!
Electrical Code, ANSI/NFPA
70 or in Canada, CSA C22.1 Canadian
Electrica! Code Part 1.
NOTE: The gas service
to the Dryer must
conform
with
local codes
and ordinances
and the latest
edition
of the
National
Fuel Gas Code ANSI Z223.1 or in Canada, CAN/CGA B 149.12.
NO TE: The Dryer is designed
under ANSI Z21.5.1
or ANSI/UL 2158 - CAN/CSA C22.2 (latest editions)
for HOME USE only.
This Dryer is not recommended
for commercial
applications
such as restaurants
or beauty
salons,
etc.
For your safety the information
in
this manual must be followed
to minimize the risk
of fire or explosion or to prevent property damage,
personal injury or loss of life.
- Do not store or use gasoline or other flammable
vapors and liquid
in the vicinity
of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
. Do not try to light any appliance.
. Do not touch any electrical switch; do not
use any phone in your building.
. Clear the room, building
or area of all
occupants.
, Ummediately call your gas supplier from a
neighbor's
phone. Follow the gas supplier's
instructions.
, If you cannot reach your gas supplier, call
the fire department.
UnstalIation and service must be performed
by a
qualified
installer,
service
agency
or the gas
supplier.
Printed in U.S.A.
Contents
SUBJECT
Pre-lnstallation Requirements
Electrical Requirements
Exhaust System Requirements
Gas Supply Requirements
Location of Your Dryer
Mobile Home Installation
Rough-In Dimensions
Unpacking
Reversing Door Swing
Electrical Installation
Grounding Requirements
Electrical Connections--3-wire
Electrical Connections--4-wire
Installation
Replacement Parts
PAGE
2
2
2-3
3
34
4
5
5
5
6
6
7
7
8
8
P/N 131697700 (9706)
