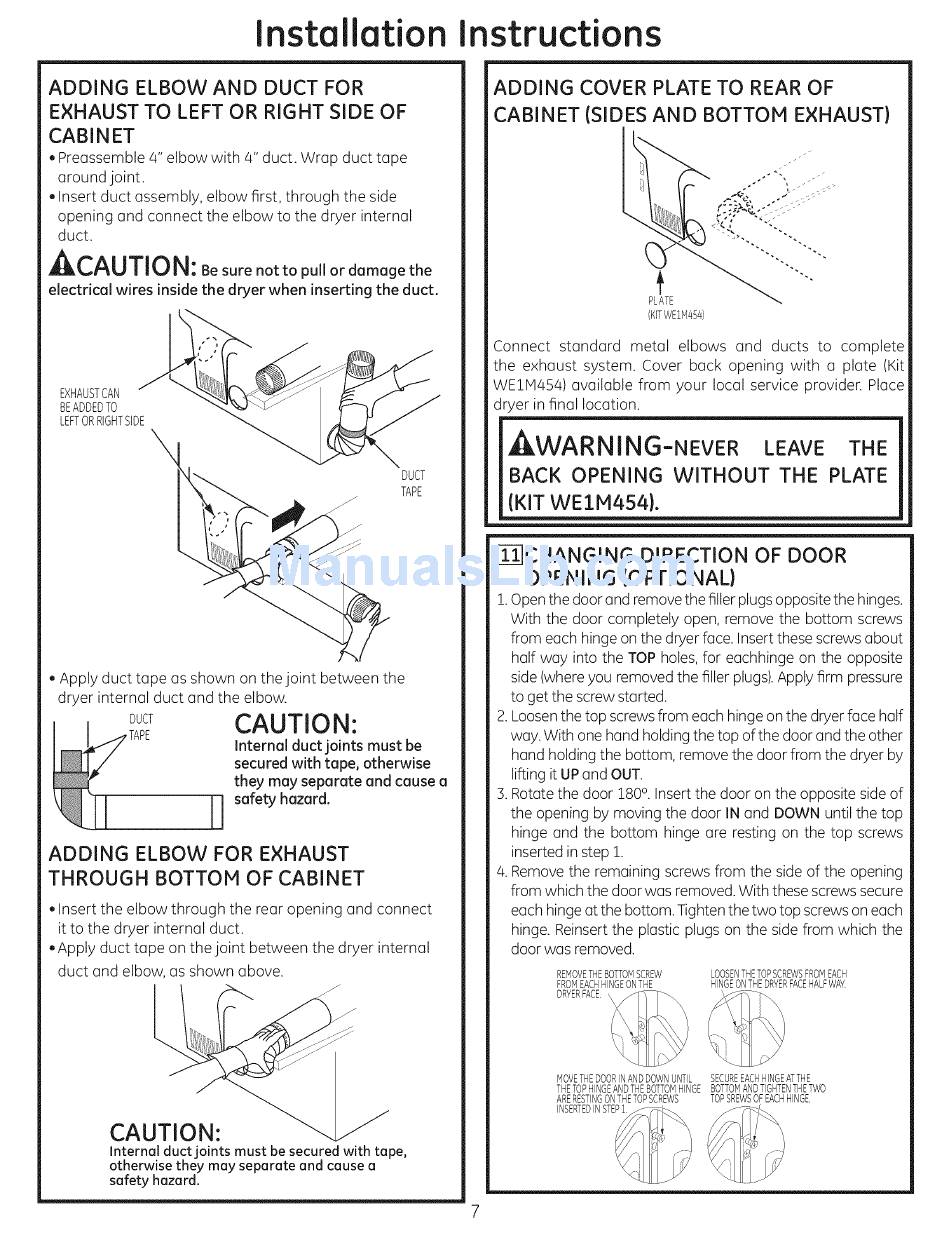

Installation instructions
ADDING ELBOW AND DUCT FOR
EXHAUST TO LEFT OR RIGHT SIDE OF
CABINET
. Preassemble 4" elbow with 4" duct. Wrap duct tape
around joint.
, Insert duct assembly, elbow first, through the side
opening and connect the elbow to the dryer internal
duct.
IL, CAUTIO N: Be sure not t opu,
or damage
the
electrical wires inside the dryer when inserting the duct.
EXHAUST CAN
BEADDED T O
LEFT O R RIGHT S IDE
. Apply duct tape as shown on the joint between the
dryer internal duct and the elbow.
DUCT CAUTION:
internal duct joints must be
secured with tape, otherwise
they may separate and cause a
U safety hazard.
ADDING ELBOW FOR EXHAUST
THROUGH BOTTOM OF CABINET
. Insert the elbow through the rear opening and connect
it to the dryer internal duct.
. Apply duct tape on the joint between the dryer internal
duct and elbow, as shown above.
J
CAUTION:
Internal duct joints must be secured with tape,
otherwise they may separate and cause a
safety hazard.
ADDING COVER PLATE TO REAR OF
CABINET {SIDES AND BOTTOM EXHAUST}
Connect standard metal elbows and ducts to complete
the exhaust system. Cover back opening with a plate (Kit
WEIM45/4) available from your local service provider. Place
dryer in final location.
_WARNING-NEVER
LEAVE THE
BACK OPENING WITHOUT THE PLATE
(KIT WEIM454).
[i-ilCHANGING DIRECTION OF DOOR
OPENING {OPTIONAL}
1.Open the door and remove the filler plugs opposite the hinges.
With the door completely open, remove the bottom screws
from each hinge on the dryer face. Insert these screws about
half way into the TOP holes, for eachhinge on the opposite
side (where you removed the filler plugs).Apply firm pressure
to get the screw started.
2. Loosenthe top screws from each hinge on the dryer face half
way. With one hand holding the top of the door and the other
hand holding the bottom, remove the door from the dryer by
lifting it UPand OUT.
3. Rotate the door 180°. Insert the door on the opposite side of
the opening by moving the door IN and DOWN until the top
hinge and the bottom hinge are resting on the top screws
inserted in step 1.
4. Remove the remaining screws from the side of the opening
from which the door was removed. With these screws secure
each hinge at the bottom. Tighten the two top screws on each
hinge. Reinsertthe plastic plugs on the side from which the
door was removed.
REMOVE THE BOTTOM SCREW
FROM EACH HINGE O NTHE
DRYER FACE. \
LOOSEN THE TOP SCREWS FROM EACH
HINGE O N THEDRYER FACE H ALFWAY.
MOVE THE DOOR INAND DOWN UNTIL SECURE EACH HINGEATTHE
THE TOP HINGE A ND THE BOTTOM HINGE BOTTOM AND TIGHTEN THETWO
ARE RESTING ONTHE TOP SCREWS TOP BREWB OF EACH HINGE,
INBER_-ED INSTEP 1.
