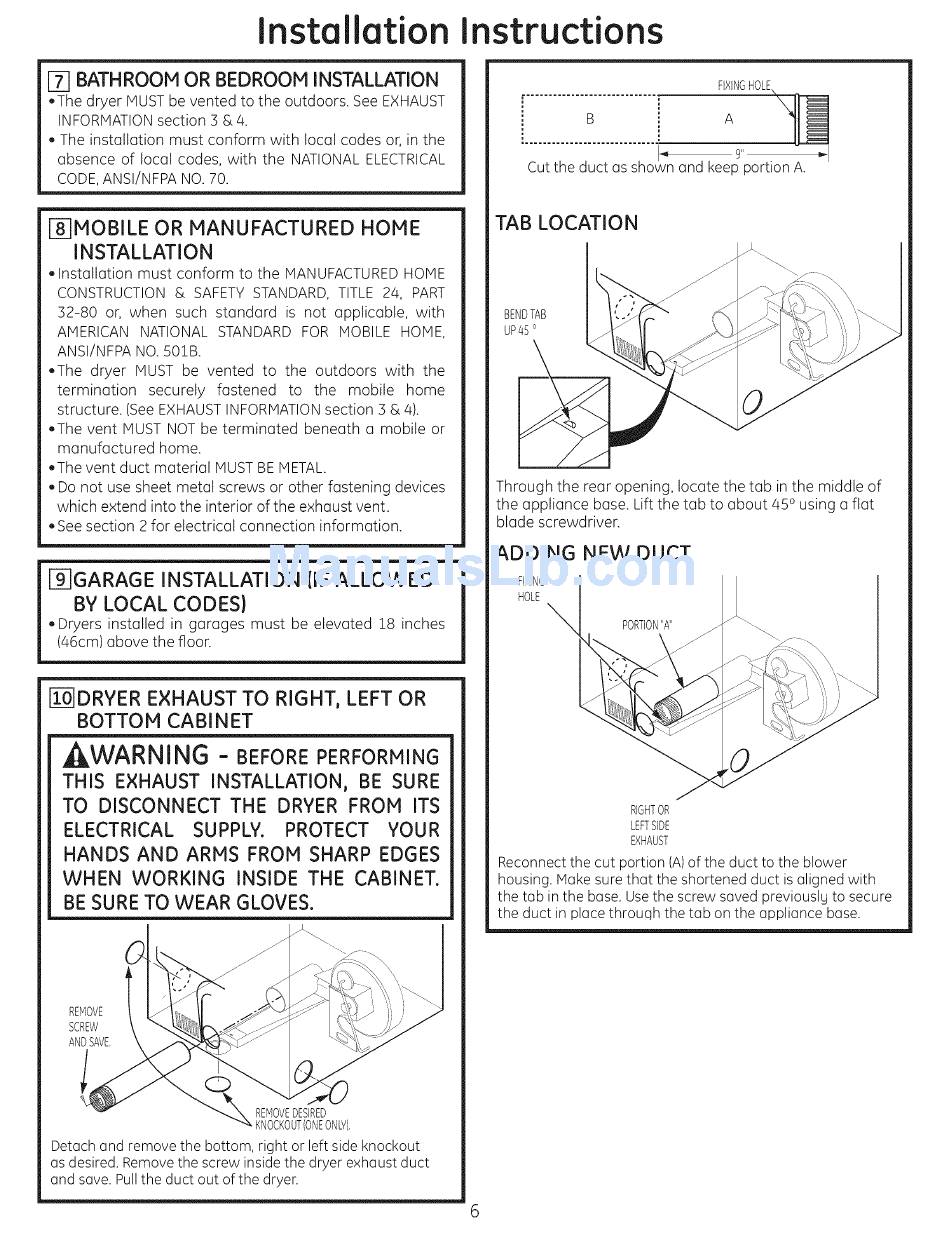

Installation Instructions
[77BATHROOM OR BEDROOM iNSTALLATiON
.The dryer MUST be ventedtotheoutdoors. See EXHAUST
INFORMATION section 3 &4.
. The installation must conform with local codes or, in the
absence of local codes, with the NATIONAL ELECTRICAL
CODE,ANSI/NFPA NO. 70.
F87MOBILE OR MANUFACTURED HOME
INSTALLATION
, Installation must conform to the MANUFACTURED HOME
CONSTRUCTION& SAFETY STANDARD, TITLE 24, PART
32-80 or, when such standard is not applicable, with
AMERICAN NATIONAL STANDARD FOR MOBILE HOME,
ANSI/NFPA NO. 501B.
,The dryer MUST be vented to the outdoors with the
termination securely fastened to the mobile home
structure. (See EXHAUSTINFORMATION section 3 & 4).
,The vent MUST NOT be terminated beneath a mobile or
manufactured home.
,The vent duct material MUSTBE METAL.
, Do not use sheet metal screws or other fastening devices
which extend into the interior of the exhaust vent.
, See section 2 for electrical connection information.
F9]GARAGE INSTALLATION (IF ALLOWED
BY LOCAL CODES)
. Dryers installed in garages must be elevated 18 inches
(46cm) above the floor.
[rO7DRYER EXHAUST TO RIGHT, LEFT OR
BOTTOM CABINET
,AWARNING - BEFORE PERFORMING
THIS EXHAUST INSTALLATION, BE SURE
TO DISCONNECT THE DRYER FROM ITS
ELECTRICAL SUPPLY. PROTECT YOUR
HANDS AND ARMS FROM SHARP EDGES
WHEN WORKING INSIDE THE CABINET.
BE SURE TO WEAR GLOVES.
REMOVE
SCREW
ANDSAVE.
REMOVE DESIRED
KNOCKOUT(ONE ONLY).
Detach and remove the bottom, right or left side knockout
as desired. Remove the screw inside the dryer exhaust duct
and save. Pull the duct out of the dryer.
B A
J_ 9" _J
Cut the duct as shown and keep portion A.
TAB LOCATION
BEND TAB
UP45 o
Through the rear opening, locate the tab in the middle of
the appliance base. Lift the tab to about 45 o using a flat
blade screwdriver.
ADDING NEW DUCT
FIXING
HOLE
PORTION "A"
RIGHT O R
LEFT S IDE
EXHAUST
Reconnect the cut portion (A)of the duct to the blower
housing. Make sure that the shortened duct is aligned with
the tab in the base. Use the screw saved previouslg to secure
the duct in place throuqh the tab on the appliance base.
