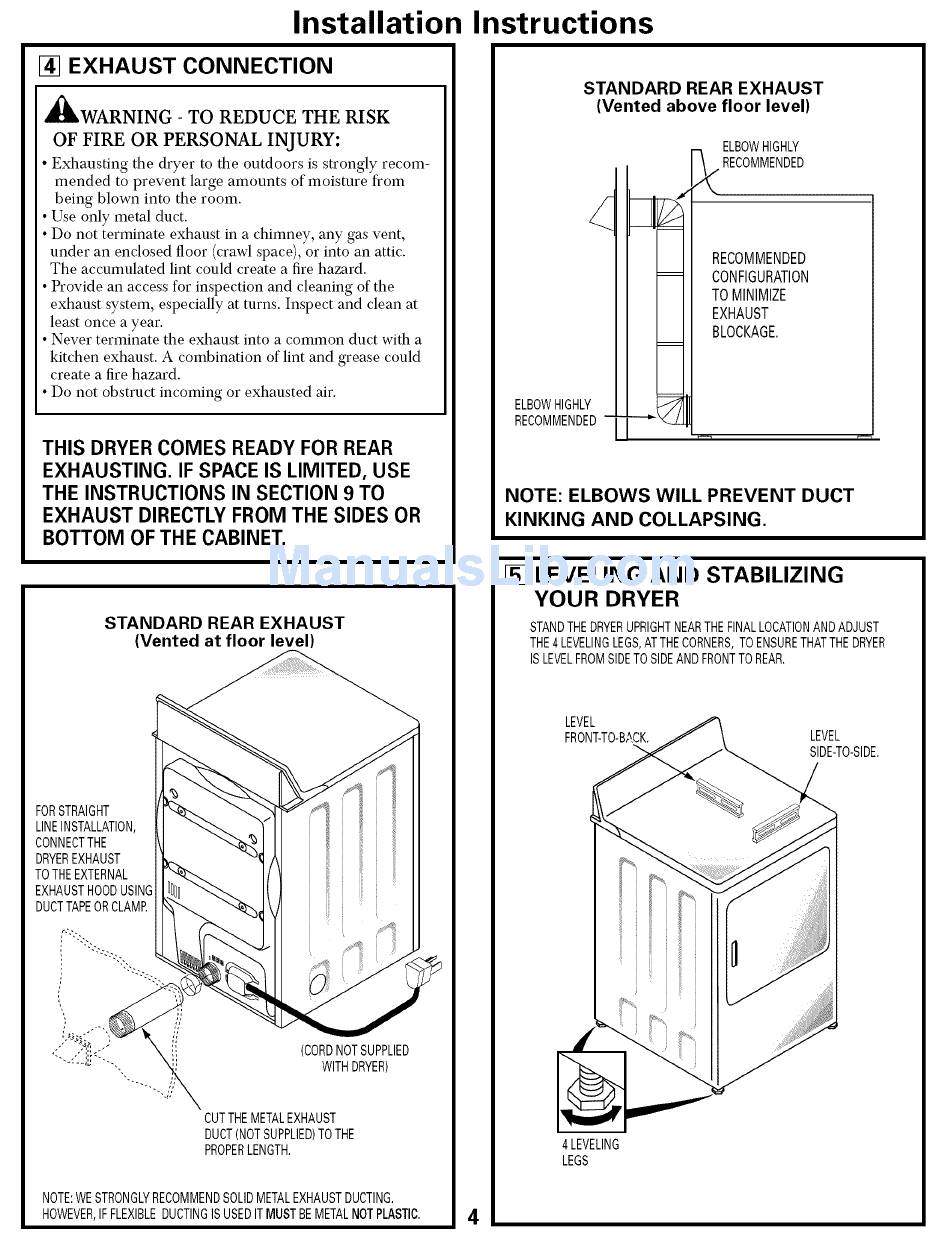

Installation
Instructions
[] EXHAUST
CONNECTION
_I_WARNING
- TO REDUCE
THE
RISK
OF FIRE OR PERSONAL
INJURY:
• Exhausting
the dryer
to the outdoors
is strongly
recom-
mended
to prevent
large amounts
of moisture
from
being
blown
into the room.
• Use only metal duct.
• Do not terminate
exhaust
in a chimney,
any gas vent,
under
an enclosed
floor (crawl space),
or into an attic.
The accumulated
lint could create a fire hazard.
• Provide
an access
for inspection
and cleaning
of the
exhaust
system,
especially
at turns. Inspect
and clean at
least once a year.
• Never terminate
the exhaust
into a common
duct with a
kitchen
exhaust.
A combination
of lint and grease
could
create a fire hazard.
• Do not obstruct
inconfing
or exhausted
air.
THIS DRYER COMES READY FOR REAR
EXHAUSTING. IF SPACE IS LIMITED, USE
THE INSTRUCTIONS IN SECTION 9 TO
EXHAUST DIRECTLY FROM THE SIDES OR
BOTTOM OF THE CABINET,
STANDARD
REAR EXHAUST
(Vented
above floor level)
ELBOW HIGHLY
RECOMMENDED
ELBOW HIGHLY
_
RECOMMENDED
RECOMMENDED
=
CONHGURATION
TO MINIMI7E
EXHAUST
BLOCKAGE.
NOTE: ELBOWS WILL PREVENT
DUCT
KINKING
AND COLLAPSING.
STANDARD
REAR EXHAUST
(Vented
at floor level)
FOR STRAIGHT
LINE INSTALLATION,
CONNECT THE
DRYER E XHAUST
TOTHE EXTERNAL
EXHAUST H OOD USIN(
DUCT TAPE ORCLAMR
i,.: " J
(CORD NOT SUPPLIED
""-,,
WITHDRYER)
• ",7,'
CUT THEMETAL E XHAUST
DUCT (NOT SUPPLIED) TOTHE
PROPER LENGTH.
[] LEVELING AND STABILIZING
YOUR DRYER
STAND THE DRYER U PRIGHT NEAR THEFINAL LOCATION ANDADJUST
THE4LEVELING LEGS, ATTHE CORNERS, TOENSURE T HAT THE DRYER
ISLEVEL F ROM SIDE TOSIDE ANDFRONTTO REAR.
LEVEL
FRON_TO-BACK.
LEVEL
"_
SIDE-TO-SIDE.
4LEVELING
LEGS
NOTE: WESTRONGLY RECOMMEND
SOLID METAL E XHAUST DUCTING.
HOWEVER,
IFFLEXIBLE D UCTING I SUSED ITMUST BEMETAL N OT PLASTIC.
4
