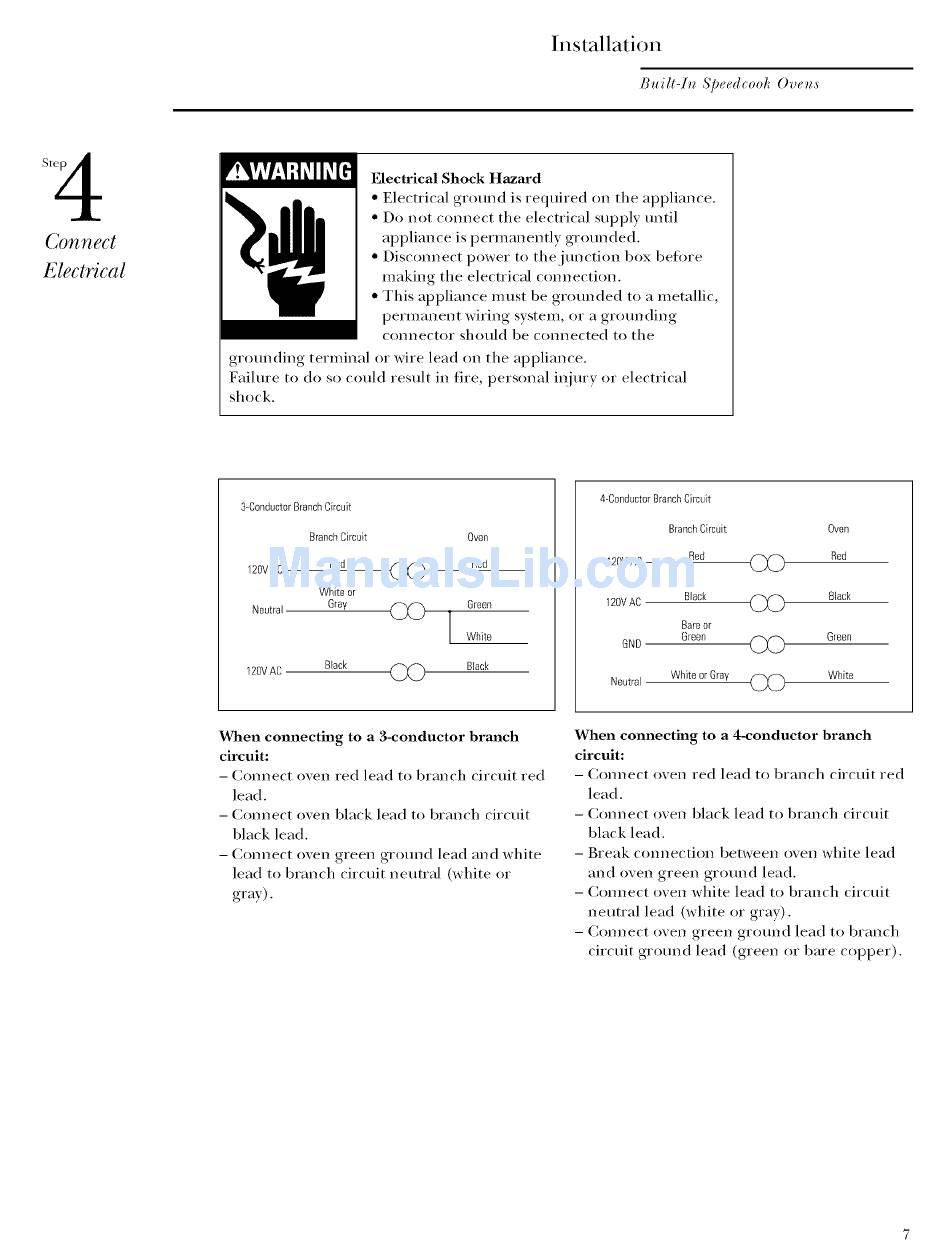

GE SCB2000 Installation Instructions Manual page 7

Installation
Built-In Speedcooh Ovens
St
Connect
Electrical
Electrical Shock Hazard
• Electrical ground is required on the appliance.
• Do not comaect the electrical supply until
appliance is pernmnently grounded.
• Discom_ect power to thejm_ction box betore
making tile electrical connection.
• This appliance must be grom_ded to a metallic,
permanent wiring system, or a grom_ding
connector should be connected to tile
grotmding terminal or wire lead on tile appliance.
Failure to do so could result in fire, personal injury or electrical
shock.
3-ConductorBranchCircuit
BranchCircuit
120VAC Red
White or
Neutral Gray @
Oven
Red
Greee
White
120VAC Black _ Black
4-Conductor Branch Cimuit
Branch Circuit Oven
120V AC Red _) Red
120V AC
Black
_ Black
Bare or
Green Green
GND @
White
or Gray
_ White
Neutral
W
When connecting to a 3-conductor branch
circuit:
- Com_ect oven red lead to
branch
circtlit red
lead.
- Com]ect oven black lead to branch circuit
black lead.
- Com]ect oven green grotmd lead and white
lead to branch circuit neutral (white or
gray).
When connecting to a 4-conductor branch
circuit:
- Connect oven red lead to branch circuit red
lead.
- CoI]nect oven black lead to branch circuit
black lead.
- Break com_ection between oven white lead
and oven green grotmd lead.
- Connect oven white lead to branch circuit
neutral lead (white or gray).
- Coi]nect oven green grotmd lead to branch
circuit grotmd lead (green or bare copper).
