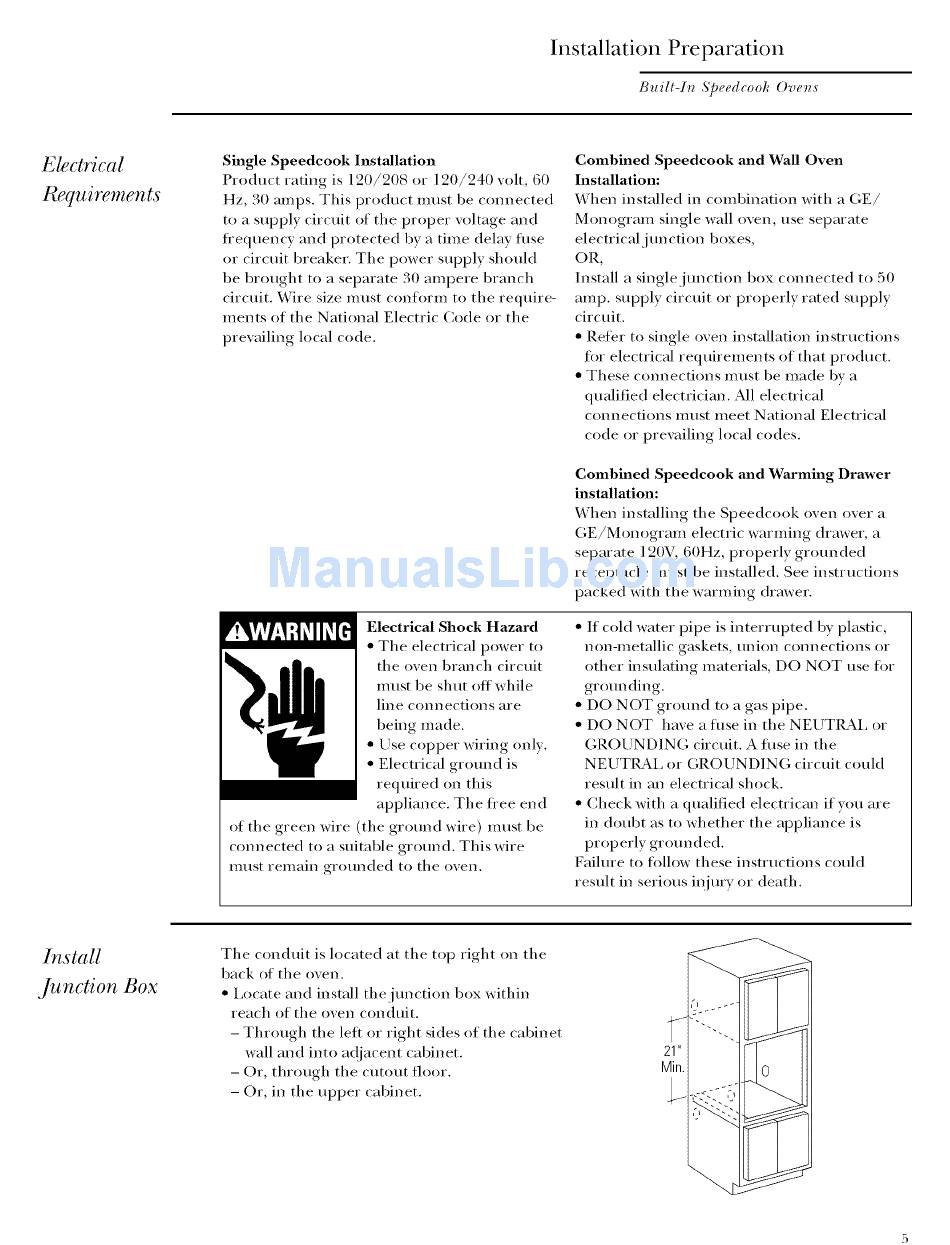

Installation Preparation
Buill-I_ Speedcook Ove_s
E#ctrical
Requirements
Single Speedcook Installation
Product rating is 120/208 or 120/240 volt, 60
Hz, 30 amps. This product must be cmmected
to a supply circuit of the proper voltage and
fl'eq uency and protected by a time delay fllse
or circuit breaker. The power supply should
be brought to a separate 30 ampere branch
circuit, Wire size must conform to the reqtfire-
merits of the National Electric Code or the
prevailing local code,
Combined Speedcook and Wall Oven
Installation:
When installed in combination with a GE/
Monogram single wall oven, use separate
electrical jm_ction boxes,
OR,
Install a single junction box com_ected to 50
amp. supply circuit or properly rated supply
circuit.
• Refer to single oven installation instructions
fiw electrical requirements of that product.
• These com_ections inust be made by a
qualified electrician. All electrical
com_ections must meet National Electrical
code or prevailing local codes.
Combined Speedcook and Warming Drawer
installation:
When installing the Speedcook oven over a
GE/Monogram electric warming drawer, a
separate ] 20V, 60Hz, properly grotmded
receptacle must be installed. See instructions
packed with the warming drawer.
Electrical Shock Hazard
• The electrical power to
the oven branch circuit
must be shut off while
line cmmections are
being made.
• Use copper wiring only.
• Electrical grotmd is
required on this
appliance. The fl'ee end
of the green wire (the grotmd wire) must be
cmmected to a suitable grotmd. This wire
Intlst remain grotmded to the oven.
• If cold water pipe is interrupted by plastic,
non-metallic gaskets,
ilnion
connections or
other insulating materials, DO NOT use ti)r
grotmding.
• DO NOT grotmd to a gas pipe.
• DO NOT have a fllse in the NEUTRAL or
GROUNDING circuit. A tuse in the
NEUTRAL or GROUNDING circuit could
result in an electrical shock.
• Check with a qualified electrican if vou are
in doubt as to whether the appliance is
properly grotmded.
Failm'e to tollow these instructions could
result in serious ii_jm T or death.
Install
fll, nction Box
The conduit is located at the top right on the
back of the oven.
• Locate and install thejm_ction box within
reach of the oven conduit.
-Through the left or right sides of the cabinet
wall and into ac!jacent cabinet.
- Or, through the cutout floor.
- Or, in the upper cabinet.
Min.
