Summary of Contents for Elk Products ElkGuard

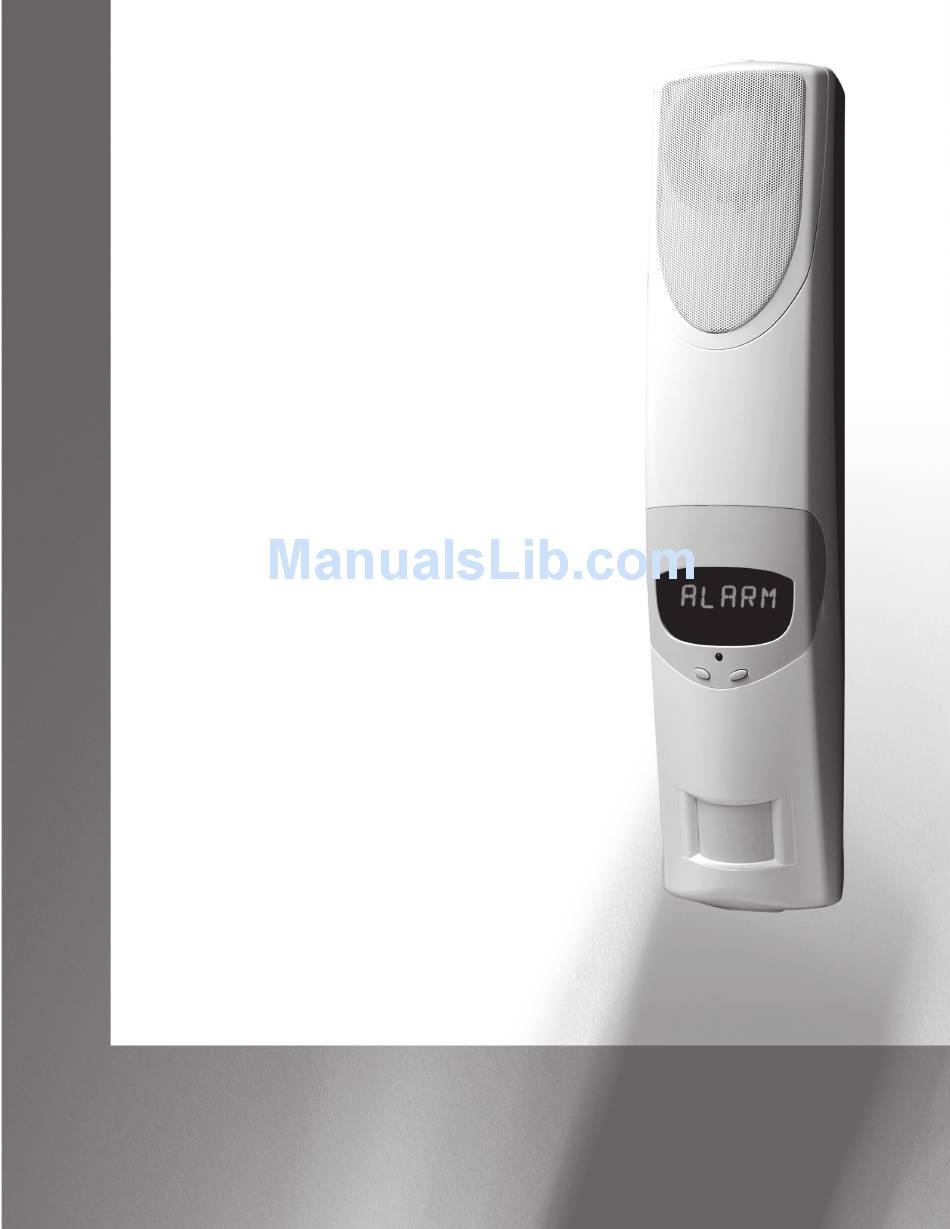

- Page 1 ElkGuard Self-Contained Wireless Security System ElkGuard Owner's Manual...
-
Page 2: System Notes
Washington, DC 20402. The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or Users Manual. Unauthorized changes or modifications could void the user's authority to operate the equipment. ElkGuard Wireless Alarm System with GSM Communicator FCC ID: O2K-106058 WARNING Contains GSM/GPRS Modem Transmitter Module FCC ID: MIVGSM0108 Wireless Mini Door &... -
Page 3: Left Button
ElkGuard Main Unit Congratulations on selecting ELKGUARD. The many sophisticated and innovative design features of the ELKGUARD make the system Your ELKGUARD with its "speak easy" highly secure as well as being easy to use. technology is a revolutionary, radio based,... -
Page 4: Operation
Operation button Press once. System is fully armed StAy (IF ENABLED) button Press twice. System is partially armed StAy2 (IF ENABLED) button Press three times. System is partially armed DiSArm (OR TO RESET ALARMS) button Press once. System is disarmed In these examples, Armed areas are shown shaded Disarmed areas are shown unshaded. -
Page 5: Panic Alarm
Over-riDe Key Only to be used if your wireless Key- fobs are lost. Insert over-ride key and turn counter-clockwise to disable the ElkGuard. (Store these over-ride keys in a safe, hidden place). ELKGUARD ELKGUARD POWER OFF... - Page 6 The red Indicator LED will be on while charging. Important: Each time ElkGuard is plugged into the AC charger a 24 hr fast charge cycle is begun. The unit automati- cally drops back to a maintenance or "trickle" charge after 24 hrs . However, repeated plugging or unplugging of the AC charger without sufficient time for the battery charge to be depleted may cause damage to the battery by overcy- cling it.
-
Page 7: Battery Replacement
Your RK4 Keyfobsadio Keys are sealed units with an expected battery life of 10 years. Low battery * Example device number warning might indicate a battery fault or the battery has been depleted by continuous presses. Contact your ElkGuard dealer for advice. - Page 8 Motion Sensors (PIR) OPeRATION The R15 'Pet Immune' and R15 standard PIR motion sensors can be added to the system to provide protection in additional rooms. Maximum detection range is 50ft. bATTeRy SAvING TIMeR The PIRs have a unique battery saving feature which means you must wait 5 minutes between activations.
- Page 9 Radio Reed Switch (RR1) OPeRATION Radio Reed Switches can be installed on windows and doors to detect opening. bATTeRy RePLACeMeNT Carefully lift off the reed switch cover by unsnap- ping at the bottom using a flat-bladed screwdriver * Example device number or blunt knife.
- Page 10 Radio Door Bell (RDB) OPeRATION Press the Door Bell button to sound the sound the door chime at the ElkGuard main unit. bATTeRy RePLACeMeNT Carefully lift off the RDB Door Bell unit's cover by unsnapping at the bottom using a flat-bladed...
-
Page 11: Battery Specifications
Battery Specifications eLkGUARd bATTeRy SPeCIfICATIONS PART # MOdeL BATTERY 106058 ELKGUARD MAIN UNIT Elk1233 12V 3Ah Sealed Lead Acid Battery 106068 RK4 Keyfob - 4 button Sealed housing, not user serviceable 106050 RK1 Radio Panic Pendant Sealed housing, not user serviceable 106051 R15 'Pet"... - Page 12 All rights reserved. No part of this publication may be reproduced, transmitted or stored in a retrieval system in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Elk Products. Elk reserves the right to make changes to features and specifications at any time without prior notification in the interest of ongoing product development and improvement.
