Elk Products ELK-6030P Installation And Setup Manual

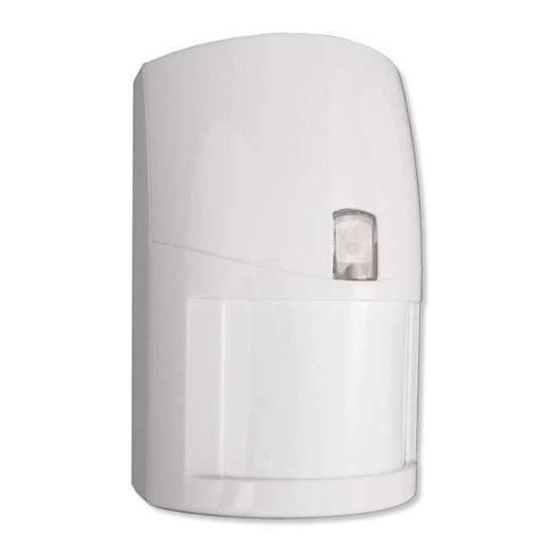

ELK-6030P
Wireless PIR with Pet Immunity
APPLICATION & OVERVIEW
The ELK-6030P Wireless PIR Motion Sensor features Pet Immunity for
small animals up to 40lbs. It is designed for use with control/transceivers
that accept Elk's two-way technology; such as the ELK-M1XRFTWM.
The dual element pyroelectric sensor in the 6030P detects movement within
a specific coverage area, by sensing the infrared energy that is emitted
from an intruder moving across the sensor's field of view. A change in the
infrared energy creates a temperature change in the sensor's zones, which
is then processed to determine if the occurrence qualifies as a legitimate
motion detect event. If it does then the built-in radio will be triggered.
The two-way radio (RF) in the 6030P transmits alarm, tamper, supervisory,
and low battery messages to the control/receiver. Each sensor has a
unique TXID number which is enrolled into the control during installation.
With its two-way capability, the 6030P radio listens after every transmission
for a positive acknowledgment from the control. This makes the sensor
very energy efficient since it doesn't waste battery power repeating
transmissions unless they are not acknowledged.
Like all battery powered motion detectors, the 6030P has a mandato-
ry sleep cycle function to help extend the battery life. After detecting
motion, the sensor's radio will transmit the event to the control and wait
for acknowledgment. Upon acknowledgment the sensor will enter the
mandatory sleep cycle. During the sleep cycle time it cannot transmit
additional events. There are two (2) time choices for the sleep cycle
selected via DIP Switch #4. After the sleep cycle expires the sensor will
once again be capable of transmitting a new event.
The 6030P introduces the industry's first Security/Convenience Light.
This bright white LED projects a beam of light out in front of the sen-
TM
sor. The modes of activation/operation are: Quick blip when motion is
detected and walk test mode is active. Flash during an audible alarm
activation. On Solid for several seconds when Control is Armed Away
and motion is detected. On Solid for several seconds when motion is
detected (regardless of armed state) and Control Output #4 is On. Flash
for several seconds by command from Control (use as a special attention
grabber or general purpose indicator). On Solid for several seconds by
command from Control (can be used to help illuminate the immediate
area for cameras, etc.)

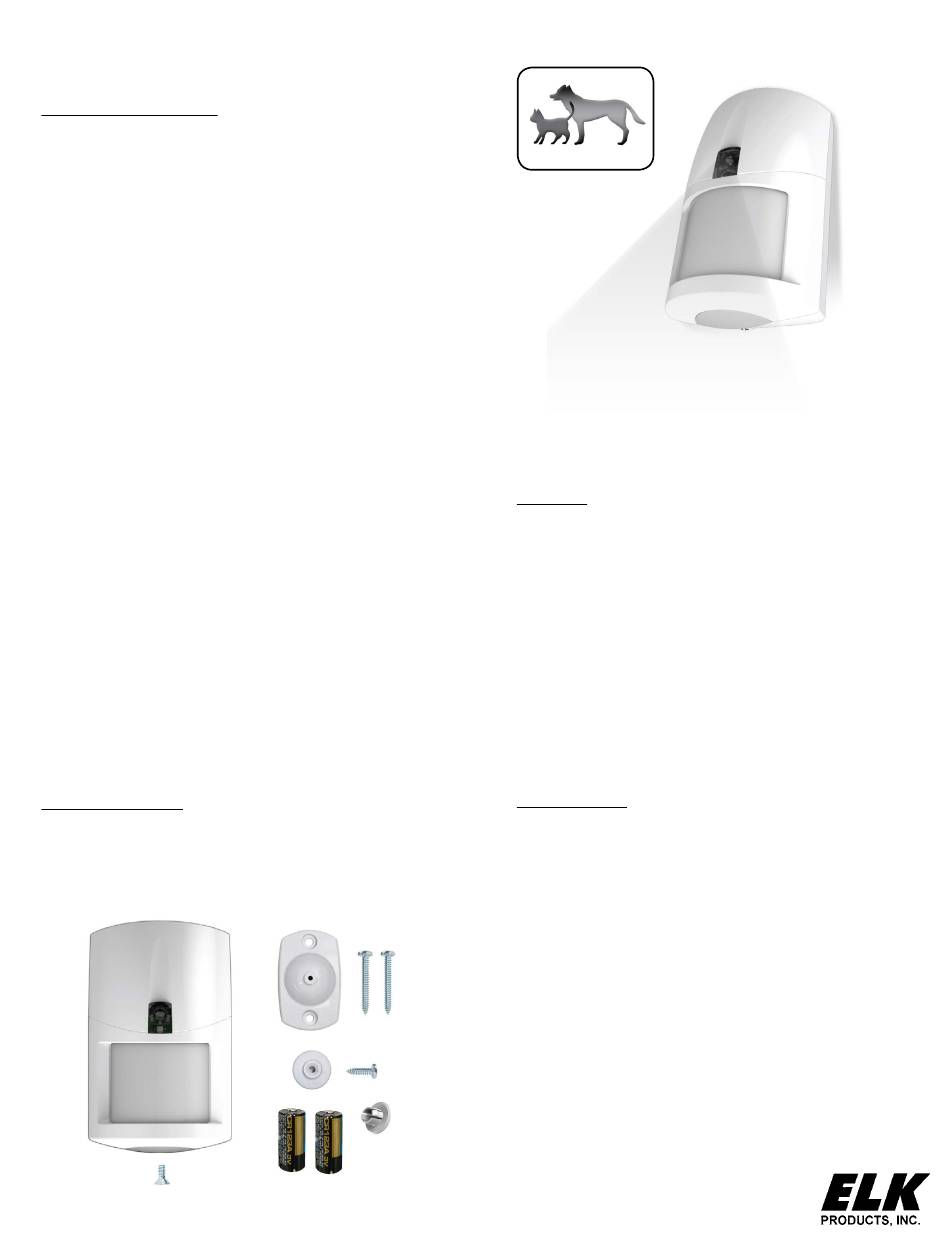

PACKAGE CONTENTS
1 - 6030P PIR electronics assembly & back housing
1 - Standard swivel bracket, locking disc, screws & anchors
1 - Blanking plug
2 - CR123A Lithium Batteries
1 - Cover locking screw
1 - Bracket screw (#4 x 3/8", pan head, sheet metal)
For the latest downloadable version of this manual visit our website: http://www.elkproducts.com
ELK-6030P PIR Installation Manual
Installation and Setup Guide
40 lbs.
Pet Immunity
UNIQUE 'INDUSTRY FIRST'
SECURITY/CONVENIENCE LIGHT
FEATURES
• Wireless two-way communication
• Dual element pyroelectric sensor
• Pet Immunity up to 40lbs
• Selectable pulse count
• Selectable Hi/Lo range
• Excellent immunity from white light, RF, and ESD interference
• Bi-Color RF Acknowledge LED (Green + Org/Red)
• Security/Convenience LED (White)
TM
• Long life Lithium batteries {supplied}
• Low battery trouble signal
• Sleep Cycle "Battery Saver" (2 time settings)
• Periodic (64 min.) Supervisory check-in
• Cover tamper protection
• Swivel mounting bracket included
• Optional deluxe 90° swivel bracket for ceilings sold separately
SPECIFICATIONS
• Dimensions: 2.8"W x 4.4"H x 1.9"D
• Mounting Height: 6 1/2 to 7 1/2 ft
• Sensor: Dual element pyroelectric
• Coverage: Hi Range = 40 ft x 40 ft (12.2m x 12.2m) @ 90°
Lo Range = 30 ft x 30 ft (7m x 7m) @ 90°
20 dual element zones (10 Long, 4 intermediate, 4 mid, 2 short)
• Pulse Count: 1-2 or 3-4, selectable
• Sleep Time: Selectable 30 sec. or 120 sec.
• RF Signal Acknowledge Indication: Bi-Color LED
• Security/Convenience Light: White LED
• Warm Up Period: 10 seconds
• Operating Voltage: 3.0 Volts DC
• Battery Type & Size: 2 x Lithium CR123A
• Quiescent Current: < 10 µA
• Operating Temp: 32° to +120° degrees F
• Humidity: 95% RH (max.), non-condensing
• Frequency: 902 - 928 Mhz channel hopping
TM
Page 1
