PREPARE TO INSTALL THE RANGE
(cont.)

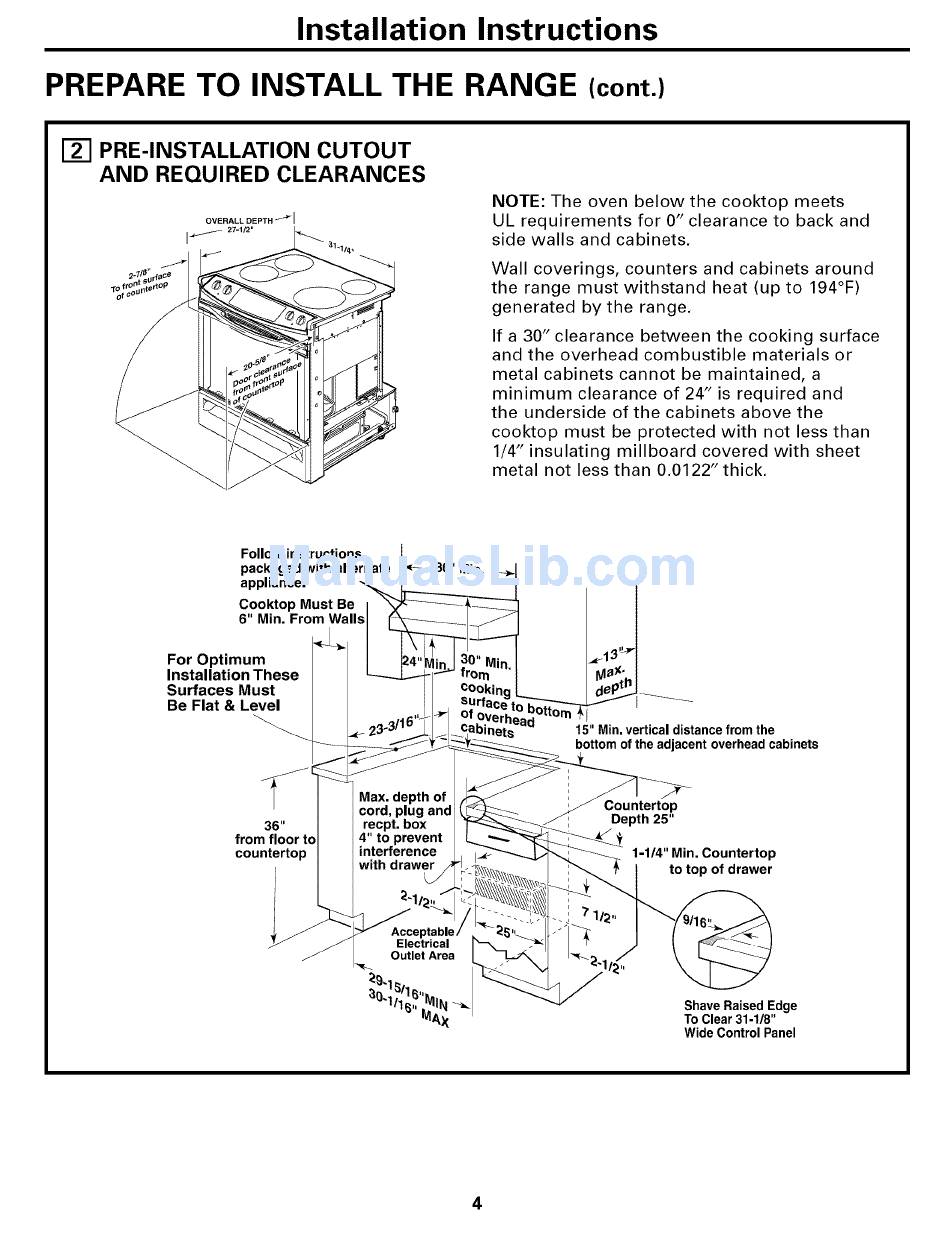

[] PRE-INSTALLATION CUTOUT
AND REQUIRED CLEARANCES
NOTE: The oven below the cooktop meets
UL requirements for 0" clearance to back and
side walls and cabinets.
Wall coverings, counters and cabinets around
the range must withstand heat (up to 194°F)
generated by the range.
If a 30" clearance between the cooking surface
and the overhead combustible materials or
metal cabinets cannot be maintained, a
minimum clearance of 24" is required and
the underside of the cabinets above the
cooktop must be protected with not less than
1/4" insulating millboard covered with sheet
metal not less than 0.0122" thick.
Follow instructions
packaged with alternate
appliance.
Cooktop Must Be
6" Min. From Walls
For Optimum
Installation These
Surfaces Must
Be Flat & Level
15" Min. vertical distancefrom the
bottom of the adjacent overheadcabinets
36"
from floor to
countertop
Countertop
Depth 25"
1-114"Min. Countertop
to top of drawer
Shave RaisedEdge
To Clear 31-1/8"
Wide Control Panel
