IDT Honeycomb User Manual

Led lights
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IDT LED Lights
Users Manual
I
D
T
L
E
D
I
D
T
L
E
D
U
s
e
r
M
a
n
u
U
s
e
r
M
a
n
u
(
H
o
n
e
y
c
o
m
b
,
C
(
H
o
n
e
y
c
o
m
b
,
C
L
i
g
h
t
s
L
i
g
h
t
s
a
l
a
l
o
n
s
t
e
l
l
a
t
i
o
n
)
o
n
s
t
e
l
l
a
t
i
o
n
)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Honeycomb and is the answer not in the manual?

Questions and answers

Summary of Contents for IDT Honeycomb

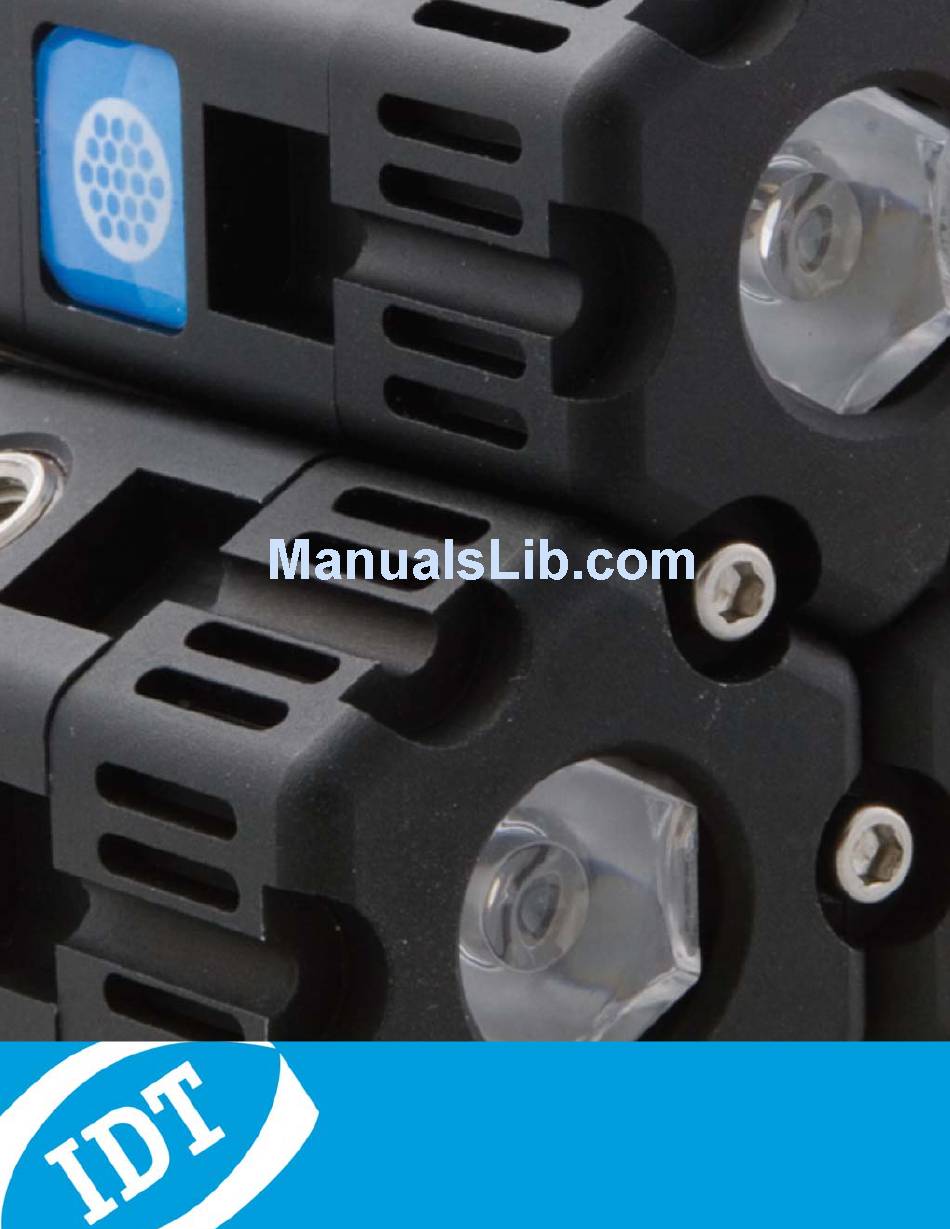

  • Page 1 IDT LED Lights Users Manual...
  • Page 2 IDT LED Lights Document Revision March 2010 Products Information http://www.idtvision.com North America 1202 E Park Ave TALLAHASSE FL 32301 United States of America P: (+1) (850) 222-5939 F: (+1) (850) 222-4591 llourenco@idtvision.com Europe via Pennella, 94 I-38057 - Pergine Valsugana (TN)

  • Page 3: Table Of Contents

    IDT LED Lights Table of Contents SYSTEM OVERVIEW ..................4 1.1. LED- ..........4 NTRODUCTION TO THE BASED IGHT YSTEM 1.2. LED- ..........5 BASED IGHT MODELS AND PART NUMBERS 1.3................... 6 ENERAL SPECIFICATIONS 1.4..................7 ONNECTORS 1.5......................8 ARRANTY LED-BASED LIGHT MODELS ..............9...

  • Page 4: System Overview

    IDT LED Lights 1.1. Introduction to the LED-based Light System IDT’s LED-based Constellation series illuminators offer the benefits of high luminosity in a structured beam that can be pulsed in synchronization with the repetition rate of a high-speed camera. The second-generation LED-based Honeycomb and Constellation illuminators are now available with more features and delivering higher luminosity structured beams than the first- generation predecessors.

  • Page 5: Led-Based Light Models And Part Numbers

    The second-generation LED models and part numbers are shown in the table below: Description Part Number Honeycomb 1-LED Light Head MM-LED Honeycomb 1-LED 8 ports controller and power supply MM-CON Constellation 7-LED Light Head and power supply 7-LED Constellation 8 LED Light head...

  • Page 6: General Specifications

    IDT LED Lights 1.3. General specifications The specifications of all the LED-light models are shown below. Description Value Type Luxeon K2 Cool white Light color Color temperature 4500K – 10000K Life (measured when output falls to 75% of maximum) 50,000 Hours...

  • Page 7: Connectors Pin-Out

    Signal + 12 V The control connector is designed to connect the LED lights to one of IDT Galileo™ devices. The +12 V pin provides power to the device and the device provides the correct square wave signal to the light system via the signal pin.

  • Page 8: Warranty

    (1) year on all parts. Should any of the components of this Product fail to be in good working order at any time during this warranty period, IDT, Inc. will either repair or replace those components at its factory at no additional cost. This warranty does not include service to repair damage to the Product caused by accident, disaster, misuse, abuse, or non-IDT modification of the Product.

  • Page 9: Led-Based Light Models

    IDT LED Lights 2.1. 1-LED Honeycomb System with Controller The picture above shows a honeycomb LED light with the 8-port controller. The controller is capable of driving 8 single LED lights. Each LED has a unique inter-connectable design that allows the lights to be connected together for infinite configurations. Both the single LED and the controller are crash-rated for automotive applications.

  • Page 10: 8-Led Constellation System With Controller

    IDT LED Lights 2.2. 8-LED Constellation System with Controller The 8-LED constellation cluster uses a remote controller to simultaneously operate up to 4 units with a total number of 32 synchronized LED lights. Each cluster is compact, ruggedized for outdoor applications and crash rated for automotive tests.

  • Page 11: 7-Led And 19-Led Constellation Systems

    IDT LED Lights 2.3. 7-LED and 19-LED Constellation Systems 2.3.1. Overview The 7-LED and 19-LED clusters include 7 or 19 single LED in a compact and light weight enclosure. The beam is collimated. Both are trigger ready for synchronization with digital cameras.

  • Page 12: Back Panel And Connectors

    IDT LED Lights 2.3.2. Back panel and connectors Sync OUT Connector Sync IN Connector And LED And LED Power LED Control Connector Power Connector (36 V 3 A) User Manual...

  • Page 13: Dongle For 100% Duty Cycle Operation

    IDT LED Lights 2.4. Dongle for 100% duty cycle operation The second-generation LED lights require an additional tool to operate at 100% continuous duty cycle. The light weight and size dongle is equipped with a C battery that provides the necessary voltage for 100 % duty cycle to run the lights in continuous mode.

  • Page 14: Mechanical And Hole Mounts

    IDT LED Lights 3.1. Legend The drawings with the main dimensions of the LED-based lights are below. The dimensions are in inches and millimeters (in square brackets). User Manual...

  • Page 15: 1-Led Honeycomb

    IDT LED Lights 3.2. 1-LED Honeycomb 3.2.1. Bottom View Users Manual...

  • Page 16: Front View

    IDT LED Lights 3.2.2. Front View User Manual...

  • Page 17: Side View

    IDT LED Lights 3.2.3. Side View Users Manual...

  • Page 18: Isometric View

    IDT LED Lights 3.2.4. Isometric View User Manual...

  • Page 19: 8-Led Constellation

    IDT LED Lights 3.3. 8-LED Constellation 3.3.1. Top View Users Manual...

  • Page 20: Bottom View

    IDT LED Lights 3.3.2. Bottom View User Manual...

  • Page 21: Side Views

    IDT LED Lights 3.3.3. Side Views Users Manual...

  • Page 22: Isometric View

    IDT LED Lights 3.3.4. Isometric View User Manual...

  • Page 23: 7-Led Constellation

    IDT LED Lights 3.4. 7-LED Constellation 3.4.1. Bottom View Users Manual...

  • Page 24: Back View

    IDT LED Lights 3.4.2. Back View User Manual...

  • Page 25: Side View

    IDT LED Lights 3.4.3. Side View Users Manual...

  • Page 26: Isometric View

    IDT LED Lights 3.4.4. Isometric View User Manual...

  • Page 27: 19-Led Constellation

    IDT LED Lights 3.5. 19-LED Constellation 3.5.1. Bottom View Users Manual...

  • Page 28: Back View

    IDT LED Lights 3.5.2. Back View User Manual...

  • Page 29: Side View

    IDT LED Lights 3.5.3. Side View Users Manual...

  • Page 30: Isometric View

    IDT LED Lights 3.5.4. Isometric View User Manual...

  • Page 31: Troubleshooting

    “Sync In” connector. If one of the above conditions is true and the problem persists, contact the IDT technical support. Make sure that the “Sync In” connector is connected to a device that generates a TTL square The “Sync In”...
