Summary of Contents for Kanguru MP3

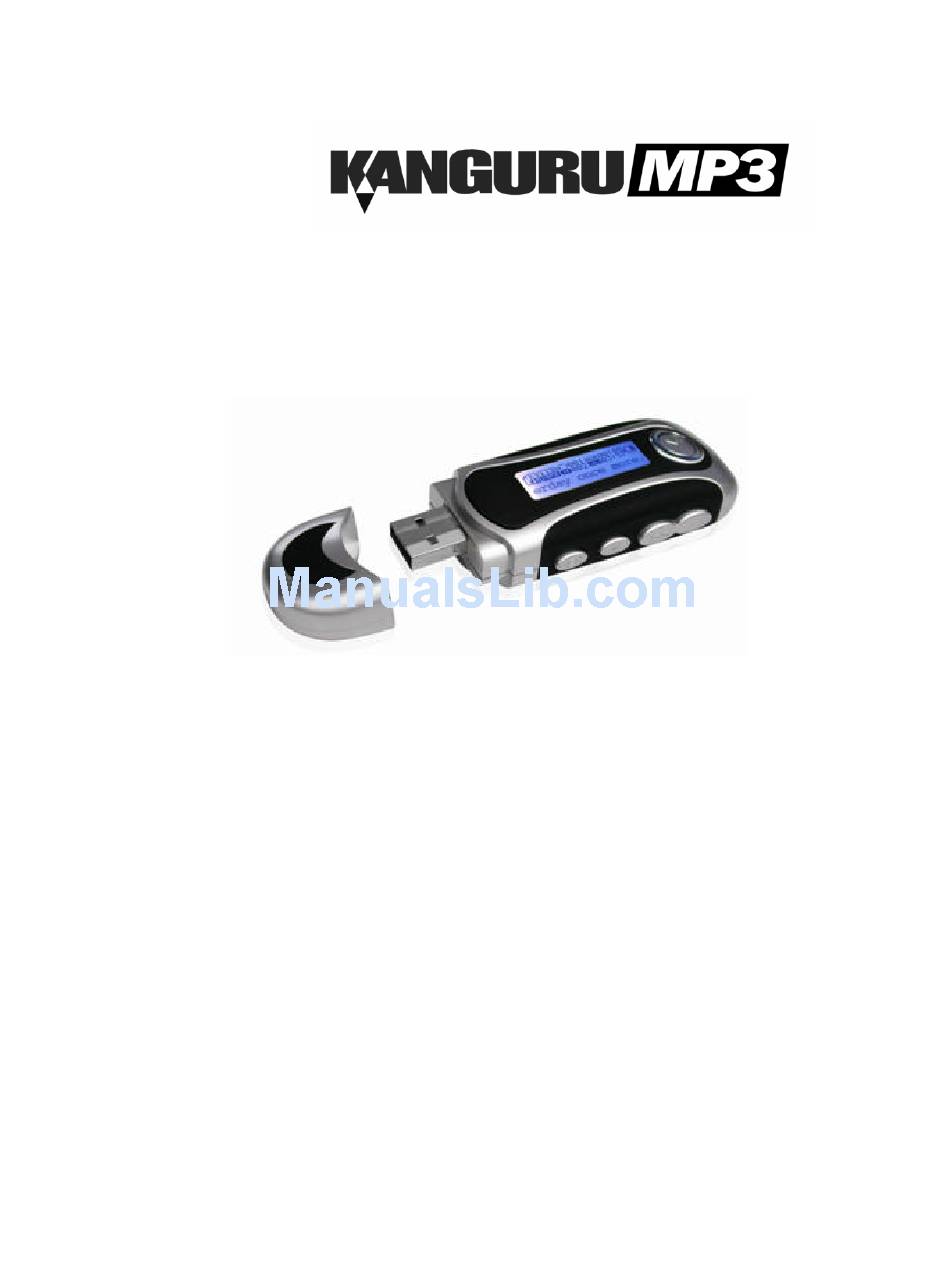

- Page 1 USER MANUAL...
- Page 2 Kanguru Solutions will not be held responsible for any illegal use of this product nor any losses incurred while using this product. The user is responsible for the copyright laws, and is fully responsible for any illegal actions taken.
-
Page 3: Safety Precautions
SW/HW, artificial damage, replacement of battery as well as other accidental conditions. To avoid the loss of your data, please back it up on your computer frequently. Kanguru Solutions will not take any related responsibilities for potential accidental loss during the application of this manual. -
Page 4: Functional Description
When the player is used as a removable disk, the user should store files under appropriate operation methods for file management. Kanguru Solutions will not be responsible for any loss of files . -
Page 5: Basic Functions
Description and location of player controls button: ON/OFF, Play, Pause button: Hold key button: Volume down button: Volume up button: Record button: Menu, Enter button: Previous, Backward button: Next, Forward Earphone jack USB Interface Display screen Basic Functions ON/OFF 1. Please make sure the player is unlocked. The Hold key should be in the unlocked position. 2. - Page 6 3. Power off: While player is o n, press and hold button while the words “Power off” display on screen. Press and hold until the progress bar is full and “see you” appears. Note: (1) When powering on, the player may temporarily pause ( d uration of the pause links to the player capacity) .
- Page 7 button: choose the previous song; button: choose the next song. 2. Volume adjustment button: volume up; button: volume down. 3. Fast forward/backward During Music Playback, long press button for fast forward of the current song and fast backward. 4. A-B repeat Under music play mode, first short press button to confirm the start point for repeat with displayed on the screen, second short press...
- Page 8 following figure: Short press button to confirm to enter the Record mode and start recording; short press button to pause recording, short press again to continue recording, and long press button to stop and save the current recording and enter Voice Replay mode. Record Mode FM radio In the Main Menu screen, FM mode is chosen by pressing...
- Page 9 Volume can be increased or decreased by pressing Radio Program recording Short press the button to record the program played in the current channel, press pause or continue recording, and long press to save the clip and return to the FM Radio screen Note: As the antenna for the radio, earphone s must be plugged during FM radio/FM record mode.
- Page 10 3. Contrast Sets different Contrast levels. 4. Light time Sets different light timing: Off/ 5seconds/ 10seconds/ always on 5. Light color Sets different light colors: Blue/ Green/ Cyan/ Red/ Pink/ Yellow/ White/ Color Random 6. Auto Power Off Sets the auto-power off time: disable / 2min / 10min / 30min 7.
-
Page 11: Usb Mode
9. Exit Press M button to exit the setting mode and return to main menu. VII. Information Displays the total storage, remaining storage, and version no. of the player. VIII. Folder Press to enter the Folder menu. Press to select the file you desire, and press enter a sub-menu as following: 1) Play file now? Press to confirm to play the selected song;... - Page 12 “Removable disk” after “Removable disk” is found in “My Computer”. Note: the connection between the mp3 player and the computer should not be disconnected during transmission of data. This may lead to an error in data transmission or player failure.
- Page 13 Win98 Driver setup 1) separate driver Installation is not necessary for Windows 2000/XP/or Vista. Prior to and during driver setup, please do not connect the player with the computer. Run the “ Win98.exe” file on CD and confirm after choosing a language in the pop-up dialog box and enter the following screen: Then click “next”...
-
Page 14: Troubleshooting
After setup is complete the computer will need to be re -booted for the driver installation to finish. Trouble shooting 1) The player does not power on? A: Please check if the battery charge is sufficient. 2) The response speed of the MP3 player becomes slow? - Page 15 A: There will be fragments(similar to those on a hard disk) on the internal flash memory after the MP3 player undergoes long-time usage or frequent delet ion of files, leading to a slowed response speed. The problem can be solved by formatting the player.
-
Page 16: Technical Specifications
Number of FM Radio channels Earphone max (L)10mW+(R)10mW(32 Ohm) power 45dB Music formats supports MP1, MP2, MP3, WMA, WAV Temperature range -5~40 Celsius Degree 16 Languages including English, Simple Chinese, Language supports Spanish French, German, Italian, Portuguese Operating system Windows98/SE/ME/2000/XP /Vista... - Page 17 Tech Support If you experience any problems installing your Kanguru Micro MP3 PRO player or have any technical questions regarding any of our products, please call our tech support department. Our tech support is free and available Monday thru Friday, 9am to 5pm EST Call 1 -508-376-4245 or visit our website at www.kanguru.com...
