Page 1: User Guide
AV CableLAN Adapter AV CableLAN Adapter User Guide... -
Page 2: Copyright
The content of this document is furnished for informational use only, it is subject to change without notice, and it does not represent a commitment on the part of Corinex Communications Corp. -
Page 3: Table Of Contents
Installation Guide ....................4 What this Package Contains ................4 System Requirements ..................4 Physical Description .................... 5 Installing the AV CableLAN Adapter ..............6 Testing the Setup ....................7 User Guide ......................8 Applications ......................8 AV CableLAN Adapter Specifications ..............9 Troubleshooting Guide .................. -
Page 4: Introduction

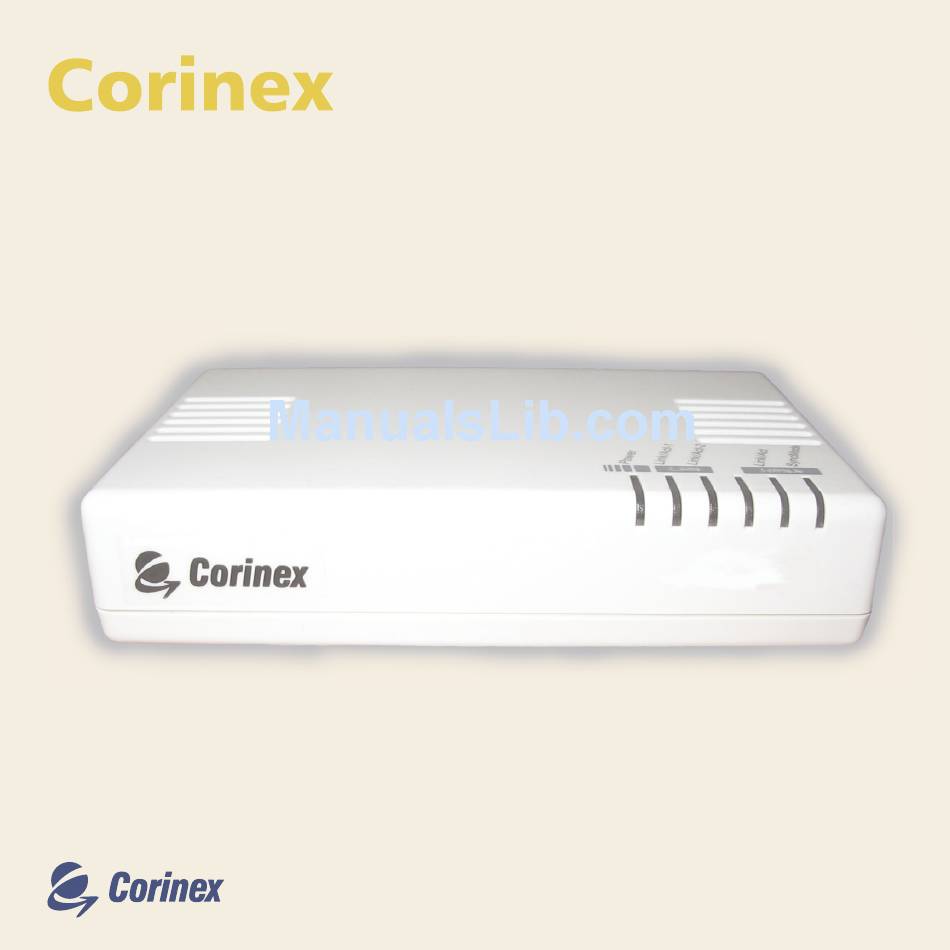

Introduction 1.1 Overview The Corinex AV CableLAN Adapter is a network interface adapter using the coaxial cables in premises as a medium for communication. After successful installation, the indoor AV CableLAN network behaves like a traditional LAN for computers. The Corinex AV CableLAN Adapter supports up to 128 Mbps network speed. -
Page 5: Installation Guide
Installation Guide Installation Guide 2.1 What this Package Contains When you receive your Corinex AV CableLAN Adapter , check to be sure that your package contains: • Corinex AV CableLAN Adapter • AC power adapter • Ethernet cable • Coaxial cable (F-Type / RG-59U) •... -
Page 6: Physical Description
Green Link on LAN2 Off: No Link on LAN2 Blinking: Receiving/transmitting data HCNA Green Link on coaxial cable Link/Act: Off: No Link on coaxial cable Blinking: Receiving/transmitting data SyncMode: Green Synchronous Mode Off : Asynchronous Mode Corinex AV CableLAN Adapter... -
Page 7: Installing The Av Cablelan Adapter
Power inlet – 5V DC: 2.4 Installing the Corinex AV CableLAN Adapter To connect the Corinex AV CableLAN Adapter to your computer, follow the steps listed below. 1. Plug the supplied coaxial cable to the HCNA port of your device and connect it to the TV socket on the wall. -
Page 8: Testing The Setup
Start -> Run, then write the command ping IPADDRESS -t, where IPADDRESS is the IP address of the computer to which the AV CableLAN Adapter is connected to, e.g. ping 192.168.4.1 -t (This command will be stopped by pressing keys CTRL+C). -
Page 9: User Guide
• A real cost-effective and reliable solution for high speed communications in any home or small office You can combine this type of adapters with the full line of Corinex AV products. This manual has been prepared for Corinex AV CableLAN Adapter for use in combination with PCs or laptop computers. -
Page 10: Av Cablelan Adapter Specifications
User Guide 3.2 AV CableLAN Adapter Specifications The following table lists the product specifications for the Corinex AV CableLAN Adapter. Standard compliance IEEE802.3 IEEE802.3u HomePNA 3.0 Ports 2 x F-Type 2 x RJ-45 Data rate Up to 128 Mbps Cabling type... -
Page 11: Troubleshooting Guide
Troubleshooting Guide Troubleshooting Guide The Corinex AV CableLAN Adapter has been designed to be a reliable and easy to use network connection device. Please refer to the list below to aid in troubleshooting. The POWER LED is off. 1. Verify the connection of the power cable to the device’s power inlet. - Page 12 You will find there news, manuals and software updates, as well as frequently asked questions (FAQ). If this doesn’t help, you can contact the Corinex “help desk” by sending an e-mail using the web contact form at www.corinex.com. Please try to: •...
