Page 1: User Manual

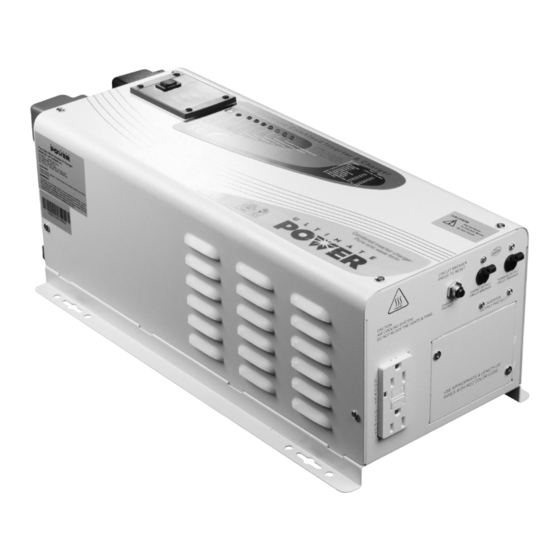

UP Series Pure Sine Wave Inverter & Charger User Manual Models: UP12/1000PCUL, *UP12/1500PCUL, UP12/2000PCUL, UP12/3000PCUL (*UP12/1500PCUL is not UL Listed) 202 North West Street Coudersport, PA 16915 Phone: 610 317-8513 Fax: 610 317-8514 E-Mail: info@upinverters.com Web: www.upinverters.com... -
Page 2: Table Of Contents
TABLE OF CONTENTS Description Section # Page # Important Safety Information …………………………. Section 1 General Safety Precautions ……………………………... Precautions When Working with Batteries …………….. Introduction ……………………………………………… Section 2 General Information ………………………………………. Application ………………………………………………… Mechanical Drawing ……………………………………… Features …………………………………………………… Electrical Performance ………………………………… Section 3 Invert ………………………………………………………... -
Page 3: Important Safety Information
1. Important Safety Information WARNING! Before using the Inverter, you need to read and save the safety instructions. 1.1 General Safety Precautions 1.1.1. Do not expose the Inverter to rain, snow, spray, bilge or dust. To reduce risk of hazard, do not cover or obstruct the ventilation openings. -
Page 4: Introduction
2. Introduction 2.1 General Information UP Series Pure Sine Wave Inverter is a combination of an inverter, battery charger and AC auto-transfer switch into one complete system with a peak conversion efficiency of 85%. It is packed with unique features and it is one of the most advanced inverter/chargers in the market today. It features power factor corrected, sophisticated multi-stage charging and pure sine wave output with unprecedentedly high surge capability to meet demanding power needs of inductive loads without endangering the equipment. -
Page 5: Mechanical Drawing
2.3 Mechanical Drawing Models: UP-12/1000PCUL, *UP-12/1500PCUL, UP-12/2000PCUL, UP-12/3000PCUL *UP12/1500PCUL is not UL Listed Inverter physical description 1. DC input Openings Positive (+) & Negative (-): Allows the DC input 2. RJ11 Remote Panel Port: Connects to the remote control panel through the flat grey extension cable 3. -
Page 6: Features
2.4 Features 2.4.1 High overload ability up to 300% rated power (20 sec) 2.4.2 Low quiescent current, low power “Power Saving Mode” to conserve energy 2.4.3 4-step intelligent battery charging, PFC (Power Factor Correction) for charger 2.4.4 8 pre set battery type selector plus De-sulfation for totally flat batteries 2.4.5 Powerful charge rate up to 130Amp, selectable from 0%-100%... - Page 7 Inverter Status Panel (on top of the inverter) There are 3 main charging processes: Bulk Charging: This is the initial stage of charging. While Bulk Charging, the charger supplies the battery with controlled constant current. The charger will remain in Bulk charge until the Absorption charge voltage (determined by the Battery Type selection) is achieved.
- Page 8 Battery type selector Switch Description Boost / Vdc Float / Vdc Settings Charger Off Gel USA 14.0 13.7 AGM 1 14.1 13.4 LiFePO 14.6 13.7 Sealed lead acid 14.4 13.6 Gel EURO 14.4 13.8 Open lead acid 14.8 13.3 Calcium 15.1 13.6 De-sulphation...
-
Page 9: Ac Transfer
Charging depleted batteries The UP Series inverter allows start up and through power with depleted batteries. For 12VDC model, after the battery voltage goes below 10V, if the switch is still(and always) kept in "ON" position, the inverter is always connected with battery, and the battery voltage doesn’t drop below 2V, the inverter will be able to charge the battery once qualified AC inputs. -
Page 10: Auto Frequency Adjust
3.4 Auto Frequency Adjust The inverter is designed with Auto Frequency adjust function. The factory default configuration is 60Hz for 100/110/120VAC inverter While the output freq can be easily changed once a qualified freq is applied to the inverter. If you want to get 60Hz from a 50Hz inverter, just input 60Hz power, and the inverter will automatically adjust the output freq to 60Hz and vice versa. -
Page 11: Protections
UP Series Idle Power Consumption Model Type Power Saver Off Power Saver Auto Idle Power Quiescent Current UP12/1000PCUL 3.5A UP12/1500PCUL UP12/2000PCUL UP12/3000PCUL When in the search sense mode, the green power LED will blink and the inverter will make a ticking sound. At full output voltage, the green power LED will light steadily and the inverter will make a steady humming sound. -
Page 12: Remote Control
The 12Vdc remote start is with the same priority as “Power saver off”. Whichever first switches from “Unit Off” to “Power saver off” or “Power saver on”, it will power the inverter on. If the commands from these sources conflict, the inverter will accept command according to the following priority: Power saver on>... -
Page 13: Led Indicator
3.8 LED Indicator SHORE POWER ON GREEN LED lighting on AC Mode INVERTER ON GREEN LED lighting on Inverter Mode FAST CHARGE Yellow LED lighting on Fast Charging Mode FLOAT CHARGE GREEN LED lighting on Float Charging Mode OVER TEMP TRIP RED LED lighting on Over Temperature OVER LOAD TRIP RED LED lighting on Over Load... -
Page 14: Installation
The Operation of DC fan at the DC terminal side is controlled in the following logic: Condition Enter Condition Leave condition Speed T < 85 ℃(185℉) T ≥ 85℃(185℉) HEAT SINK T ≥ 85℃(185℉) TEMPERATURE T < 80℃(176℉) 100% I ≤ 50%Max CHARGER CURRENT I >... -
Page 15: Ac Wiring
The torque rating range for DC terminal is 12.5NM-205NM (9.25-15.19 pound-foot), and the suggested torque rating is 17NM (12.6 pound-foot). Over torqueing may cause the bolt to break. In the event of reverse polarity the unit could be totally destroyed which is not covered under warranty. -
Page 16: Install Flange
4.5 Install Flange 1-3KW Models Side View - 16 -... -
Page 17: Troubleshooting Guide
5 Troubleshooting Guide Troubleshooting contains information about how to troubleshoot possible error conditions while using the UL Inverter & Charger. The following chart is designed to help you quickly pinpoint the most common inverter failures Indicator and Buzzer Indicator on top cover LED on Remote Switch SHORE INVER... - Page 18 Over Beep √ √ × × × × × × × × Charge continuous Back Feed Beep × × × × × × × × × × Short continuous Symptom Possible Cause Recommended Solution Inverter will not turn on during initial Batteries are not connected, loose Check the batteries and cable power up.
-
Page 19: Limited Warranty Plan
Ultimate Power warrants to the original purchaser for use that the goods or any component thereof manufactured by Ultimate Power will be free from defects in workmanship from date of purchase, provided that such goods are installed, maintained and used in accordance with manufacturer’s written instructions. See product specification sheet(s) for warranty period. -
Page 20: Appendix
Appendix 1 UP Series Inverter/Charger Electrical Specifications Model UP12/1000PCUL *UP12/1500PCUL UP12/2000PCUL UP12/3000PCUL Continuous Output Power 1000W 1500W 2000W 3000W Continuous Output voltage 8.5A 12.5A 16.8A 25.2A Surge Rating(20s) 3000W 4500W 6000W 9000W Capable of Starting Electric Motor 1.5HP Output Waveform Pure Sine wave/Same as input(Bypass mode) Nominal Efficiency 85%(Peak) -
Page 21: Notes
Calcium 15.1 13.6 De-sulphation 15.5 for 4hrs Remote Control Yes. Optional Input Voltage Waveform Sine wave (Grid or Generator) Nominal Voltage 120VAC Low Voltage Trip 90V± 4% Low Voltage re engage 100V± 4% High Voltage Trip 140V± 4% High Voltage re engage 135V±... - Page 22 - 22 -...
