- Page 1 SD Series Pure Sine Wave Inverter & Charger User Manual Models: UP12/2000SD-CG, UP12/2500SD-CG, UP12/3000SD-CG 115 N. East Street Coudersport, PA 16915 Phone: 888 447 5920 Fax: 610 317-8514 E-Mail: info@ultimatepower.com Web: www.ultimatepower.com...
-
Page 3: Table Of Contents
Table of Contents 1 Important Safety Information...................... - 2 - 1.1 General Safety Precautions....................- 2 - 1.2 Precautions When Working with Batteries..............- 3 - 2 Introduction...........................- 3 - 2.1 General Information......................- 3 - 2.2 Mechanical Drawing......................- 4 - 2.3 Features.......................... -
Page 4: Important Safety Information
Ultimate Power www.upinverters.com 1 Important Safety Information Save This Manual! Read this manual before installation, it contains important safety, installation and operating instructions. Keep it in a safe place for future reference. All wiring must follow the National Electric Code, Provincial or other codes in effect at the time of installation, regardless of suggestions in this manual. -
Page 5: Precautions When Working With Batteries
Ultimate Power www.upinverters.com ARNING IMITATIONS SPECIFICALLY, PLEASE NOTE THAT THE INVERTER/CHARGER SHOULD NOT BE USED IN CONNECTION WITH LIFE SUPPORT SYSTEMS OR OTHER MEDICAL EQUIPMENT OR DEVICES. WE MAKE NO WARRANTY OR REPRESENTATION IN CONNECTION WITH THEIR PRODUCTS FOR SUCH USES. USING THE INVERTER/CHARGER WITH THESE PARTICULAR EQUIPMENTS IS AT YOUR OWN RISK. -
Page 6: Mechanical Drawing

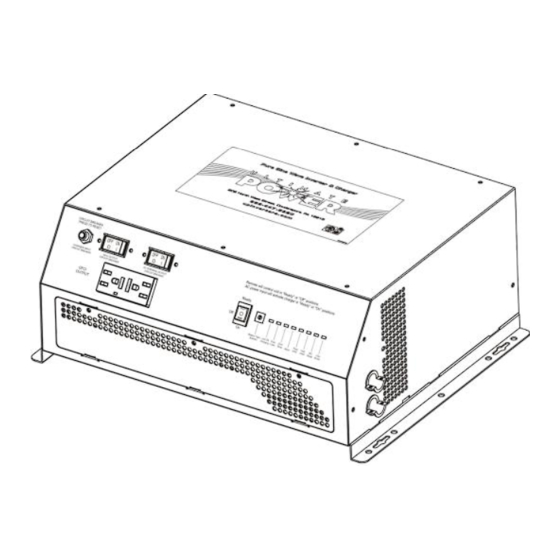

To get the most out of the power inverter, it must be installed, used and maintained properly. Please read the instructions in this manual before installing and operating. 2.2 Mechanical Drawing Models: UP12/2000SD-CG, UP12/2500SD-CG, UP12/3000SD-CG Inverter physical description 1. DC input Openings Positive (+) & Negative (-): Allows the DC input 2. -
Page 7: Features
Ultimate Power www.upinverters.com situations 6. GFCI 7. Field Wiring Compartment: Provides access to the AC input and output hardwire leads and the 12Vdc remote switch 2.3 Features 2.3.1 High overload ability up to 300% rated power (20 sec) 2.3.2 Low quiescent current, low power “Power Saving Mode” to conserve energy 2.3.3 4-step intelligent battery charging, PFC (Power Factor Correction) for charger... -
Page 8: Ac Charger
Ultimate Power www.upinverters.com Caution: After the inverter is switched on, it takes a finite time for it to self-diagnoses and get ready to deliver full power. Hence, always switch on the load(s) after a few seconds of switching on the inverter. - Page 9 Ultimate Power www.upinverters.com There are 3 main charging processes: Bulk Charging: Absorb Charging: Float Charging: De-sulphation The de-sulphation cycle on switch position 8 is marked in red because this is a very dangerous setting if you do not know what you are Battery type selector doing.
-
Page 10: Ac Transfer
Ultimate Power www.upinverters.com Charging depleted batteries The SD Series inverter allows start up and through power with depleted batteries. For 12VDC model, after the battery voltage goes below 10V, if the switch is still(and always) kept in "ON" position, the inverter is always connected with battery, and the battery voltage doesn’t drop below 2V, the inverter will be able to charge the battery once qualified AC inputs. -
Page 11: Power Switch
Ultimate Power www.upinverters.com 3.5 Power Switch There are three different working statuses for SD inverter: “On”, “Off” and “Ready”. When power switch is in “Off” position, the inverter is powered off. When power switch is turned to “ON”, the inverter is powered on. -
Page 12: Remote Control
Ultimate Power www.upinverters.com 3.7 Remote Control Apart from the switch panel on the front of the inverter, an extra switch panel connected to the RJ45 port at the DC side of the inverter through a standard telephone cable can also control the operation of the inverter. -
Page 13: Led Indicator
Ultimate Power www.upinverters.com 3.8 LED Indicator SHORE POWER ON GREEN LED lighting on AC Mode INVERTER ON GREEN LED lighting on Inverter Mode FAST CHARGE Yellow LED lighting on Fast Charging Mode FLOAT CHARGE GREEN LED lighting on Float Charging Mode... -
Page 14: Dip Switches & Bts
3.11 DIP SWITCHES & BTS On the DC end of inverter, there are 3 DIP switches which enable users to customize the performance of the device to suit the specific configuration. Models: UP12/2000SD-CG, UP12/2500SD-CG, UP12/3000SD-CG Switch NO Switch Function Position: 0... - Page 15 Ultimate Power www.upinverters.com position “1”, the inverter will bypass an AC input with a higher voltage and wider frequency (40Hz plus for 50Hz/60Hz). Accordingly, the AC charger will also work in a higher voltage wider freq range (43Hz plus for 50Hz/60Hz).
-
Page 16: Auto Generator Start
Ultimate Power www.upinverters.com Inverter Condition Temperature on BTS Charger Operation Charger Mode BTS ≥ 50℃(122℉) Automatically turns off charger BTS ≤ 40℃(104℉) Automatically turns on charger Inverter Mode Increases the low voltage shut down point 40℃(104℉) ≤ BTS ≤ 50℃(122℉) by 0.5Vdc... -
Page 17: Ac Wiring
Ultimate Power www.upinverters.com Rate Current DC Cable Model 300Amp Max 1/0AWG UP12/2000SD-CG 400Amp Max 3/0AWG UP12/2500SD-CG& UP12/3000SD-CG Please find the following minimum wire size. In case of DC cable longer than 1m (3ft.) please increase the cross section of cable to reduce the loss. -
Page 18: Grounding
Ultimate Power www.upinverters.com WARNING The installer must use AC wires rated at least 75℃/167℉. 4.4 Grounding Connect an AWG 8 gauge or greater copper wire between the grounding terminal on the inverter and the earth grounding system or the vehicle chassis. - Page 19 Ultimate Power www.upinverters.com Beep 0.5s Over Charge √ × √ × × × × √ × √ every 1s Beep Fan Lock × × × × × × × × × × continuous Beep Battery High × √ × ×...
-
Page 20: Limited Warranty Plan
Power and the manufacture’s written instructions. 3) Ultimate Power s sole liability and the purchaser’s sole remedy for the failure of goods under this limited warranty and for any and all claims arising out of the purchase and use of the goods shall be limited to the repair or replacement of goods that do not conform to the warranty. -
Page 21: Appendix 1
Ultimate Power www.upinverters.com 1. DC polarity is reverse: the inverter is designed without DC polarity reverse protection. A polarity reverse may severely damage the inverter 2. Wrong AC wiring 3. Operation in a condensing environment 4. Operating with an undersized generator or generator with unqualified wave form 5. - Page 22 Ultimate Power www.upinverters.com Battery Initial Voltage for Start Up 11.5/11.9V-15.7V for 12V Over Charge Protection Shutdown 15.7V for 12V Charger curve(4 stage constant current)Battery types 4 step digital controlled progressive charge Battery type Fast V Float V Gel U.S.A 13.7 A.G.M 1...
- Page 23 Ultimate Power www.upinverters.com Notes - 21 -...
- Page 24 614-00506-00...
