Zebex Z-2121 series User Manual

Portable data collector
Hide thumbs Also See for Z-2121 series:
Table of Contents

Advertisement

Quick Links

Download this manual
Portable Data Collector
Z-2121
series
( Version 3.01)
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z-2121 series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zebex Z-2121 series

Summary of Contents for Zebex Z-2121 series

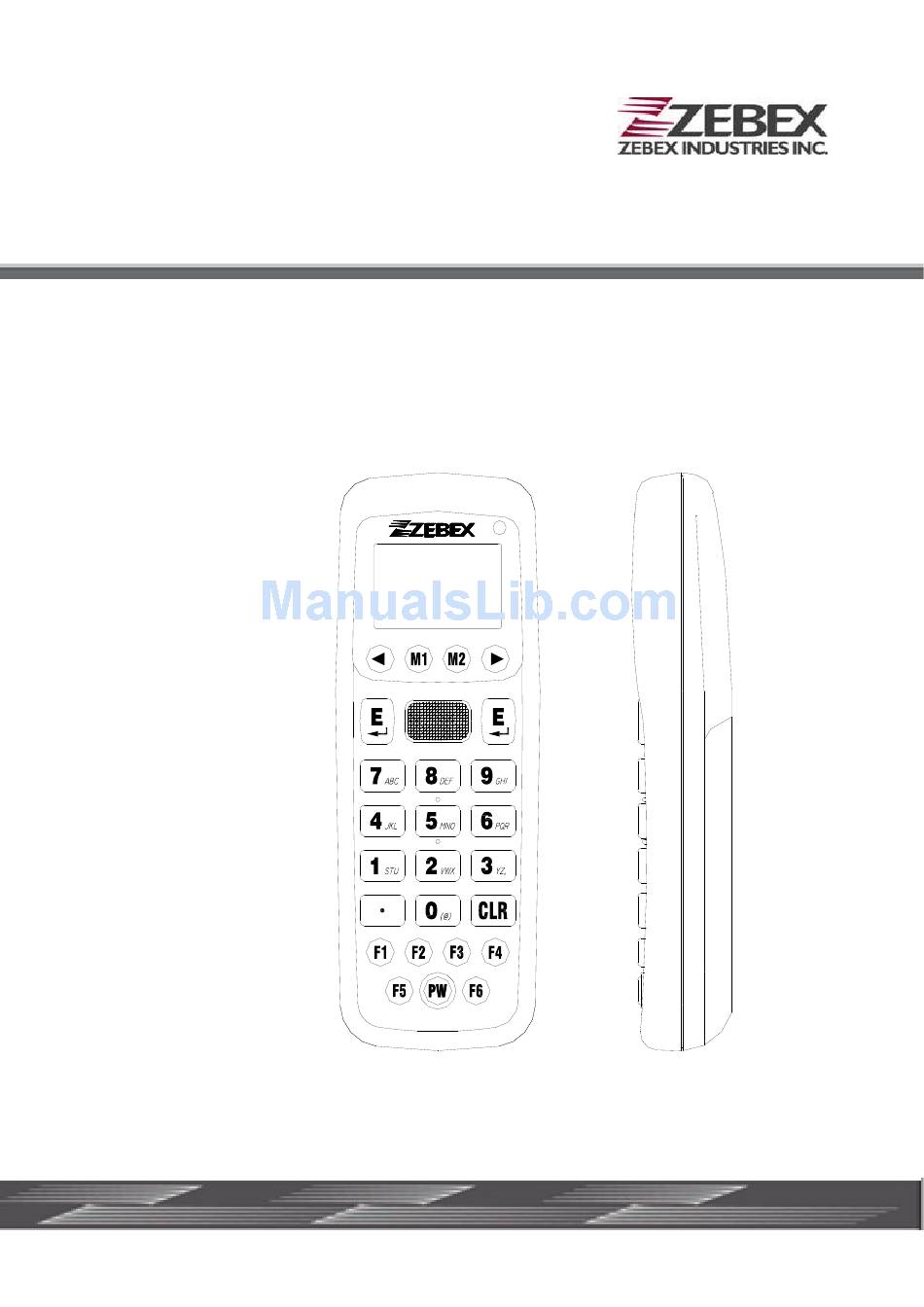

  • Page 1 Portable Data Collector Z-2121 series ( Version 3.01) User’s Manual...

  • Page 2: Editorial Record

    April. 26, 2011 Added BT-HID section V3.1 July 2, 2012 Corrected General Guide picture V4.0 July 20, 2012 Added descriptions to device functions      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 2 / 50...

  • Page 3: Table Of Contents

    Connecting the Z-2121 directly via USB cable..................... 18 ............................19 BOUT RODUCT Features ................................ 19 Prerequisites ..............................21 Skills Required .............................. 21 ..............................22 PECIFICATIONS      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 3 / 50...
  • Page 4 Upload Data Function ......................... 44 Bluetooth Upload (SPP) ......................... 44 Bluetooth Upload (USB) ........................ 44 Delimiter Set Function ........................45 CONNECTING BLUETOOTH TO PC ......................46      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 4 / 50...

  • Page 5: Preface

    ZEBEX INDUSTRIES INC. Preface About This Manual Thank you for your purchase of the ZEBEX Z-2121 Portable Data Collector. ZEBEX Z-2121 product is at the forefront of data collector technology, and this manual will provide the necessary information on the many and varied options available to you.

  • Page 6: Safety Information

    ZEBEX INDUSTRIES INC. ZEBEX Industries Inc. makes no warranty of any kind with regard to this material. Including but not limited to the imply warranties of merchantability and fitness for a particular purpose. ZEBEX Industries Inc. shall not be liable for errors contained herein or for incidental consequential damages in connection with the furnishing, performance or use of this product.

  • Page 7: Safety Operation

    WARNING Disassembly and Modification Never try to disassemble or modify the device in any way. All servicing should be carried out be qualified Zebex personnel or Zebex- approved engineers. Interior Parts and Components Never touch interior high voltage parts or components. Doing so creates the danger of electrical shock.

  • Page 8: Federal Communication Commission (Fcc) Statement

    RF exposure compliance. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 8 / 50...

  • Page 9: Unpacking

    Package Contents Z-2121 series USB Cable Portable Data Terminal (Terminal connect to PC USB port) AC Adapter Battery Pack RS-232 DB9 (F) Cable      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 9 / 50...

  • Page 10: Optional Parts

    Cradle package RS-232 Docking Cradle USB Docking Cradle AC Adapter Purchaseable accessories Main Battery USB Cable RS-232 DB9 (F) Cable AC Adapter      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 10 / 50...

  • Page 11: General Guide

    Scan windows Emits a laser for bar code reading. Battery Main battery Communication port Communication with PC or charge by USB port      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 11 / 50...

  • Page 12: Getting Started

    1-3. Push the top lock to pick up the battery pack. 5-4. Insert the battery as shown. 6-7. Put the battery cover back.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 12 / 50...

  • Page 13: Remove The Battery

    3. Press the battery against the Z-2121 terminal, and lift it up and away from the compartment. 4. Put the cover back.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 13 / 50...

  • Page 14: Charging The Battery

    DB-9 female connector. 3. The DB-9 (female) connector is used for battery charging and/or communication with the PC.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 14 / 50...
  • Page 15 7. The battery should stay on the cradle (either with the terminal or independently) for at least 12 hours before being used the first time or after months of idleness.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 15 / 50...

  • Page 16: Charging The Battery Separately In The Cradle

    Connect the power jack to the cradle and plug AC adapter into the socket. NOTES When charging the battery for the first time, charge for at least 12 hours prior to use.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 16 / 50...

  • Page 17: Pc System Requirements

    The cradle must also be connected via one of your PC’s USB ports. Attach one end of the cable to the USB interface on the cradle and the other to your PC.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 17 / 50...

  • Page 18: Connecting The Z-2121 Directly Via Usb Cable

    You can connect the Z-2121 directly to your PC, without the need for the cradle, using the Mini USB cable, attaching it to the port on the left hand side of the device.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 18 / 50...

  • Page 19: About The Product

    Win Task Gen. is a Windows based utility program with which you can design the procedure for specified tasks and execute designed tasks on the data terminal.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 19 / 50...
  • Page 20 Able to communicate with PC using a widely used RS-232 or USB interface as shown in Fig 6. CRD-21 DB-9 connector & power jack Fig 6      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 20 / 50...

  • Page 21: Prerequisites

    Prerequisites Skills Required The following skills are required by developers aiming to develop application software for the ZEBEX Z-2121 series. ● Good knowledge of one or more of the following: * C language  ...

  • Page 22: Specifications

    0℃~ 50℃ Storage temperature -10℃~ 60℃ Humidity 95% non-condensing Regulatory Safety regulation FCC, CE, CE RF , RoHS, FCC RF , LVD      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 22 / 50...

  • Page 23: Start To Operate The Z-2121

     Press ２ enter into Task Utility function. Press ３ enter into Setup function.   Press ４ enter into Upload function.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 23 / 50...

  • Page 24: Run Task

    Press ２ enter into Format function.  Press ３ enter into Delete Data function. Press ４ enter into Delete Task function.       Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 24 / 50...

  • Page 25: File Status Function

    This gives you a brief look of how many records are there which are stored in the device. Fig 5 In Fig 5 the data record is shown. Press M1 can leave the screen.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 25 / 50...

  • Page 26: Format Function

    In Fig 9 field length is shown. Enter the field length from 1 to 32. After confirmed press Ｅ to enter into Fig 10.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 26 / 50...

  • Page 27: Delete Data Function

    In Fig 15 press M2 to select YES or NO for deleting task downloaded from PC. After confirmed press Ｅ to leave the screen.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 27 / 50...

  • Page 28: Setup Menu

    Press １ enter into Back Light & LCD setting  Press ２ enter into Beep and Vibrator setting  Press ３ enter into Auto Power off setting      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 28 / 50...

  • Page 29: Lcd Contrast Function

    In Fig 19 LCD contrast is shown with the default set to 45. Press to adjust the contrast, after confirmed press Ｅ to leave the screen.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 29 / 50...

  • Page 30: Beep Volume Function

    In Fig 20-1 Vibrator can be turn ON/OFF. Press to set On or Off. After confirmed press Ｅ to leave the screen.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 30 / 50...

  • Page 31: Auto Power Off Function

    Press １ enter into Communication function test.  Press ２ enter into System Timer function test.  Press ３ enter into ID/PW/Data Mode function test.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 31 / 50...

  • Page 32: Communication Function

    In Fig 23-1, you can adjust communication profile for the device. Press to adjust RS232, USB, BT. After confirmed press Ｅ to leave the screen.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 32 / 50...
  • Page 33 In Fig 26 data bit setup is shown. After confirmed press Ｅ to enter into Fig 27. In Fig 27 you can setup stop data bit, after confirmed press Ｅ then press M1 to exit.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 33 / 50...
  • Page 34 In Fig 27.2, you can adjust the SPP Bluetooth paring Mode. Press to adjust Master Mode or Slave Mode. After confirmed press Ｅ to continue.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 34 / 50...
  • Page 35 As for pairing PIN, use your custom PIN or accept the default 12345678. Fig 27-6 In Fig 27-6, Press Ｅ to confirm and start the pairing process.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 35 / 50...

  • Page 36: Online Upload Function

    In, Fig 30-1, Z-2121 is trying to connect to PC using SPP profile in Master Mode. After confirmed press Ｅ to continue.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 36 / 50...
  • Page 37 / computer and turn on the Bluetooth to search. After confirmed press Ｅ to continue, or press Clr to exit the process.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 37 / 50...

  • Page 38: Timeout Value Function

    In Fig 31 you can set up the Timoeout Value. Press to adjust 10 Times, 20 Times, 50 Times, 100 Times, or Normal. After confirmed press Ｅ to exit.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 38 / 50...

  • Page 39: System Timer Function

    Press １ enter into Device ID function test.   Press ２ enter into Password function test.  Press ３ enter into Date Mode function test.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 39 / 50...

  • Page 40: Device Id Function

    In Fig 37 is shown to set up password, after setup press Ｅ to leave the screen, If there is no setting will enter into Fig 38 automatically, please press Ｅ to leave the screen.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 40 / 50...

  • Page 41: Date Mode Function

    Press １ enter into Basic Set function test.  Press ２ enter into Advance Set function test.  Press ３ enter into Pre/Postamble function test.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 41 / 50...

  • Page 42: Basic Set Function

    In Fig 42 is shown for Advance Set function, can adjust EAN to ISBN/ISSN, EAN-13 digits, EAN-8 digits, IATA code or Codabare ST/SP, after confirmed press Ｅ to leave the screen.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 42 / 50...

  • Page 43: Pre/Postamble Function

    Setting >> Communication >> Comm. Paramter. Fig 46  Press １ enter into Upload Data function.  Press ２ enter into Delimiter Set function.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 43 / 50...

  • Page 44: Upload Data Function

    In Fig 49 upload screen is shown. Press Ｅ to begin uploading data. Bluetooth Upload (USB) Fig. 49-1 In Fig 49-1 upload screen is shown. Press Ｅ to begin uploading data.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 44 / 50...

  • Page 45: Delimiter Set Function

    In Fig 52 Upload Header setup is shown. Press to adjust Off or On. After confirmed press Ｅ to leave the screen.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 45 / 50...

  • Page 46: Connecting Bluetooth To Pc

    In Fig 1, a list of Bluetooth devices are shown on the screen. Z-2121 will appear as “ZBBT”. Double click “ZBBT“ to make the connection. Fig 2 appears prompting for password. Fig 2      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 46 / 50...

  • Page 47: Firmware Update

    Firmware update Please download and install the latest firmware and firmware update tool from the ZEBEX website before you begin. Press Ｆ1＋Ｆ2＋PW when the device is off to enable the Bootloader function as shown in Fig 1.
  • Page 48 The reset screen appears as shown in Fig 3. Press M2 to select Y and press Ｅ to rest the device. Fig 3      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 48 / 50...
  • Page 49 ZEBEX INDUSTRIES INC. << MEMO >>           Subject Subject Version Version Date Date Page Page Z-2121 series User’s Manual Z-2121 series User’s Manual 4.00 4.00 2012/7/20 2012/7/20 49 / 50 49 / 50...
  • Page 50 ZEBEX INDUSTRIES INC.      Subject Version Date Page Z-2121 series User’s Manual 4.00 2012/7/20 50 / 50...
